Hummer H3. Manual - part 28
2008 ENGINE

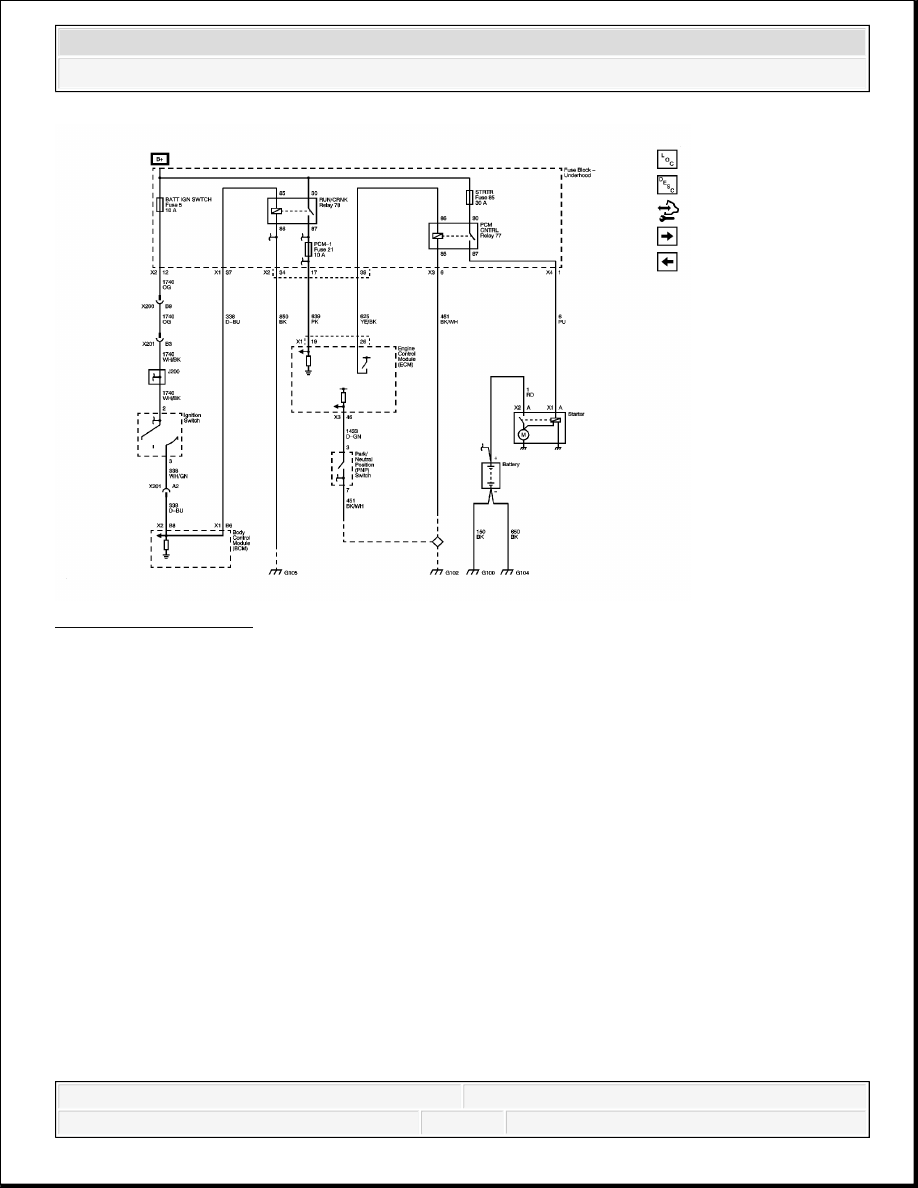

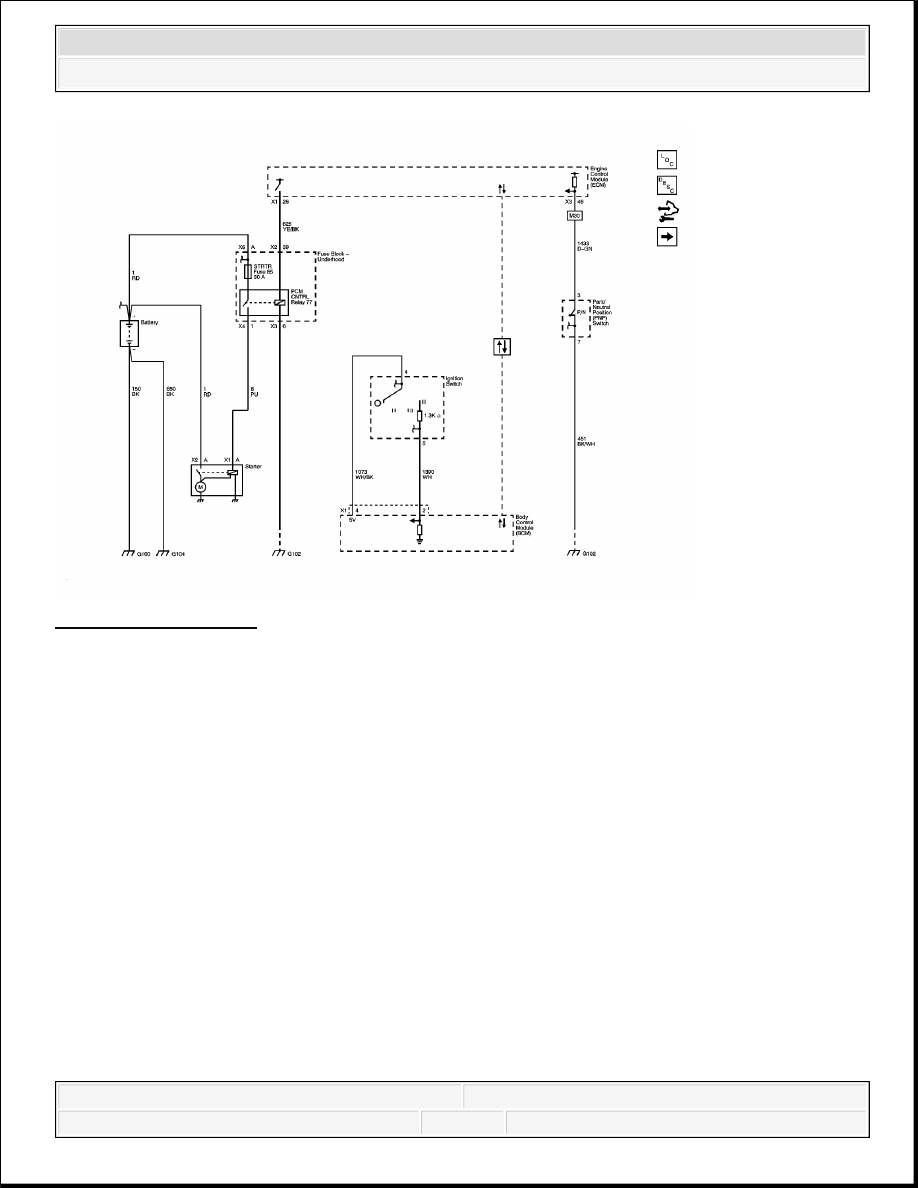

Engine Electrical - H3
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Application
Specification
Metric
English
Air Conditioning Compressor Bolt
50 N.m
37 lb ft
Battery Retainer Nut
15 N.m
11 lb ft
Engine Wiring Harness Bracket Bolt (LH8)
40 N.m
29.5 lb ft
Engine Wiring Harness/Positive Battery Cable to
Generator Nut (LH8)
9 N.m
80 lb in
Engine Wiring Harness/Positive Battery Cable to
Starter Nut (LH8)
9 N.m
80 lb in
Generator Bolt
50 N.m
37 lb ft
Generator Bracket Bolt (LH8)
50 N.m
37 lb ft
Generator Output BAT Terminal Nut (LLR)
20 N.m
15 lb ft
Generator Positive Cable to Underhood Fuse Block
Nut (LLR)
10 N.m
89 lb in
Negative Battery Cable Ground to Battery Tray Bolt
(LLR)
25 N.m
18 lb ft
Negative Battery Cable Ground to Engine Block
Bolt (LLR)
9 N.m
80 lb in
Negative Battery Cable Integral Bolt to Battery
Tray (LH8)
35 N.m
26 lb ft
Negative Battery Cable Nut
40 N.m
29.5 lb ft
Negative Battery Cable to Engine Block Bolt (LH8)
9 N.m
80 lb in
Positive Battery Cable Nut
9 N.m
80 lb in
Positive Battery Cable to Starter Terminal Nut
(LLR)
9 N.m
80 lb in
Positive Battery Cable to Underhood Fuse Block
Nut (LLR)
10 N.m
89 lb in
Starter Motor Bolt/Nut
50 N.m
37 lb ft
Starter Solenoid S Terminal Nut (LLR)
3.5 N.m
31 lb in
