Hummer H2. Manual - part 356

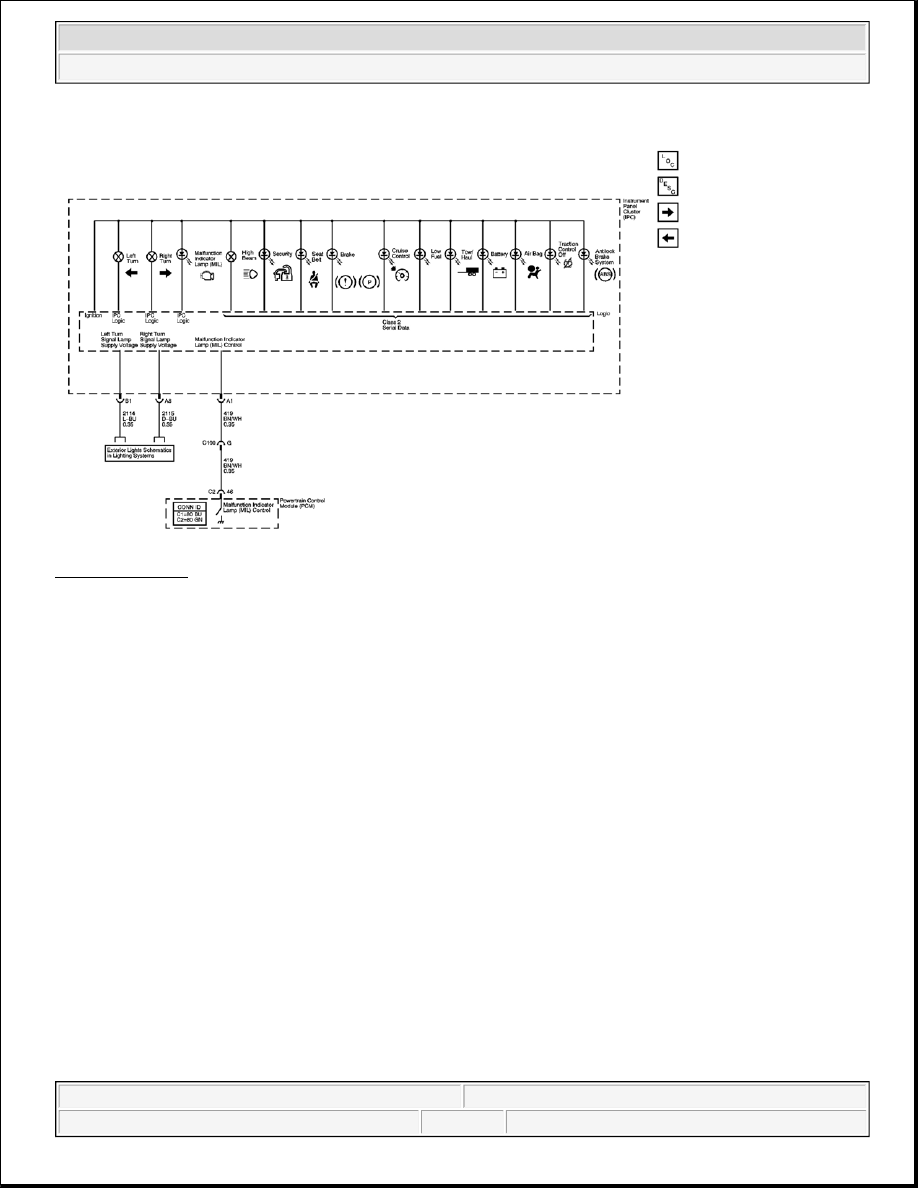

Fig. 2: Indicators
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



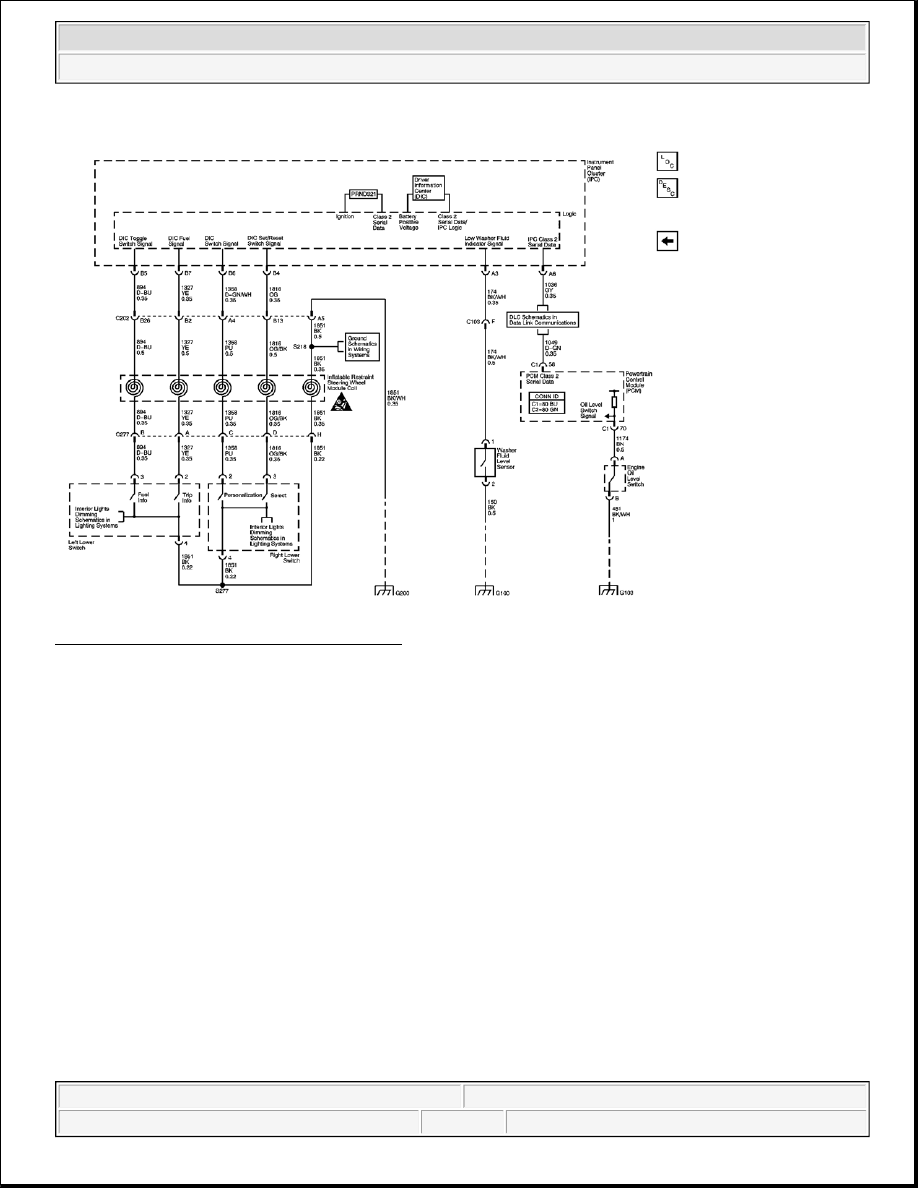

Fig. 3: Displays and Personalization Controls
Courtesy of GENERAL MOTORS CORP.

AUDIBLE WARNINGS SCHEMATICS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



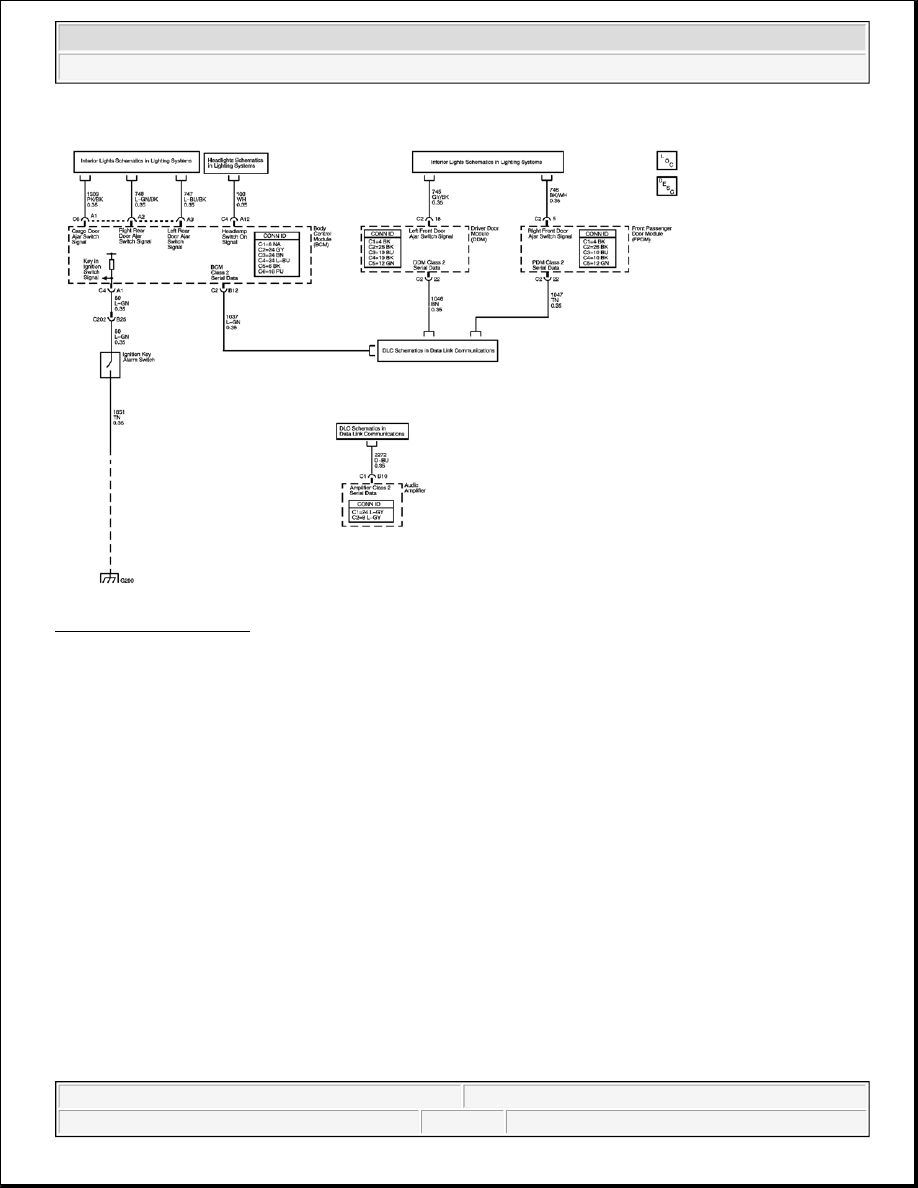

Fig. 4: Audible Warnings
Courtesy of GENERAL MOTORS CORP.

COMPONENT LOCATOR

INSTRUMENT PANEL, GAUGES, AND CONSOLE COMPONENT VIEWS



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2



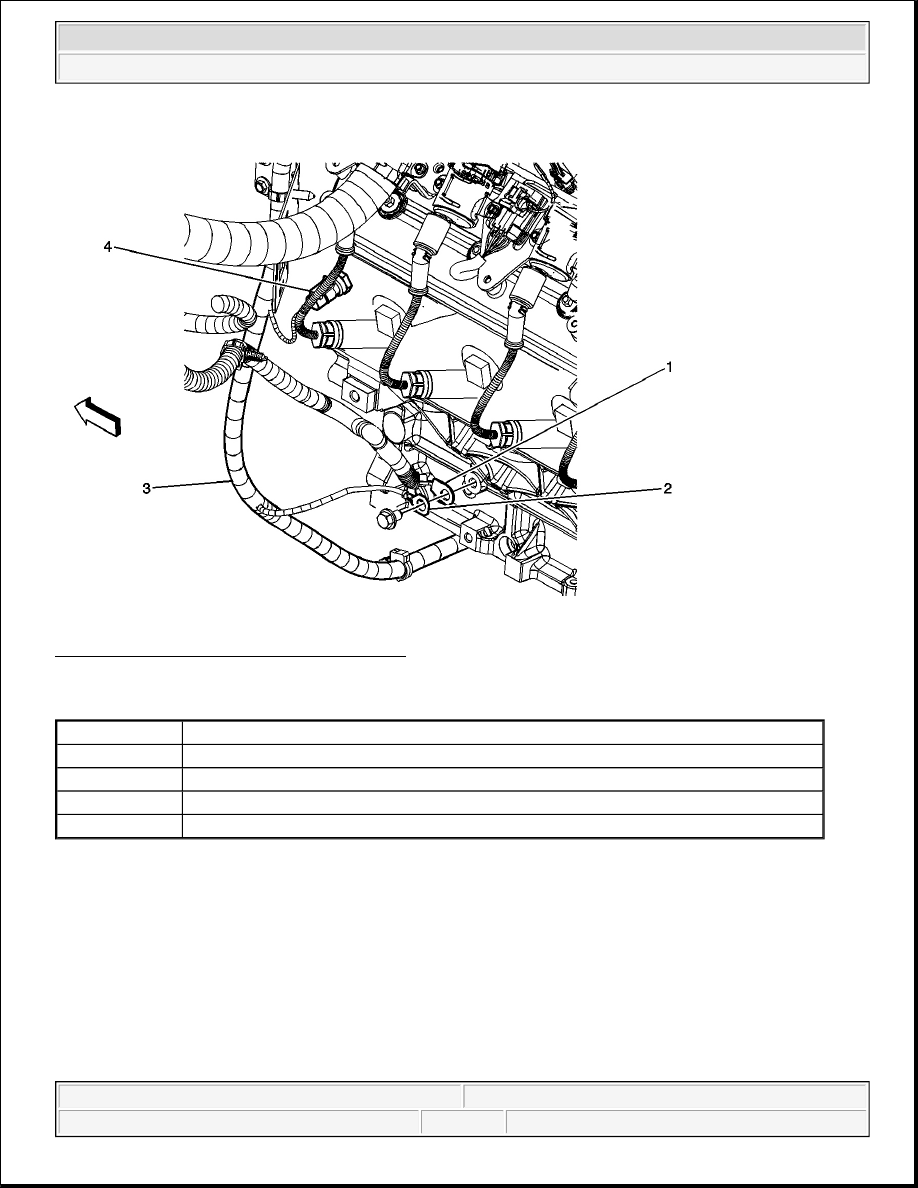

Fig. 5: Left Side Of Engine Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

Callout

Component Name

1

G105 - Negative Battery Cable

2

G105 - Engine Harness Ground

3

Engine Harness

4

Engine Coolant Temperature (ECT) Sensor



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Instrument Panel, Gauges, and Console - Hummer H2
