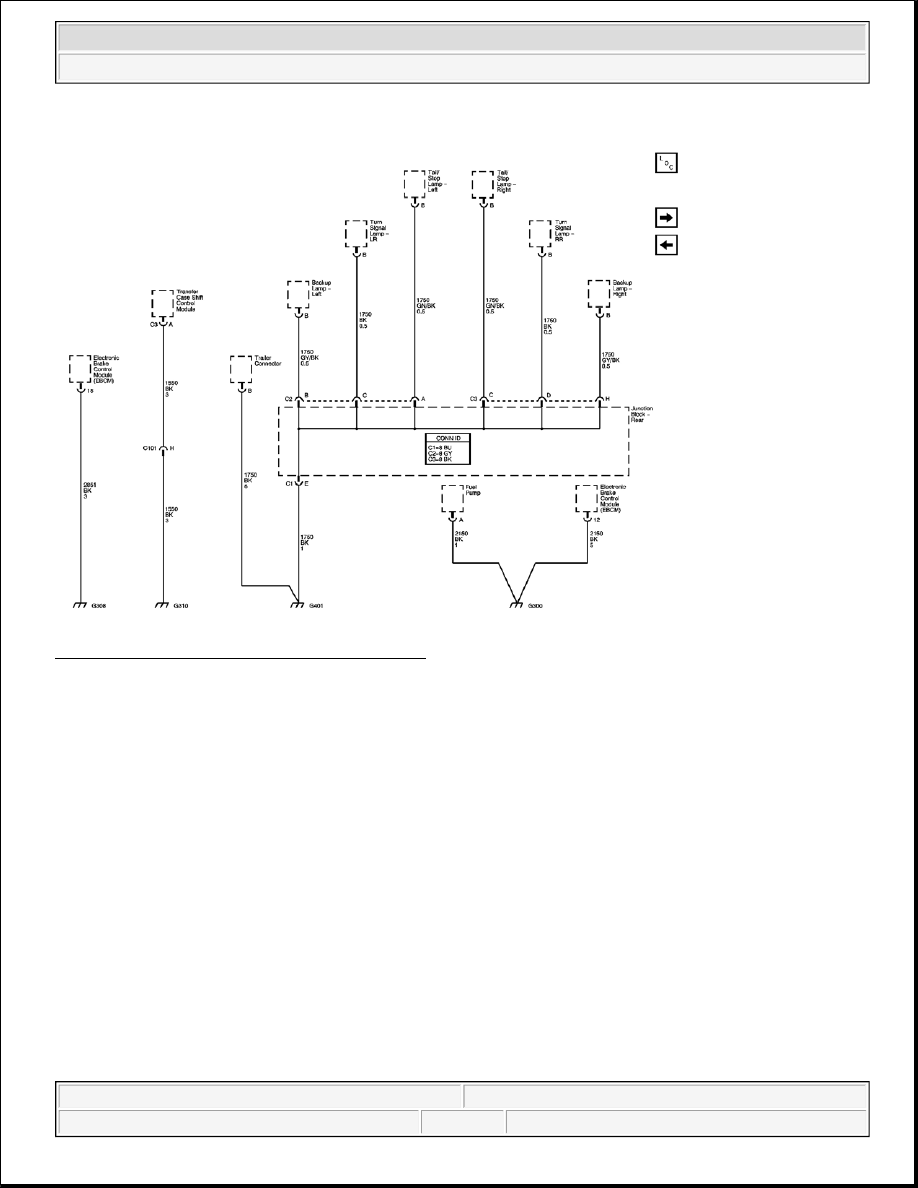

Fig. 61: CKT 1050: G203, S302, S303, S351, and S215 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

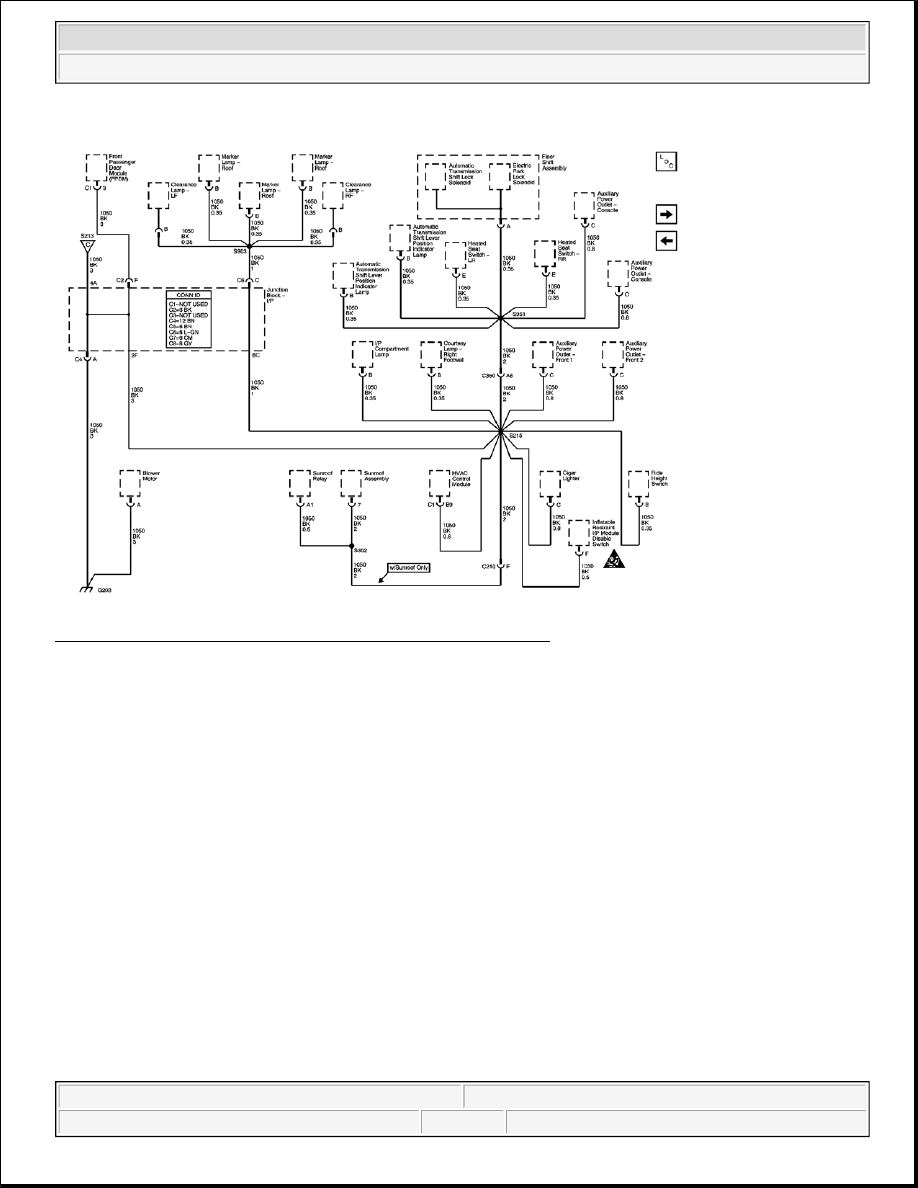

Fig. 62: G302, G304, and G306 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

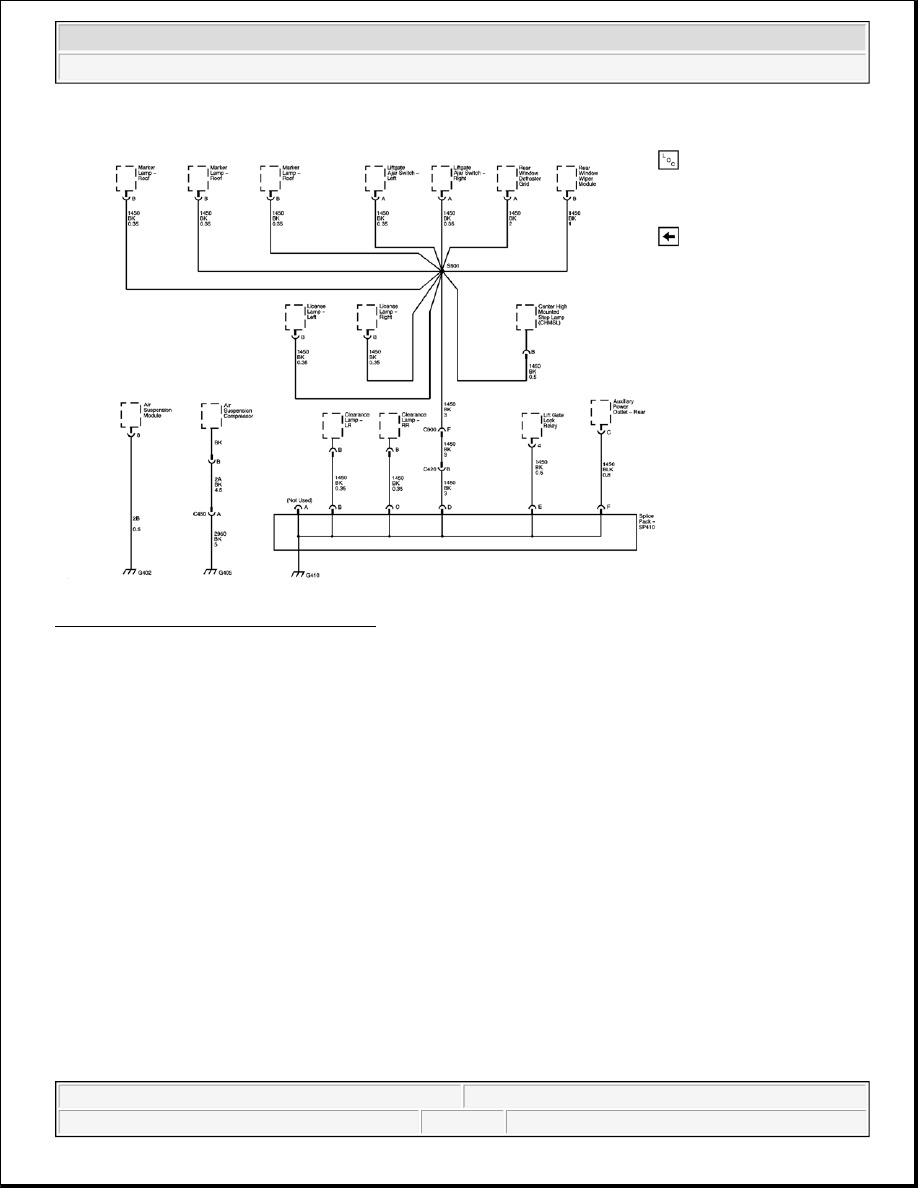

Fig. 63: G308, G310, G401, and G300 Schematic
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Wiring Systems - Hummer H2

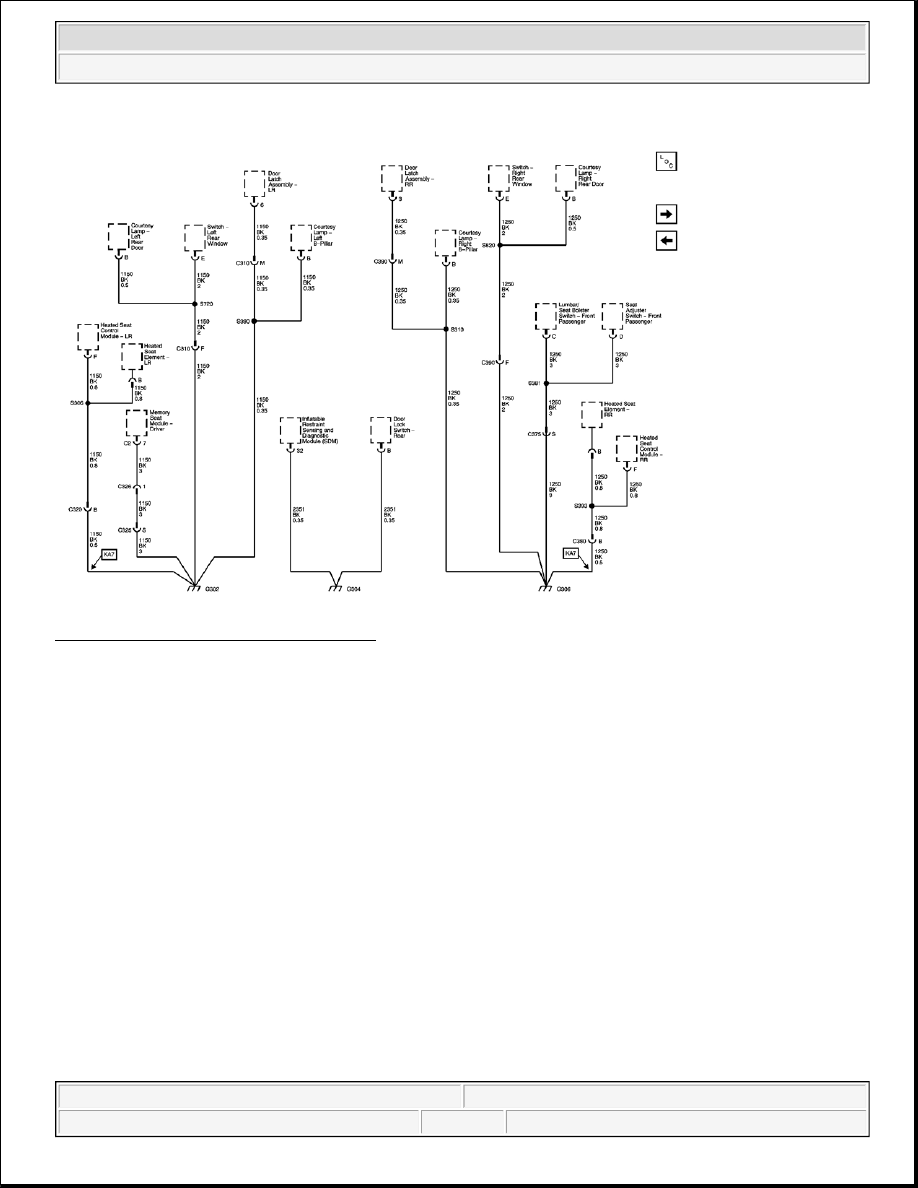

Fig. 64: G402, G405, and G410 Schematic
Courtesy of GENERAL MOTORS CORP.

HARNESS ROUTING COMPONENT VIEWS
