Hummer H2. Manual - part 1015

Fig. 52: Engine Compartment & Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

Fig. 53: Right Rear, Left Rear & Front Of Engine
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

Fig. 54: Frame
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2

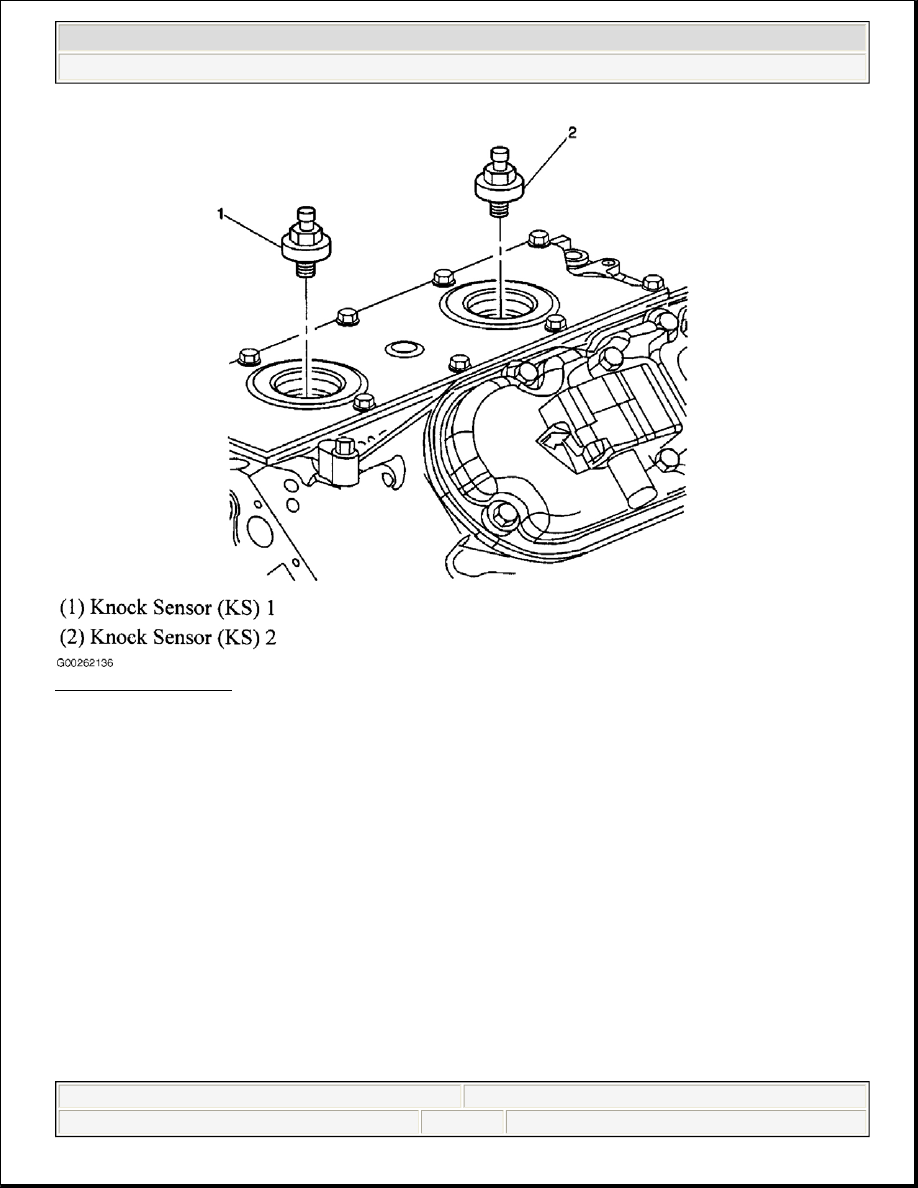

Fig. 55: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

2004 Hummer H2

2004 GENERAL MOTORS Hummer H2
