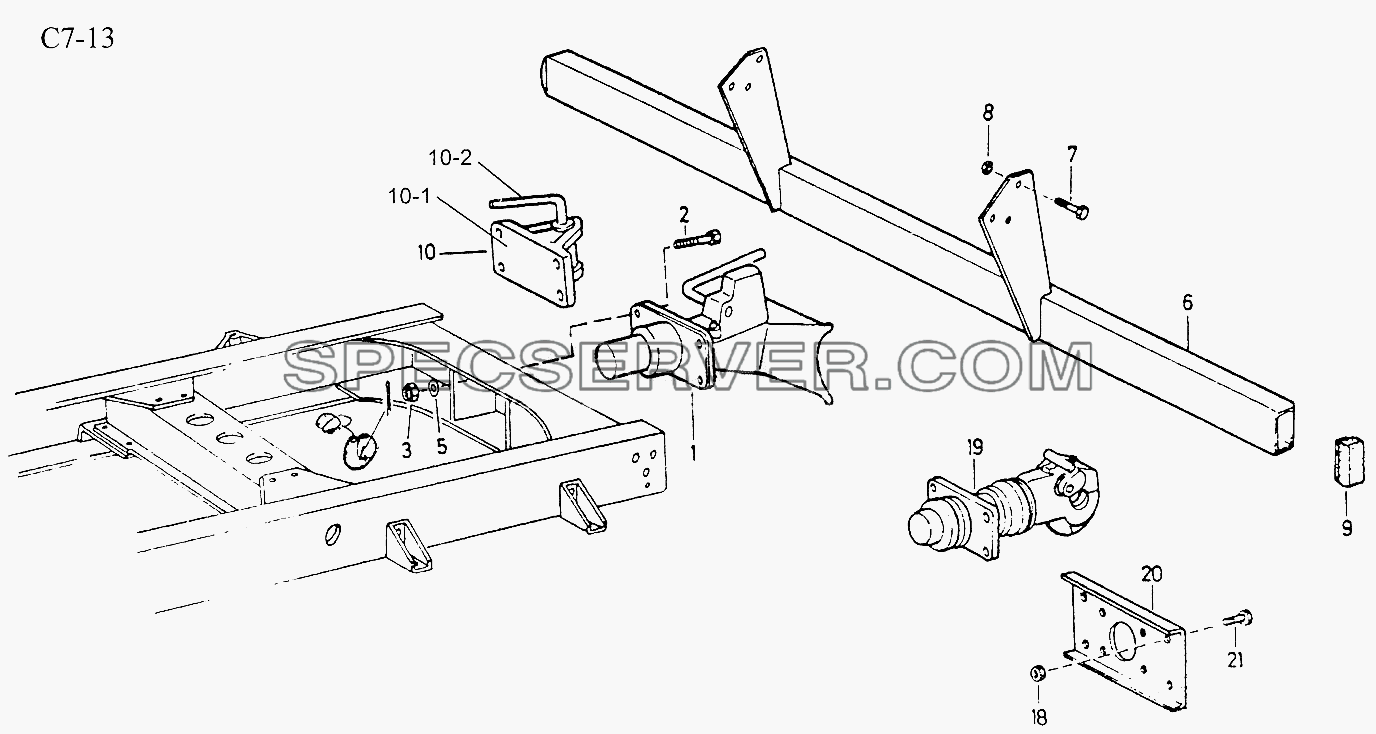

Запчасти: BOTTOM PROTECTION, TRAILER COUPLING (C7-13) для Sinotruk 8x4 Tipper (371)

BOTTOM PROTECTION, TRAILER COUPLING (C7-13) для Sinotruk 8x4 Tipper (371) (список запасных частей)

BOTTOM PROTECTION, TRAILER COUPLING (C7-13) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 190003937830 [Washer] Washer
- 199400930003 [Sleeve] Sleeve
- WG9000930047-1 [Towing seat] Towing seat
- WG9000930047-2 [Towing hitch] Towing hitch
1 199000930113 [Trailer coupling] Trailer coupling
2 Q150B1660 [Screw] Screw
3 Q33216 [Nut] Nut
6 AZ9124930015 [Bumper rear] Bumper rear
6 AZ9725930104 [Bumper rear] Bumper rear
7 Q150B1655 [Screw] Screw
8 Q33216 [Nut] Nut
9 AZ9725930103 [Cover] Cover
9 WG9100930150 [Cover] Cover
10 WG9000930047 [Trailer coupling] Trailer coupling
19 199114930110 [Trailer coupling] Trailer coupling

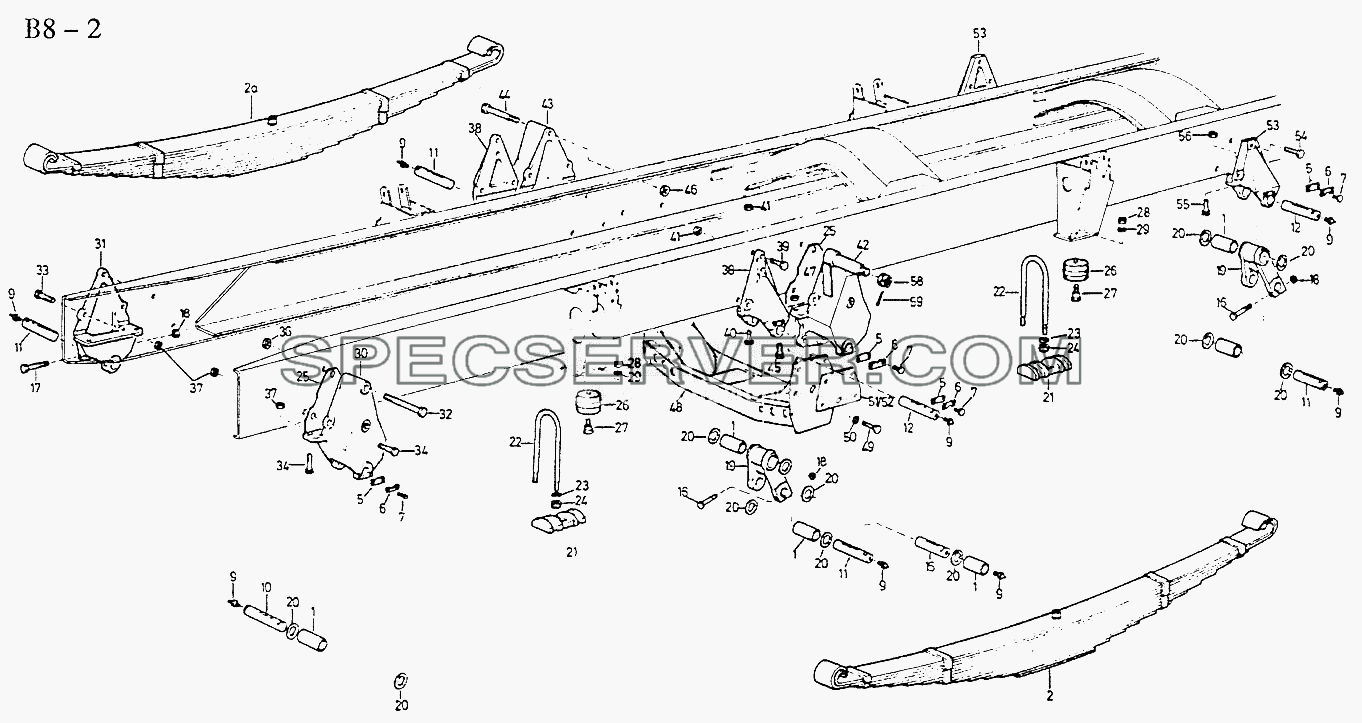

Запчасти: 8x4 FRONT SPRING (B8-2) для Sinotruk 8x4 Tipper (371)

8x4 FRONT SPRING (B8-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

8x4 FRONT SPRING (B8-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 190003963127 [Grease nipple] Grease nipple
- 1990 520003 [Spring clip] Spring clip
- WG9232520026 [Front spring C, right] Front spring C, right
- WG9731520012 [Front spring C, right] Front spring C, right
1 WG9000520078 [Bush] Bush
2 WG9232520025 [Front spring C, left] Front spring C, left
2 WG9731520011 [Front spring C, left] Front spring C, left
3 199000520006 [Guide bolt] Guide bolt
5 147000520019 [Latch] Latch
6 147000520020 [Security sheet] Security sheet
7 Q150B0820 [Screw] Screw
9 190003963115 [Grease nipple] Grease nipple
10 189000520015 [Spring bolt] Spring bolt
11 WG9100520065 [Spring bolt] Spring bolt
12 199100520080 [Spring bolt] Spring bolt
15 179000520040 [Spring bolt] Spring bolt
16 Q151C1270 [Screw] Screw
17 Q151C1275 [Screw] Screw
18 190003888457 [Lock nut] Lock nut
19 WG9100520034 [Spring shackle front C] Spring shackle front C
20 1680 520050 [Washer] Washer
21 1880 520002 [Plate] Plate
22 199000520086 [Spring clip] Spring clip
23 1680 520043 [Washer] Washer
24 190003888626 [Lock nut] Lock nut
25 199018520001 [Plate] Plate
26 1880 520017 [Spring stop] Spring stop
27 1880 520019 [Connect piece] Connect piece
28 Q340B10 [Nut] Nut
29 Q40310 [Spring washer] Spring washer
30 199000520058 [Spring bracket front] Spring bracket front
31 199100520010 [Spring bracket front] Spring bracket front
32 Q151B1610TF2 [Screw] Screw
33 Q151B1460 [Screw] Screw
34 Q151B1455 [Screw] Screw
35 Q151B1445 [Screw] Screw
36 190003888459 [Lock nut] Lock nut
37 190003888458 [Lock nut] Lock nut
38 179000520050 [Spring bracket rear] Spring bracket rear
39 Q151B1450 [Screw] Screw
40 Q151B1445 [Screw] Screw
41 190003888458 [Lock nut] Lock nut
42 199118520011 [Spring bracket left C] Spring bracket left C
43 199118520010 [Spring bracket fronr] Spring bracket fronr
44 Q151B16140 [Screw] Screw
45 Q151B1445 [Screw] Screw
46 190003888459 [Lock nut] Lock nut
47 190003888458 [Lock nut] Lock nut
48 199118520001 [Bracket C] Bracket C
49 Q151B1440 [Screw] Screw
50 Q41214 [Spring washer] Spring washer
53 199018520006 [Spring bracket rear] Spring bracket rear
54 Q151B1450 [Screw] Screw
55 Q151B1445 [Screw] Screw
56 190003888458 [Lock nut] Lock nut
Запчасти: 6x4, 6x6, 8x4 SWIVEL SPRING AND SUSPENSION (B8-4) для Sinotruk 8x4 Tipper (371)

6x4, 6x6, 8x4 SWIVEL SPRING AND SUSPENSION (B8-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 6x6, 8x4 SWIVEL SPRING AND SUSPENSION (B8-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199014520193 [Space washer] Space washer
- 199014520194 [Space washer] Space washer
- 199014520204 [Diff sheet] Diff sheet
- 199014520293 [Bracket right] Bracket right
- 199014520303 [Space washer] Space washer
- 199014520306 [Space washer] Space washer
- 99114520059 [Space washer] Space washer
- AZ9100520008 [Space washer] Space washer
- AZ9114521000 [Ballance shaft C with hosing (inc.1~ 20,55)] Ballance shaft C with hosing (inc.1~ 20,55)
- AZ9114521001 [Ballance shaft C with hosing (inc.1~ 20,55)] Ballance shaft C with hosing (inc.1~ 20,55)
- AZ9232520009 [Ballance shaft C with hosing (inc.1~ 20,55)] Ballance shaft C with hosing (inc.1~ 20,55)
- AZ9638520002 [Bracket right,front] Bracket right,front
- AZ9638520003 [Bracket left,rear] Bracket left,rear
- AZ9638520004 [Bracket right,rear] Bracket right,rear
- AZ9725520002 [Bracket right,front] Bracket right,front
- AZ9725520003 [Bracket left,rear] Bracket left,rear
- AZ9725520004 [Bracket right,rear] Bracket right,rear
- WG9114520041 [Screw] Screw
1 199114520168 [Ballance shaft C] Ballance shaft C
1 AZ9232520009 [Ballance shaft C] Ballance shaft C
2 199014520222 [Connect plate] Connect plate
4 WG9014520227 [Stud] Stud
5 190003871353 [Nut] Nut
6 199114520035 [Balance shaft box] Balance shaft box
6 199114520233 [Balance shaft box] Balance shaft box
7 199114520136 [Bearing sealing cover] Bearing sealing cover
8 1614 130062 [Sealing ring] Sealing ring
9 AZ9114520223 [Shaft sealing ring] Shaft sealing ring
10 AZ9114520222 [Ring] Ring
11 199014520191 [Bush] Bush
12 199014520192 [Space washer] Space washer
13 199014520265 [Stop washer] Stop washer
14 Q171B1655TF2 [Screw with hole] Screw with hole
15 190003962021 [Screw] Screw
16 Q150B0810 [Screw] Screw
17 Q72308TSF [Sealing washer] Sealing washer
18 199014520311 [Box cover] Box cover
19 Q150B0820 [Screw] Screw
20 Q40308 [Spring washer] Spring washer
22 199014520124 [Spring clip] Spring clip
22 199114520234 [Spring clip] Spring clip
22 AZ9232520019 [Spring clip] Spring clip
22 AZ9725520053 [Spring clip] Spring clip
23 1880 340022 [Washer] Washer
24 190003888749 [Lock nut] Lock nut
25 199000520021 [Spring clip plate] Spring clip plate
25 AZ9638520005 [Spring clip plate] Spring clip plate
26 199000520006 [Guide bolt] Guide bolt
27 AZ9638520001 [Bracket left,front] Bracket left,front
27 AZ9725520001 [Bracket left,front] Bracket left,front
28 Q151B22230 [Screw] Screw
30 199114520038 [Lower brace rod C] Lower brace rod C
30 WG9114521174 [Lower brace rod C] Lower brace rod C
31 Q151B2090 [Screw] Screw
32 190003803974 [Screw] Screw
33 199114520169 [Up brace rod C] Up brace rod C
33 WG9114521175 [Up brace rod C] Up brace rod C
34 Q151B20200 [Screw] Screw
35 190003888467 [Lock nut] Lock nut
37 AZ9114520091 [Stop C] Stop C
37 AZ9323520010 [Stop C] Stop C
38 Q340B12 [Nut] Nut
39 Q40312 [Spring washer] Spring washer
40 199114520293 [Check chain] Check chain
41 Q5280840 [Pin] Pin
42 1188 270078 [Washer] Washer
43 Q5280860 [Pin] Pin
45 199014520224 [Diff sheet] Diff sheet
45 WG9114520147 [Diff sheet] Diff sheet
46 199014520225 [Diff sheet] Diff sheet
47 Q151C1260 [Screw] Screw
48 190003888457 [Lock nut] Lock nut
49 Q151B1455 [Screw] Screw
50 Q40314 [Spring washer] Spring washer
51 AZ9114520098 [Stop bracket] Stop bracket
51 AZ9232520003 [Stop bracket] Stop bracket
54 199014520019 [Bolt] Bolt
55 WG9114520042 [Ball bearing] Ball bearing
57 199014520265 [Lock washer] Lock washer
59 WG9114520232 [Self-stop rear spring C] Self-stop rear spring C
59 WG9114520233 [Rear spring C] Rear spring C
59 WG9232520008 [Self-stop rear spring C] Self-stop rear spring C
59 WG9232520027 [Rear spring C (option)] Rear spring C (option)
59 WG9232520028 [Self-stop rear spring C] Self-stop rear spring C
59 WG9638520008 [Self-stop rear spring C] Self-stop rear spring C
61 199014520292 [Bracket left] Bracket left
62 199014520256 [Pin] Pin
65 1990003901905 [Pin] Pin
66 AZ9232520002 [Stop bracket] Stop bracket
67 Q40020 [Washer] Washer
69 Q40312 [Spring washer] Spring washer
80 199014520294 [Spring clip plate] Spring clip plate
82 190003803985 [Screw] Screw

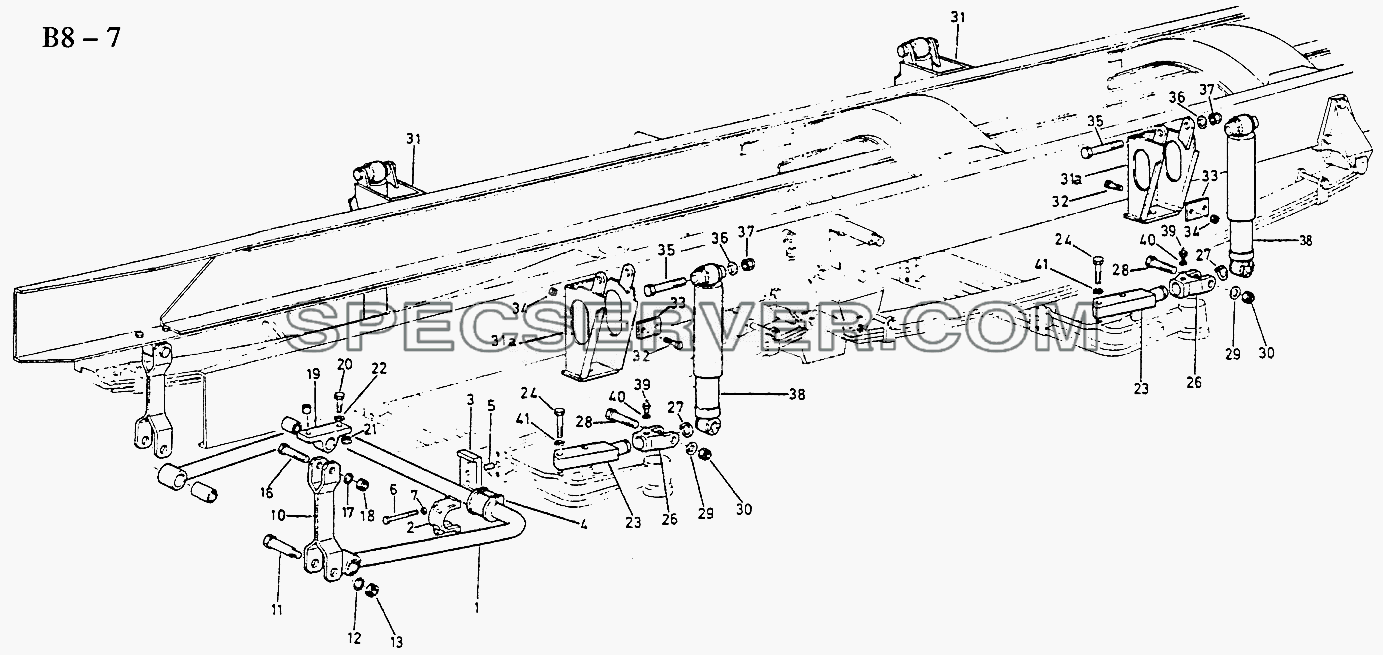

8x4 STABLIZER, SHOCK ABSORBER FRONT (B8-7) для Sinotruk 8x4 Tipper (371) (список запасных частей)

8x4 STABLIZER, SHOCK ABSORBER FRONT (B8-7) для Sinotruk 8x4 Tipper (371) (список запасных частей)

8x4 STABLIZER, SHOCK ABSORBER FRONT (B8-7) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199114680049 [Shock absorber bracket C] Shock absorber bracket C
1 AZ9100681048 [Stabilizer] Stabilizer
2 1880 680024 [Connect plate] Connect plate
3 WG880680027 [Plate] Plate
4 199100680068 [Rubber bearing] Rubber bearing
5 Q5211424 [Pin] Pin
6 Q150B1095TF2Q [Screw] Screw
7 Q40310 [Spring washer] Spring washer
10 199100680055 [Plate] Plate
11 199100680069 [Screw] Screw
12 Q40214 [Washer] Washer
13 190003888458 [Lock nut] Lock nut
16 199100680057 [Screw] Screw
17 Q40016 [Washer] Washer
18 190003888459 [Lock nut] Lock nut
19 199100680047 [Bracket C] Bracket C
20 Q151C1250 [Screw] Screw
21 190003888457 [Lock nut] Lock nut
23 199100680065 [Bracket] Bracket
24 Q151B1660 [Screw] Screw
26 199012680025 [Joint fork] Joint fork
27 190003933242 [Circlip] Circlip
28 199012680009 [Screw] Screw
30 190003888459 [Lock nut] Lock nut
31 WG9100680020 [Shock absorber bracket C] Shock absorber bracket C
32 Q151C1240 [Screw] Screw
33 199100680021 [Connect sheet] Connect sheet
34 190003888457 [Lock nut] Lock nut
35 199100580036 [Screw] Screw
37 190003888459 [Lock nut] Lock nut
38 WG9111680004 [Shock absorber] Shock absorber
39 190003963112 [Grease nipple] Grease nipple
41 Q40316 [Sprig washer] Sprig washer

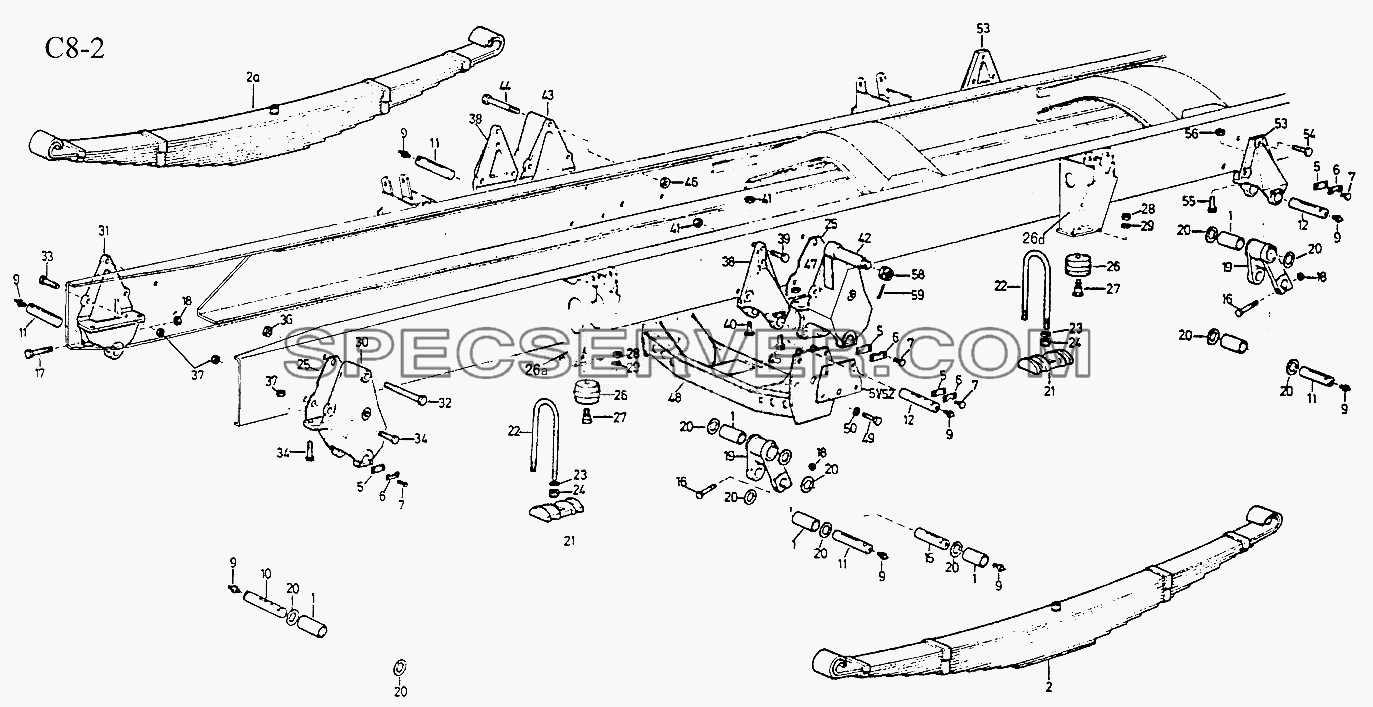

8x4 FRONT SPRING (C8-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

8x4 FRONT SPRING (C8-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

8x4 FRONT SPRING (C8-2) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 190003963127 [Grease nipple] Grease nipple
- 1990 52 0003 [Spring clip] Spring clip
- AZ9731520005 [Bracket] Bracket
- AZ9731520005 [Bracket] Bracket
- AZ9731520007 [Bracket] Bracket
- AZ9731520010 [Washer] Washer
- AZ9731520010 [Washer] Washer
- AZ9731520034 [Bracket] Bracket
- Q150B12105 [Screw] Screw
- Q150B1230 [Screw] Screw
- Q150B1240 [Screw] Screw
- Q151B14120 [Screw] Screw
- Q33212 [Nut] Nut
- WG9731520012 [Front spring C,right] Front spring C,right
1 WG9000520078 [Bush] Bush
2 WG9731520011 [Front spring C,left] Front spring C,left
3 199000520006 [Guide bolt] Guide bolt
5 147000520019 [Latch] Latch
6 147000520020 [Security sheet] Security sheet
7 Q150B0820 [Screw] Screw
9 190003963115 [Grease nipple] Grease nipple
10 189000520015 [Spring bolt] Spring bolt
11 WG9100520065 [Spring bolt] Spring bolt
12 199100520080 [Spring bolt] Spring bolt
15 179000520040 [Spring bolt] Spring bolt
16 Q151C1270 [Screw] Screw
17 Q151C1275 [Screw] Screw
18 190003888457 [Locknut] Locknut
19 WG9100520034 [Spring shackle front C] Spring shackle front C
20 1680 51 0050 [Washer] Washer
21 WG80 52 0002 [Plate] Plate
22 199000520086 [Spring clip] Spring clip
23 1680 52 0043 [Washer] Washer
24 190003888626 [Locknut] Locknut
26 WG9232520010 [Spring stop] Spring stop
30 AZ9719520005 [Spring bracket front] Spring bracket front
32 Q151B1665 [Screw] Screw
33 Q151B1650 [Screw] Screw
36 190003888459 [Lock nut] Lock nut
38 179000520050 [Spring bracket rear] Spring bracket rear
39 Q151B1460 [Screw] Screw
40 Q151B1455 [Screw] Screw
41 190003888458 [Locknut] Locknut
42 AZ9731520024 [Spring bracket left] Spring bracket left
43 AZ9731520021 [Spring bracket right] Spring bracket right
44 Q151B16140 [Screw] Screw
45 Q151B1650 [Screw] Screw
46 190003888459 [Lock nut] Lock nut
47 190003888458 [Lock nut] Lock nut
48 AZ9731510020 [Bracket C] Bracket C
49 Q151B1440 [Screw] Screw
50 Q41214 [Toothed washer] Toothed washer
53 AZ9731520004 [Spring bracket rear] Spring bracket rear
54 Q151B1460 [Screw] Screw
55 Q151B1455 [Screw] Screw
56 190003888458 [Lock nut] Lock nut
6x4, 8x4 SWIVEL SPRING AND SUSPENSION (C8-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 8x4 SWIVEL SPRING AND SUSPENSION (C8-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

6x4, 8x4 SWIVEL SPRING AND SUSPENSION (C8-4) для Sinotruk 8x4 Tipper (371) (список запасных частей)

Таблица запасных частей











№ Номер детали Наименование запчасти
- 199014520188 [Retaining plate of bearing] Retaining plate of bearing
- 199014520193 [Space washer] Space washer
- 199014520194 [Space washer] Space washer
- 199014520204 [Dift.sheet] Dift.sheet
- 199014520293 [Bracket right] Bracket right
- 199014520303 [Space washer] Space washer
- 199014520306 [Space washer] Space washer
- 99114520059 [Space washer] Space washer
- AZ9100520008 [Space washer] Space washer
- AZ9638520002 [Bracket right, frowt] Bracket right, frowt
- AZ9638520003 [Bracket left, rear] Bracket left, rear
- AZ9638520004 [Bracket right, rear] Bracket right, rear
- AZ9725520002 [Bracket right, front] Bracket right, front
- AZ9725520003 [Bracket left, rear] Bracket left, rear
- AZ9725520004 [Bracket right, rear] Bracket right, rear
- AZ9725520012 [Bracket right, front] Bracket right, front
- AZ9725520017 [Bracket right, front] Bracket right, front
- AZ9725520018 [Bracket left, rear] Bracket left, rear
- AZ9725520019 [Bracket right, rear] Bracket right, rear
- AZ9725520022 [Balance shaft C with housing (inc.1-20,55)] Balance shaft C with housing (inc.1-20,55)
- AZ9725520058 [Bracket left, rear] Bracket left, rear
- AZ9725520059 [Bracket right, rear] Bracket right, rear
- AZ9725520100 [Balance shaft C with housing (inc.1-20,55)] Balance shaft C with housing (inc.1-20,55)
- AZ9725520110 [Balance shaft C with housing (inc.1-20,55)] Balance shaft C with housing (inc.1-20,55)
- Q150B1035 [Screw] Screw
- Q150B1460 [Screw] Screw
- Q340B14 [Nut] Nut
- Q40314 [Spring washer] Spring washer
- WG9114520041 [Screw] Screw
1 AZ9232520004 [Balance shaft] Balance shaft
3 Q5211645 [Pin] Pin
4 WG9014520227 [Stud] Stud
5 190003871353 [Nut] Nut
6 199114520035 [Balance shaft housing] Balance shaft housing
6 199114520233 [Balance shaft housing] Balance shaft housing
7 199114520136 [Bearing sealing cover] Bearing sealing cover
8 1614130062 [Sealing ring] Sealing ring
9 AZ9114520223 [Sealing ring] Sealing ring
10 AZ9114520222 [Ring] Ring
11 199014520191 [Bush] Bush
12 199014520192 [Space washer] Space washer
13 199014520265 [Stop washer] Stop washer
14 Q171B1655TF2 [Screw] Screw
15 190003962021 [Screw] Screw
15 190003962021 [Screw] Screw
16 Q150B0810 [Screw] Screw
17 Q72308T5F [Gasket] Gasket
18 199014520311 [Cover] Cover
19 Q150B0820 [Screw] Screw
20 Q40308 [Spring washer] Spring washer
22 199114520234 [Spring clip] Spring clip
22 AZ9725520037 [Spring clip] Spring clip
22 AZ9725520053 [Spring clip] Spring clip
22 AZ9725520055 [Spring clip] Spring clip
23 1880340022 [Washer] Washer
24 190003888749 [Lock nut] Lock nut
25 AZ9638520005 [Spring clip plate] Spring clip plate
26 199000520006 [Guide bolt] Guide bolt
27 AZ9638520001 [Bracket left, frowt] Bracket left, frowt
27 AZ9725520001 [Bracket lef, front] Bracket lef, front
27 AZ9725520011 [Bracket lef, front] Bracket lef, front
28 Q151B22230 [Screw] Screw
30 199114520038 [Bottom brace rod C] Bottom brace rod C
30 DZ9114520175 [Bottom brace rod C] Bottom brace rod C
30 DZ9114520175 [Bottom brace rod C] Bottom brace rod C
30 WG9114521174 [Bottom brace rod C] Bottom brace rod C
31 Q151B2090 [Screw] Screw
32 190003803974 [Screw] Screw
33 199114520169 [Top brace rod C] Top brace rod C
33 DZ9114520174 [Top brace rod C] Top brace rod C
33 WG9114521175 [Top brace rod C] Top brace rod C
34 Q151B20200 [Screw] Screw
35 190003888467 [Lock nut] Lock nut
37 AZ9114520091 [Stop C] Stop C
38 Q340B10 [Nut] Nut
39 Q40310 [Spring washer] Spring washer
45 199014520224 [Dift.sheet] Dift.sheet
45 WG9232520005 [Dift.sheet] Dift.sheet
46 199014520224 [Dift.sheet] Dift.sheet
47 Q151C1260 [Screw] Screw
48 190003888457 [Lock nut] Lock nut
49 Q151C1255 [Screw] Screw
50 Q40312 [Spring washer] Spring washer
51 AZ9114520098 [Stop bracket] Stop bracket
51 AZ9232520003 [Stop bracket] Stop bracket
54 199014520019 [Bolt] Bolt
55 WG9114520042 [Ball bearing] Ball bearing
56 199014520217 [Bracket] Bracket
57 199014520265 [Lock washer] Lock washer
59 WG9232520008 [Self-stop rear spring C] Self-stop rear spring C
59 WG9232520028 [Self-stop rear spring C] Self-stop rear spring C
59 WG9232520232 [Self-stop rear spring C] Self-stop rear spring C
59 WG9638520008 [Self-stop rear spring C] Self-stop rear spring C
59 WG9725520010 [Self-stop rear spring C] Self-stop rear spring C
59 WG9731520013 [Self-stop rear spring C] Self-stop rear spring C
60 199100520112 [Plate] Plate
61 199014520292 [Bracket left]
