1581C 160018 [#] |
|
| - |
|
AZ16308200005 [Evaporator assembly] |
Evaporator assembly |
| - |
|
AZ1630820005 [Evaporator assembly] |
Evaporator assembly |
| - |
|
AZ1630820018/1 [Temprature sensor] |
Temprature sensor |
| - |
|
AZ1630820020 [Expansion valve] |
Expansion valve |
| - |
|
AZ1630820071 [Evaporator assembly] |
Evaporator assembly |
| - |
|
AZ1630820071-1 [Expansion valve] |
Expansion valve |
| - |
|
AZ1630820071-2 [Temprature sensor] |
Temprature sensor |
| - |
|
AZ1630840002 [Henter assembly] |
Henter assembly |
| - |
|
AZ1630840013 [Houshing bown] |
Houshing bown |
| - |
|
AZ1630840015 [Air intake asse.] |
Air intake asse. |
| - |
|
AZ1630840016 [Seal ring] |
Seal ring |
| - |
|
AZ1630840021 [Plate] |
Plate |
| - |
|
AZ1630840034 [Bevel gear] |
Bevel gear |
| - |
|
AZ1630840035 [Shaft] |
Shaft |
| - |
|
AZ1630840036 [Air intake rear] |
Air intake rear |
| - |
|
AZ1630840037 [Air intake left] |
Air intake left |
| - |
|
AZ1630840038 [Air intake right] |
Air intake right |
| - |
|
AZ1630840039 [Pulling I] |
Pulling I |
| - |
|
AZ1630840040 [Air intake front] |
Air intake front |
| - |
|
AZ1630840041 [Rod I] |
Rod I |
| - |
|
AZ1630840045 [Rod II] |
Rod II |
| - |
|
AZ1630840046 [Rod III] |
Rod III |
| - |
|
AZ1630840047 [Rod IV] |
Rod IV |
| - |
|
AZ1630840049 [Rotary plate] |
Rotary plate |
| - |
|
AZ1630840050 [Rotary arm] |
Rotary arm |
| - |
|
AZ1630840051 [Torsion spring] |
Torsion spring |
| - |
|
AZ1630840052 [Washer, big] |
Washer, big |
| - |
|
AZ1630840053 [Support] |
Support |
| - |
|
AZ1630840053 [Supprot] |
Supprot |
| - |
|
AZ1630840063 [Clip] |
Clip |
| - |
|
AZ1630840063 [Clip] |
Clip |
| - |
|
AZ1630840065 [Sanp ring] |
Sanp ring |
| - |
|
AZ1630840066 [O-ring] |
O-ring |
| - |
|
AZ1630840072 [Water outlet pipe assembly] |
Water outlet pipe assembly |
| - |
|
AZ1630840073 [Water inlet pipe assembly] |
Water inlet pipe assembly |
| - |
|
AZ1630840074 [Water tank] |
Water tank |
| - |
|
AZ1630840091 [Water output pipe] |
Water output pipe |
| - |
|
AZ1630840092 [Seal strip] |
Seal strip |
| - |
|
AZ1630840093 [Sealing strip II] |
Sealing strip II |
| - |
|
AZ1630840311 [Housing up] |
Housing up |
| - |
|
AZ1630840312 [Housing med.] |
Housing med. |
| - |
|
AZ1630840313 [Lever] |
Lever |
| - |
|
AZ1630840314 [Pulling rod] |
Pulling rod |
| - |
|
AZ1630840315 [Shaft for bevel gear] |
Shaft for bevel gear |
| - |
|
AZ1630840319 [Water tank with electio valve] |
Water tank with electio valve |
| - |
|
AZ1630840320 [Water valve with switch] |
Water valve with switch |
| - |
|
AZ1630840321 [Fan abjusting speed panel] |
Fan abjusting speed panel |
| - |
|
AZ1630840323 [Electrical line for fan] |
Electrical line for fan |
| - |
|
AZ1630840324 [1 # changing valve] |
1 # changing valve |
| - |
|
AZ1630840325 [2 # changing volve] |
2 # changing volve |
| - |
|
AZ1630840326 [3 # water changer] |
3 # water changer |
| - |
|
AZ1630840401 [Gasket] |
Gasket |
| - |
|
AZ1642820010 [Evaporator assembly] |
Evaporator assembly |
| - |
|
AZ1642820010 [Fan assembly] |
Fan assembly |
| - |
|
AZ1642820010-1 [Expansion valve] |
Expansion valve |
| - |
|
AZ1642820010-2 [Temperature sensor] |
Temperature sensor |
| - |
|
Q2714216 [Cross-hend self topping screw] |
Cross-hend self topping screw |
| - |
|
Q2723525 [Screw] |
Screw |
| - |
|
Q2723525 [Screw] |
Screw |
| - |
|
Q2723525 [Screw] |
Screw |
| - |
|
Q43660 [Sanp ring] |
Sanp ring |
| - |
|
WG1500130016/1 [V-belt] |
V-belt |
| - |
|
WG1500130016/3 [V-belt] |
V-belt |
| - |
|
WG1500139000/1 [Compressor] |
Compressor |
| - |
|
WG1500139000/3 [Compressor] |
Compressor |
| 1 |
|

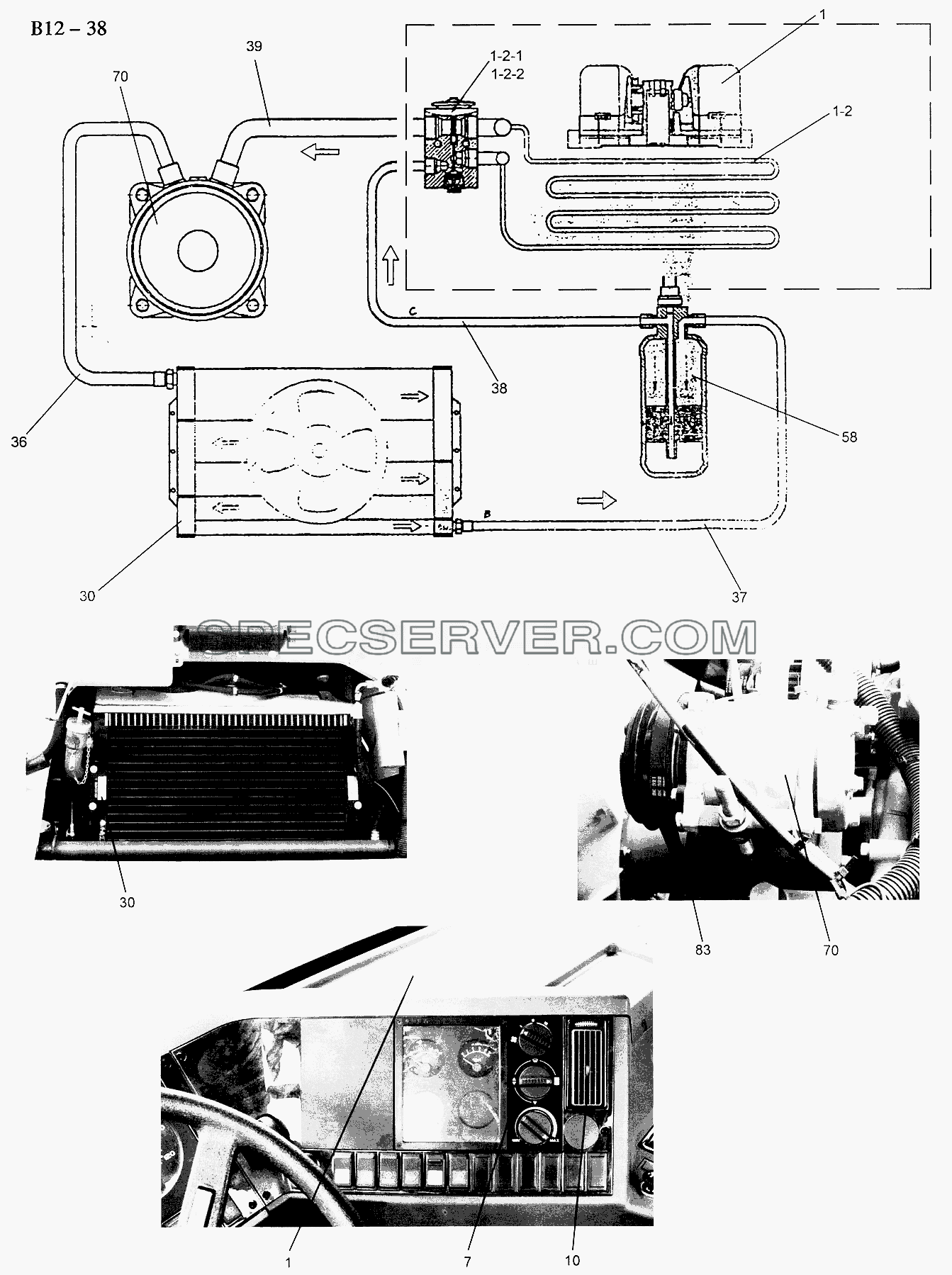

AZ1630826002 [Air conditioner assembly] |
Air conditioner assembly |
| 1 |
|
AZ1630829002 [Air conditioner assembly] |
Air conditioner assembly |
| 1 |
|
WG1630820002 [Air conditioner assembly] |
Air conditioner assembly |
| 1 |
|
WG1642820002 [Air conditioner assembly] |
Air conditioner assembly |
| 2 |
|
Q150B0830 [Hexagon head tap bolt] |
Hexagon head tap bolt |
| 3 |
|
Q40208 [Washer] |
Washer |
| 4 |
|
Q40308 [Grower washer] |
Grower washer |
| 5 |
|
WG1630840116 [Rubber lining] |
Rubber lining |
| 6 |
|
WG1630820019 [Rubber lining] |
Rubber lining |
| 7 |
|
AZ1630840230 [Control panel equipment] |
Control panel equipment |
| 7 |
|
AZ1630840322 [Electro-control panel equipment] |
Electro-control panel equipment |
| 8 |
|
AZ1630820312 [Wire harness] |
Wire harness |
| 9 |
|
AZ1630820313 [Tempemture sensor equipment] |
Tempemture sensor equipment |
| 10 |
|
AZ1630840094 [Protecting net assy] |
Protecting net assy |
| 11 |
|
AZ1630840210 [Pipe for draught] |
Pipe for draught |
| 12 |
|
WG1630840400 [Airproof pad I] |
Airproof pad I |
| 13 |
|
WG1630840106 [Heater water pipe] |
Heater water pipe |
| 14 |
|
WG1603840030 [Rubber tube] |
Rubber tube |
| 15 |
|
Q150B0625 [Hexagon head tap bolt] |
Hexagon head tap bolt |
| 16 |
|
Q40206 [Washer] |
Washer |
| 17 |
|
Q40306 [Grower washer] |
Grower washer |
| 18 |
|
190003989340 [Clip] |
Clip |
| 19 |
|
AZ1630840110 [Left foot heater pipe] |
Left foot heater pipe |
| 20 |
|
AZ1630840111 [Right foot heater pipe] |
Right foot heater pipe |
| 21 |
|
AZ1630840112 [Left face heater pipe] |
Left face heater pipe |
| 22 |
|
AZ1630840113 [Right face heater pipe] |
Right face heater pipe |
| 23 |
|
AZ1630840114 [Rear heater pipe] |
Rear heater pipe |
| 24 |
|
190003171356 [Plastic strip] |
Plastic strip |
| 25 |
|
AZ1630840061 [Round rubber airproof cover] |
Round rubber airproof cover |
| 26 |
|
AZ1630840062 [Flat rubber airproof cover] |
Flat rubber airproof cover |
| 27 |
|
AZ1600770030 [Airproof strip] |

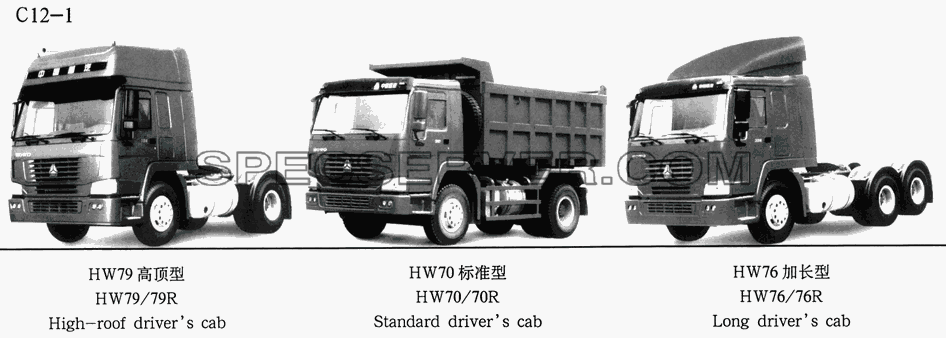

DRIVER'S CAB (C12-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)
DRIVER'S CAB (C12-1) для Sinotruk 6x4 Tractor (371) (список запасных частей)
Таблица запасных частей
