№		Номер детали	Наименование запчасти
1		190003179782 [Plastic tube]	Plastic tube
2		190003559766 [Double nozzle]	Double nozzle
3		190003559516 [Union nut]	Union nut
4		190003559508 [Union nut]	Union nut
5		190003559561 [Cutting ring]	Cutting ring
6		199014280016 [Sleeve]	Sleeve
7		190003559482 [Nozzle]	Nozzle
8		190003559497 [Nozzle]	Nozzle
9		Q72312TSF [Gasket]	Gasket

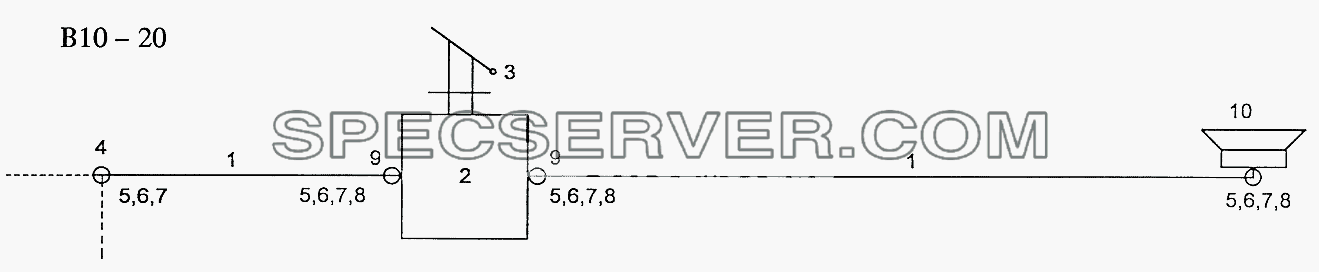

PENUMATIC HORN (B10-20) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		190003179782 [Plastic tube]	Plastic tube
2		WG9000360150 [Pressure valve]	Pressure valve
3		190003098033 [Gasket]	Gasket
4		190003559482 [Nozzle]	Nozzle
5		190003559516 [Union nut]	Union nut
6		190003559561 [Cutting ring]	Cutting ring
7		199014280016 [Sleeve]	Sleeve
8		Q72312TSF [Gasket]	Gasket
9		190003559766 [Double nozzle]	Double nozzle
10		WG9100270066 [Horn]	Horn

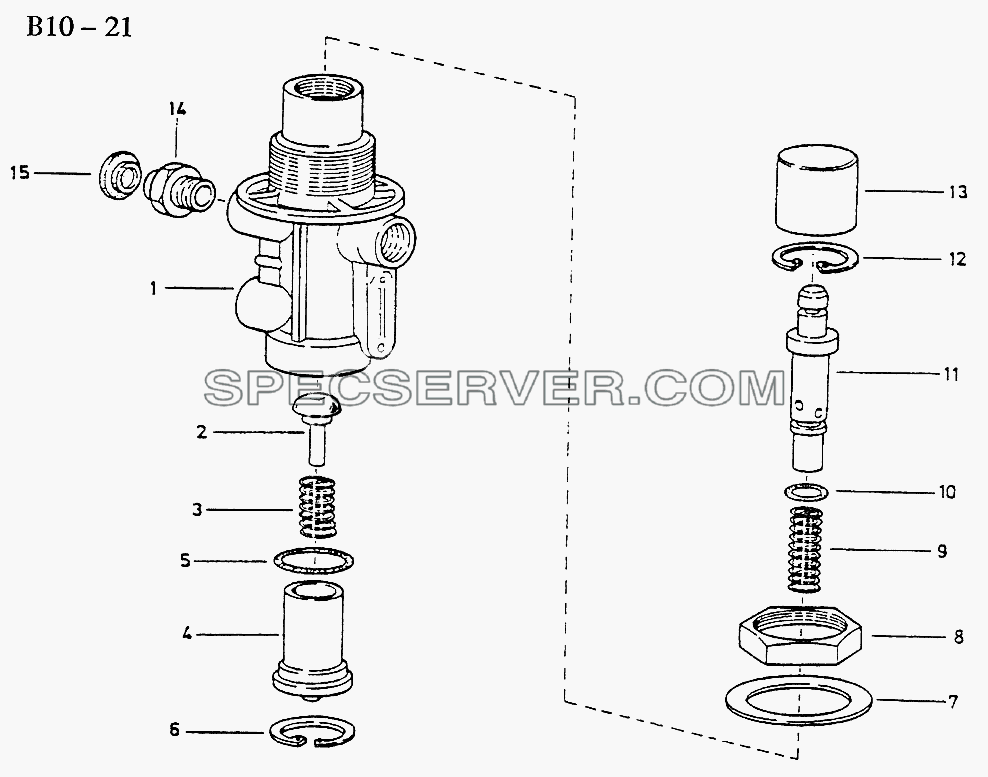

PUSHBUTTON VALVE (B10-21) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360150 [Pushbutton valve]	Pushbutton valve
1		463 013 011 4 [Housing]	Housing
2		1880 180713 [Valve]	Valve
3		1880 180714 [Pressure spring]	Pressure spring
4		463 013 150 4 [Guide piece]	Guide piece
5		1880 180715 [O-ring]	O-ring
6		190003934100 [Circlip]	Circlip
7		895 104 930 4 [Washer]	Washer
8		891 500 460 4 [Nut]	Nut
9		1880 180712 [Pressure spring]	Pressure spring
10		199100360740 [O-ring]	O-ring
11		463 013 771 4 [Push rod]	Push rod
12		190003933060 [Circlip]	Circlip
13		463 013 230 4 [Cap]	Сар
14		472 017 230 4 [Nozzle]	Nozzle
15		199100360741 [Protecting cap]	Protecting cap

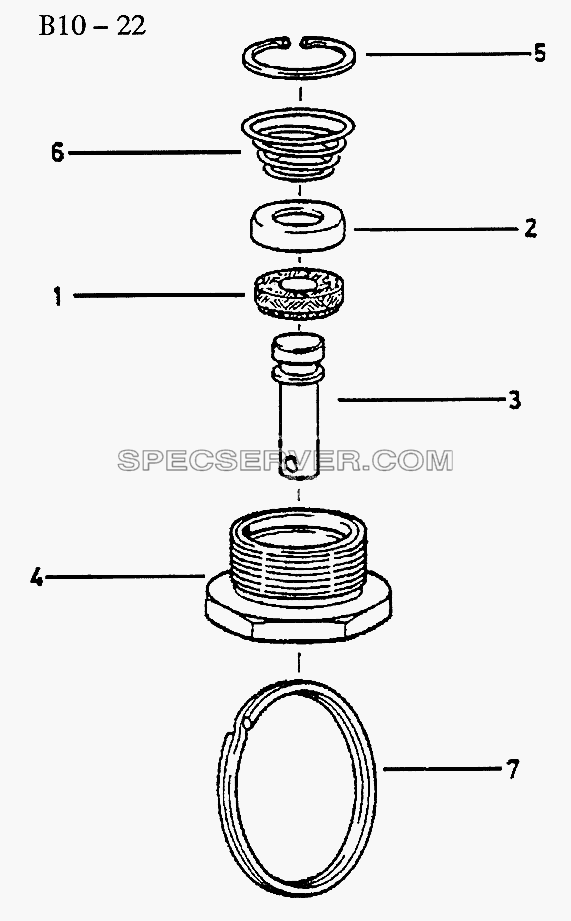

DRAIN VALVE (B10-22) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360115 [Pressure valve]	Pressure valve
1		Valve
2		Spring plate
3		Valve staff
4		Housing
5		Circlip
6		Spring
7		Ring

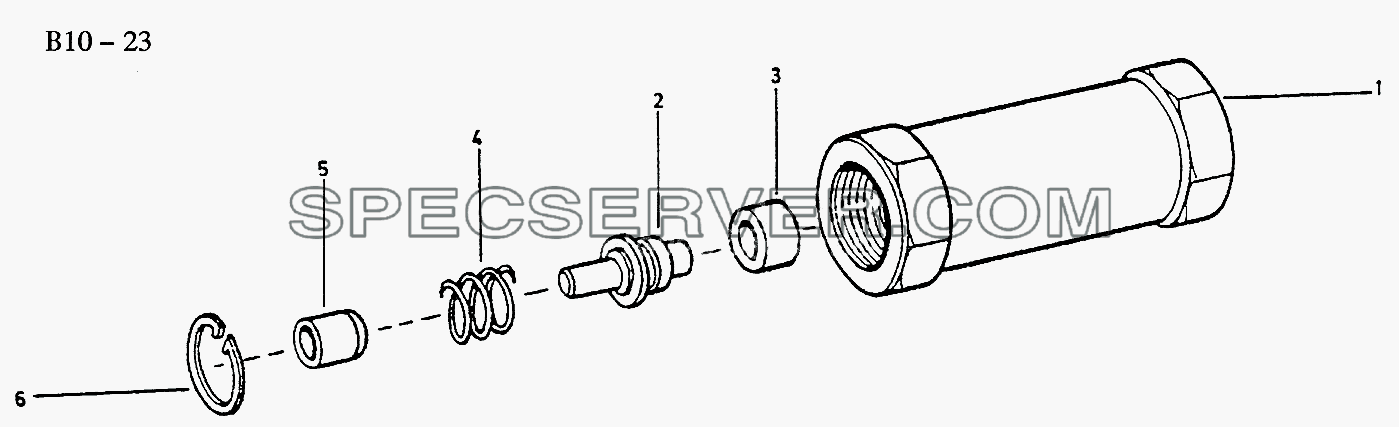

CHECK VALVE (B10-23) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199014350701 [Spaer parts]	Spaer parts
-		WG9000360112 [Cheek valve]	Cheek valve
1		Housing
2		1780 360846 [Piston]	Piston
3		1780 360731 [Valve ring]	Valve ring
4		Pressure spring
5		1780 360733 [Bush]	Bush
6		190003934100 [Retaining ring]	Retaining ring

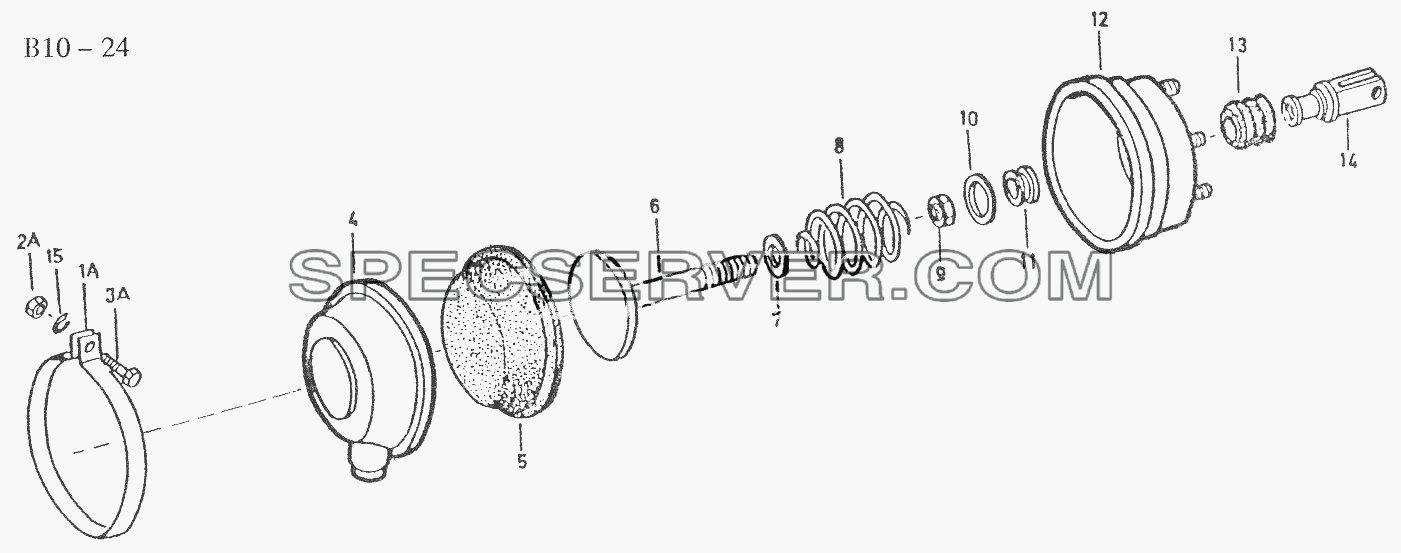

DIAPHRAGM CYLINDER (B10-24) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9000360100 [Diaphragm cylinder]	Diaphragm cylinder
-		WG9000360101 [Diaphragm cylinder]	Diaphragm cylinder
4		1880 361039 [Cover]	Cover
5		1880 360703 [Membrane]	Membrane
6		1880 361032 [Piston]	Piston
7		1880 361033 [Spring plate]	Spring plate
8		1880 360704 [Spring]	Spring
9		190003871333 [Nut]	Nut
10		1880 361035 [Spring plate]	Spring plate
11		1880 361034 [Holding]	Holding
12		Cylinder
13		1880 360705 [Siphon]	Siphon
14		1880 360706 [Fork head]	Fork head
15		190003931102 [Spring washer]	Spring washer
