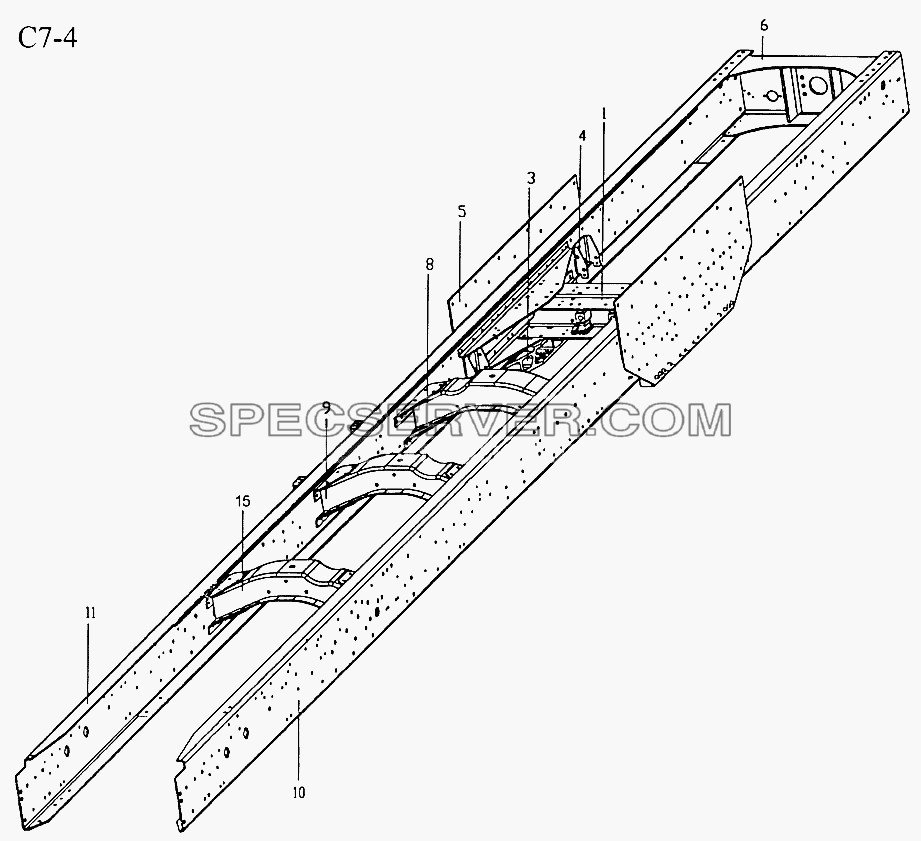

№		Номер детали	Наименование запчасти
-		AZ9725511300 [Chassis frame]	Chassis frame
-		AZ9725512900 [Chassis frame]	Chassis frame
-		AZ9725513230 [Chassis frame]	Chassis frame
-		AZ9725513600 [Chassis frame]	Chassis frame
-		AZ9725513800 [Chassis frame]	Chassis frame
1		AZ9725510040 [Cross member]	Cross member
3		AZ9725510015 [Bracket]	Bracket
5		AZ9725510021 [Plate]	Plate
6		AZ9632512020 [Cross member]	Cross member
8		AZ9725510050 [Cross member]	Cross member
9		AZ9719510010 [Cross member]	Cross member
9		AZ9725510070 [Cross member]	Cross member
10		AZ9725511301 [Left longeron]	Left longeron
10		AZ9725512901 [Left longeron]	Left longeron
10		AZ9725513231 [Left longeron]	Left longeron
10		AZ9725513601 [Left longeron]	Left longeron
10		AZ9725513801 [Left longeron]	Left longeron
11		AZ9725511302 [Right longeron]	Right longeron
11		AZ9725512902 [Right longeron]	Right longeron
11		AZ9725513232 [Right longeron]	Right longeron
11		AZ9725513602 [Right longeron]	Right longeron
11		AZ9725513802 [Right longeron]	Right longeron
15		AZ9719510010 [Cross member]	Cross member
15		AZ9725510070 [Cross member]	Cross member

BRACKET FOR BUMPER, TOWING HOOK FRONT (C7-11) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003888458 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888459 [Nut]	Nut
-		190003888459 [Nut]	Nut
-		AZ9114930093 [Towing hook]	Towing hook
-		Q150B08130 [Screw]	Screw
-		Q150B0825 [Screw]	Screw
-		Q150B0825 [Screw]	Screw
-		Q150B0860 [Screw]	Screw
-		Q150B0860 [Screw]	Screw
-		Q150B1025 [Screw]	Screw
-		Q150B1025 [Screw]	Screw
-		Q151B1445 [Screw]	Screw
-		Q151B1465 [Screw]	Screw
-		Q151B1660 [Screw]	Screw
-		Q151B1690 [Screw]	Screw
-		Q151C1230 [Screw]	Screw
-		Q2540820 [Screw]	Screw
-		Q2540825 [Screw]	Screw
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33208 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q33210 [Nut]	Nut
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40210 [Washer]	Washer
-		Q40210 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40312 [Spring washer]	Spring washer
1		AZ9725930028 [Towing seat]	Towing seat
2		AZ9114930094 [Towing hitch]	Towing hitch
3		AZ9725930002 [Bracket for bumper]	Bracket for bumper
3		AZ9725930007 [Bracket for bumper]	Bracket for bumper
4		AZ9725930003 [Aux.support]	Aux.support
6		AZ9725930004 [Sleeve]	Sleeve
7		AZ9725930005 [Sleeve]	Sleeve
8		WG9725930010 [Protector]	Protector
8		WG9725930060 [Protector]	Protector
9		AZ9725930006 [Front bracket for bumper]	Front bracket for bumper
9		AZ9725930008 [Front bracket for bumper]	Front bracket for bumper
10		AZ9725930040 [Bracket for windscreen washing water tank]	Bracket for windscreen washing water tank
10		AZ9725930045 [Bracket for windscreen washing water tank]	Bracket for windscreen washing water tank
11		AZ9725930050 [Protector for after cooler]	Protector for after cooler
11		AZ9725930053 [Protector for after cooler]	Protector for after cooler
12		AZ9725930054 [Bottom bracket for bumper]	Bottom bracket for bumper
12		WG9725930009 [Bottom bracket for bumper]	Bottom bracket for bumper
13		AZ9725930049 [Bracket for step]	Bracket for step
13		WG9725930017 [Bracket for step]	Bracket for step
14		WG9725930029 [Support for bumper]	Support for bumper
15		AZ9725930034 [Middle bracket for bumper]	Middle bracket for bumper
15		AZ9725930037 [Middle bracket for bumper]	Middle bracket for bumper

TAIL LIGHTS AND NUMBER PLATE CARRIER (C7-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q33210 [Nut]	Nut
1		AZ9716940001 [Tail light bracket left]	Tail light bracket left
2		AZ9716940007 [Tail light bracket right]	Tail light bracket right
3		Q150B1030 [Screw]	Screw
4		AZ9716940004 [Rubber plug]	Rubber plug

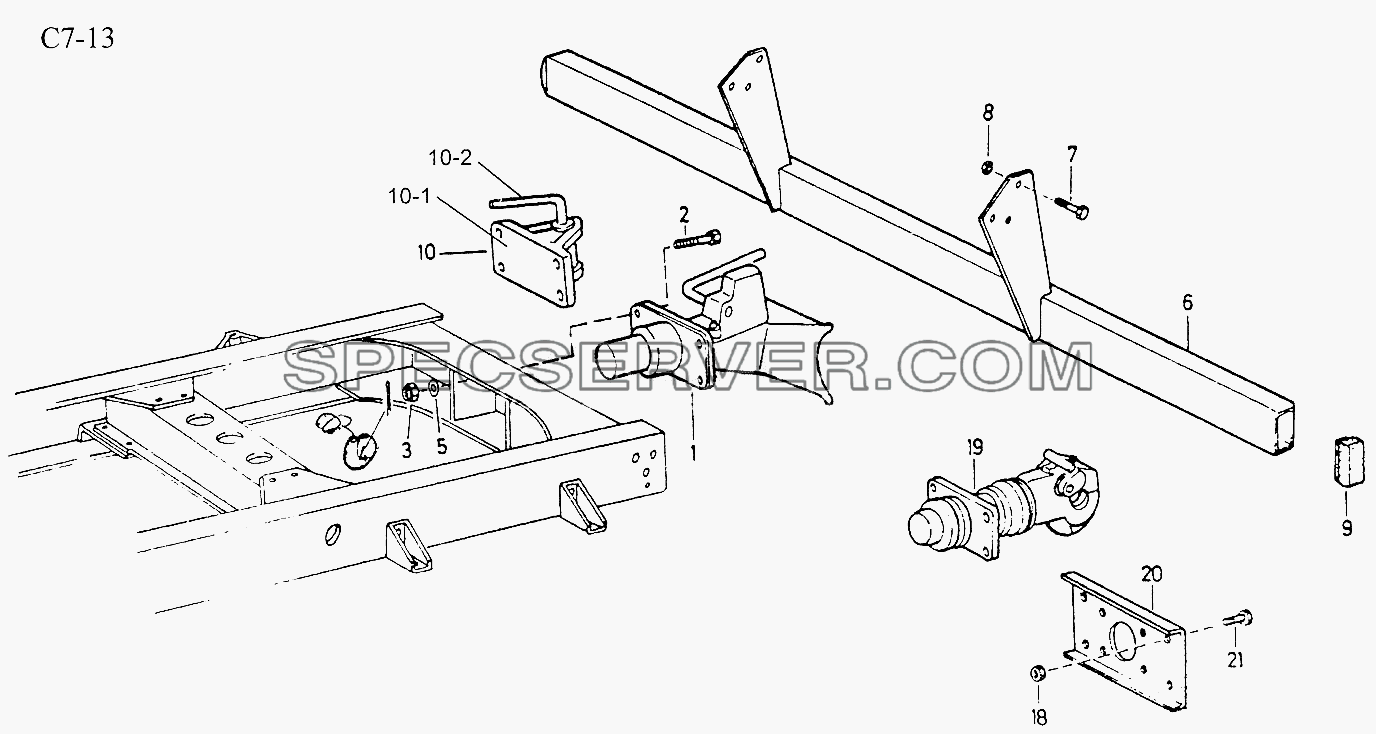

BOTTOM PROTECTION, TRAILER COUPLING (C7-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003937830 [Washer]	Washer
-		199400930003 [Sleeve]	Sleeve
-		WG9000930047-1 [Towing seat]	Towing seat
-		WG9000930047-2 [Towing hitch]	Towing hitch
1		199000930113 [Trailer coupling]	Trailer coupling
2		Q150B1660 [Screw]	Screw
3		Q33216 [Nut]	Nut
6		AZ9124930015 [Bumper rear]	Bumper rear
6		AZ9725930104 [Bumper rear]	Bumper rear
7		Q150B1655 [Screw]	Screw
8		Q33216 [Nut]	Nut
9		AZ9725930103 [Cover]	Cover
9		WG9100930150 [Cover]	Cover
10		WG9000930047 [Trailer coupling]	Trailer coupling
19		199114930110 [Trailer coupling]	Trailer coupling

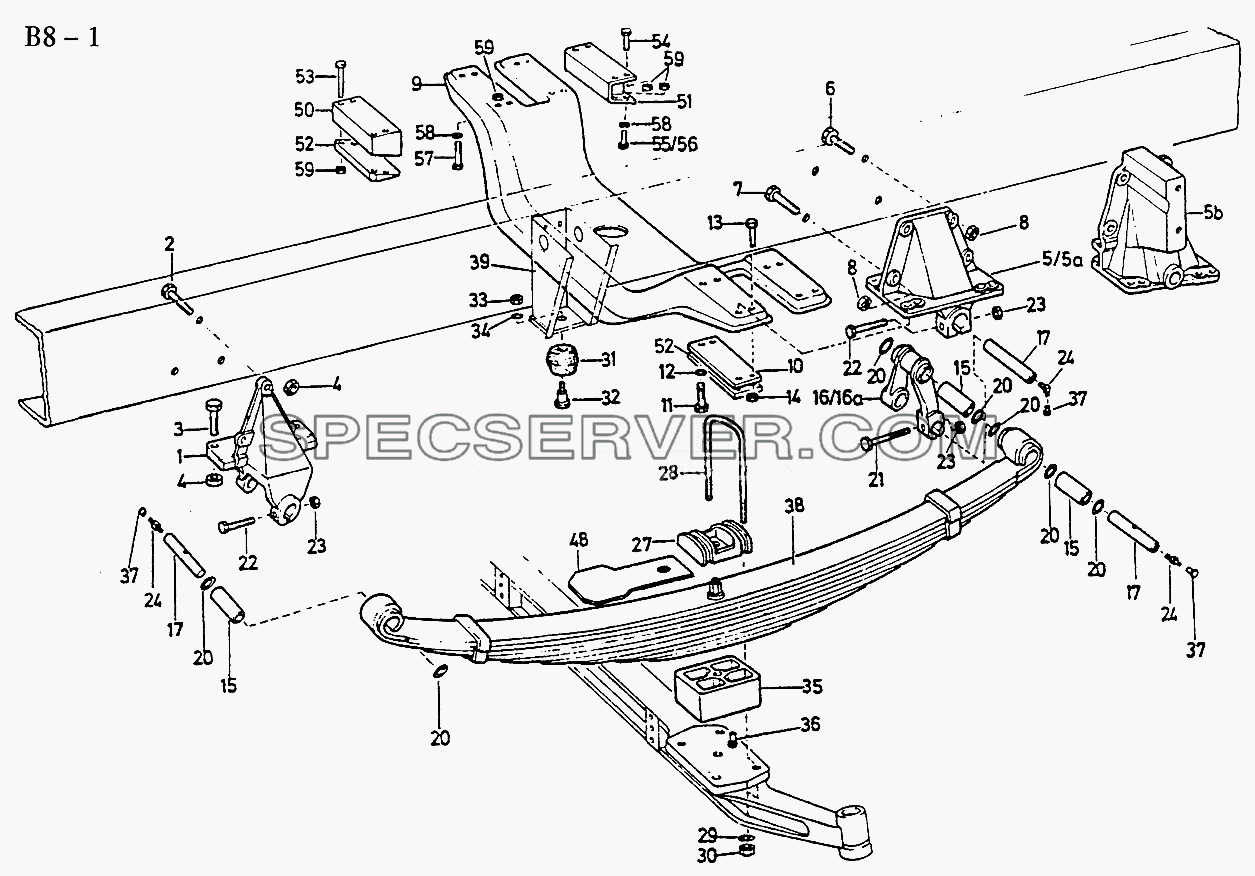

4x2, 4x4, 6x4, 6x6 FRONT SPRING (B8-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199100520156 [Spring bracket lear, right]	Spring bracket lear, right
-		AZ9232520011 [Spring bracket lear, right]	Spring bracket lear, right
1		WG9100520010 [Spring bracket front]	Spring bracket front
2		Q151B1465 [Screw]	Screw
3		Q151B1450 [Screw]	Screw
4		19003888458 [Nut]	Nut
5		199100520111 [Spring bracket lear]	Spring bracket lear
5		199100520155 [Spring bracket lear, left]	Spring bracket lear, left
5		AZ9232520010 [Spring bracket lear, left]	Spring bracket lear, left
6		Q151B1650 [Screw]	Screw
7		Q151B1655 [Screw]	Screw
8		190003888459 [Lock nut]	Lock nut
9		199100510015 [Cross member]	Cross member
9		WG9114510510 [Cross member]	Cross member
10		199100520025 [Plate]	Plate
13		Q151C1270 [Screw]	Screw
13		Q151C1275 [Screw]	Screw
14		190003888457 [Lock nut]	Lock nut
15		WG9000520078 [Bush]	Bush
16		WG9100520034 [Spring shackle front C]	Spring shackle front C
17		199100520006 [Spring bolt]	Spring bolt
20		1680 520050 [Washer]	Washer
21		Q151C1270 [Screw]	Screw
22		Q151C1275 [Screw]	Screw
23		190003888457 [Nut]	Nut
24		190003963124 [Grease nipple]	Grease nipple
26		190003963127 [Grease nipple]	Grease nipple
27		1880 520002 [Plate]	Plate
27		199000520093 [Plate]	Plate
28		1880 520001 [Spring clip]	Spring clip
28		1990 52003 [Spring clip]	Spring clip
28		199000520056 [Spring clip]	Spring clip
28		199000520057 [Spring clip]	Spring clip
28		199014520238 [Spring clip]	Spring clip
28		199014520259 [Spring clip]	Spring clip
28		AZ9100520007 [Spring clip]	Spring clip
29		1680 520056 [Washer]	Washer
30		190003888626 [Lock nut]	Lock nut
31		WG80520017 [Spring stop]	Spring stop
32		1880 520019 [Connect piece]	Connect piece
33		Q340B10 [Nut]	Nut
34		Q40310 [Spring washer,screw]	Spring washer,screw
38		99114520140 [Front spring C l.]	Front spring C l.
38		99114520141 [Front spring C r.]	Front spring C r.
38		WG9100520002 [Front spring C l.]	Front spring C l.
38		WG9100520042 [Front spring C r.]	Front spring C r.
38		WG9100529002 [Front spring C l.]	Front spring C l.
38		WG9100529003 [Front spring C r.]	Front spring C r.
38		WG9114520141 [Front spring C]	Front spring C
38		WG9232120025 [Front spring C l.]	Front spring C l.
38		WG9232520026 [Front spring C r.]	Front spring C r.
39		AZ9100520169 [Bracket for spring stop]	Bracket for spring stop
54		Q151C1250 [Screw]	Screw
59		190003888457 [Lock nut]	Lock nut

6x4, 6x6, 8x4 SWIVEL SPRING AND SUSPENSION (B8-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		199014520193 [Space washer]	Space washer
-		199014520194 [Space washer]	Space washer
-		199014520204 [Diff sheet]	Diff sheet
-		199014520293 [Bracket right]	Bracket right
-		199014520303 [Space washer]	Space washer
-		199014520306 [Space washer]	Space washer
-		99114520059 [Space washer]	Space washer
-		AZ9100520008 [Space washer]	Space washer
-		AZ9114521000 [Ballance shaft C with hosing (inc.1~ 20,55)]	Ballance shaft C with hosing (inc.1~ 20,55)
-		AZ9114521001 [Ballance shaft C with hosing (inc.1~ 20,55)]	Ballance shaft C with hosing (inc.1~ 20,55)
-		AZ9232520009 [Ballance shaft C with hosing (inc.1~ 20,55)]	Ballance shaft C with hosing (inc.1~ 20,55)
-		AZ9638520002 [Bracket right,front]	Bracket right,front
-		AZ9638520003 [Bracket left,rear]	Bracket left,rear
-		AZ9638520004 [Bracket right,rear]	Bracket right,rear
-		AZ9725520002 [Bracket right,front]	Bracket right,front
-		AZ9725520003 [Bracket left,rear]	Bracket left,rear
-		AZ9725520004 [Bracket right,rear]	Bracket right,rear
-		WG9114520041 [Screw]	Screw
1		199114520168 [Ballance shaft C]	Ballance shaft C
1		AZ9232520009 [Ballance shaft C]	Ballance shaft C
2		199014520222 [Connect plate]	Connect plate
4		WG9014520227 [Stud]	Stud
5		190003871353 [Nut]	Nut
6		199114520035 [Balance shaft box]	Balance shaft box
6		199114520233 [Balance shaft box]	Balance shaft box
7		199114520136 [Bearing sealing cover]	Bearing sealing cover
8		1614 130062 [Sealing ring]	Sealing ring
9		AZ9114520223 [Shaft sealing ring]	Shaft sealing ring
10		AZ9114520222 [Ring]	Ring
11		199014520191 [Bush]	Bush
12		199014520192 [Space washer]	Space washer
13		199014520265 [Stop washer]	Stop washer
14		Q171B1655TF2 [Screw with hole]	Screw with hole
15		190003962021 [Screw]	Screw
16		Q150B0810 [Screw]	Screw
17		Q72308TSF [Sealing washer]	Sealing washer
18		199014520311 [Box cover]	Box cover
19		Q150B0820 [Screw]	Screw
20		Q40308 [Spring washer]	Spring washer
22		199014520124 [Spring clip]	Spring clip
22		199114520234 [Spring clip]	Spring clip
22		AZ9232520019 [Spring clip]	Spring clip
22		AZ9725520053 [Spring clip]	Spring clip
23		1880 340022 [Washer]	Washer
24		190003888749 [Lock nut]	Lock nut
25		199000520021 [Spring clip plate]	Spring clip plate
25		AZ9638520005 [Spring clip plate]	Spring clip plate
26		199000520006 [Guide bolt]	Guide bolt
27		AZ9638520001 [Bracket left,front]	Bracket left,front
27		AZ9725520001 [Bracket left,front]	Bracket left,front
28		Q151B22230 [Screw]	Screw
30		199114520038 [Lower brace rod C]	Lower brace rod C
30		WG9114521174 [Lower brace rod C]	Lower brace rod C
31		Q151B2090 [Screw]	Screw
32		190003803974 [Screw]	Screw
33		199114520169 [Up brace rod C]	Up brace rod C
33		WG9114521175 [Up brace rod C]	Up brace rod C
34		Q151B20200 [Screw]	Screw
35		190003888467 [Lock nut]	Lock nut
37		AZ9114520091 [Stop C]	Stop C
37		AZ9323520010 [Stop C]	Stop C
38		Q340B12 [Nut]	Nut
39		Q40312 [Spring washer]	Spring washer
40		199114520293 [Check chain]	Check chain
41		Q5280840 [Pin]	Pin
42		1188 270078 [Washer]	Washer
43		Q5280860 [Pin]	Pin
45		199014520224 [Diff sheet]	Diff sheet
45		WG9114520147 [Diff sheet]	Diff sheet
46		199014520225 [Diff sheet]	Diff sheet
47		Q151C1260 [Screw]	Screw
48		190003888457 [Lock nut]	Lock nut
49		Q151B1455 [Screw]	Screw
50		Q40314 [Spring washer]	Spring washer
51		AZ9114520098 [Stop bracket]	Stop bracket
51		AZ9232520003 [Stop bracket]	Stop bracket
54		199014520019 [Bolt]	Bolt
55		WG9114520042 [Ball bearing]	Ball bearing
57		199014520265 [Lock washer]	Lock washer
59		WG9114520232 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9114520233 [Rear spring C]	Rear spring C
59		WG9232520008 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9232520027 [Rear spring C (option)]	Rear spring C (option)
59		WG9232520028 [Self-stop rear spring C]	Self-stop rear spring C
59		WG9638520008 [Self-stop rear spring C]	Self-stop rear spring C
61		199014520292 [Bracket left]	Bracket left
62		199014520256 [Pin]	Pin
65		1990003901905 [Pin]	Pin
66		AZ9232520002 [Stop bracket]	Stop bracket
67		Q40020 [Washer]	Washer
69		Q40312 [Spring washer]	Spring washer
80		199014520294 [Spring clip plate]	Spring clip plate
82		190003803985 [Screw]	Screw
