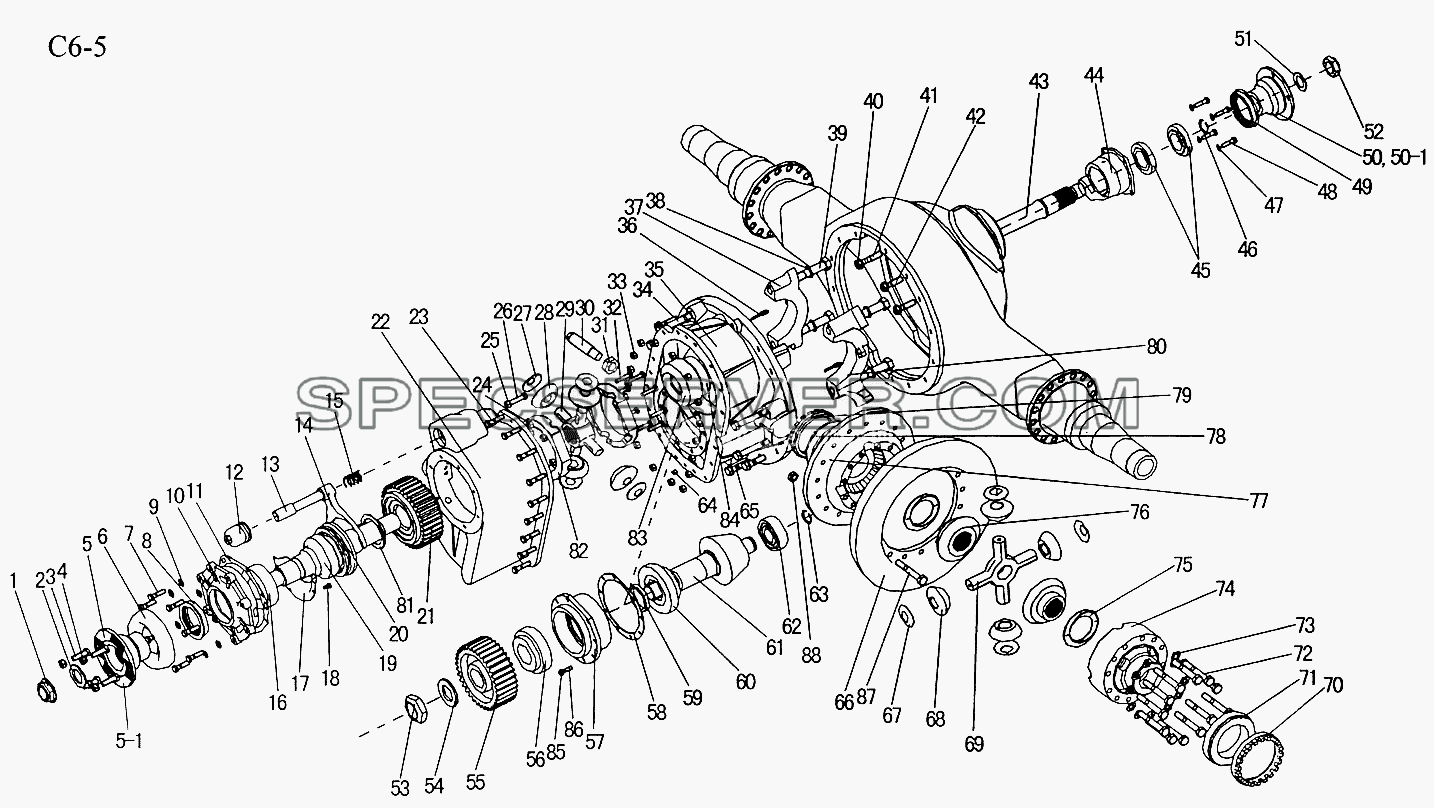

Запчасти: FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tipper (371)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

FIRST REAR AXLE DRIVE (C6-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

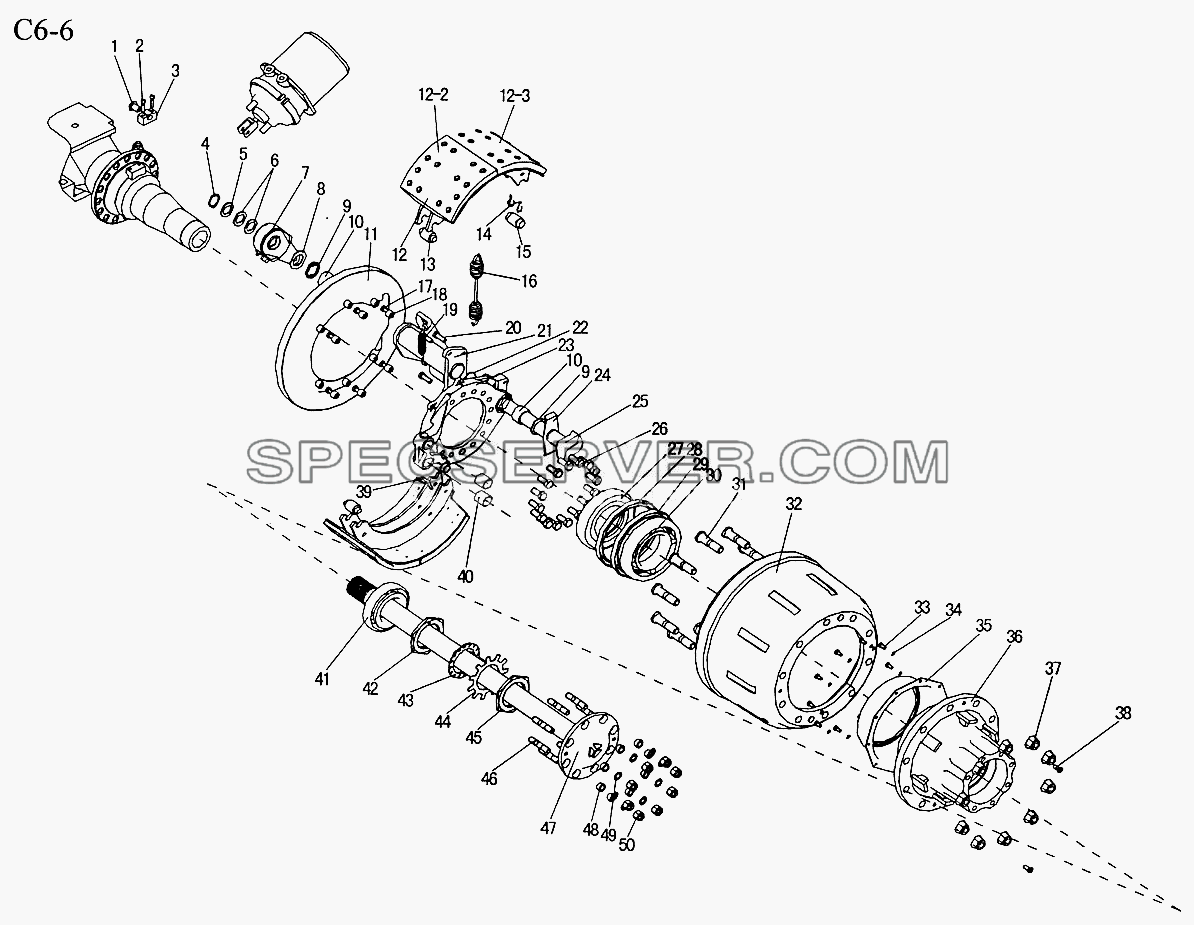

REAR BRAKE (C6-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR BRAKE (C6-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR BRAKE (C6-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№ Номер детали Наименование запчасти
- 1228K37 [Steel ball] Steel ball
- 1229K1597 [Washer] Washer
- 1229W1557 [Washer] Washer
- 2230J1180 [Piston] Piston
- 3226H1126 [Bearing seat] Bearing seat
- 3261Q1057 [Cylinder] Cylinder
- 5X1198 [O-ring] O-ring
- AC71613200110 [First rear axle drive I=4.22 TF180(input),TF165(output)] First rear axle drive I=4.22 TF180(input),TF165(output)
- AC71613200111 [First rear axle drive I=4.22 PF165(input),TF165(output)] First rear axle drive I=4.22 PF165(input),TF165(output)
- AC71613200112 [First rear axle drive I=4.22 TF165(input),TF165(output)] First rear axle drive I=4.22 TF165(input),TF165(output)
- AC71613200113 [First rear axle drive I=4.22 PF180(input),TF165(output)] First rear axle drive I=4.22 PF180(input),TF165(output)
- AC71613200114 [First rear axle drive I=3.73 PF165(input),TF165(output)] First rear axle drive I=3.73 PF165(input),TF165(output)
- AZ9161321196 [Input shaft] Input shaft
- AZ9761320086 [Drive gear] Drive gear
- AZ9761320124 [Pinion 9] Pinion 9
- AZ9761320125 [Crown wheel 38] Crown wheel 38
- AZ9761320163 [Ф165 Toothed flange body] Ф165 Toothed flange body
- AZ9761320164 [Ф165 plane flange body] Ф165 plane flange body
- AZ9761320183 [Ф180 Plane flange body] Ф180 Plane flange body
- AZ9761320224 [Pinion 11] Pinion 11
- AZ9761320225 [Crown wheel 41] Crown wheel 41
- AZ9761320281 [Ф180 toothed flange body] Ф180 toothed flange body
- AZ9761320282 [Ф165 toothed flange body] Ф165 toothed flange body
- AZ9761320283 [Cover] Cover
- AZ9761320421 [First rear axle drive I=3.73 without flange] First rear axle drive I=3.73 without flange
- AZ9761320422 [First rear axle drive I=4.22 without flange] First rear axle drive I=4.22 without flange
- AZ9761321894 [Housing] Housing
- HM813820 [Outer ring of bearing] Outer ring of bearing
- Q40308 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q40312 [Spring washer] Spring washer
- Q5005060 [Split pin] Split pin
- WG9761320084 [Bush] Bush
1 WG40X1233 [Locking nut] Locking nut
2 1229N1730 [Washer] Washer
3 Q150B1445TF2 [Screw] Screw
4 Q33414T13F2 [Locking nut] Locking nut
5 AZ9761320165 [Ф165 Plane flange C] Ф165 Plane flange C
5 AZ9761320166 [Ф165 Toothed flangeC] Ф165 Toothed flangeC
5 AZ9761320182 [Ф180 Plane flangeC] Ф180 Plane flangeC
5 AZ9761320280 [Ф180 toothed flange C] Ф180 toothed flange C
6 3264G189 [Cover] Cover
7 MS2120451 [Screw] Screw
8 A1205J2428 [Gasket] Gasket
9 1229D4632 [Washer] Washer
10 A3226H1126 [Bearing seat C] Bearing seat C
11 2203K9241 [Shim] Shim
11 2203L9242 [Shim] Shim
11 2203M9243 [Shim] Shim
12 A23261Q1057 [Cylinder C] Cylinder C
13 2244K1025 [Push rod] Push rod
14 AZ9761321086 [Shifting fork] Shifting fork
15 2258U411 [Spring] Spring
16 HM813810-HM813844 [Bearing] Bearing
17 AZ9111320020 [Cover] Cover
18 Q150B0816 [Screw] Screw
19 AZ9761321195 [Input shaft C] Input shaft C
20 3107U1061 [Shifting dog] Shifting dog
21 AZ9761320085 [Drive gear C] Drive gear C
22 AZ9761321312 [Housing] Housing
23 Q150B1250 [Screw] Screw
24 Q340B10 [Nut] Nut
25 MN3121 [Nut] Nut
26 41X1208 [Screw] Screw
27 1229Q2929 [Spacer] Spacer
28 2233K245 [Bevel pinion] Bevel pinion
29 3278N300 [Diff.spider] Diff.spider
30 AZ9761321167 [Screw] Screw
31 1227D472 [Nut] Nut
32 MS210080A1 [Screw] Screw
33 Q340B12 [Nut] Nut
34 MS2161201 [Screw] Screw
35 AZ9761320411 [Housing C] Housing C
36 1199R2176 [Split pin] Split pin
37 A321221196 [Cover] Cover
38 42X1024 [Washer] Washer
39 41X1018 [Screw] Screw
40 MN3161 [Nut] Nut
41 4X1746 [Stud] Stud
42 4X1740 [Stud] Stud
43 AZ9761321010 [Driving shaft] Driving shaft
44 AZ9761321112 [Bearing seat] Bearing seat
45 385A-382A [Bearing] Bearing
46 AZ9761322590 [Circlip set] Circlip set
47 Q40110 [Washer] Washer
48 Q150B1025 [Screw] Screw
49 AZ9761322430 [Oil sealing] Oil sealing
50 AZ9761320285 [Ф165 toothed flange C] Ф165 toothed flange C
51 1229T1736 [Washer] Washer
52 AZ9761321237 [Nut] Nut
53 WG40X1145 [Locking nut] Locking nut
54 1229G4063 [Washer] Washer
55 AZ9761320016 [Driven gear] Driven gear
56 H715311-H715341 [Bearing] Bearing
57 AZ9761320017 [Bearing seat] Bearing seat
58 AZ9761322785 [Shim set] Shim set
59 AZ9761320020 [Shim set]






№ Номер детали Наименование запчасти
- 3211W6004 [Brake anchor right] Brake anchor right
- 5-60730 [Brake spacer] Brake spacer
- A3236Q2123 [Brake cover] Brake cover
- AZ9111340025 [Support] Support
- AZ9761340103 [Brake lining] Brake lining
- AZ9761340104 [Brake lining] Brake lining
- AZ9761340105 [Shoe] Shoe
- AZ9761341010 [Drive shaft right] Drive shaft right
- AZ9761345542 [Bracket right] Bracket right
- AZ9761345544 [Bracket right] Bracket right
- AZ9761345556 [Bracket right] Bracket right
- AZ9761348143 [Brake camshaft right] Brake camshaft right
- Q33208 [Nut] Nut
- WG9112340008 [Gear ring] Gear ring
- WG9761340108 [Rivet] Rivet
1 AZ9107346010 [ABS sensor bellows] ABS sensor bellows
2 Q218B0835 [Screw] Screw
3 AZ9107346006 [ABS sensor bracket] ABS sensor bracket
4 1229D2942 [Circlip] Circlip
5 1229W3117 [Washer] Washer
6 1229J3130 [Washer] Washer
7 AZ9111340040 [Rod adjusting device] Rod adjusting device
7 WG9111340045 [Self rod adjusting device] Self rod adjusting device
8 1229H4090 [Washer] Washer
9 A1205V1556 [Oil seaI] Oil seaI
10 WG122511208 [Bush] Bush
11 A3236R2124 [Brake cover] Brake cover
12 AZ9761340106 [Brake shoe C] Brake shoe C
13 1259N274 [Bolt] Bolt
14 3105B210 [Support] Support
15 1779R18 [Roller] Roller
16 2258W803 [Spring] Spring
17 Q150B1028 [Screw] Screw
18 AZ9118340012 [Spacer] Spacer
19 2258H1230 [Spring] Spring
20 Q150B1235 [Screw] Screw
21 AZ9761345541 [Bracret left] Bracret left
21 AZ9761345543 [Bracret left] Bracret left
21 AZ9761345555 [Bracret left] Bracret left
22 1205G761 [O-ring] O-ring
23 3211W6003 [Brake anchor left] Brake anchor left
24 1229G4089 [Washer] Washer
25 AZ9761348144 [Brake camshaft left] Brake camshaft left
26 Q151B1635TF2 [Screw] Screw
27 AZ9111340017 [Spacer] Spacer
28 WG9112340114 [Oil seal] Oil seal
29 WG9112340113 [Oil seal] Oil seal
30 190003326067 [Bevel roller bearing] Bevel roller bearing
31 WG9107340002 [Wheel stud] Wheel stud
32 AZ9118340006 [Brake drum] Brake drum
33 Q150B0816 [Screw] Screw
34 Q40308 [Washer] Washer
35 AZ9761340021 [Cover] Cover
36 AZ9761340082 [Rear wheeI hub] Rear wheeI hub
37 WG9003884160 [Wheel nut] Wheel nut
38 Q2541025 [Screw] Screw
39 1218G85 [Pin] Pin
40 WG1225L1208 [Bush] Bush
41 32217 [Bevel roller bearing] Bevel roller bearing
42 1227N1184 [Inter adjusting nut] Inter adjusting nut
43 1229M3003 [Locking sheet] Locking sheet
44 AZ9107334673 [Locking sheet] Locking sheet
45 1227P1186 [Outer adjusting nut] Outer adjusting nut
46 WG9107340003 [Stud] Stud
47 AZ9761341020 [Drive shaft left] Drive shaft left
48 1246V1166 [Bevel sleeve] Bevel sleeve
49 1229X518 [Locking sheet] Locking sheet
50 190003888627 [Locking nut] Locking nut
CHASSIS FRAME FOR 6x4 TIPPER TRUCK (B7-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CHASSIS FRAME FOR 6x4 TIPPER TRUCK (B7-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CHASSIS FRAME FOR 6x4 TIPPER TRUCK (B7-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199114510050 [Chassis frame] Chassis frame
- AZ9232510030 [Chassis frame] Chassis frame
- AZ92332510090 [Chassis frame] Chassis frame
- AZ9626510001 [Chassis frame] Chassis frame
- AZ9626510010 [Chassis frame] Chassis frame
- AZ9632510010 [Chassis frame] Chassis frame
- AZ9632510040 [Chassis frame] Chassis frame
1 199014512015 [Cross member] Cross member
2 199014510038 [Bracket] Bracket
3 199114510015 [Bracket] Bracket
4 199014510226 [Bracket] Bracket
5 199014512021 [Plate] Plate
5 AZ9114512013 [Plate] Plate
6 199100510028 [Cross member] Cross member
6 AZ9114510410 [Cross member] Cross member
7 1780 510196 [Bracket] Bracket
7 AZ9114510071 [Bracket] Bracket
7 AZ9114510072 [Bracket] Bracket
8 199014510040 [Cross member] Cross member
9 199012510075 [Cross member] Cross member
9 199100510022 [Cross member] Cross member
9 199114512135 [Cross member] Cross member
10 199114510051 [Left longeron] Left longeron
10 AZ9232510031 [Left longeron] Left longeron
10 AZ9232510091 [Left longeron] Left longeron
10 AZ9626510002 [Left longeron] Left longeron
10 AZ9626510011 [Left longeron] Left longeron
10 AZ9632510011 [Left longeron] Left longeron
10 AZ9632510041 [Left longeron] Left longeron
11 199114510052 [Right longeron] Right longeron
11 AZ9232510032 [Right longeron] Right longeron
11 AZ9232510092 [Right longeron] Right longeron
11 AZ9626510003 [Right longeron] Right longeron
11 AZ9626510012 [Right longeron] Right longeron
11 AZ9632510012 [Right longeron] Right longeron
11 AZ9632510042 [Right longeron] Right longeron
15 199012510075 [Cross member] Cross member

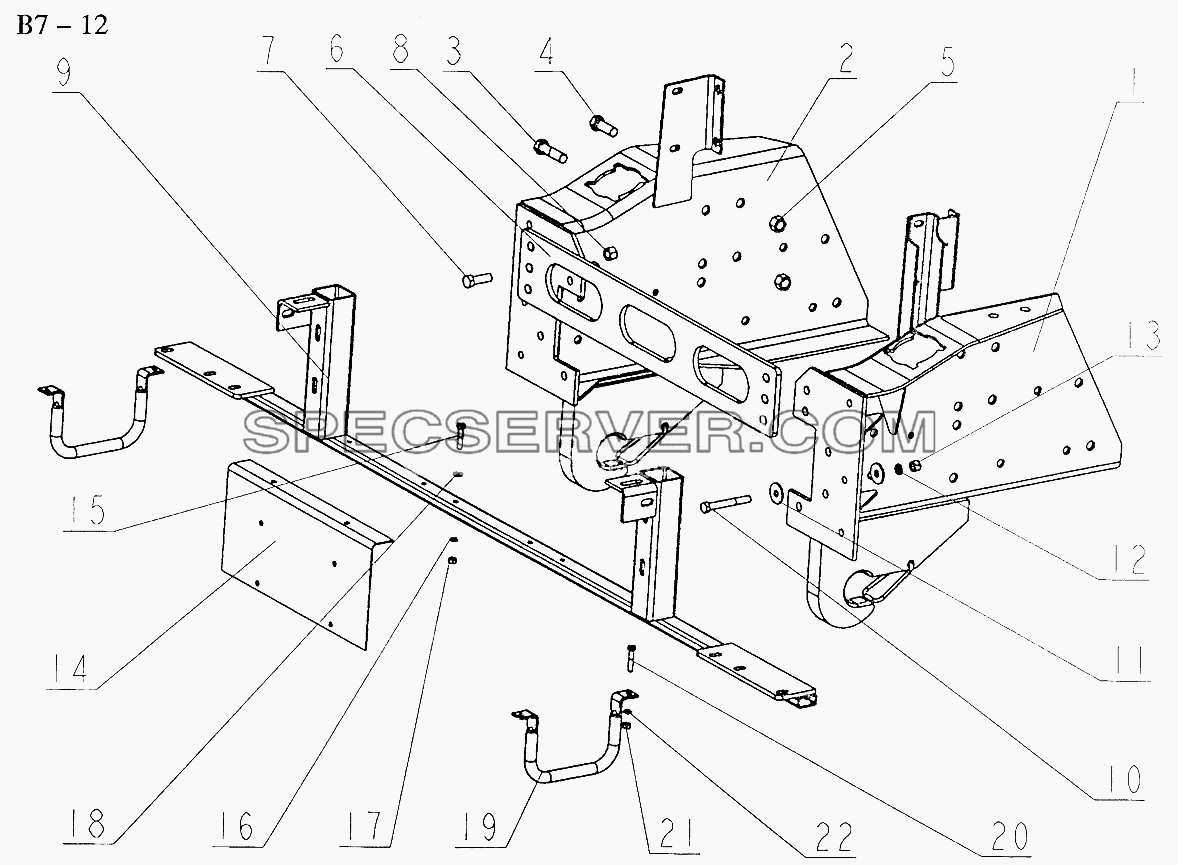

BRACKET OF HIGH BUMPER WITH FIXED TOWING HOOK (B7-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

BRACKET OF HIGH BUMPER WITH FIXED TOWING HOOK (B7-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

BRACKET OF HIGH BUMPER WITH FIXED TOWING HOOK (B7-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9114930820 [Bracket left] Bracket left
2 AZ9114930830 [Bracket right] Bracket right
3 Q151B1660 [Screw] Screw
4 Q151B1645 [Screw] Screw
5 190003888459 [Nut] Nut
6 WG9114930040 [Plate] Plate
7 Q150B1440 [Screw] Screw
8 Q33214 [Nut] Nut
9 WG9114930170 [Support] Support
10 Q150B1290 [Screw] Screw
11 Q40212 [Washer] Washer
12 Q40312 [Spring washer] Spring washer
13 Q340B12 [Nut] Nut
14 AZ9114930172 [Support] Support
15 Q150B0840 [Screw] Screw
16 Q40308 [Spring washer] Spring washer
17 Q340B08 [Nut] Nut
18 Q40108 [Washer] Washer
19 AZ9100930061 [Step] Step
20 Q150B0840 [Screw] Screw
21 Q340B08 [Nut] Nut
22 Q40308 [Spring washer] Spring washer
BRACKET OF HIGH BUMPER WITH REMOABLE TOWING HOOK (B7-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

BRACKET OF HIGH BUMPER WITH REMOABLE TOWING HOOK (B7-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

BRACKET OF HIGH BUMPER WITH REMOABLE TOWING HOOK (B7-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9240930001 [Bracket left] Bracket left
1 WG9114930035 [Bracket left] Bracket left
1 WG9118930051 [Bracket left] Bracket left
1 WG9632930003 [Bracket left] Bracket left
2 AZ924093002 [Bracket left] Bracket left
2 WG9114930036 [Bracket right] Bracket right
2 WG9118930052 [Bracket right] Bracket right
3 Q151B1660 [Screw] Screw
4 Q151B1645 [Screw] Screw
5 190003888459 [Nut] Nut
6 WG9114930040 [Plate] Plate
7 Q150B1440 [Screw] Screw
8 Q33214 [Nut] Nut
9 WG9114930170 [Support] Support
10 Q150B1290 [Screw] Screw
11 Q40212 [Washer] Washer
12 Q40312 [Spring washer] Spring washer
13 Q340B12 [Nut] Nut
14 AZ9114930172 [Support] Support
15 Q150B0840 [Screw] Screw
16 Q40308 [Spring washer] Spring washer
17 Q340B08 [Nut] Nut
18 Q40108 [Washer] Washer
19 AZ9100930061 [Step] Step
20 Q150B0840 [Screw] Screw
21 Q340B08 [Nut] Nut
22 Q40308 [Spring washer] Spring washer
LOW BUMPER WITH REMOVABLE TOWING HOOK (B7-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

LOW BUMPER WITH REMOVABLE TOWING HOOK (B7-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

LOW BUMPER WITH REMOVABLE TOWING HOOK (B7-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9114930035 [Bracket l.] Bracket l.
1 WG9114930045 [Bracket l.] Bracket l.
1 WG9118930051 [Bracket l.] Bracket l.
1 WG9632930002 [Bracket l.] Bracket l.
1 WG9632930003 [Bracket l.] Bracket l.
2 WG9114930036 [Bracket r.] Bracket r.
2 WG9114930046 [Bracket r.] Bracket r.
2 WG9118930052 [Bracket r.] Bracket r.
3 Q151B1660 [Screw] Screw
4 Q151B1645 [Screw] Screw
5 190003888459 [Nut] Nut
6 WG9114930040 [Plate] Plate
7 Q150B1440 [Screw] Screw
8 Q33214 [Nut] Nut
9 WG9114930070 [Support] Support
10 Q150B1290 [Screw] Screw
11 Q40212 [Washer] Washer
12 Q40312 [Spring washer] Spring washer
13 Q340B12 [Nut] Nut
14 AZ9114930080 [Bracket l.] Bracket l.
14 AZ9118930240 [Bracket l.] Bracket l.
15 AZ9114930090 [Bracket r.] Bracket r.
16 Q150B1235 [Screw] Screw
17 Q40312 [Spring washer] Spring washer
18 Q340B12 [Nut] Nut
19 AZ9114930101 [Plate] Plate
20 Q150B1050 [Screw] Screw
21 Q40210 [Washer] Washer
22 Q40310 [Spring washer] Spring washer
23 Q340B10 [Nut] Nut
