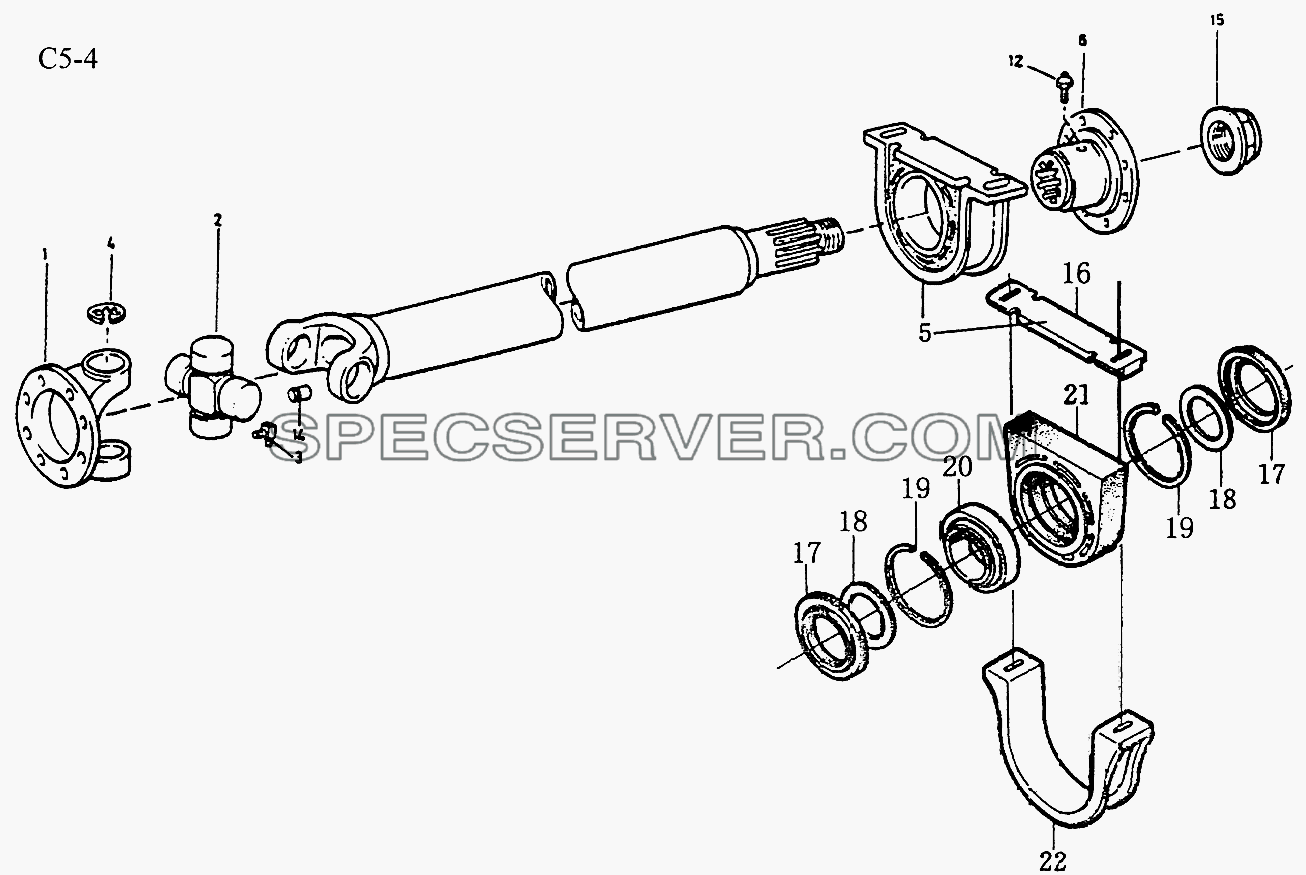

Запчасти: INTERMEDIATE SHAFTS Ф57 Inter mediate shaft wath spider (C5-4-2) для Sinotruk 6x4 Tipper (371)

INTERMEDIATE SHAFTS Ф57 Inter mediate shaft wath spider (C5-4-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

INTERMEDIATE SHAFTS Ф57 Inter mediate shaft wath spider (C5-4-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 19036311062 [Ф165 Plane Flange] Ф165 Plane Flange
1 AZ9114311062 [Ф180 Plane Flange] Ф180 Plane Flange
1 AZ9136311062 [Ф165 toothed flange] Ф165 toothed flange
2 19036311080 [Spider] Spider
4 19036311063 [Circlip] Circlip
4 19036311064 [Circlip] Circlip
4 19036311065 [Circlip] Circlip
4 19036311066 [Circlip] Circlip
4 19036311067 [Circlip] Circlip
5 26013314030 [Bearing Assemble] Bearing Assemble
6 26013314051 [Ф165 plane flange] Ф165 plane flange
6 AZ9114314051 [Ф180 plane flange] Ф180 plane flange
12 Q700B01 [Grease Nipple] Grease Nipple
15 26013314052 [Nut] Nut
16 26013314042 [Plate] Plate
17 26013314032 [Gasket] Gasket
18 26013314033 [Scraper] Scraper
19 26013314037 [Circlip] Circlip
20 26013314045 [Bearing] Bearing
21 26013314035 [Bearing assembly] Bearing assembly
22 26013314020 [Connecting plate] Connecting plate

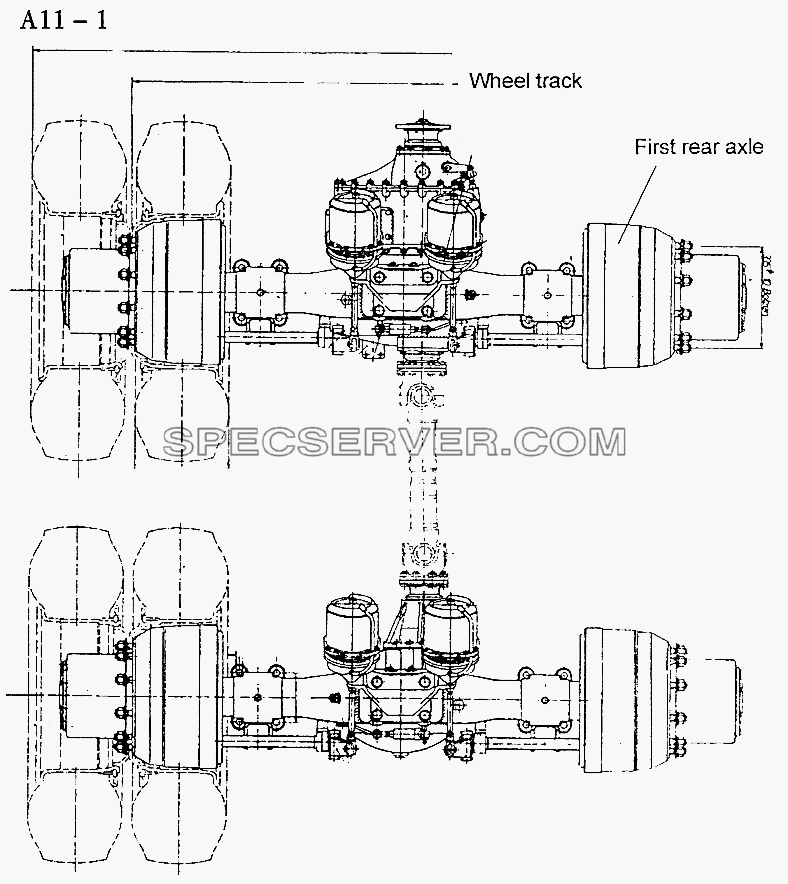

Запчасти: REAR DRIVE AXLE (A11-1) для Sinotruk 6x4 Tipper (371)

REAR DRIVE AXLE (A11-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR DRIVE AXLE (A11-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AH71131500101 [Single rear axle] Single rear axle
2 AH71131500115 [Single rear axle] Single rear axle
3 JF1943300114 [Single rear axle] Single rear axle
4 JF1943300115 [Single rear axle] Single rear axle
5 JF1943300116 [Single rear axle] Single rear axle
6 JF1943300117 [Single rear axle] Single rear axle
7 JF1943300124 [Single rear axle] Single rear axle
8 JF1943300125 [Single rear axle] Single rear axle
9 JF1931..00102 [Single rear axle] Single rear axle
10 JF1931..00113 [Single rear axle] Single rear axle
11 JF1931..00114 [Single rear axle] Single rear axle
12 JF1931..00166 [Single rear axle] Single rear axle
13 AH71131500103 [Single rear axle] Single rear axle
14 AH71131500106 [Single rear axle] Single rear axle
15 AH71131501001 [Single rear axle] Single rear axle
16 AH71131501002 [Single rear axle] Single rear axle
17 AH71131500603 [Single rear axle] Single rear axle
18 AH71131500605 [Single rear axle] Single rear axle
18 AH71131500622 [Single rear axle] Single rear axle
19 AH71131500624 [Single rear axle] Single rear axle
20 AH71131500627 [Single rear axle] Single rear axle
21 AH71131500629 [Single rear axle] Single rear axle
22 AH71131501051 [Single rear axle] Single rear axle
23 AH71131500601 [6x2 Single rear axle] 6x2 Single rear axle
24 AH71131500612 [6x2 Single rear axle] 6x2 Single rear axle
25 AH71131501052 [6x2 Single rear axle] 6x2 Single rear axle
26 AH71131400102 [Double rear axle] Double rear axle
27 AH71131400107 [Double rear axle] Double rear axle
28 AH71131400108 [Double rear axle] Double rear axle
29 AH71131400111 [Double rear axle] Double rear axle
30 AH71131400112 [Double rear axle] Double rear axle
31 AH71131400114 [Double rear axle] Double rear axle
32 AH71131400116 [Double rear axle] Double rear axle
33 AH71131400117 [Double rear axle] Double rear axle
33 AH71131501082 [Double rear axle] Double rear axle
34 AH71131400118 [Double rear axle] Double rear axle
34 AH71131400174 [Double rear axle] Double rear axle
35 JF2643300107 [Double rear axle] Double rear axle
36 JF2643300108 [Double rear axle] Double rear axle
37 JF2643300109 [Double rear axle] Double rear axle
38 JF2631..00167 [Double rear axle] Double rear axle
39 JF2631..00168 [Double rear axle] Double rear axle
40 AH71131400175 [Double rear axle] Double rear axle
41 AH71131400177 [Double rear axle] Double rear axle
42 AH71131401002 [Double rear axle] Double rear axle
43 AH71131401015 [Double rear axle] Double rear axle
44 AH71131401016 [Double rear axle] Double rear axle
45 AH71131400104 [Double rear axle] Double rear axle
46 AH71131400176 [Double rear axle] Double rear axle
47 AH71131400201 [Double rear axle] Double rear axle
48 AH71131400202 [Double rear axle] Double rear axle
49 AH71131400203 [Double rear axle] Double rear axle
49 AH71131400222 [Double rear axle] Double rear axle
50 AH71131400223 [Double rear axle] Double rear axle
51 AH71131400224 [Double rear axle] Double rear axle
52 AH71131400501 [Double rear axle] Double rear axle
53 AH71131400502 [Double rear axle] Double rear axle
54 AH71131400503 [Double rear axle] Double rear axle
54 AH71131400506 [Double rear axle] Double rear axle
55 AH71131400525 [Double rear axle] Double rear axle
56 AH71131400526 [Double rear axle] Double rear axle
57 AH71131400560 [Double rear axle] Double rear axle
58 AH71131400561 [Double rear axle] Double rear axle
59 AH71131401061 [Double rear axle] Double rear axle
60 AH71131400101 [Double rear axle] Double rear axle

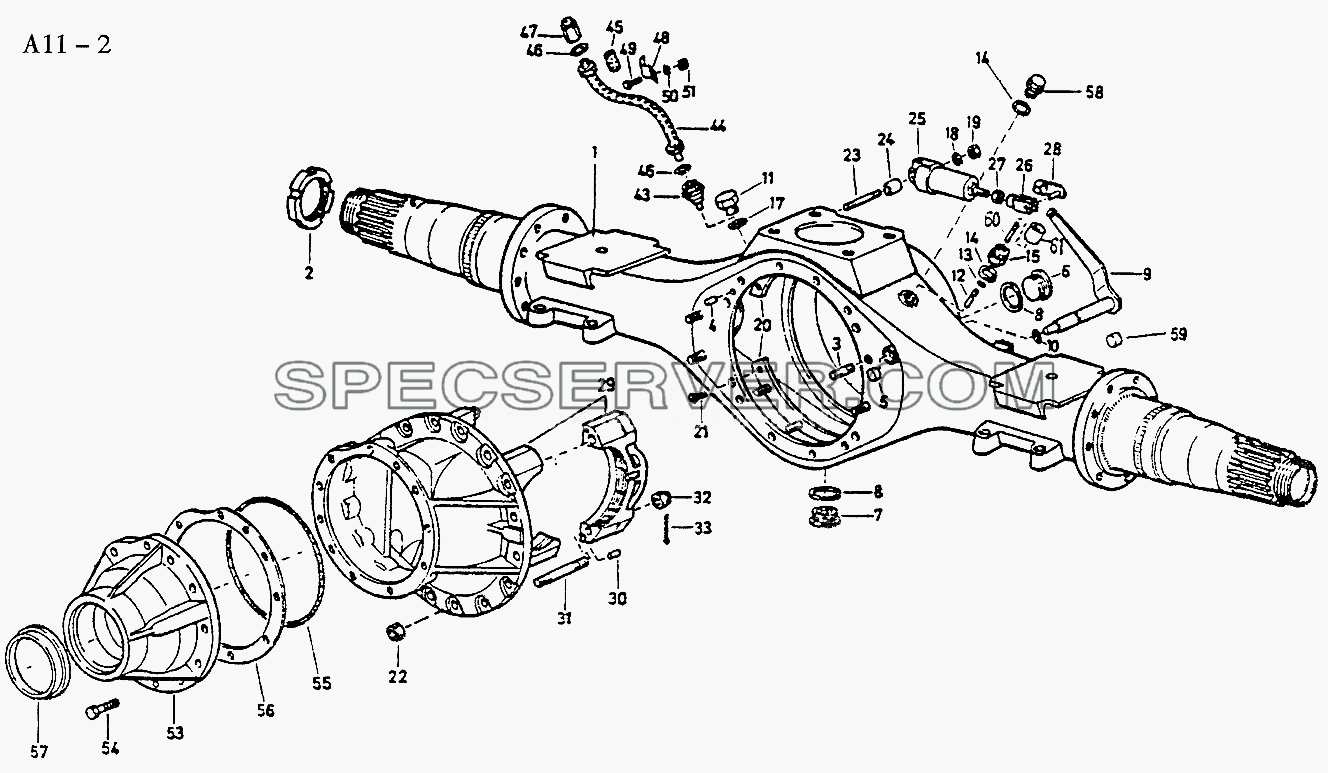

Запчасти: STEYR REAR AXLE HOUSING (A11-2) для Sinotruk 6x4 Tipper (371)

STEYR REAR AXLE HOUSING (A11-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

STEYR REAR AXLE HOUSING (A11-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26012330165 [Rear axle housing] Rear axle housing
1 AZ9231330065 [Rear axle housing] Rear axle housing
1 AZ9231330161 [Rear axle housing] Rear axle housing
1 AZ9231330265 [Rear axle homing] Rear axle homing
1 AZ9231330266 [Rear axle housing] Rear axle housing
2 1680 340013 [Nut] Nut
3 190003810631 [Stud] Stud
5 190003989290 [Core plug] Core plug
6 181500010163 [Screw] Screw
7 1586 330015 [Magnet plug] Magnet plug
8 Q72336 [Gasket] Gasket
9 199014330125 [Lever] Lever
10 1680M320015 [O-ring] O-ring
11 199000330006 [Breather] Breather
12 169000330008 [Pin] Pin
12 169000330009 [Pin] Pin
12 BZ9100330010 [Pin] Pin
13 Q43705 [Snap ring] Snap ring
14 Q72318T5F [Gasket] Gasket
15 WG9100710003 [Pressure switch] Pressure switch
18 Q40108 [Washer] Washer
19 Q33208 [Nut] Nut
20 199014330146 [Connecting clip below] Connecting clip below
20 199014330147 [Connecting clip above] Connecting clip above
21 Q2540820 [Screw] Screw
22 190003888732 [Nut] Nut
23 Q1200850F3 [Stud] Stud
24 161000060084 [Sleeve] Sleeve
25 179100360018 [Operating cylinder] Operating cylinder
26 190003964418 [Clevis] Clevis
27 190003870221 [Nut] Nut
28 WG780 350055 [Pin] Pin
29 199012320098 [Housing of axle driver] Housing of axle driver
30 Q5210820 [Pin] Pin
31 Q12316120 [Stud] Stud
32 190003888459 [Nut] Nut
53 199012320131 [Bearing housing] Bearing housing
54 Q150B1230TF2 [Screw] Screw
55 199012320133 [Gasket] Gasket
56 199012320173 [Shim] Shim
56 199012320174 [Shim] Shim
56 199012320175 [Shim] Shim
56 199012320176 [Shim] Shim
57 199012320121 [Ring] Ring
58 190003962030 [Plug] Plug
59 190003989201 [Core plug] Core plug

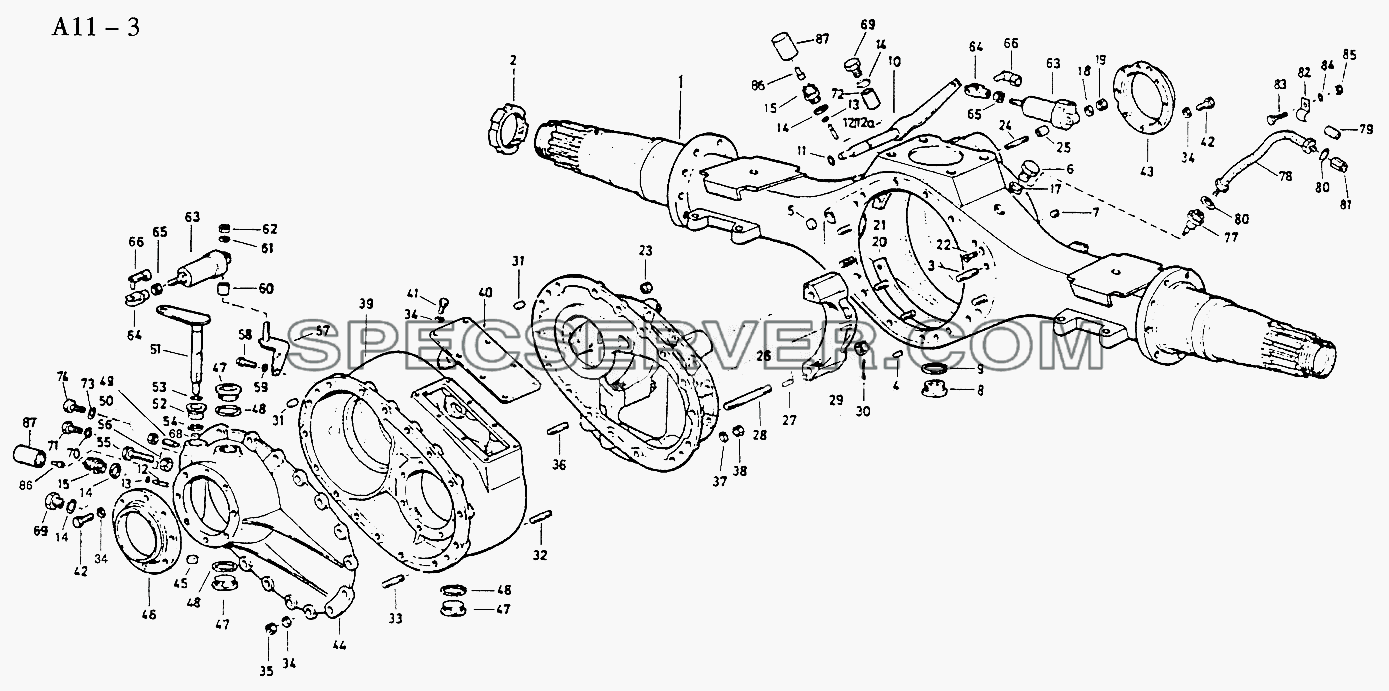

FIRST REAR AXLE HOUSING (A11-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

FIRST REAR AXLE HOUSING (A11-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

FIRST REAR AXLE HOUSING (A11-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1586 33 15 [Magenet plug] Magenet plug
1 26013330208 [Fir.rear housing] Fir.rear housing
1 26013330308 [Fir.rear housing] Fir.rear housing
1 AZ9231330208 [Fir.rear housing] Fir.rear housing
1 AZ9231332208 [Fir.rear housing] Fir.rear housing
2 1680 340013 [Nut] Nut
3 190003810631 [Stud] Stud
4 Q5211016 [Pin] Pin
5 190003989290 [Core plug] Core plug
6 199000330006 [Breather] Breather
7 190003962021 [Screw] Screw
8 1586 330015 [Magnet plug] Magnet plug
9 Q72336 [Gasket] Gasket
10 199014330126 [Lever] Lever
11 1680M320015 [O-ring] O-ring
12 169000330008 [Pin] Pin
12 169000330009 [Pin] Pin
12 BZ9100330010 [Pin] Pin
13 Q72318 T5F [Gasket] Gasket
14 Q72318 T5F [Gasket] Gasket
15 WG9100710003 [Pressure switch] Pressure switch
18 Q40108 [Washer] Washer
19 Q33208 [Nut] Nut
20 199014330146 [Connecting clip below] Connecting clip below
21 199014330147 [Connecting clip above] Connecting clip above
22 Q2540820 [Screw] Screw
23 190003888457 [Nut] Nut
24 Q1200850F3 [Stud] Stud
25 161000060084 [Sleeve] Sleeve
26 199014320120 [Housing of Ist rear axle driver] Housing of Ist rear axle driver
27 Q5210820 [Pin] Pin
28 Q12316120 [Stud] Stud
29 190003888459 [Nut] Nut
31 Q5211016 [Pin] Pin
32 190003813628 [Stud] Stud
33 Q1201028F3 [Stud] Stud
34 Q40310 [Spring washer] Spring washer
35 Q340B10 [Nut] Nut
36 Q1201225F3 [Stud] Stud
37 Q40312 [Spring washer] Spring washer
38 Q340B12 [Nut] Nut
39 199014320259 [Housing] Housing
40 199014320118 [Cover] Cover
41 Q150B1020Q [Screw] Screw
42 Q150B1025 [Screw] Screw
43 199014320141 [Cover] Cover
44 199014320144 [Cover] Cover
45 190003989279 [Core plug] Core plug
46 199014320175 [Cover] Cover
47 181500010163 [Plug] Plug
48 Q72336 [Gasket] Gasket
49 190003902070 [Screw] Screw
50 Q340B08 [Nut] Nut
51 199014320076 [Lever] Lever
52 12700 320037 [Sleeve] Sleeve
53 1288 730062 [O-ring] O-ring
54 190003933072 [Snap ring] Snap ring
55 Q150B1050Q [Screw] Screw
56 Q340B10 [Nut] Nut
57 199014320156 [Bracket] Bracket
58 Q150B0818 [Screw] Screw
59 Q40308 [Spring washer] Spring washer
60 161000060072 [Sleeve] Sleeve
61 Q40108 [Washer] Washer
62 Q33208 [Nut] Nut
63 179100360018 [Operating cylinder] Operating cylinder
64 190003964418 [Clevis] Clevis
65 Q350B08T5F [Nut] Nut
66 1780 350055 [Pin] Pin
70 Q72310T5F [Gasket] Gasket
71 Q150B1012 [Screw] Screw
73 Q72308T5F [Gasket] Gasket
74 Q150B0810 [Screw] Screw

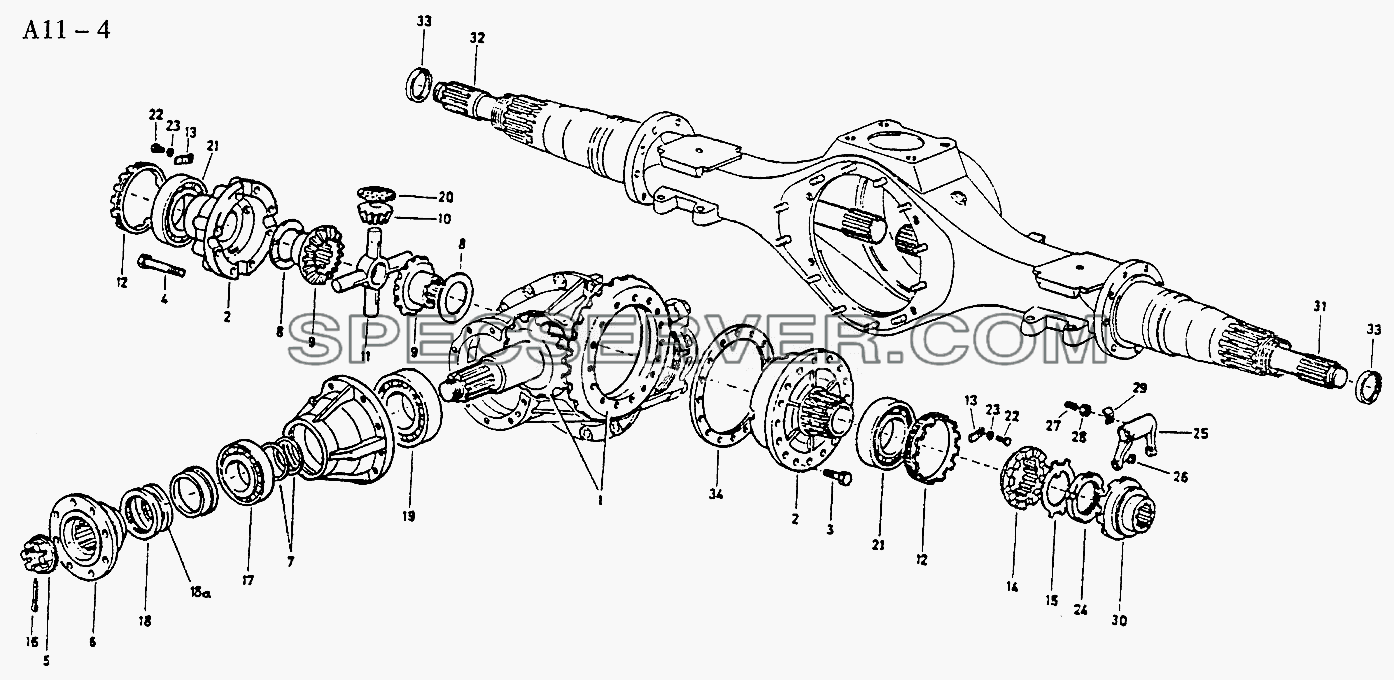

REAR AXLE DRIVE (A11-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR AXLE DRIVE (A11-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

REAR AXLE DRIVE (A11-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 199114320005 [Rrear axle drive] Rrear axle drive
- AZ9112320025 [Rrear axle drive] Rrear axle drive
- AZ9112320050 [Rrear axle drive] Rrear axle drive
- AZ9112320140 [Rrear axle drive] Rrear axle drive
- AZ9112320143 [Rrear axle drive] Rrear axle drive
- AZ9112320161 [Rrear axle drive] Rrear axle drive
- AZ9112320184 [Gasket] Gasket
- AZ9112322010 [Rrear axle drive] Rrear axle drive
- AZ9231320007 [Rrear axle drive] Rrear axle drive
- AZ9231320009 [Rrear axle drive] Rrear axle drive
- AZ9231320140 [Rrear axle drive] Rrear axle drive
- AZ9231320143 [Rrear axle drive] Rrear axle drive
- AZ9231320144 [Rrear axle drive] Rrear axle drive
- AZ9231320146 [Rrear axle drive] Rrear axle drive
- AZ9231320147 [Rrear axle drive] Rrear axle drive
- WG9114320003 [Locking sheet] Locking sheet
1 199012320177 [Pinion and crown wheel] Pinion and crown wheel
1 199012320178 [Pinion and crown wheel] Pinion and crown wheel
1 199012320179 [Pinion and crown wheel] Pinion and crown wheel
1 199012320180 [Pinion and crown wheel] Pinion and crown wheel
1 199012320181 [Pinion and crown wheel] Pinion and crown wheel
1 199012320182 [Pinion and crown wheel] Pinion and crown wheel
1 199112320003 [Pinion and crown wheel] Pinion and crown wheel
2 179012320199 [Diff. housing] Diff. housing
2 199012320198 [Diff. housing] Diff. housing
2 199012320503 [Diff. housing] Diff. housing
2 AZ9112320199 [Diff. housing] Diff. housing
3 Q151B1632TF2 [Screw] Screw
4 Q151B1480TF2 [Screw] Screw
5 179000320013 [Nut] Nut
6 179000320010 [Ф150 plane flange] Ф150 plane flange
6 199012320110 [Ф165 plane flange] Ф165 plane flange
6 199014320261 [Ф180 plane flange] Ф180 plane flange
6 AZ9112320110 [Ф165 Toothed flange] Ф165 Toothed flange
6 AZ9128320014 [Ф180 Toothed flange] Ф180 Toothed flange
7 1880 320002 [Shim] Shim
7 1880 320003 [Shim] Shim
7 1880 320004 [Shim] Shim
7 1880 320005 [Shim] Shim
7 1880 320006 [Shim] Shim
7 1880 320007 [Shim] Shim
7 1880 320008 [Shim] Shim
7 1880 320009 [Shim] Shim
7 1880 320010 [Shim] Shim
7 1880 320011 [Shim] Shim
7 1880 320012 [Shim] Shim
7 1880 320013 [Shim] Shim
7 1880 320014 [Shim] Shim
7 1880 320015 [Shim] Shim
8 11800 320012 [Shim] Shim
8 11800 320131 [Shim] Shim
8 11800 320132 [Shim] Shim
8 13809320169 [Shim] Shim
8 199012320129 [Shim] Shim
9 199012320009 [Bevel pinion] Bevel pinion
10 199012320010 [Bevel pinion] Bevel pinion
11 199014320091 [Diff.spider] Diff.spider
12 13809320159 [Screwed ring] Screwed ring
13 17900320027 [Safety clip] Safety clip
14 13809320155 [Shifting dog] Shifting dog
15 13809320158 [Locking sheet] Locking sheet
16 Q5005055 [Split pin] Split pin
17 190003326236 [Roller bearing] Roller bearing
18 AZ9112320030 [Gasket] Gasket
19 190003326546 [Roller bearing] Roller bearing
19 190003326547 [Roller bearing] Roller bearing
20 199012320150 [Intermed.sheet] Intermed.sheet
21 190003326148 [Roller bearing] Roller bearing
22 Q150B0816 [Screw] Screw
23 Q40308 [Spring washer] Spring washer
24 13809320157 [Nut] Nut
25 199012320014 [Shifting fork] Shifting fork
26 11800320077 [Tappet] Tappet
27 Q2800825 [Grub screw] Grub screw
28 Q340B08 [Nut] Nut
29 199012320023 [Lashing] Lashing
30 13809320156 [Gear shift sleeve] Gear shift sleeve
31 199012340023 [Drive shaft (left)] Drive shaft (left)
32 199012340024 [Drive shaft (right)] Drive shaft (right)
33 190003074340 [Gasket] Gasket
34 199012320121 [Ring] Ring

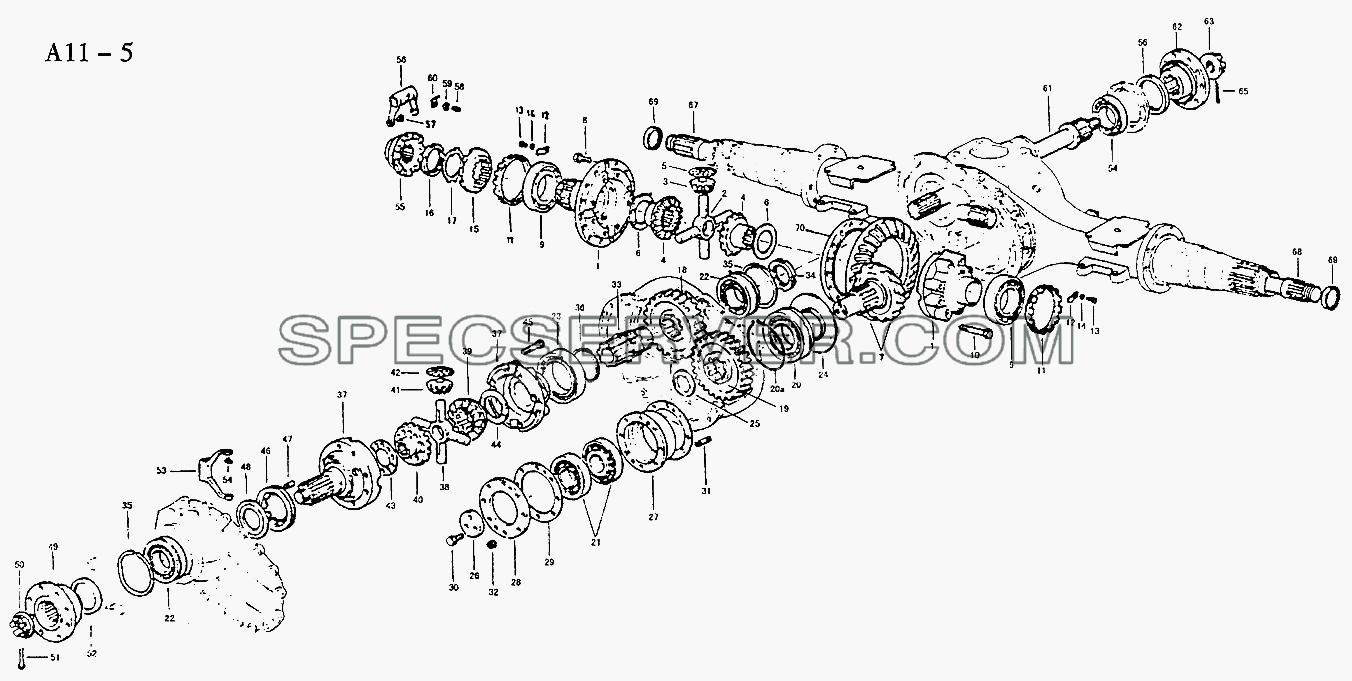

FIRST REAR AXLE DRIVE (A11-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

FIRST REAR AXLE DRIVE (A11-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

FIRST REAR AXLE DRIVE (A11-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей











№ Номер детали Наименование запчасти
- 199014320219 [First Rear axle drive] First Rear axle drive
- 199014320256 [Snap ring] Snap ring
- 199014320265 [First Rear axle drive] First Rear axle drive
- 199114320003 [First Rear axle drive] First Rear axle drive
- 199114320004 [First Rear axle drive] First Rear axle drive
- AZ9114320002 [Locking sheet] Locking sheet
- AZ9114320017 [First Rear axle drive] First Rear axle drive
- AZ9114320214 [First Rear axle drive] First Rear axle drive
- AZ9114320215 [First Rear axle drive] First Rear axle drive
- AZ9114320226 [First Rear axle drive] First Rear axle drive
- AZ9114320231 [First Rear axle drive] First Rear axle drive
- AZ9114320264 [First Rear axle drive] First Rear axle drive
- AZ9114322010 [First Rear axle drive] First Rear axle drive
- AZ9231320003 [First Rear axle drive] First Rear axle drive
- AZ9231320004 [First Rear axle drive] First Rear axle drive
- AZ9231320215 [First Rear axle drive] First Rear axle drive
- AZ9231320216 [First Rear axle drive] First Rear axle drive
- AZ9631320211 [First Rear axle drive] First Rear axle drive
- WG9004320003 [Locking sheet] Locking sheet
1 199014320165 [Diff.housing] Diff.housing
2 199014320091 [Diff.spider] Diff.spider
3 199012320010 [Bevel pinion] Bevel pinion
4 199012320009 [Bevel pinion] Bevel pinion
5 199012320150 [Intermed.sheet] Intermed.sheet
6 11800320012 [Shim] Shim
6 11800320131 [Shim] Shim
6 11800320132 [Shim] Shim
6 13809320169 [Shim] Shim
6 199012320129 [Shim] Shim
7 199014320250 [Pinion and crown wheel] Pinion and crown wheel
7 199014320253 [Pinion and crown wheel] Pinion and crown wheel
7 199014320255 [Pinion and crown wheel] Pinion and crown wheel
7 AZ9004320251 [Pinion and crown wheel] Pinion and crown wheel
8 Q151B1635TF2 [Screw] Screw
9 190003326148 [Roller bearing] Roller bearing
10 Q151B1480TF2 [Screw] Screw
11 13809320159 [Screwed ring] Screwed ring
12 179000320027 [Safety clip] Safety clip
13 Q150B0816 [Screw] Screw
14 Q40308 [Spring washer] Spring washer
15 13809320155 [Shifting dog] Shifting dog
16 13809320157 [Nut] Nut
17 13809320158 [Locking sheet] Locking sheet
18 199014320136 [Drive gear] Drive gear
18 199014320209 [Drive gear] Drive gear
18 199114320002 [Drive gear] Drive gear
19 199014320137 [Driven gear] Driven gear
19 199014320208 [Driven gear] Driven gear
19 199114320001 [Driven gear] Driven gear
20 WG9014320257 [Roller bearing] Roller bearing
21 190003326333 [Roller bearing] Roller bearing
22 190003311543 [Ball bearing] Ball bearing
23 190003310239 [Ball bearing] Ball bearing
24 199014320174 [Plate] Plate
25 199014320140 [Ring] Ring
26 1780 320088 [Plate] Plate
27 199014320129 [Bearing bush] Bearing bush
28 199014320128 [Plate] Plate
29 199014320131 [Shim] Shim
29 199014320132 [Shim] Shim
29 199014320133 [Shim] Shim
29 199014320134 [Shim] Shim
30 Q150B1430TF2 [Screw] Screw
31 190003813543 [Screw] Screw
32 Q33210 [Nut] Nut
33 199014320135 [Hollow shaft] Hollow shaft
34 199012250031 [Nut] Nut
35 190003935383 [Snap ring] Snap ring
36 190003933580 [Cirlip] Cirlip
37 199014320166 [Dift.housing] Dift.housing
38 199014320091 [Dift.spider] Dift.spider
39 199014320059 [Bevel pinion (rear)] Bevel pinion (rear)
40 199114320032 [Bevel pinion (front)] Bevel pinion (front)
41 199012320010 [Bevel pinion] Bevel pinion
42 199012320150 [Intermed.washer] Intermed.washer
43 199014320067 [Shim for drive shaft gear] Shim for drive shaft gear
43 199014320068 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320069 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320070 [Front shim for drive shaft gear] Front shim for drive shaft gear
43 199014320211 [Front shim for drive shaft gear] Front shim for drive shaft gear
44 199014320071 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320072 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320073 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320074 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
44 199014320210 [Rear shim for drive shaft gear] Rear shim for drive shaft gear
45 Q151B1480TF2 [Screw] Screw
46 1228 320105 [Locking ring] Locking ring
47 1228 320106 [Pin] Pin
48 199014320061 [Washer for diff.housing] Washer for diff.housing
49 190014320261 [Ф180 Plane flange] Ф180 Plane flange
49 199012320110 [Ф165 Plane flange] Ф165 Plane flange
49 AZ9114320205 [Ф165 Toothed flange] Ф165 Toothed flange
49 AZ9128320014 [Ф180 Toothed flange] Ф180 Toothed flange
50 179000320013 [Nut] Nut
51 Q5005055 [Split pin] Split pin
52 190003070026 [Gasket] Gasket
52 190003078722 [Gasket]
