Запчасти: 9JS150T AUX. GEARBOX LAY SHAFT (C4-11) для Sinotruk 6x4 Tipper (371)

9JS150T AUX. GEARBOX LAY SHAFT (C4-11) для Sinotruk 6x4 Tipper (371) (список запасных частей)

9JS150T AUX. GEARBOX LAY SHAFT (C4-11) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 42307E [Roller bearing] Roller bearing
2 A-5119 [Long lay shaft C] Long lay shaft C
3 A-C09019 [Long lay shaft] Long lay shaft
4 192310E [Roller bearing] Roller bearing
5 16723 [Snap ring] Snap ring
6 C01020 [Snap ring] Snap ring
7 17384 [Washer] Washer

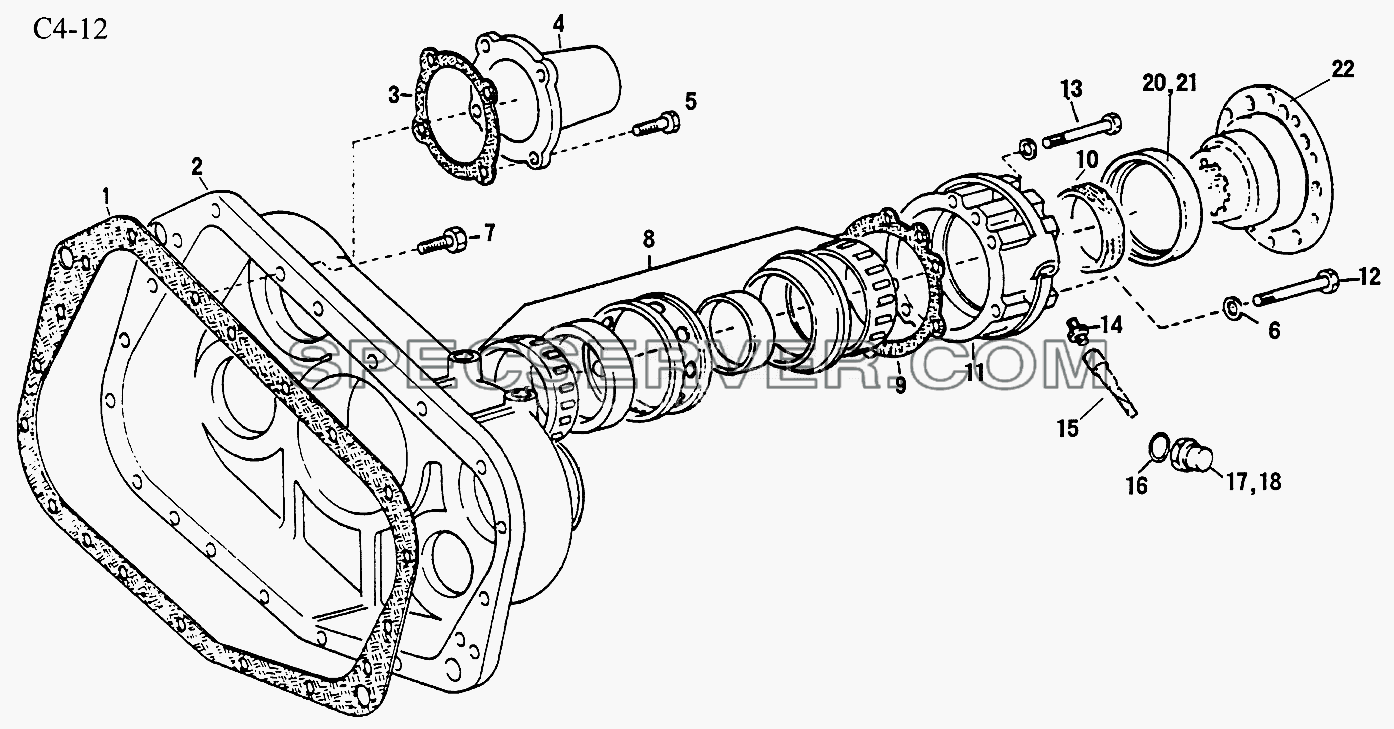

Запчасти: 9JS150T REAR COVER (C4-12) для Sinotruk 6x4 Tipper (371)

9JS150T REAR COVER (C4-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

9JS150T REAR COVER (C4-12) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 14335 [Gasket] Gasket
2 F99975 [Housing] Housing
3 17352 [Gasket] Gasket
4 17376 [Bearing cover] Bearing cover
5 A-C09008 [Screw] Screw
6 Q40310 [Washer] Washer
7 M10 [Screw] Screw
8 717813 [Bearing] Bearing
9 15532 [Gasket] Gasket
10 F91054 [Drive gear for speed meter] Drive gear for speed meter
11 F99967 [Bearing cover] Bearing cover
12 M10x75 [Screw] Screw
13 A-C09009 [Screw] Screw
14 7992 [Sleeve of driven gear shaft] Sleeve of driven gear shaft
15 F91055 [Driven gear] Driven gear
16 F96005 [Gasket] Gasket
17 F93060 [Joint] Joint
18 X11412 [Cover] Cover
19 19109 [Oil seal] Oil seal
20 C01032 [Oil seal] Oil seal
21 F96119 [Cover] Cover
22 F99900-4 [Ф165 Plane flange] Ф165 Plane flange
22 F99900-5 [Ф165 Toothed flange] Ф165 Toothed flange

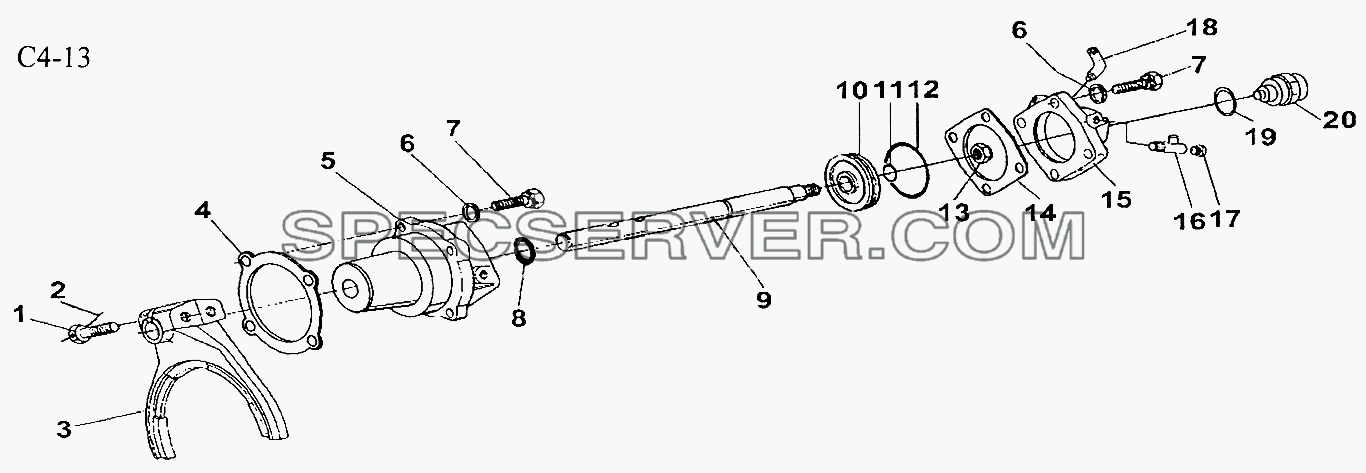

Запчасти: 9JS150T SHIFTING CYLINDER (C4-13) для Sinotruk 6x4 Tipper (371)

9JS150T SHIFTING CYLINDER (C4-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

9JS150T SHIFTING CYLINDER (C4-13) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 M12x1.25x50 [Screw] Screw
2 1819 [Wire] Wire
3 16775 [Shift fork] Shift fork
4 14347 [Gasket] Gasket
5 16778 [Range gear cylinder] Range gear cylinder
6 Q40310 [Spring washer] Spring washer
7 M10x32 [Screw] Screw
8 14765 [O-ring] O-ring
9 16993 [Range gear cylirder shift shaft] Range gear cylirder shift shaft
10 14341 [Piston] Piston
11 14345 [O-ring] O-ring
12 14344 [O-ring] O-ring
13 M16x1.5 [Nut] Nut
14 14349 [Gasket] Gasket
15 F99857 [Cover] Cover
16 C03052 [Nozzle] Nozzle
17 Q618B01 [Plug] Plug
18 12880 [Angle screwing] Angle screwing
19 X11511 [Washer] Washer
20 79100710069 [Pressure switch] Pressure switch
Запчасти: ASSISTOR FOR SHIFTING GEAR (C4-14) для Sinotruk 6x4 Tipper (371)

ASSISTOR FOR SHIFTING GEAR (C4-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

ASSISTOR FOR SHIFTING GEAR (C4-14) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 ZHLQ-1703023-1 [Connector] Connector
2 F91345 [Bush] Bush
3 ZHLQ-1703025-3 [Cover] Cover
4 ZHLQ-1703024 [Gasket] Gasket
5 ZHLQ-1703022 [Lever] Lever
6 Q151B1050 [Screw] Screw
7 Q40310 [Spring washer] Spring washer
8 Q34110 [Nut] Nut
9 Q150B1045 [Screw] Screw
10 Q34008 [Nut] Nut
11 Q40308 [Spring washer] Spring washer
12 ZHLQ-1703049 [Connector] Connector
13 Q150B0855 [Screw] Screw
14 ZHLQ-1703020 [Cover] Cover
15 Q150B0883 [Screw] Screw
16 ZHLQ-1703013 [Screw] Screw
17 ZHLQ-1703018 [Rubber plug] Rubber plug
18 ZHLQ-1703046 [Nut] Nut
19 ZHLQ-1703026 [Screw] Screw
20 ZHLQ-1703036 [O-ring] O-ring
21 ZHLQ-1703011-1 [Assistor for shifting gear] Assistor for shifting gear
22 ZHLQ-1703034 [O-ring] O-ring
23 Q43134 [Circlip] Circlip
24 ZHLQ-1703014 [Connecting rod] Connecting rod
25 Q43140 [Circlip] Circlip
26 ZHLQ-1703047 [O-ring] O-ring
27 ZHLQ-1703016 [Piston] Piston
28 ZHLQ-1703050 [Bush] Bush
29 ZHLQ-1703017 [Shaft for piston] Shaft for piston
30 ZHLQ-1703027 [Air intake line] Air intake line
31 ZHLQ-1703042 [Lever] Lever
32 ZHLQ-1703043 [Plug] Plug
33 ZHLQ-1703031 [O-ring] O-ring
34 ZHLQ-1703032 [Valve] Valve
35 ZHLQ-1703040 [Spring] Spring
36 ZHLQ-1703037 [Airpipe] Airpipe
37 ZHLQ-1703035 [O-ring] O-ring
38 ZHLQ-1703038 [Valve] Valve
39 ZHLQ-1703028 [O-ring] O-ring
40 ZHLQ-1703039 [Spring] Spring
41 ZHLQ-1703030 [Washer] Washer
42 Q43207 [Snap ring] Snap ring
43 ZHLQ-1703029 [Sleeve] Sleeve
44 ZHLQ-1703021 [Plug] Plug
45 ZHLQ-1703019 [Nut] Nut
46 ZHLQ-1703015 [Cylinder] Cylinder
47 Q43022 [Circlip] Circlip
48 ZHLQ-1703044 [Spring plug] Spring plug
49 GB308-89 [Steel ball] Steel ball
50 ZHLQ-1703045 [Spring] Spring
51 ZHLQ-1703048 [Screw] Screw
52 ZHLQ-1703012 [Shift finger] Shift finger
HOUSING FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

HOUSING FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

HOUSING FOR VG1200 TRANSFER CASE WITHOUT DIFF.LOCK (A7-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1F7120.700107 [Transfer case] Transfer case
1 199114250110 [Housing] Housing
2 Q5211020 [Cylindrical pin] Cylindrical pin
3 190003989481 [Core plug] Core plug
4 199114250060 [Suction pipe] Suction pipe
5 Q218B0625 [Screw] Screw
6 190003962038 [Screw] Screw
7 190003098026 [Gasket] Gasket
8 1586 330015 [Magnetic plug] Magnetic plug
9 190003098138 [Gasket] Gasket
10 199014250108 [Cover] Cover
11 179200250136 [Cover] Cover
12 Q150B10100 [Screw] Screw
13 1-99-916-002 [Cover] Cover
14 Q150B1216 [Screw] Screw
15 199014250126 [Cover] Cover
16 1680M250030 [Adjusting washer] Adjusting washer
16 1680M250031 [Adjusting washer] Adjusting washer
17 Q150B1030 [Screw] Screw
17 Q150B1035 [Screw] Screw
18 199114250043 [Cover] Cover
19 Q15081055 [Screw] Screw
20 199114250112 [Bush] Bush
21 13809 220073 [Screw] Screw
22 Q40308 [Spring washer] Spring washer
25 190003961903 [Locking cover] Locking cover
26 199000410120 [Venting nipple] Venting nipple
27 190003098026 [Gasket] Gasket
28 199114250242 [Pipe] Pipe
36 1880 250069 [Flange] Flange
39 190003330183 [Ball] Ball
40 12700 240011 [Spring] Spring
41 12700 240049 [Gukdance] Gukdance
42 1680 250092 [Gasket] Gasket
43 1480 240027 [Protecting cap] Protecting cap
44 1880 250080 [Shim] Shim
44 1880 250081 [Shim] Shim
46 199114250101 [Oil sheet] Oil sheet
47 Q40008 [Washer] Washer
48 Q33208 [Nut] Nut

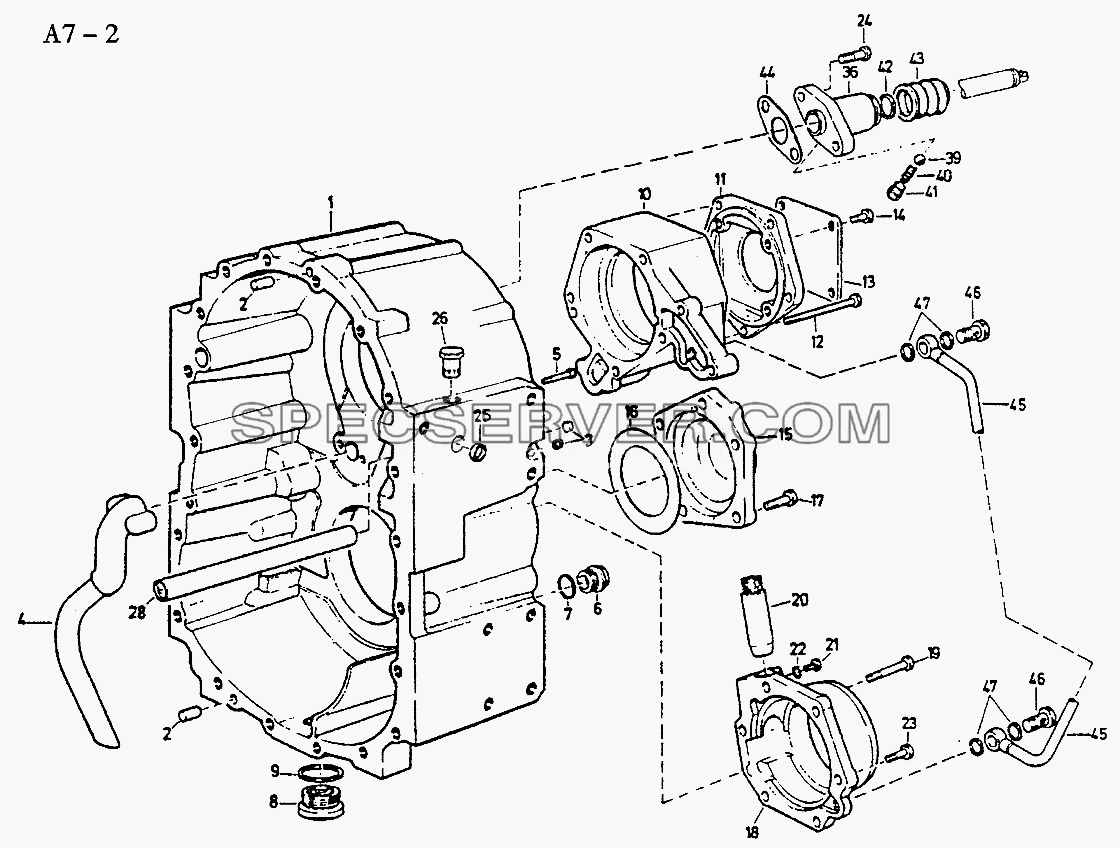

HOUSING FOR VG1200 TRANSFER CASE WITH DIFF.LOCK (A7-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

HOUSING FOR VG1200 TRANSFER CASE WITH DIFF.LOCK (A7-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

HOUSING FOR VG1200 TRANSFER CASE WITH DIFF.LOCK (A7-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1F7120.700152 [Transfer case] Transfer case
1 199114250110 [Housing] Housing
2 Q5211020 [Cylindrical pin] Cylindrical pin
3 190003989481 [Core plug] Core plug
4 199114250060 [Suction] Suction
5 Q218B0625 [Screw] Screw
6 190003962038 [Screw] Screw
7 190003098026 [Gasket] Gasket
8 1586 330015 [Magnetic plug] Magnetic plug
9 190003098138 [Gasket] Gasket
10 199114250025 [Housing] Housing
11 179200250136 [Cover] Cover
12 Q150B10100 [Screw] Screw
13 1-99-916-002 [Cover] Cover
14 Q150B1216 [Screw] Screw
15 199014250126 [Cover] Cover
16 1680M250030 [Adjusting washer] Adjusting washer
16 1680M250031 [Adjusting washer] Adjusting washer
16 1680M250032 [Adjusting washer] Adjusting washer
17 Q150B1030 [Screw] Screw
18 199114250023 [Cover] Cover
19 Q150B1055Q [Screw] Screw
20 199114250112 [Bush] Bush
21 13809 220073 [Screw] Screw
22 Q40308 [Spring washer] Spring washer
23 Q150B1055 [Screw] Screw
24 Q150B1055 [Screw] Screw
25 190003961903 [Locking cover] Locking cover
26 199000410120 [Fan] Fan
28 199114250242 [Pipe] Pipe
36 1880 250069 [Flange] Flange
39 190003330183 [Ball] Ball
40 12700 240011 [Spring] Spring
41 12700 240049 [Gukdanee] Gukdanee
42 1680 250092 [Gasket] Gasket
43 1480 240027 [Protecting cap] Protecting cap
44 1880 250080 [Shim] Shim
44 1880 250081 [Shim] Shim
45 199114250057 [Pressure pipe] Pressure pipe
46 190003962627 [Female screw] Female screw
47 Q72316T5F [Gasket] Gasket
48 199114250101 [Oil sheet] Oil sheet
49 Q40008 [Washer] Washer
50 Q33208 [Nut] Nut
