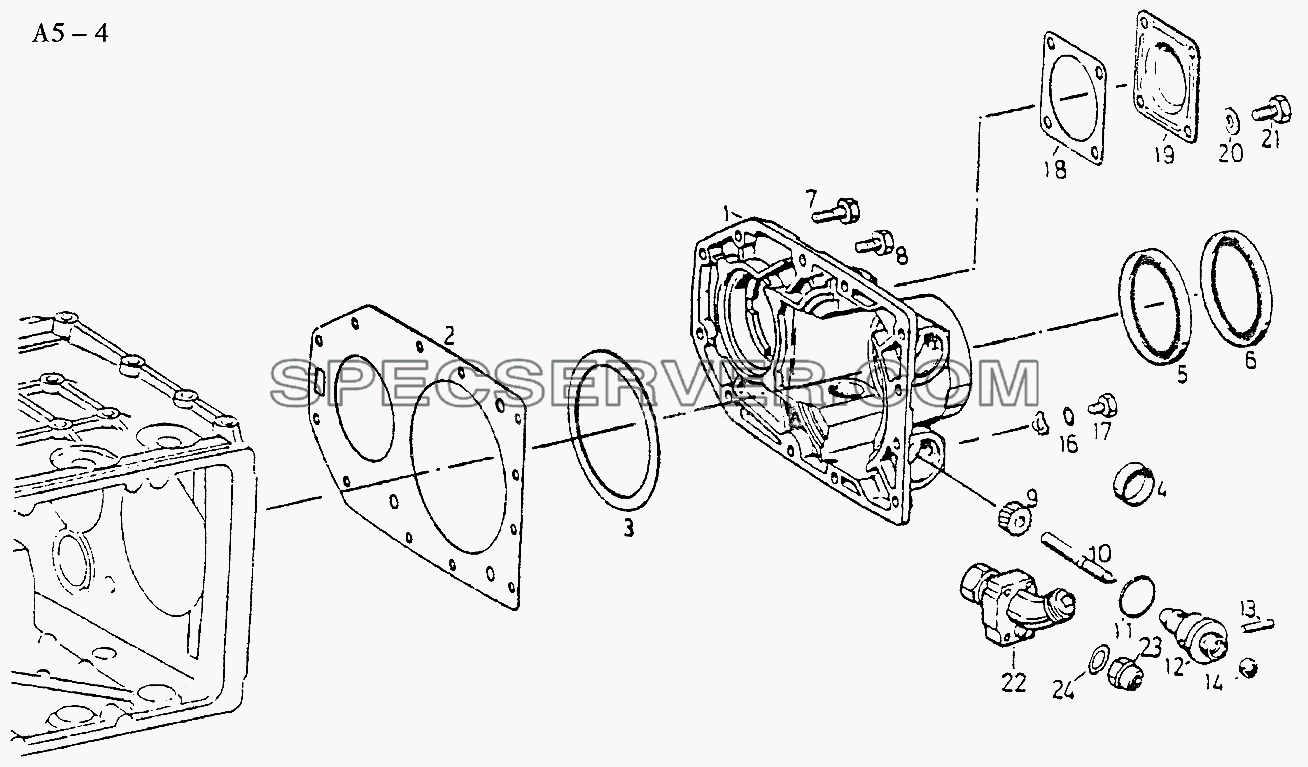

Запчасти: S6-120 REAR COVER (A5-4) для Sinotruk 6x4 Tipper (371)

S6-120 REAR COVER (A5-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

S6-120 REAR COVER (A5-4) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 0730 002 665 [Shim] Shim
- 0730 002 666 [Shim] Shim
- 0730 002 667 [Shim] Shim
- 0730 002 668 [Shim] Shim
- 0730 002 669 [Shim] Shim
- 0730 002 670 [Shim] Shim
- 0730 002 671 [Shim] Shim
- 0730 002 672 [Shim] Shim
1 1268 308 012 [Rear Cover] Rear Cover
2 1268 308 003 [Gasket] Gasket
3 0769 140 051(S) [Shim series] Shim series
4 0630 361 046 [Sealing Cap] Sealing Cap
5 0734 310 109 [Shaft Seal] Shaft Seal
6 0734 300 093 [Shaft Seal] Shaft Seal
7 0636 015 127 [Hexagon Screw] Hexagon Screw
8 0636 015 110 [Hexagon Screw] Hexagon Screw
9 1250 308 057 [Speedmeter Pinion] Speedmeter Pinion
10 1250 308 007 [Speed Conn.Shaft] Speed Conn.Shaft
11 0634 316 057 [O-Ring] O-Ring
12 1250 308 017 [Speed Conn.Dee] Speed Conn.Dee
13 0631 306 713 [Parallel Pin] Parallel Pin
14 0634 300 185 [Shaft Seal] Shaft Seal
16 1250 308 130 [Screw] Screw
17 0737 006 078 [Hexagon Nut] Hexagon Nut
18 1238 308 201 [Gasket] Gasket
19 1268 308 165 [Cover] Cover
21 0636 016 005 [Hexagon Screw] Hexagon Screw
22 0731 101 250 [Speed Gearbox] Speed Gearbox
23 0501 308 001 [Cover] Cover
Запчасти: S6-120 SHIFTING GEAR FORK (A5-5) для Sinotruk 6x4 Tipper (371)

S6-120 SHIFTING GEAR FORK (A5-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

S6-120 SHIFTING GEAR FORK (A5-5) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 1126 306 001 [1/2G.Sliding Pad] 1/2G.Sliding Pad
- 1240 306 242 [Articulat Bolt] Articulat Bolt
1 115 306 009 [5/6G.Gear Shift Fork] 5/6G.Gear Shift Fork
2 115 206 006 [3/4G.Gear Shift Fork] 3/4G.Gear Shift Fork
3 1268 206 040 [1/2G.Gear Shift Fork] 1/2G.Gear Shift Fork
4 115 306 006 [Sliding Pad] Sliding Pad
5 0730 300 005 [Spring Washer] Spring Washer
6 1252 306 077 [Articulat Bolt] Articulat Bolt
8 1268 306 035 [Sliding Bow] Sliding Bow
9 1246 206 008 [Dang Link] Dang Link
10 1269 306 022 [3/4G.Dang Link] 3/4G.Dang Link
11 1268 306 096 [1/2G.Dang Link] 1/2G.Dang Link
12 1240 306 214 [Rg.Gear Shift Fork] Rg.Gear Shift Fork
Запчасти: S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 6x4 Tipper (371)

S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

S6-120 GEARSHAFT COVER AND ROTRY SELECTOR MECHANISM (A5-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 0637 011 532 [Locking Nut] Locking Nut
- 1240 307 339 [5/6G.Driver] 5/6G.Driver
1 1250 307 450 [Gear shift Cover] Gear shift Cover
2 1250 306 182 [Gasket] Gasket
3 0630 302 091 [Spring Washer B10] Spring Washer B10
4 0636 010 172 [Hexagon Screw] Hexagon Screw
5 0636 010 174 [Hexagon Screw] Hexagon Screw
6 0636 010 200 [Hexagon Screw] Hexagon Screw
7 0636 010 190 [Hexagon Screw] Hexagon Screw
8 0636 010 179 [Hexagon Screw] Hexagon Screw
10 0736 303 005 [Screw Plug] Screw Plug
11 112 365 064 [Type Plate] Type Plate
12 0630 603 010 [Locking Platte] Locking Platte
13 1250 207 254 [Spring loaded screw] Spring loaded screw
14 0501 203 944 [Switch] Switch
15 0501 309 183 [Gasket] Gasket
16 0636 015 020 [Hexagon Screw] Hexagon Screw
17 1240 307 441 [Plate] Plate
19 0630 302 090 [Spring washer] Spring washer
20 0630 015 092 [Hexagon Screw] Hexagon Screw
22 0635 300 053 [Niddle bearing] Niddle bearing
25 0636 301 041 [Screw] Screw
26 1240 307 424 [Cover] Cover
27 1252 307 060 [Gasket] Gasket
28 1250 307 600 [Detent Bolt] Detent Bolt
29 0732 041 244 [Compression Spring] Compression Spring
30 1240 307 346 [Shaft] Shaft
31 0730 361 073 [Sealing Cap] Sealing Cap
33 0735 470 007 [Roller] Roller
34 115 307 001 [Detent Secment] Detent Secment
35 1240 307 338 [Driver] Driver
36 1240 307 374 [Driver] Driver
37 0631 329 072 [Slotted Spring Pin] Slotted Spring Pin
38 0631 329 145 [Slotted Spring Pin] Slotted Spring Pin
39 0730 061 091 [Stop Bush] Stop Bush
40 0630 532 138 [V-Ring] V-Ring
41 0730 104 083 [Washer] Washer
42 0730 001 156 [Washer] Washer
43 0732 040 022 [Compression Spring] Compression Spring
44 0732 040 237 [Compression Spring] Compression Spring
45 0501 204 714 [Ball Joint] Ball Joint
49 1240 207 113 [Connect Ion Part] Connect Ion Part
50 0637 011 527 [Locking Nut] Locking Nut
51 0732 107 019 [Ball joint (left)] Ball joint (left)
52 0637 006 091 [Hexagon Nut] Hexagon Nut
53 0736 620 056 [Draw Bar] Draw Bar
54 0637 006 027 [Hexagon Nut] Hexagon Nut
55 0732 107 018 [Ball joint (left)] Ball joint (left)
56 1269 307 350 [Support Plate] Support Plate
57 0630 001 014 [Washer] Washer
58 0636 010 192 [Hexagon Screw] Hexagon Screw
67 1250 307 634 [Gear Shift Housing] Gear Shift Housing
79 1240 307 433 [Gear shift Lever] Gear shift Lever
80 1238 307 411 [Gear shift Shaft] Gear shift Shaft
81 0636 010 159 [Protecting Cap] Protecting Cap
82 0637 006 102 [Hexagon Screw] Hexagon Screw
83 1250 307 662 [Hexagon Nut] Hexagon Nut
84 0635 300 053 [Needle Sleeve] Needle Sleeve
86 0634 300 302 [Shaft Seal] Shaft Seal
89 0634 307 367 [Rod Wiper] Rod Wiper
91 0732 612 005 [Breather] Breather
5S-111GP, 5S-150GP, 4S-130GP GEARBOX HOUSING (A6-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

5S-111GP, 5S-150GP, 4S-130GP GEARBOX HOUSING (A6-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

5S-111GP, 5S-150GP, 4S-130GP GEARBOX HOUSING (A6-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
4 1269301125 [Transm.Housing] Transm.Housing
11 0736301022 [Screw plug] Screw plug
13 0736305016 [Screw plug] Screw plug
43 0634801044 [Seal ring] Seal ring
44 0636302016 [Screw plug] Screw plug
46 0730361103 [Sealing cover] Sealing cover
51 0501202407 [Suction otrainer] Suction otrainer
54 0630531387 [Triangular ret.] Triangular ret.
55 1269301124 [Injector tube] Injector tube
75 0636301048 [Screw plug] Screw plug
76 0736303005 [Screw plug] Screw plug
80 2159107502(B) [Bracket C] Bracket C
81 2159207003(B) [Bracket] Bracket
82 2159307002 [Plate] Plate
83 2159307001 [Pin] Pin
84 2159307007 [Bracket] Bracket
85 2159307004 [Pin] Pin
86 2159107002(S) [Pneu.assist.Operating] Pneu.assist.Operating
87 2159307006 [Lever] Lever
88 0627207001 [Assist.power cylinder] Assist.power cylinder
89 2159207003 [Bracket] Bracket
90 Q150B1225 [Screw] Screw
91 Q40312 [Washer] Washer
CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CLUTCH HOUSING FOR ZF GEARBOX (A6-2) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 1096302089 [Clutch Housing] Clutch Housing
1 2159302008 [Clutch Housing] Clutch Housing
2 Q151B1895TF2 [Screw] Screw
3 1096302076 [Bearing] Bearing
4 312322002 [Screw] Screw
5 0634801152 [Gasket] Gasket
6 99012210065 [Hose] Hose
7 109301075 [Nozzel joint] Nozzel joint
8 Q700B01 [Grease nippel] Grease nippel
9 1156302010 [Fork] Fork
9 2159302009 [Fork] Fork
10 1156302011 [Screw] Screw
11 1156302013 [Spring] Spring
12 1156302014 [Spring] Spring
13 2159202001 [Fork Shaft] Fork Shaft
13 2159302013 [Fork Shaft] Fork Shaft
14 1156302006 [Cotter] Cotter
15 1156302012 [Bush] Bush
15 2159302012 [Bush] Bush
16 108302062 [Gasket] Gasket
17 108302052 [Plate] Plate
17 2159302052 [Plate] Plate
18 0636015020 [Screw] Screw
19 2159302011 [Bracket] Bracket
20 116302027 [Snap ring] Snap ring

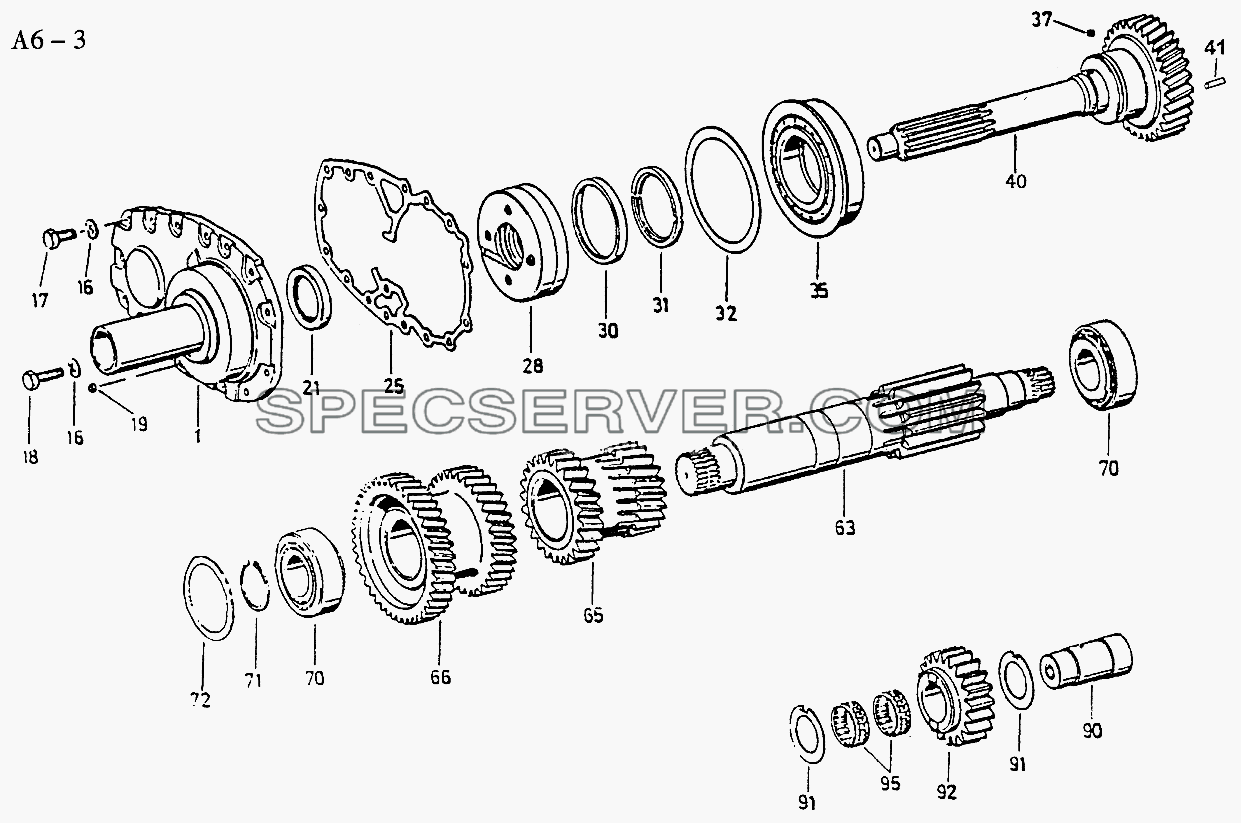

5S-111GP, 5S-150GP, 4S-130GP INPUTSHAFT, LAYSHAFF AND WHEELS (A6-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

5S-111GP, 5S-150GP, 4S-130GP INPUTSHAFT, LAYSHAFF AND WHEELS (A6-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

5S-111GP, 5S-150GP, 4S-130GP INPUTSHAFT, LAYSHAFF AND WHEELS (A6-3) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 1269302159 [Cover] Cover
1 1269302275 [Cover] Cover
1 2159302003 [Cover] Cover
17 0636015110 [Screw] Screw
18 0636015120 [Screw] Screw
19 0630361065 [Plug] Plug
21 0734310110 [Shaft seal] Shaft seal
21 0750111002 [Shaft seal] Shaft seal
25 1269302161 [Gasket] Gasket
26 1269202027 [Pump] Pump
26 1269202104 [Pump] Pump
30 0730061890 [Locking ring] Locking ring
31 0769145010 [Spilt ring] Spilt ring
32 0730102503 [Spacer dise series] Spacer dise series
32 0769140013 [Spacer dise series] Spacer dise series
35 0735410237 [Roller bearing] Roller bearing
35 0750118129 [Roller bearing] Roller bearing
35 0750118129-1 [Roller bearing] Roller bearing
37 0635470012 [Cyl.roller] Cyl.roller
40 1269296912 [Input shaft set] Input shaft set
40 2128221001 [Drive shaft set] Drive shaft set
40 2128221002 [Drive shaft set] Drive shaft set
40 2159303004 [Input shaft set] Input shaft set
63 1292303004 [Lay shaft] Lay shaft
63 1292303004-1 [Lay shaft] Lay shaft
63 2128303006 [Lay shaft] Lay shaft
65 1292303006 [Gear 1-2gear] Gear 1-2gear
65 1292303006 [Gear 1-2gear] Gear 1-2gear
65 2159303002 [Gear 1-2gear] Gear 1-2gear
66 1292303005 [Gear 3, 4 gear] Gear 3, 4 gear
66 2128303001 [Double gear] Double gear
66 2128303008 [Double gear] Double gear
66 2159303003 [Gear 3, 4 gear] Gear 3, 4 gear
70 0735370011 [Roller bearing] Roller bearing
70 0750117010 [Roller bearing] Roller bearing
71 0769144033 [Locking ring] Locking ring
72 1269140004 [Spacer disc] Spacer disc
90 1269305003 [Reverse gear] Reverse gear
91 0730150064 [Guard plate] Guard plate
92 1292305002 [Reverse gear] Reverse gear
92 2128305001 [Reverse gear] Reverse gear
95 0735320492 [Needle roller bearing] Needle roller bearing
95 0750115011 [Needle roller bearing] Needle roller bearing
