Запчасти: AIR FILTER (C1-6) для Sinotruk 6x4 Tipper (371)

AIR FILTER (C1-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

AIR FILTER (C1-6) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
- AZ9725190079 [Bracket] Bracket
- WG1200190040 [Sensor] Sensor
- WG9719190001-1 [Filter element] Filter element
- WG9725190045-1 [Filter element] Filter element
- WG9725190063-1 [Filter element] Filter element
1 AZ9725190001 [Supporter] Supporter
1 AZ9725190065 [Supporter] Supporter
1 WG9719190002 [Supporter] Supporter
2 WG9100190026 [Strap] Strap
3 WG9719190001 [Airfilter] Airfilter
3 WG9725190045 [Airfilter] Airfilter
3 WG9725190063 [Airfilter] Airfilter
4 AZ9003980025 [Clamp] Clamp
5 AZ9725190062 [Hose] Hose
5 WG9719190046 [Hose] Hose
5 WG9725190042 [Hose] Hose
6 WG9719190033 [Rubber block] Rubber block
7 AZ9719190036 [Bracket] Bracket
7 WG9719190030 [Bracket] Bracket
8 Q1840825 [Screw] Screw
9 Q33208 [Nut] Nut
10 WG9719190013 [Air intake line I] Air intake line I
11 WG9719190016 [Strap] Strap
12 WG9719190015 [Siphon] Siphon
13 WG9719190014 [Air intake line II] Air intake line II
13 WG9725190061 [Air intake line II] Air intake line II
14 Q150B0810 [Screw] Screw
15 Q150B0825 [Screw] Screw
16 Q40108 [Washer] Washer
17 Q33008 [Nut] Nut
18 WG9719190009 [Hose] Hose
19 Q150B1030 [Screw] Screw
20 Q40610 [Spring washer] Spring washer
21 1113 010043 [Spacer] Spacer
22 AZ9725190081 [Bracket] Bracket
22 WG9719190040 [Bracket] Bracket
23 WG9719190050 [Pipe] Pipe
24 WG9719190008 [Hose] Hose
24 WG9725190041 [Hose] Hose
25 199100190065 [Sheet] Sheet
26 1280 550028 [Bolt] Bolt
27 1280 550029 [Screw] Screw
28 1280 550027 [Bolt] Bolt
29 Q33212 [Nut] Nut
30 Q150B1235 [Screw] Screw

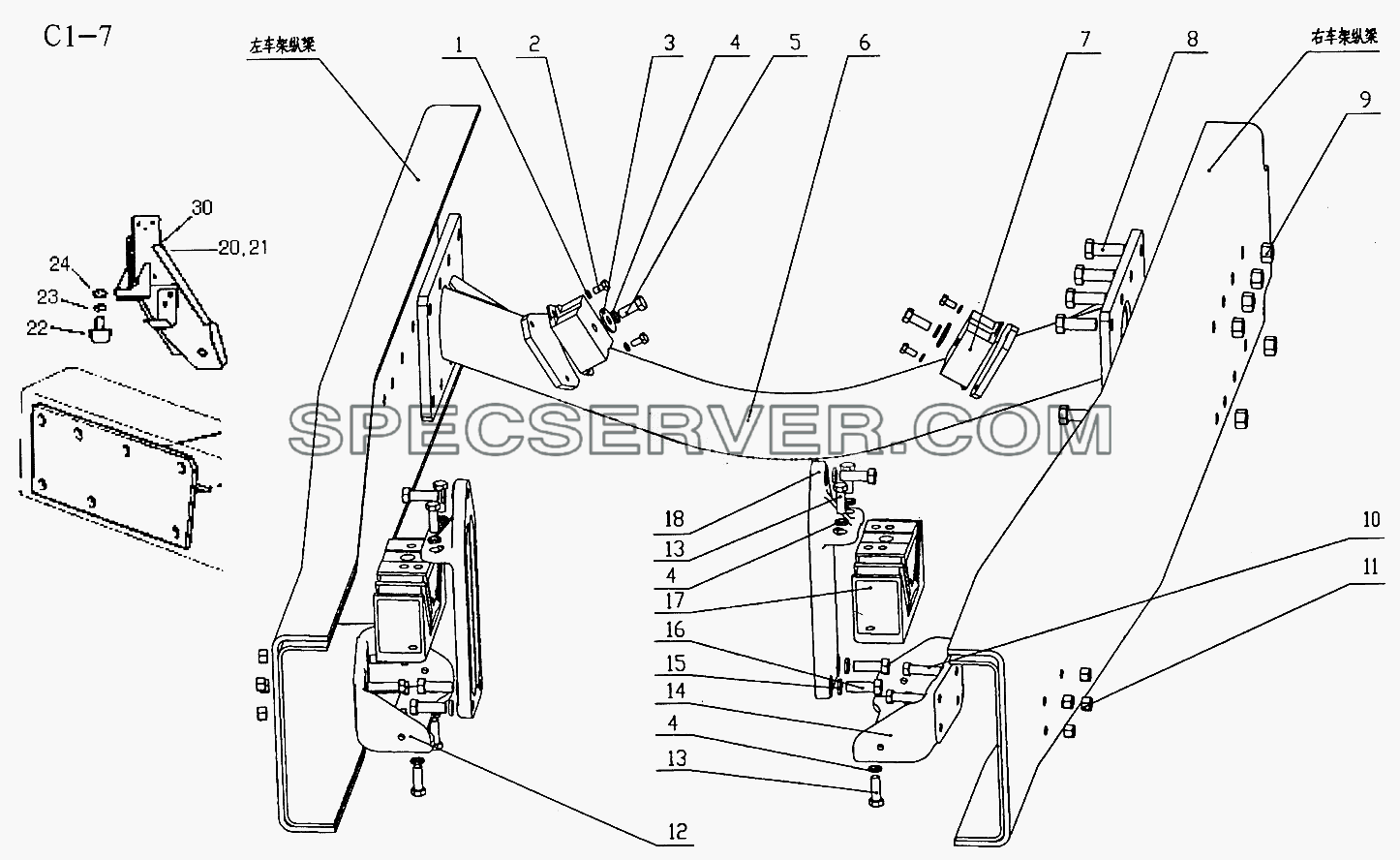

Запчасти: SUSPENSION FOR ENGINE (C1-7) для Sinotruk 6x4 Tipper (371)

SUSPENSION FOR ENGINE (C1-7) для Sinotruk 6x4 Tipper (371) (список запасных частей)

SUSPENSION FOR ENGINE (C1-7) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
- AZ9725590006 [Bracket right] Bracket right
- AZ9725590023 [Connecting plate] Connecting plate
- AZ9725590045 [Aux.support left] Aux.support left
- AZ9725590048 [Aux.support right] Aux.support right
- AZ9725590082 [Bracket left] Bracket left
1 Q40308 [Spring washer] Spring washer
2 Q150B0816 [Screw] Screw
3 1480A360058 [Washer] Washer
4 Q40312 [Spring washer] Spring washer
5 190003802622 [Screw] Screw
6 AZ9725590007 [Crossbar] Crossbar
6 AZ9725590029 [Crossbar] Crossbar
6 WG9719590001 [Crossbar] Crossbar
6 WG9731590001 [Crossbar] Crossbar
7 AZ9725592000 [Rubber support] Rubber support
7 WG1680590095 [Rubber support] Rubber support
8 Q151B1645 [Screw] Screw
9 190003888459 [Nut] Nut
10 Q150B1245 [Screw] Screw
11 Q33212 [Nut] Nut
12 AZ9731590015 [Bracket left] Bracket left
12 AZ9731590017 [Bracket] Bracket
13 Q151C1235 [Screw] Screw
14 AZ9731590016 [Bracket right] Bracket right
14 AZ9731590017 [Bracket] Bracket
15 Q151B1440 [Screw] Screw
16 Q40314 [Spring washer] Spring washer
17 AZ9725590031 [Bearing] Bearing
18 AZ9725590002 [Bracket left] Bracket left
18 AZ9725590081 [Bracket right] Bracket right
18 AZ9731590020 [Support] Support
20 AZ9725590046 [Support left] Support left
20 AZ9725596020 [Support left] Support left
21 AZ9725590047 [Support right] Support right
21 AZ9725596030 [Support right] Support right
22 WG9100590082 [Stop block] Stop block
23 Q40312 [Washer] Washer
24 Q34012 [Nut] Nut
30 AZ9725590020 [Bearing] Bearing
Запчасти: SPECIAL PARTS OF WD615 FOR HOWO (C1-8) для Sinotruk 6x4 Tipper (371)

SPECIAL PARTS OF WD615 FOR HOWO (C1-8) для Sinotruk 6x4 Tipper (371) (список запасных частей)

SPECIAL PARTS OF WD615 FOR HOWO (C1-8) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
1 612600130125 [Air compressor] Air compressor
2 612600130127 [Water pipe] Water pipe
3 AZ9719570027 [Bracket] Bracket
4 612600120103 [Bracket] Bracket
5 612600120122 [Bracket] Bracket
6 612600120121 [Air intake manifold] Air intake manifold
7 612600111141 [Connecting pipe] Connecting pipe
8 612600111144 [Air intake manifold] Air intake manifold
9 612600111136 [Exhaust manifold rear] Exhaust manifold rear
10 612600111137 [Exhaust manifold front] Exhaust manifold front
11 612600111182 [Oil intake pipe] Oil intake pipe
12 612600010898 [Oil dipstick] Oil dipstick
13 612600010899 [Jauge] Jauge
14 612600111197 [Screw] Screw
15 612600010919 [Nozzle] Nozzle
16 612600111196 [Air intake pipe] Air intake pipe
17 612600111138 [Heat shield] Heat shield
18 612600111139 [Heat shield] Heat shield
19 612600111200 [Screw] Screw
20 612600111051 [Oil pipe] Oil pipe
21 612600120100 [Air intake manifold of aftercooler] Air intake manifold of aftercooler
22 612600111213 [Bracket] Bracket
23 612600111078 [Connecting pipe] Connecting pipe
24 612600120101 [Bottom air intake pipe of aftercooler] Bottom air intake pipe of aftercooler
27 612600830080 [Cover] Cover
28 612600070155 [Washer] Washer
29 612600010909 [Washer] Washer
30 AZ9719530035 [Air intake pipe of compressor] Air intake pipe of compressor
31 612600111052 [Screw for exhaust manifold] Screw for exhaust manifold
32 612600130121 [Rubber hose] Rubber hose
33 61560116227D [Turbochager] Turbochager
34 61560118227D [Turbochager] Turbochager
35 612600111413 [Pipe of aftercooler] Pipe of aftercooler
36 612600111419 [Air intake pipe of aftercooler] Air intake pipe of aftercooler
37 612600111424 [Bracket] Bracket
38 612600111425 [Bracket] Bracket
39 612600060659 [Water intake pipe] Water intake pipe
40 61560118227 [Turbochager] Turbochager
41 61560110227 [Turbochager] Turbochager
42 612600081161 [Injection pump] Injection pump
43 612600081162 [Injection pump] Injection pump
44 612600080446 [Injection pump, Bosch] Injection pump, Bosch
45 612600083151 [Injection pump] Injection pump
46 612600082115 [Injection pump, Bosch] Injection pump, Bosch
47 61560080302 [Injection pump, Bosch] Injection pump, Bosch
48 612600060215 [Ф620 fan] Ф620 fan
49 612600060166 [Ф750 fan] Ф750 fan
50 612600060445 [Ф590 ring fan] Ф590 ring fan
51 612600060446 [Ф640 ring fan] Ф640 ring fan
52 81500060228 [V-belt (speed ratio 3.39)] V-belt (speed ratio 3.39)
53 61500060217 [V-belt (speed ratio 3.15)] V-belt (speed ratio 3.15)
54 612600090065 [V-belt(altemater)] V-belt(altemater)
55 AZ1500098058 [1 kw altemater] 1 kw altemater
56 612600098155 [1.5kw altemater] 1.5kw altemater

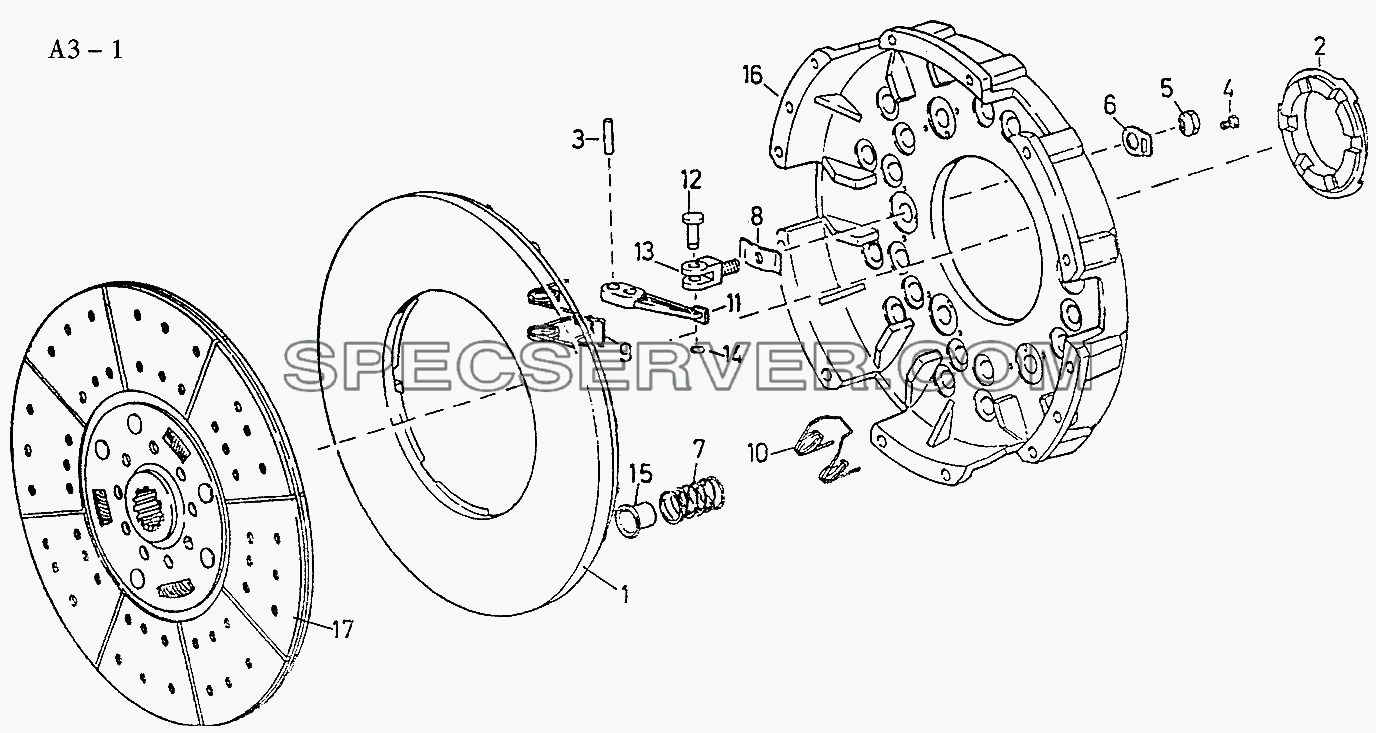

Ф420mm CLUTCH (A3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Ф420mm CLUTCH (A3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Ф420mm CLUTCH (A3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
- BZ1560160013 [Platen C] Platen C
- BZ1560161090 [Platen C] Platen C
- BZ1560161116 [Platen spring] Platen spring
- BZ1560161116 [Platen spring] Platen spring
1 BZ1560161093 [Platen] Platen
2 BZ1560161212 [Thrust collar] Thrust collar
3 BZ1560161100 [Plug] Plug
4 BZ1560161119 [Hex 8crew] Hex 8crew
5 BZ1560161112 [Nut] Nut
6 BZ1560161113 [Locker] Locker
7 BZ1560161114 [Platen spring] Platen spring
7 BZ1560161115 [Platen spring] Platen spring
8 BZ1560161097 [Spring disc] Spring disc
9 BZ1560161081 [Spring C] Spring C
10 BZ1560161084 [Release lever spring] Release lever spring
11 BZ1560161096 [Release lever C] Release lever C
12 BZ1560161114 [Connecting pin] Connecting pin
13 BZ1560161108 [Adjustment fork] Adjustment fork
14 Q43710 [Washer] Washer
15 BZ1560161117 [Spring holder] Spring holder
16 BZ1560161125 [Clutch housing] Clutch housing
17 WG1560161130 [Driven disc C] Driven disc C

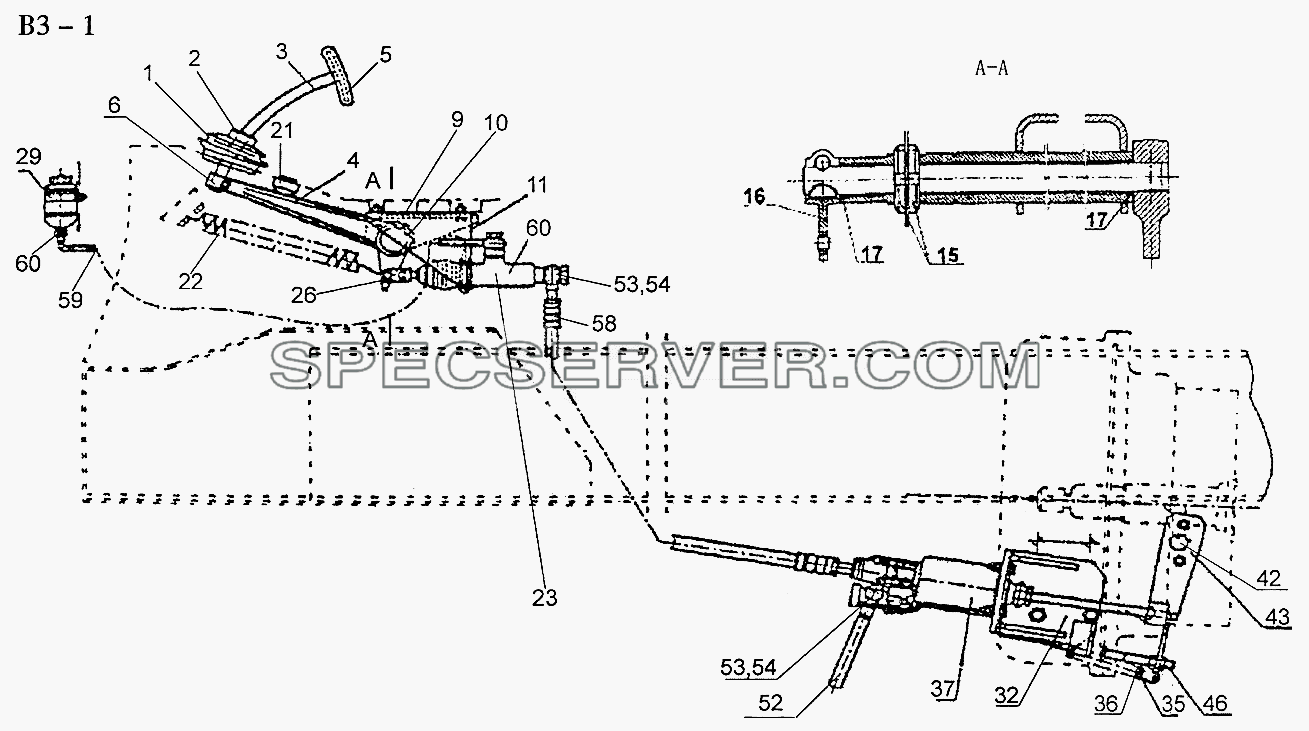

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

THE OPERATION SYSTEM OF Ф420MM CLUTCH (B3-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
- 190003933200 [Nut] Nut
- 190003934235 [Circlip] Circlip
- 199100230073 [Flance] Flance
- 199100230085 [Bearing] Bearing
- Q150B1045 [Screw] Screw
- Q33210 [Nut] Nut
1 1681 270244 [Pedal seal] Pedal seal
2 WG81270245 [Sleeve] Sleeve
3 199100230076 [Push rod] Push rod
3 WG9100230004 [Push rod] Push rod
4 AZ9114230065 [Clutch pedal lever] Clutch pedal lever
4 AZ9232230015 [Clutch pedal lever] Clutch pedal lever
5 1880 230031 [Footboard rubber] Footboard rubber
6 11700 230009 [Bolt] Bolt
7 Q33208 [Nut] Nut
8 Q40308 [Spring washer] Spring washer
9 AZ9100230166 [Bracket C] Bracket C
10 190003963114 [Grease nipple] Grease nipple
11 AZ9100230135 [Bracket C] Bracket C
11 AZ9232230011 [Bracket C] Bracket C
12 Q150B1020 [Screw] Screw
13 Q41210 [Toothed washer] Toothed washer
14 Q150B1025 [Screw] Screw
15 190003881336 [Nut] Nut
16 1680 250092 [Lever C] Lever C
16 199112230098 [Lever C] Lever C
17 199100230008 [Gasket] Gasket
18 Q5500622 [Key] Кеу
19 Q150B0835 [Screw] Screw
20 Q40308 [Spring washer] Spring washer
21 1-99-960-010 [Damping rubber] Damping rubber
22 1680 350096 [Spring] Spring
22 199100230063 [Spring] Spring
23 WG9114230021 [Drive cyl.] Drive cyl.
24 Q150B0825 [Screw] Screw
25 Q33208 [Nut] Nut
26 190003903181 [Bolt] Bolt
27 Q40110 [Washer] Washer
28 Q5003216 [Split pit] Split pit
29 WG9100230191 [Oilcan] Oilcan
30 Q150B0612 [Screw] Screw
31 Q40306 [Spring washer] Spring washer
32 AZ9114230016 [Bracket] Bracket
33 Q151B1425 [Screw] Screw
34 Q40314 [Spring washer] Spring washer
35 12054230100 [Spring] Spring
36 AZ9114230008 [Spring bracket] Spring bracket
37 WG9114230023 [Operating cyl.] Operating cyl.
37 WG9114230029 [Operating cyl.] Operating cyl.
38 Q150B0825 [Screw] Screw
39 Q40308 [Spring washer] Spring washer
40 Q340B08 [Nut] Nut
41 Q40108 [Washer] Washer
42 199112230033 [Release shaft] Release shaft
43 AZ9114230004 [Release lever] Release lever
44 Q41310 [Sprig washer] Sprig washer
45 Q340B10 [Nut] Nut
46 AZ9160230272 [Screw] Screw
47 Q350B10 [Nut] Nut
48 Q340B10 [Nut] Nut
49 190003962627 [Scresw] Scresw
50 WG9100270119 [Hose joint] Hose joint
51 Q72316T5F [Gasket] Gasket
52 190003179781 [Plastic pipe] Plastic pipe
53 WG9014230016 [Hose joint] Hose joint
54 190003962621 [Screw] Screw
55 Q72314T5F [Gasket] Gasket
56 1406 070015 [Gasket] Gasket
57 190003171697 [Plastic strap] Plastic strap
58 WG9632230010 [High pressure hose] High pressure hose
58 WG9632230020 [High pressure hose] High pressure hose
59 WG9114230010 [Oil pipe] Oil pipe
60 190003989300 [Hose collar] Hose collar
61 Q72314T5F [Gasket] Gasket
62 190003559483 [Nozzle] Nozzle
63 190003559514 [Nut] Nut
64 190003559558 [Cutting ring] Cutting ring
65 199014280041 [Sleeve] Sleeve

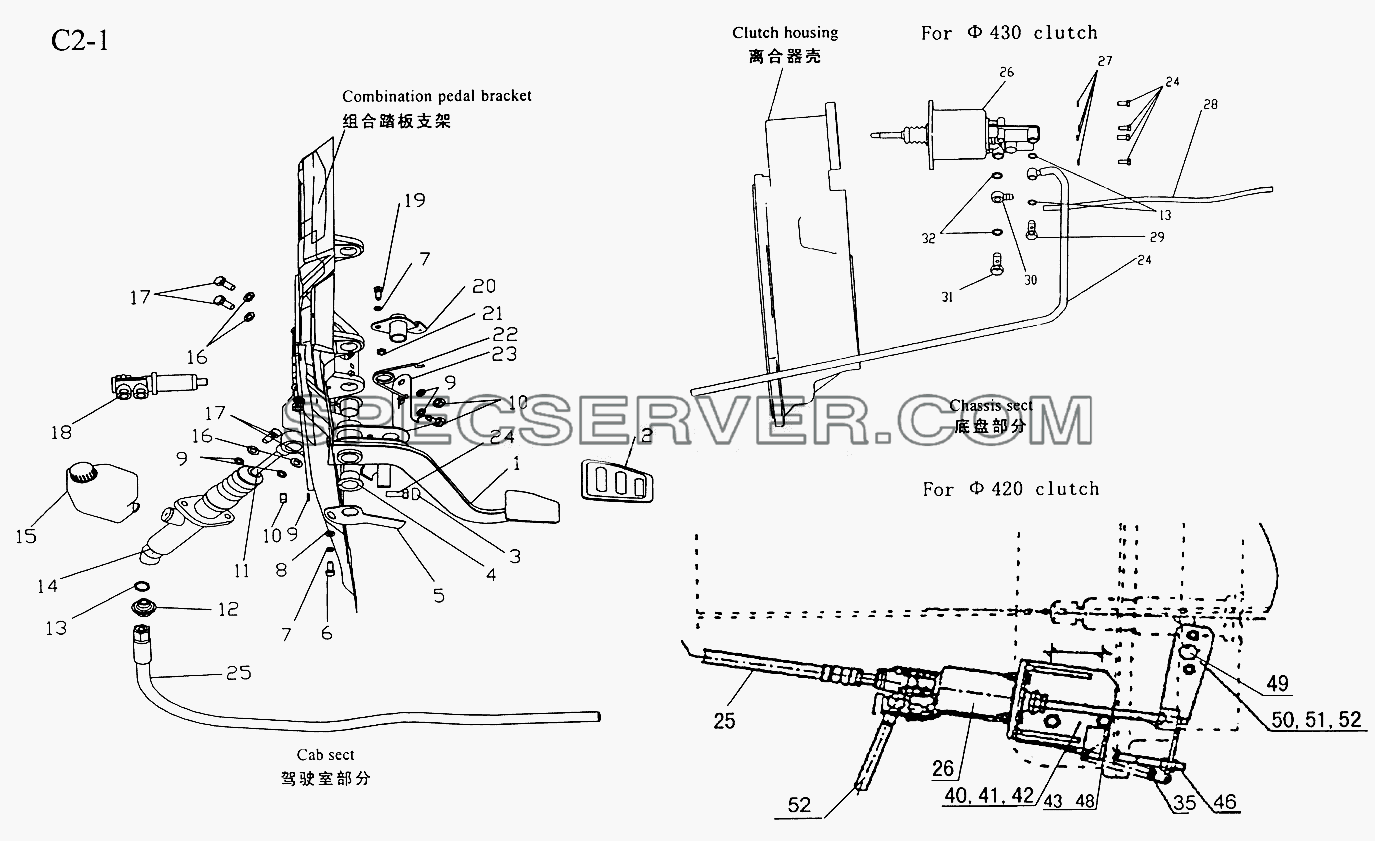

CLUTCH OPERATION SYSTEM (C2-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CLUTCH OPERATION SYSTEM (C2-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

CLUTCH OPERATION SYSTEM (C2-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей







Номер детали Наименование запчасти
- AZ9719360050 [Combination bracket] Combination bracket
- AZ9719360051 [Shaft] Shaft
1 AZ9719230045 [Clutch pedal] Clutch pedal
1 AZ9719230070 [Clutch pedal] Clutch pedal
2 AZ9123230226 [Rubber footboard] Rubber footboard
3 AZ9123360067 [Plug] Plug
4 AZ9719360060 [Bush] Bush
5 AZ9719230019 [Stop bracket] Stop bracket
6 Q150B0620 [Screw] Screw
7 Q40306 [Spring washer] Spring washer
8 Q40106 [Washer] Washer
9 Q40308 [Spring washer] Spring washer
10 Q340B08 [Nut] Nut
11 AZ9719230016 [Push rod] Push rod
12 AZ9160230092 [Connector] Connector
13 Q72314T5F [Gasket] Gasket
14 WG9719230015 [Driving cylinder] Driving cylinder
15 WG9719230014 [Clutch oil tank] Clutch oil tank
16 Q40108 [Washer] Washer
17 Q150B0820 [Screw] Screw
18 WG9719230011 [Clutch brake valve] Clutch brake valve
19 Q150B0615 [Screw] Screw
20 AZ9719230012 [Bracket C.] Bracket C.
21 Q340B06 [Nut] Nut
22 AZ9719230009 [Spring] Spring
23 AZ9719230007 [Spring bracket] Spring bracket
24 Q150B0830 [Screw] Screw
25 WG9123230026 [High pressure hose] High pressure hose
25 WG9632230010 [High pressure hose] High pressure hose
25 WG9719230027 [High pressure hose] High pressure hose
26 WG9114230018 [Operating cylinder] Operating cylinder
26 WG9114230023 [Operating cylinder] Operating cylinder
26 WG9114230029 [Operating cylinder] Operating cylinder
26 WG9719230030 [Operating cylinder] Operating cylinder
27 Q41208 [Washer] Washer
28 190003179781 [Plastic pipe] Plastic pipe
29 190003962621 [Female screw] Female screw
30 WG99100270119 [Hose connector] Hose connector
31 190003962627 [Female screw] Female screw
32 Q72316T5F [Gasket] Gasket
40 AZ9114230016 [Bracket] Bracket
41 Q151B1425 [Screw] Screw
42 Q40314 [Spring washer] Spring washer
43 12054230100 [Spring] Spring
44 AZ9114230039 [Bracket] Bracket
45 Q150B0825 [Screw] Screw
46 Q340B08 [Nut] Nut
47 Q40108 [Washer] Washer
48 Q40308 [Spring washer] Spring washer
49 199112230033 [Release shaft] Release shaft
50 AZ9114230004 [Release lever] Release lever
51 Q40310 [Spring washer] Spring washer
52 Q340B10 [Nut] Nut
53 AZ9160230272 [Screw] Screw
54 Q41810 [Washer] Washer
55 Q340B10 [Nut] Nut
