№		Номер детали	Наименование запчасти
-		WG1642740002 [Wiper (incl.1~ 5)]	Wiper (incl.1~ 5)
-		WG1646740002 [Wiper (incl.1~ 5)]	Wiper (incl.1~ 5)
1		WG1642740009/1 [Rod]	Rod
1		WG1642740009/2 [Rod]	Rod
1		WG1646740009 [Rod]	Rod
2		WG1642740010-2 [Wiper arm]	Wiper arm
2		WG1642740010/1 [Wiper arm]	Wiper arm
2		WG1646740001 [Wiper arm]	Wiper arm
3		WG1642740011/1 [Wiper rubber]	Wiper rubber
3		WG1642740011/2 [Wiper rubber]	Wiper rubber
4		WG1642740008/1 [Wiper anchor]	Wiper anchor
4		WG1642740008/2 [Wiper anchor]	Wiper anchor
5		Q33010 [Lock nut]	Lock nut
6		WG1642740003/1 [Bracket for anchor]	Bracket for anchor
6		WG1642740003/2 [Bracket for anchor]	Bracket for anchor
7		AZ1642740004 [Nut]	Nut
8		AZ1642740005 [Washer]	Washer
9		AZ1642740006 [Base]	Base
10		AZ1642740007 [Protect cover]	Protect cover
11		Q150B0812 [Screw]	Screw
12		Q40108 [Washer]	Washer
13		Q40308 [Spring washer]	Spring washer
14		Q150B0616 [Screw]	Screw
15		Q40306 [Spring washer]	Spring washer
16		Q40126 [Washer]	Washer

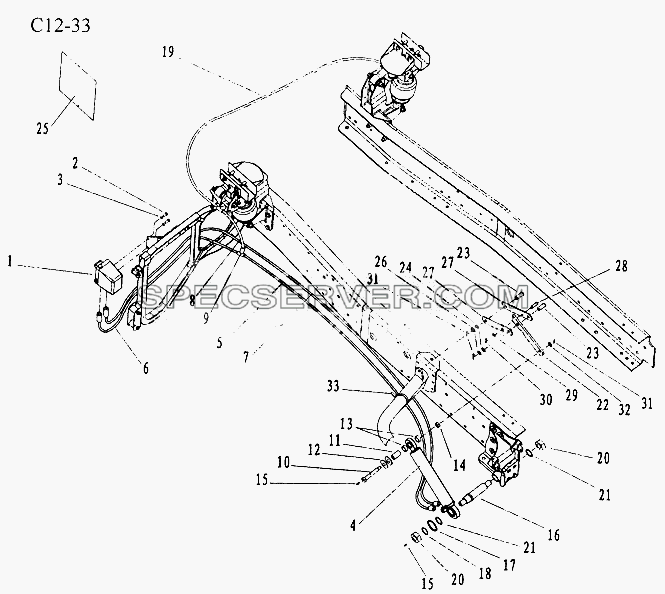

TILTING EQUIPMENT (C12-33) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9719820001 [Hydr.hand pump]	Hydr.hand pump
1		WG9719826001 [Hydr.hand pump]	Hydr.hand pump
2		Q150B1020 [Screw]	Screw
3		Q40310 [Spring washer]	Spring washer
4		WG9719820002 [Hydr.cylinder]	Hydr.cylinder
5		WG9719820005 [High pressure hose]	High pressure hose
5		WG9719821005 [High pressure hose]	High pressure hose
6		WG9719820006 [High pressure hose]	High pressure hose
6		WG9719821006 [High pressure hose]	High pressure hose
7		WG9719820007 [High pressure hose]	High pressure hose
8		WG1642440075 [High pressure hose]	High pressure hose
9		190003559482 [T-nozzle]	T-nozzle
10		AZ9719820008 [Support shaftI]	Support shaftI
11		AZ9719820009 [Bush]	Bush
12		Q40216 [Washer]	Washer
13		AZ9719820012 [Bush]	Bush
14		190003888459 [Lock nut]	Lock nut
15		Q700B06 [Grease nipple]	Grease nipple
16		AZ9719820010 [Support shaft II]	Support shaft II
17		WG9719820011 [Washer]	Washer
18		Q40124 [Washer]	Washer
19		WG1642440072 [Hose]	Hose
20		Q33424 [Lock nut]	Lock nut
21		WG9719820013 [Washer]	Washer
22		AZ9719820021 [Above brace]	Above brace
23		Q5101428 [Bolt]	Bolt
24		Q40114 [Washer]	Washer
26		Q41814 [Washer]	Washer
27		AZ9719820022 [Bottom brace]	Bottom brace
28		190003903452 [Bolt]	Bolt
29		Q41710 [Washer]	Washer
30		Q5003216 [Split pin]	Split pin
31		Q5004028 [Split pin]	Split pin
32		Q40112 [Washer]	Washer
33		190003171356 [Plastic circlip]	Plastic circlip

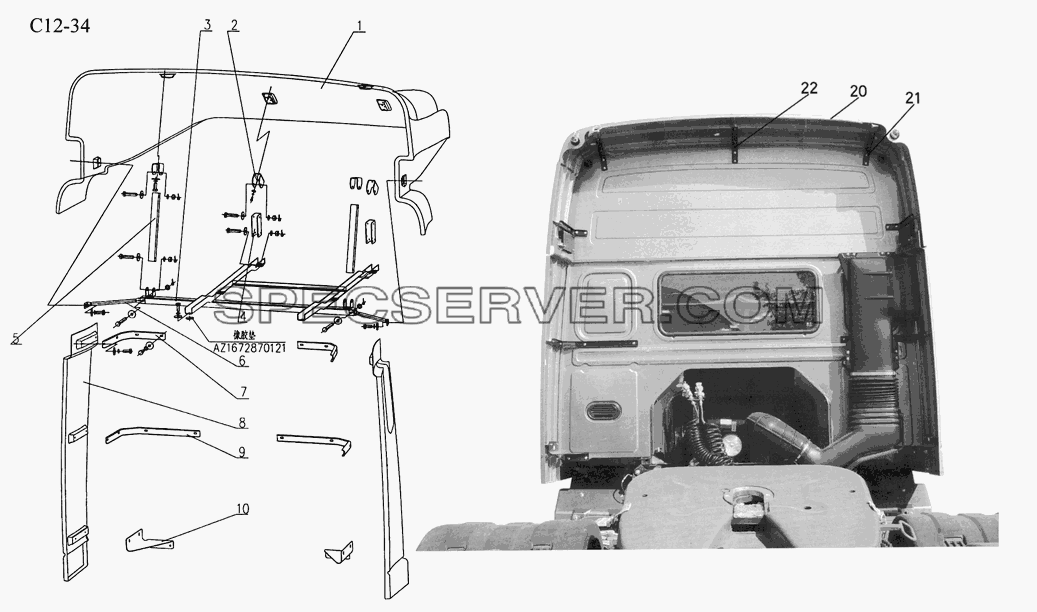

WING, WIND SHEET (C12-34) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1644870012 [Side wind sheet left]	Side wind sheet left
-		AZ1644870018 [Bottom bracket left]	Bottom bracket left
-		AZ1672870121 [Rubber pad]	Rubber pad
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q241B08 [Nut]	Nut
-		Q341B08 [Nut]	Nut
-		Q341B08 [Nut]	Nut
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q5002020 [Split pin]	Split pin
-		Q5002020 [Split pin]	Split pin
-		Q5002020 [Split pin]	Split pin
1		WG1642870141 [Wing]	Wing
2		AZ1642870145 [Base]	Base
3		AZ1642870143 [Bracket]	Bracket
4		AZ1642870148 [Front bracket]	Front bracket
5		AZ1642870146 [Rear bracket]	Rear bracket
6		AZ1642870147 [Side bracket]	Side bracket
7		AZ1642870153 [Bracket for side wind sheet]	Bracket for side wind sheet
7		WG1644870013 [Top bracket left]	Top bracket left
7		WG1644870019 [Top bracket right]	Top bracket right
8		WG1644870011 [Side wind sheet right]	Side wind sheet right
9		AZ1642870014 [Middle bracket]	Middle bracket
10		AZ1644870015 [Bottom bracket right]	Bottom bracket right
11		AZ1630230125 [Rubber pad]	Rubber pad
12		AZ1672870121 [Rubber pad]	Rubber pad
13		AZ1642930061 [Plate with nut]	Plate with nut
20		WG1644870016 [Top wind sheet]	Top wind sheet
21		WG1644870017 [Side bracket for top wind sheet]	Side bracket for top wind sheet
22		WG1644870020 [Middle bracket for top wind sheet]	Middle bracket for top wind sheet

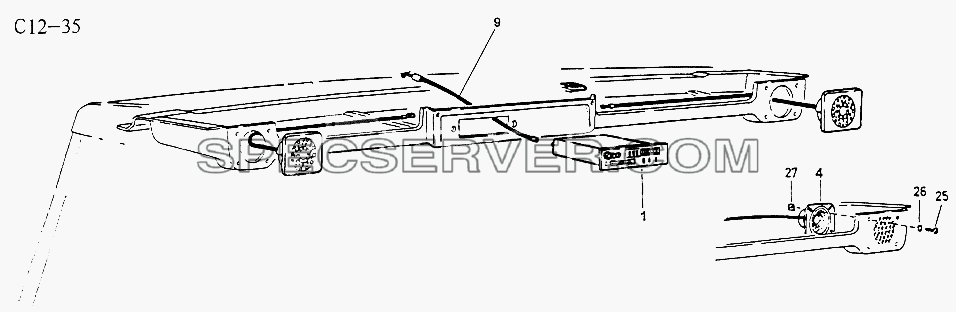

RADIO (C12-35) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9130780026 [Radio]	Radio
1		WG9719780001 [Radio with electro adjuster]	Radio with electro adjuster
1		WG9719780002 [Radio with CD]	Radio with CD
4		WG9719780003 [Reproducer]	Reproducer
5		AZ9719770003 [Electrical line on roof of cab]	Electrical line on roof of cab
5		AZ9719770006 [Electrical line on roof of cab]	Electrical line on roof of cab
9		WG9130780001 [Cable]	Cable
25		Q2714216 [Screw]	Screw
26		Q40004 [Washer]	Washer
27		1900039699563 [Elastic nut]	Elastic nut

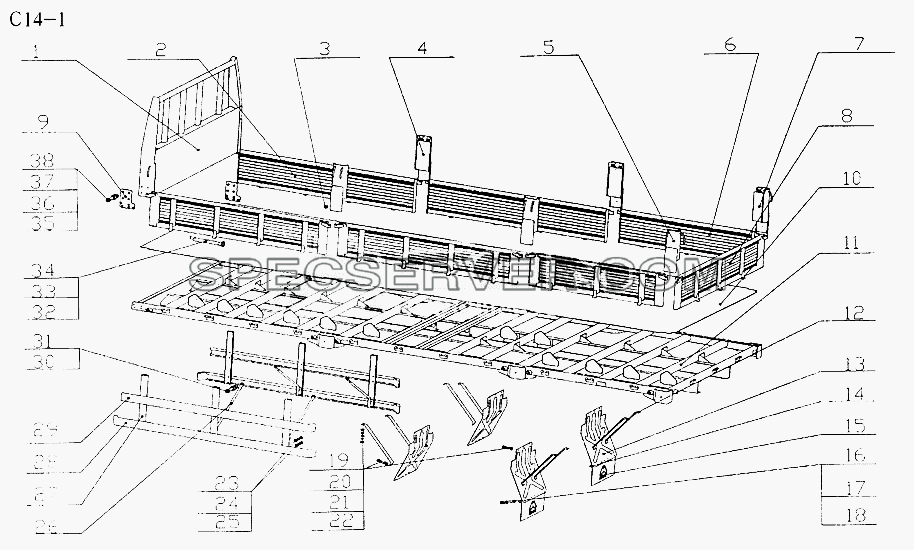

CARGO BODY (C14-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		CZ9114505220 [Front board]	Front board
2		DZ9725500115 [Side board]	Side board
3		Q2140612 [Screw]	Screw
4		CZ9114505230 [Middle strut]	Middle strut
5		CZ9114505233 [Rear strut left]	Rear strut left
6		CZ9725500117 [Side board]	Side board
7		CZ9114505234 [Rear strut right]	Rear strut right
8		DZ9725500119 [Rear board]	Rear board
9		17017500021 [Connecting plate]	Connecting plate
10		AZ9725500202 [Bottom board]	Bottom board
11		DZ9725500101 [Frame]	Frame
12		17017950004 [Support]	Support
13		11600950004 [Rear mudguard]	Rear mudguard
14		17017950006 [Strap]	Strap
15		11600950003 [Rubber madguard]	Rubber madguard
16		Q150B0620 [Screw]	Screw
17		Q340B06 [Nut]	Nut
18		Q40306 [Spring washer]	Spring washer
19		Q150B0822 [Screw]	Screw
20		Q340B08 [Nut]	Nut
21		Q40108 [Washer]	Washer
22		Q40308 [Spring washer]	Spring washer
23		Q340B08 [Nut]	Nut
24		Q40108 [Washer]	Washer
25		Q40308 [Spring washer]	Spring washer
26		AZ9725990201 [Support]	Support
27		AZ9114992007 [Bar]	Bar
28		AZ9114992005 [Side protector]	Side protector
29		AZ9114992003 [Side protector]	Side protector
30		Q150B1230 [Screw]	Screw
31		Q33212 [Nut]	Nut
32		Q51016115 [Bolt]	Bolt
33		Q40116 [Washer]	Washer
34		Q5004020 [Split pin]	Split pin
35		Q150B1435 [Screw]	Screw
36		Q340B14 [Nut]	Nut
37		Q40114 [Washer]	Washer
38		Q40314 [Spring washer]	Spring washer

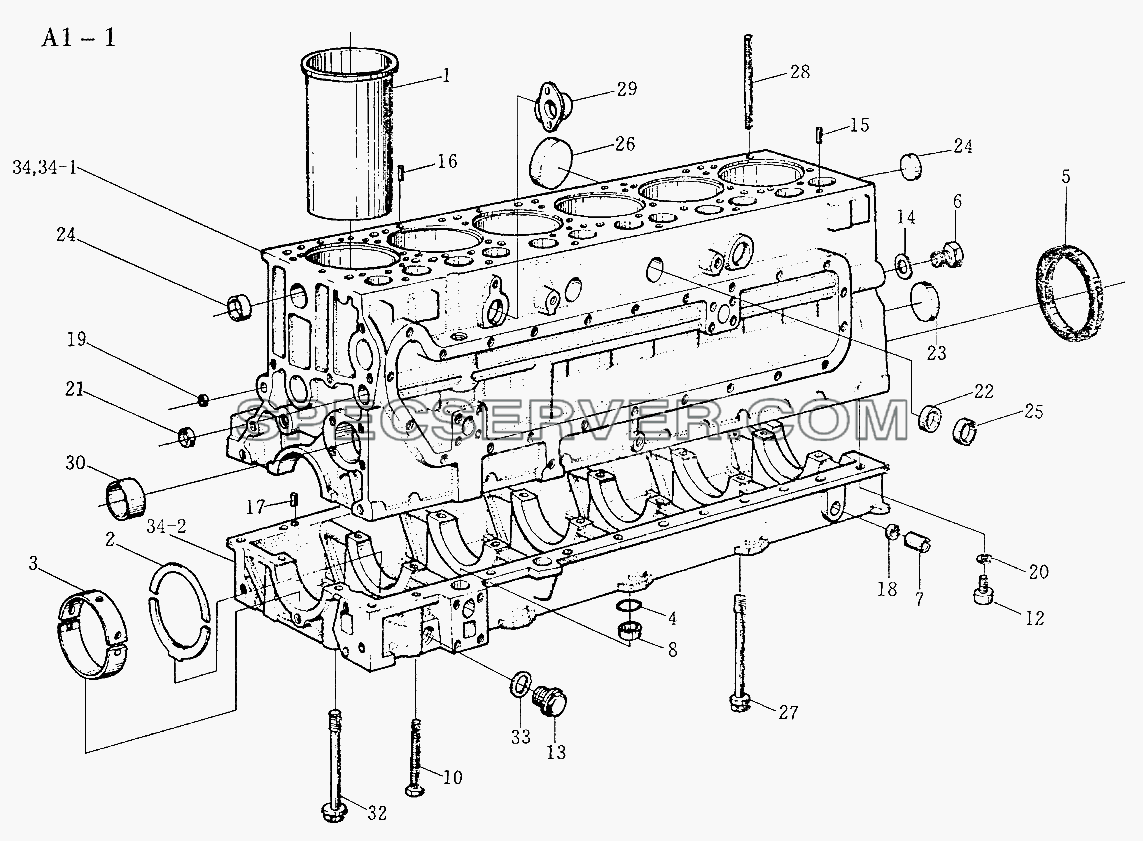

WD615 CRANK CASE (A1-1) для Sinotruk 6x4 Tipper (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		61560010095B [Crank case]	Crank case
-		61560010109 [Crank case]	Crank case
-		WD615.47 [371ps engine]	371ps engine
-		WD615.62 [266ps engine]	266ps engine
-		WD615.69 [336ps engine]	336ps engine
-		WD615.87 [290ps engine]	290ps engine
1		61500010344 [Liner]	Liner
2		81500010125 [Stop washer]	Stop washer
3		81500010046 [Shell pin]	Shell pin
4		614 010134 [Gasket]	Gasket
5		61500010100 [Gasket rear]	Gasket rear
6		61460070011 [Screw]	Screw
7		612600070083 [Pipe]	Pipe
8		614 010120 [Sleeve]	Sleeve
10		90003802493 [Screw]	Screw
12		90003862428 [Screw]	Screw
13		90003962050 [Screw]	Screw
14		90003098086 [Joint]	Joint
15		90003901604 [Dowel pin]	Dowel pin
16		90003909626 [Dowel pin]	Dowel pin
17		90003901604A [Dowel pin]	Dowel pin
19		90003989480 [Corehole plug]	Corehole plug
20		188 250083 [Circlip]	Circlip
21		90003989204 [Corehole plug]	Corehole plug
22		90003989289 [Corehole plug]	Corehole plug
23		90003989288 [Corehole plug]	Corehole plug
24		90003982121 [Corehole plug]	Corehole plug
25		90003989215 [Corehole plug]	Corehole plug
26		90003989210 [Corehole plug]	Corehole plug
27		614 010217 [Screw]	Screw
28		61500010185 [Stud]	Stud
29		614 010279 [Elbowconnector]	Elbowconnector
30		61560010029 [Bush]	Bush
32		614 010114 [Screw]	Screw
33		90003098086 [Joint]	Joint
34		61560010097A [Crank case assembly]	Crank case assembly
