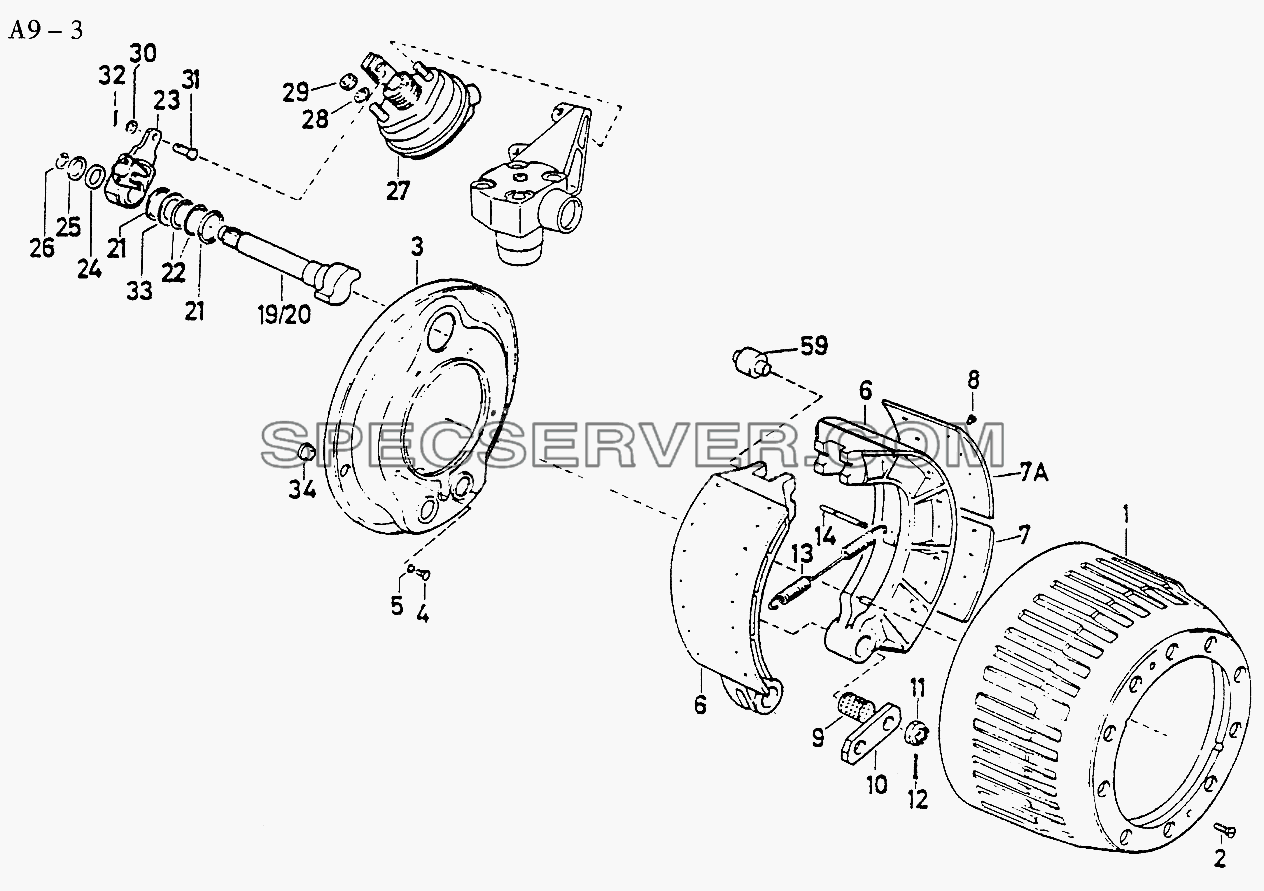

№		Номер детали	Наименование запчасти
-		1990000440018 [Brake shoe]	Brake shoe
-		AZ9100349994 [Bracket]	Bracket
-		AZ9100349995 [Bracket]	Bracket
-		Q150B0818 [Screw]	Screw
-		Q33408 [Nut]	Nut
-		WG9000360101 [Diaphragm cyl.right]	Diaphragm cyl.right
1		AZ9112440001 [Brake drum]	Brake drum
2		Q2541025 [Bolt]	Bolt
3		1880 440007 [Dust shield]	Dust shield
3		199112440006 [Dust shield]	Dust shield
4		Q150B0816 [Screw]	Screw
5		Q40308 [Shim]	Shim
6		199000440031 [Brake shoe C]	Brake shoe C
6		199112440073 [Brake shoe C]	Brake shoe C
7		199112440065 [Brake lining]	Brake lining
7		199112440066 [Brake lining]	Brake lining
7		WG9100440027 ["T" brake lining]	"T" brake lining
7		WG9100440029 ["T" brake lining]	"T" brake lining
8		189000340068 [Rivet]	Rivet
9		WG880 440006 [Bushing]	Bushing
10		1880 440008 [Washer]	Washer
11		Q381B24 [Castle nut]	Castle nut
12		Q5005045 [Cotter pin]	Cotter pin
13		AZ9100440060 [Return spring]	Return spring
14		1880 440032 [Return spring pin]	Return spring pin
15		199112440018 [Bushing]	Bushing
19		199100440001 [Camshaft (left)]	Camshaft (left)
20		199100440002 [Camshaft (right)]	Camshaft (right)
21		1880 440010 [Washer]	Washer
21		AZ9100440011 [Washer]	Washer
21		AZ9100440012 [Washer]	Washer
22		1880 340023 ["O"seal ring]	"O"seal ring
23		AZ9100440005 [Slack adjuster]	Slack adjuster
23		WG9100440023 [Automatic rod adjuster]	Automatic rod adjuster
24		1880 340022 [Shim]	Shim
25		1 80 320028 [Shim]	Shim
25		1 80 320029 [Shim]	Shim
25		1 80 320030 [Shim]	Shim
25		1 80 320046 [Shim]	Shim
26		190003933116 [Washer]	Washer
27		WG9000360100 [Diaphragm cyl.left]	Diaphragm cyl.left
28		Q41216 [Shim]	Shim
29		Q340B16 [Nut]	Nut
30		Q40114 [Flat shim]	Flat shim
31		Q5101440 [Pin]	Pin
32		Q5004022 [Cotter]	Cotter
33		1880 440015 [Spacers]	Spacers
34		1880 340037 [Plug]	Plug
59		199000340027 [Roller]	Roller

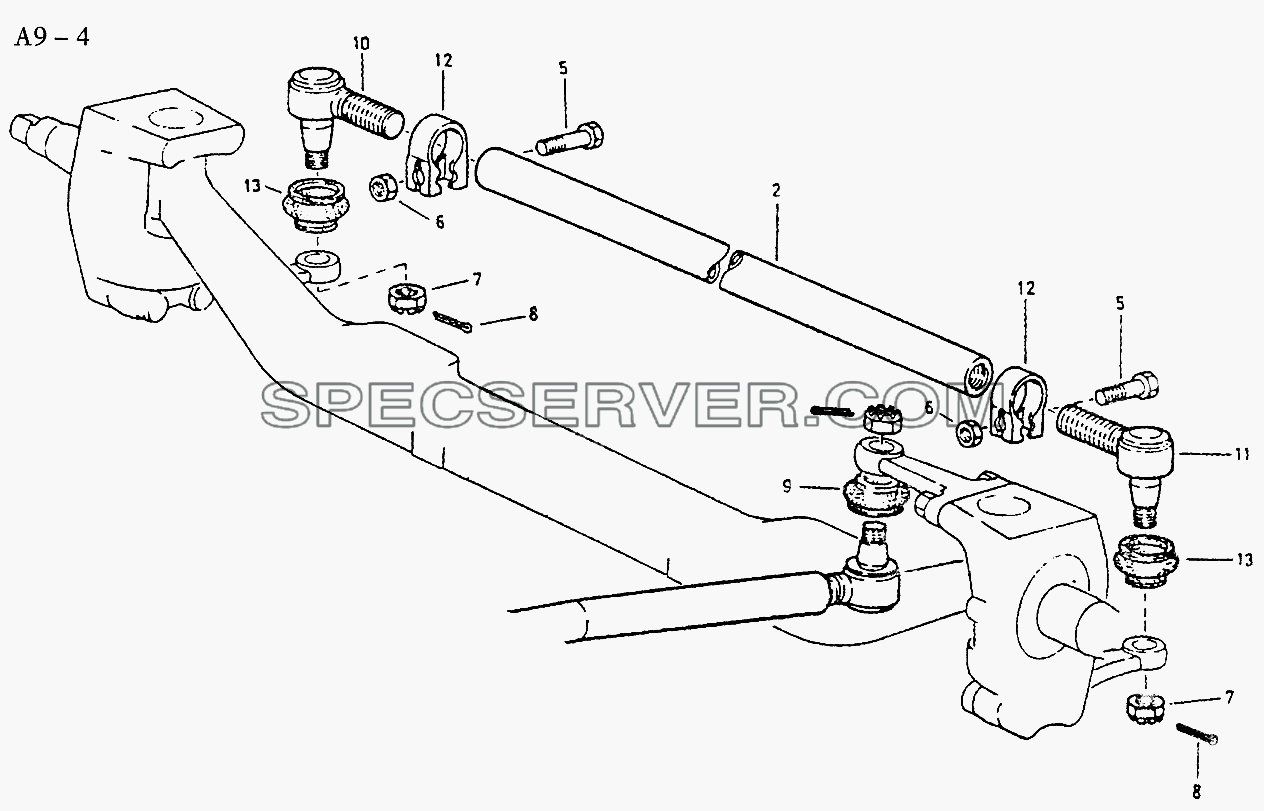

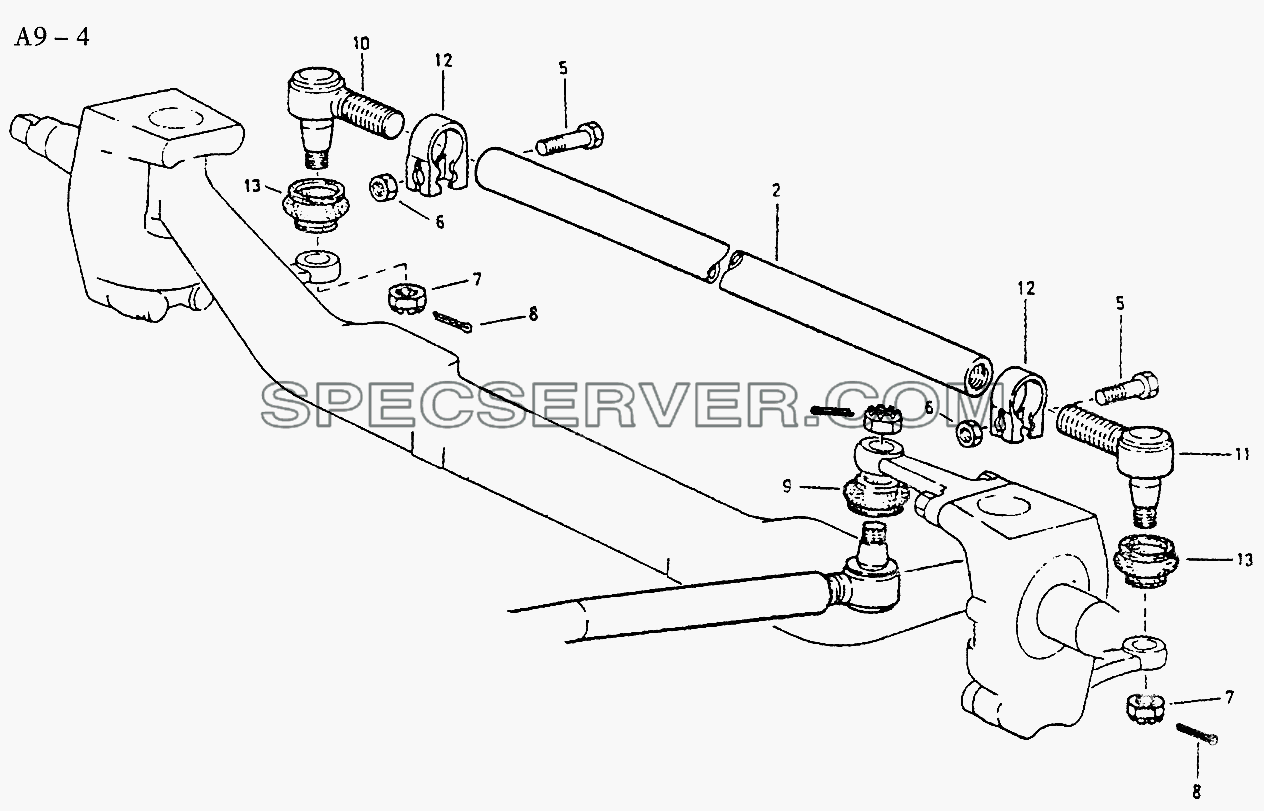

TIE ROD (A9-4) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		11031430006 [Tie rod C]	Tie rod C
-		199018430006 [Tie rod C]	Tie rod C
-		AZ9100430003 [Tie rod C]	Tie rod C
-		AZ9100430118 [Tie rod C]	Tie rod C
-		AZ9100430218 [Tie rod]	Tie rod
-		AZ9731430002 [Tie rod C]	Tie rod C
2		11031430006-1 [Tie rod C]	Tie rod C
2		199018430006-1 [Tie rod]	Tie rod
2		AZ9100430003-1 [Tie rod]	Tie rod
2		AZ9100430118-1 [Tie rod]	Tie rod
2		AZ9100430218-1 [Tie rod]	Tie rod
2		AZ9731430002-1 [Tie rod C]	Tie rod C
7		Q387B20T15 [Gastle nut]	Gastle nut
8		Q5004036 [Cotter pin]	Cotter pin
10		AZ9100430218-4 [Ball joint right]	Ball joint right
11		AZ9100430218-11 [Ball joint left]	Ball joint left
12		AZ9100430218-12 [Clip]	Clip
13		AZ9100430218-13 [Packing bellows]	Packing bellows

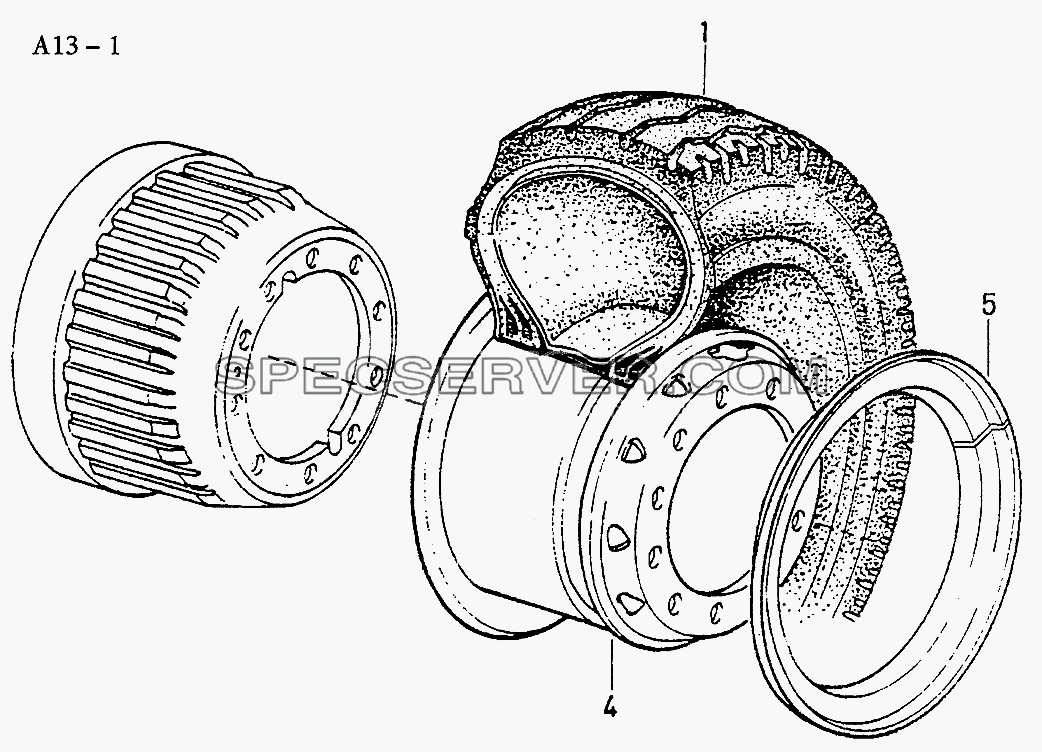

DISC WHEEL AND TIRE (A13-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1-99-964-007 [Protection cap]	Protection cap
1		AZ9100618001 [12R22.5 tire]	12R22.5 tire
1		DE9114610025 [14.00R20 tire]	14.00R20 tire
1		WG7600616010 [10.00-20-16PR tire]	10.00-20-16PR tire
1		WG7600616020 [9.00-20-16PR tire]	9.00-20-16PR tire
1		WG9100610024 [11.00-20-18PR tire]	11.00-20-18PR tire
1		WG9112619012 [12.00-20-18PR tire]	12.00-20-18PR tire
1		WG9114619015 [12.00-24-18PR tire]	12.00-24-18PR tire
4		AZ9100610062 [8.25x22.5 Disc wheel]	8.25x22.5 Disc wheel
4		AZ9100610065 [9.0x22.5 Disc wheel]	9.0x22.5 Disc wheel
4		BZ9100610161 [8.0-20 Disc wheel]	8.0-20 Disc wheel
4		DZ9114610024 [Disc wheel]	Disc wheel
4		WG9100610061 [7.50V-20 Disc wheel]	7.50V-20 Disc wheel
4		WG9112610062 [8.5-20 Disc wheel]	8.5-20 Disc wheel
4		WG9114610061 [8.5-24 Disc wheel]	8.5-24 Disc wheel
5		WG9100610011-1 [8.0-20 Side ring]	8.0-20 Side ring
5		WG9100610061-1 [7.50V-20 Side ring]	7.50V-20 Side ring
5		WG9112610062-1 [8.5-20 Side ring]	8.5-20 Side ring
5		WG9114610061-1 [8.5-24 Side ring]	8.5-24 Side ring
6		17600610014 [Plate for valve]	Plate for valve
6		AZ9100610014 [Plate for valve]	Plate for valve
6		AZ9112610014 [Plate for valve]	Plate for valve
7		WG9100610001 [Valve extension]	Valve extension
7		WG9100610001 [Valve extension]	Valve extension
8		AZ9100617001 [Valve extension]	Valve extension
8		AZ9100617001 [Valve extension]	Valve extension
9		AZ9112610090 [Cover for front wheel]	Cover for front wheel
9		AZ9112610090 [Cover for front wheel]	Cover for front wheel
10		AZ9112610083 [Protection cap]	Protection cap

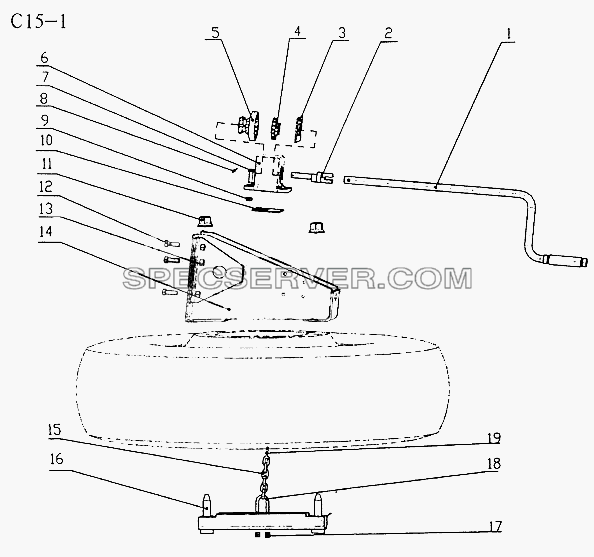

SPARE WHEEL CARRIER (C15-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9719860018 [Drive device]	Drive device
1		AZ9719860014 [Cranker]	Cranker
2		AZ9719860012 [Shaft]	Shaft
3		17017860022 [Locking sheet]	Locking sheet
4		17017860023 [Drive wheeI]	Drive wheeI
5		17017860024 [Driven wheel]	Driven wheel
6		AZ9719860007 [Housing]	Housing
7		Q150B1035 [Screw]	Screw
8		Q5004030 [Split pin]	Split pin
9		Q33210 [Nut]	Nut
10		17017860027 [Cover]	Cover
11		WG9003884160 [Wheel nut]	Wheel nut
12		Q150B1235 [Screw]	Screw
13		Q33212 [Nut]	Nut
14		AZ9719860021 [Bracket]	Bracket
15		17017860031 [Cable]	Cable
16		AZ9112860046 [Screw]	Screw
17		Q340B08 [Nut]	Nut
18		AZ9112860097 [Hook]	Ноок
19		Q5004030 [Split pin]	Split pin

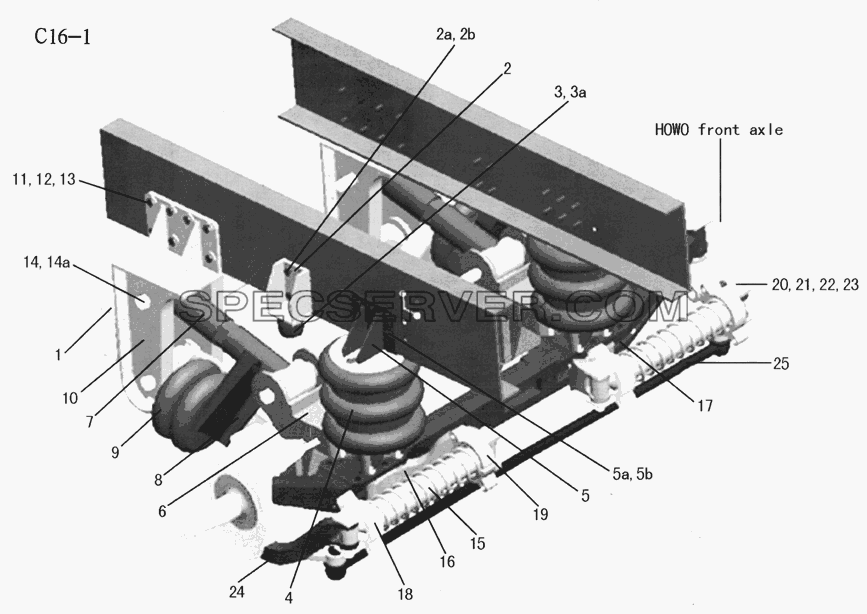

TRAILING AXLE WITH AIR SUSPENSION, SELF STEERING, PNEUMATIC LIFTING DEVICE (C16-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003888457 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888458 [Nut]	Nut
-		190003888467 [Nut]	Nut
-		190003888467 [Nut]	Nut
-		190003888749 [Nut]	Nut
-		AZ9636410060 [Bracket right]	Bracket right
-		AZ9636520024 [Positioning pin]	Positioning pin
-		AZ9636520033 [Top brace rod right]	Top brace rod right
-		AZ9636520034 [Bottom brace rod right]	Bottom brace rod right
-		AZ9738520000 [HOWO air suspension assembly]	HOWO air suspension assembly
-		AZ9738520009 [Bracket right]	Bracket right
-		AZ9738520013 [Support right]	Support right
-		AZ9738520014-1 [Spring]	Spring
-		Q151B0825 [Screw]	Screw
-		Q151B0825 [Screw]	Screw
-		Q151B1245 [Screw]	Screw
-		Q151B1460 [Screw]	Screw
-		Q151B1460 [Screw]	Screw
-		Q151B20120TF2 [Screw]	Screw
-		Q151B20200TF2 [Screw]	Screw
-		Q2541020 [Screw]	Screw
-		Q40108 [Washer]	Washer
-		Q40108 [Washer]	Washer
-		WG9636520029 [Washer]	Washer
-		WG9636520048 [Washer]	Washer
1		AZ9738520011 [Cross member]	Cross member
2		AZ9738520001 [Stop bracket]	Stop bracket
3		WG9012520011 [Stop]	Stop
4		AZ9636520009 [Siphon C]	Siphon C
5		AZ9738520006 [Top cover]	Top cover
6		AZ9738520010 [Support left]	Support left
7		AZ9636520024 [Top brace rod left]	Top brace rod left
8		AZ9636520027 [Bottom brace rod left]	Bottom brace rod left
9		AZ9636520007 [Lifting siphon]	Lifting siphon
10		AZ9738520008 [Bracket left]	Bracket left
11		AZ9636520021 [Plastic washer]	Plastic washer
12		Q151B1660 [Screw]	Screw
13		190003888459 [Nut]	Nut
14		AZ9636520028 [Bolt]	Bolt
15		AZ9738520014 [Shock absorber]	Shock absorber
16		AZ9636520035 [Bracket right]	Bracket right
17		AZ9636520036 [Bracket left]	Bracket left
18		AZ9636520019 [Spring seat left]	Spring seat left
19		AZ9636520045 [Spring seat right]	Spring seat right
20		AZ9636520046 [Bush]	Bush
21		AZ9636520022 [Bolt]	Bolt
22		Q381B18 [Nut]	Nut
23		Q5000445 [Split pin]	Split pin
24		AZ9636410061 [Bracket left]	Bracket left
25		AZ9100430218 [Tie rod]	Tie rod
26		AZ9128710002 [Pneutronic valve]	Pneutronic valve
27		AZ9632710001 [Bracket for pneutronic valve]	Bracket for pneutronic valve

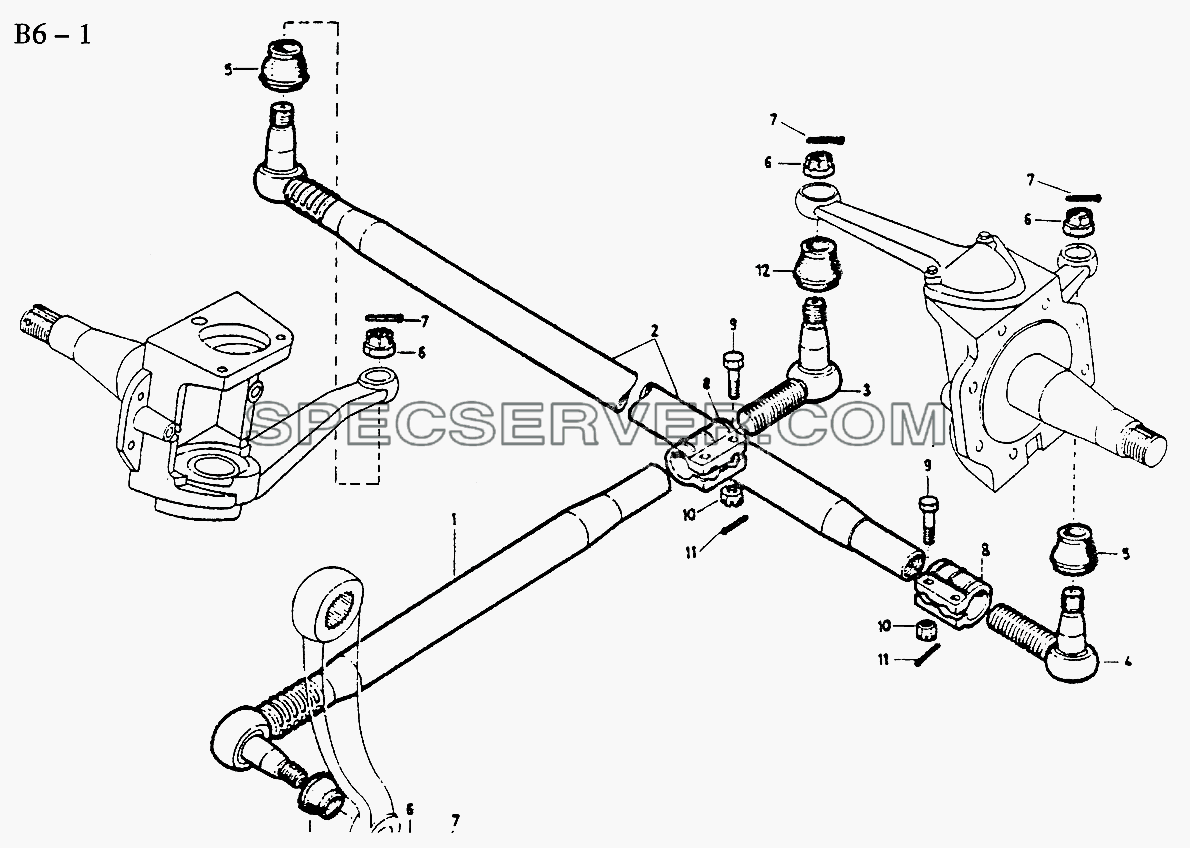

4x2, 6x2, 6x4 STEERING LINKAGE (B6-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199100430030 [Drag link]	Drag link
1		AZ9100430211 [Drag link]	Drag link
1		WG9100430011 [Drag link]	Drag link
2		AZ9100430218 [Tie rod cross tube assembly]	Tie rod cross tube assembly
6		Q387B20T15 [Castle nut]	Castle nut
7		Q5004036 [Cotter pin]	Cotter pin
