№		Номер детали	Наименование запчасти
1		AZ9114930092 [Towing]	Towing
2		Q150B1440 [Screw]	Screw
3		Q33214 [Nut]	Nut
4		AZ9114930093 [Towing hook]	Towing hook
5		AZ9114930094 [Towing hitch]	Towing hitch

BUMPER FOR SW CAB (B7-16) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ1630240141 [High bumper]	High bumper
2		WG1630240070 [Lower bumper]	Lower bumper
3		WG163240142 [Grille]	Grille

BUMPER FOR S CAB (B7-17) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q150B1045Q [Screw]	Screw
1		199100930044 [Bracket left]	Bracket left
1		AZ9112930318 [Bracket left]	Bracket left
1		AZ9632930004 [Bracket left]	Bracket left
1		AZ9632930006 [Bracket left]	Bracket left
2		199100930045 [Bracket right]	Bracket right
2		AZ9112930317 [Bracket right]	Bracket right
2		AZ9232930002 [Bracket right]	Bracket right
3		Q151B1645 [Screw]	Screw
4		190003888459 [Nut]	Nut
5		199100930030 [Carrier]	Carrier
6		199012930020 [Bolt]	Bolt
7		1680930136 [Spring]	Spring
8		Q151B1640 [Screw]	Screw
9		190003888459 [Nut]	Nut
10		199100930057 [Head hight bracket]	Head hight bracket
10		199100930220 [Head hight bracket]	Head hight bracket
11		1113010043 [Spacer pipe]	Spacer pipe
12		Q40110 [Washer]	Washer
13		Q33210 [Nut]	Nut
14		Q150B1030 [Screw]	Screw
14		Q150B1035 [Screw]	Screw
14		Q40110 [Washer]	Washer
15		199100930029 [Bumper]	Bumper
15		199100930094 [Bumper]	Bumper
16		Q40210 [Washer]	Washer
17		Q40210 [Toothed washer]	Toothed washer
18		Q150B1025 [Screw]	Screw
19		WG9000930029 [Step]	Step
20		Q4400512T19 [Rivet]	Rivet
21		199000930030 [Step]	Step
22		Q150B0820 [Screw]	Screw
23		Q40308 [Spring]	Spring
24		Q340B08 [Nut]	Nut
25		199100930100 [Bracket left]	Bracket left
26		199100930099 [Bracket right]	Bracket right
27		Q150B1035 [Screw]	Screw
28		Q150B1030 [Screw]	Screw
29		Q33210 [Nut]	Nut
52		199114930155 [Grille]	Grille
53		Q151B1675 [Screw]	Screw
54		190003800851 [Screw]	Screw
55		Q151B1650 [Screw]	Screw
56		Q40116 [Washer]	Washer
57		199114820033 [Pipe socket]	Pipe socket
58		180A530046 [Washer]	Washer
59		190003888455 [Nut]	Nut

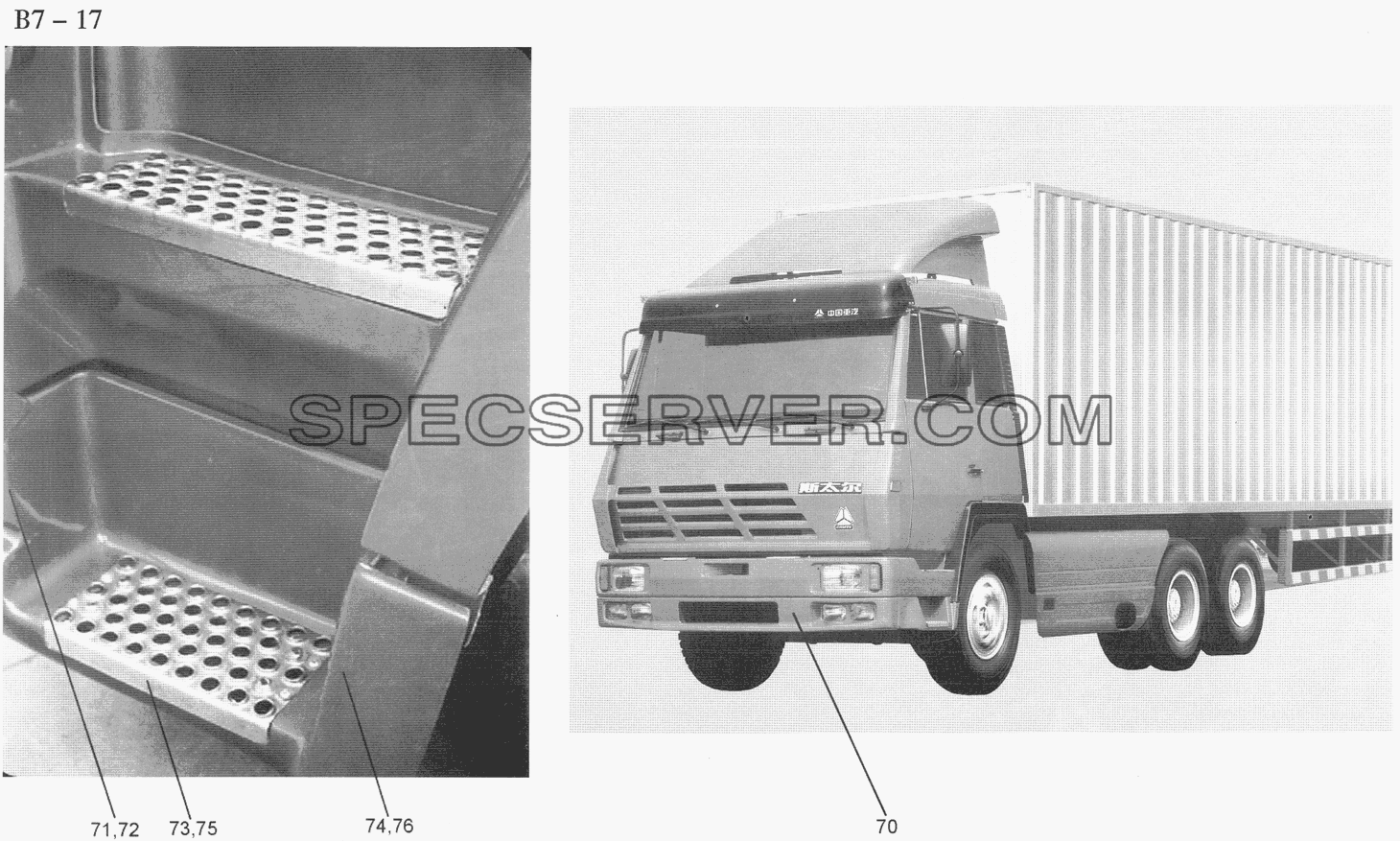

BUMPER FOR S CAB (B7-17-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
70		AZ1600242025 [Down-bumper]	Down-bumper
71		WG1600242031 [Step cover C left]	Step cover C left
72		WG1600242032 [Step cover C right]	Step cover C right
73		WG1600242031-1 [Step left]	Step left
74		WG1600242031-2 [Cover left]	Cover left
75		WG1600242032-1 [Step right]	Step right
76		WG1600242032-2 [Cover right]	Cover right

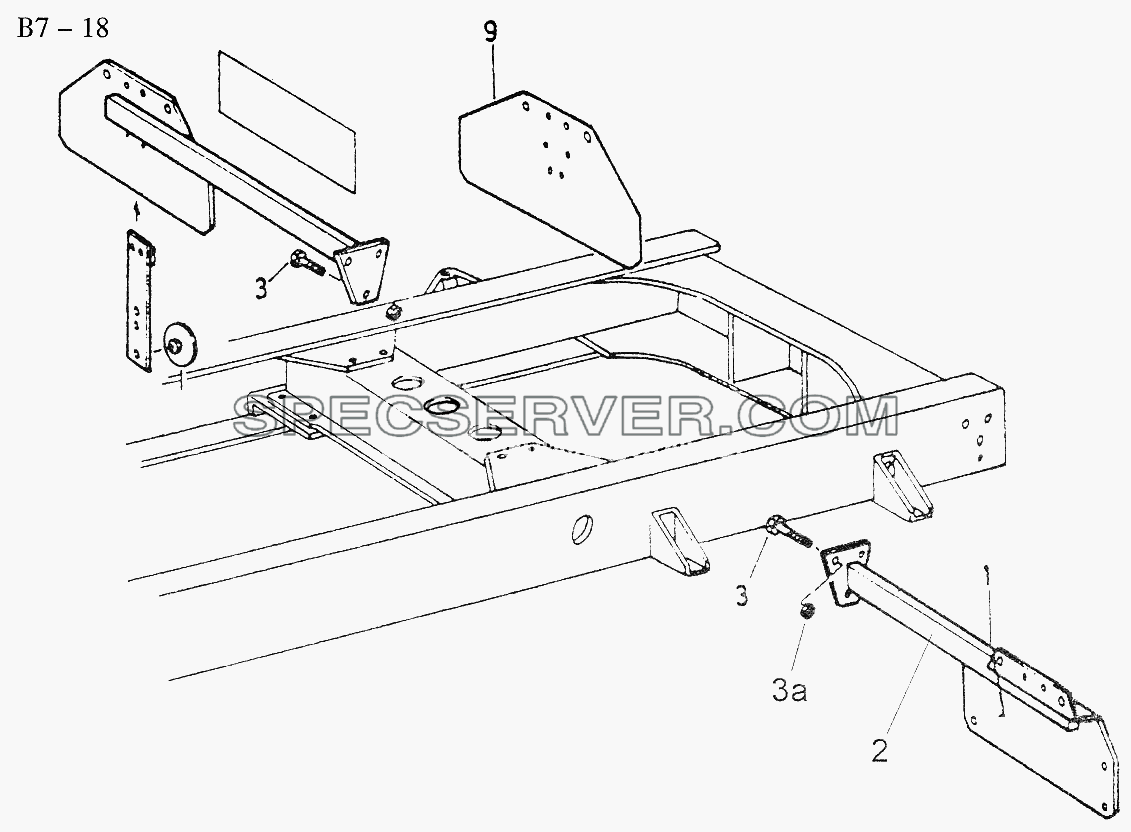

TAIL LIGHTS AND NUMBER PLATE CARRIER (B7-18) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q33210 [Nut]	Nut
1		AZ9100940016 [Tail light plate]	Tail light plate
2		AZ9100940018 [Tail light bracket]	Tail light bracket
3		Q150B1025 [Screw]	Screw
9		AZ91009400021 [Registration plate]	Registration plate
10		Q150B1655 [Screw]	Screw

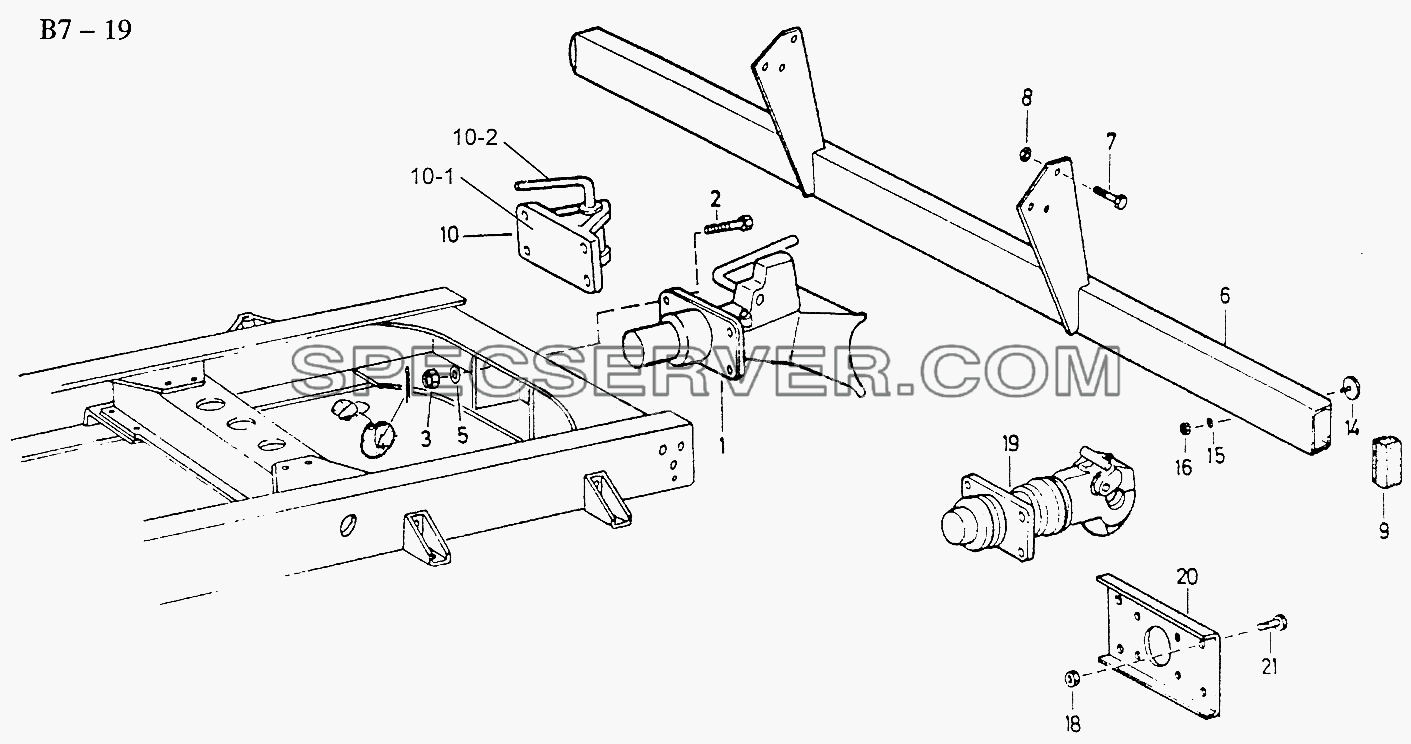

BOTTOM PROTECTION, TRAILER COUPLING (B7-19) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003937830 [Washer]	Washer
-		199400930003 [Sleeve]	Sleeve
-		WG9000930047-1 [Supporter]	Supporter
-		WG9000930047-2 [Bolt]	Bolt
1		199000930113 [Trailer coupling]	Trailer coupling
2		Q150B1660 [Screw]	Screw
3		Q43216 [Nut]	Nut
6		WG9100930001 [Bumper rear]	Bumper rear
7		Q150B1655 [Screw]	Screw
8		Q33216 [Nut]	Nut
9		WG9100930150 [Cover]	Cover
10		WG9000930047 [Trailer coupling]	Trailer coupling
19		199114930110 [Trailer coupling]	Trailer coupling
