№		Номер детали	Наименование запчасти
-		WG9112240109 [Stop C]	Stop C
1		199112240114 [Housing]	Housing
2		1-21-422-230 [Push rod]	Push rod
3		1-99-976-035 [Spring]	Spring
4		190003934190 [Circlip]	Circlip
5		1-99-907-048 [Washer]	Washer
6		199112240110 [Sleeve]	Sleeve
7		199112230035 [Clutch pedal]	Clutch pedal
8		13809230034 [Washer]	Washer
9		190003802527 [Bolt]	Bolt
10		199100360031 [Valve]	Valve

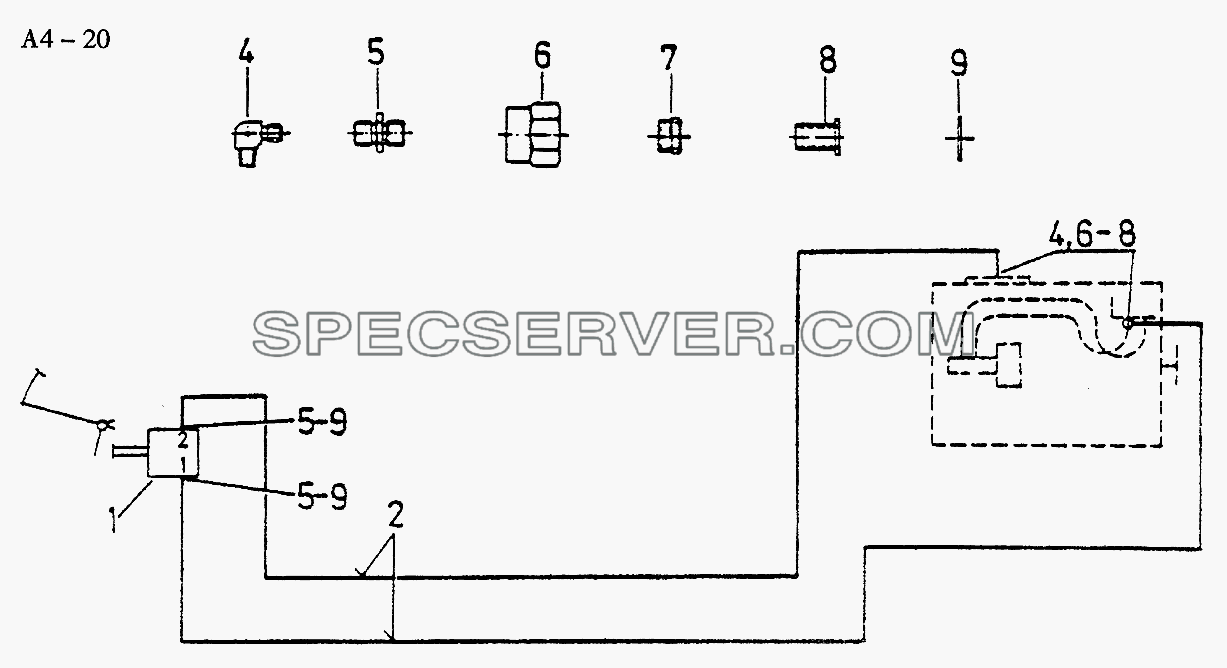

Fuller AIR LINE FOR CLUTCH BRAKE (A4-20) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9000360150 [Valve]	Valve
2		190003179782 [Plastic pipe]	Plastic pipe
3		19112280111 [Connector]	Connector
4		WG99112280014 [Connector]	Connector
5		190003559766 [Connector]	Connector
6		190003559516 [Nut]	Nut
7		190003559561 [Sleeve]	Sleeve
8		199014280016 [Hose]	Hose
9		190003098012 [Gasket]	Gasket

Fuller DOUBLE LEVER DOUBLE H OPERATION C(Option) (A4-21) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		A-C03001-3 [Double lever and H operation C]	Double lever and H operation C
1		F99983 [Spring]	Spring
2		F99675 [Stop ring]	Stop ring
3		F96036 [Spring]	Spring
4		C03035-1 [Shift finger]	Shift finger
5		C03038-1-1 [Key]	Кеу
6		99679-3 [Gearshift shaft]	Gearshift shaft
7		79100710068 [Reverse light switch]	Reverse light switch
8		99012710041 [Neutral switch]	Neutral switch
9		C03033-1 [Housing cover]	Housing cover
10		F96035-5 [Lever]	Lever
11		C03032-1 [Gearshift shaft]	Gearshift shaft
12		C03031-1 [Sleeve]	Sleeve
13		15276 [Breather]	Breather
14		F99681 [Reverse switch]	Reverse switch
15		F99585-1 [Reverse switch shift block]	Reverse switch shift block
16		F99660 [Double H valve]	Double H valve
17		F96194-3 [Housing]	Housing
17		JS100-1702051-1 [Housing]	Housing
18		F99670 [Plug]	Plug
19		F96037 [Spring]	Spring
20		F99666 [Housing cover]	Housing cover
21		C03036-1 [Cover]	Cover
22		C03035-1 [Shift joint]	Shift joint

S6-120 GEAR BOX HOUSING ASSY. (A5-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1268 301 024 [Gearbox Housing]	Gearbox Housing
2		0736 303 005 [Screw Plug]	Screw Plug
3		0736 301 022 [Screw Plug]	Screw Plug
4		0636 301 048 [Screw Plug]	Screw Plug
5		0736 305 016 [Screw Plug]	Screw Plug
6		0630 361 034 [Screw Plug]	Screw Plug
7		0768 310 001 [Screw Plug]	Screw Plug

S6-120 INPUT SHAT, LAYSHAFT AND GEAR (A5-2) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		115 302 023 [Input Shaft]	Input Shaft
2		0735 410 039 [Roller Bearing]	Roller Bearing
3		0630 503 020 [Sp150 Snap Ring]	Sp150 Snap Ring
4		0730 102 629 [Split Ring]	Split Ring
4		0730 102 630 [Split Ring]	Split Ring
4		0730 102 631 [Split Ring]	Split Ring
4		0730 102 632 [Split Ring]	Split Ring
4		0730 103 509 [Split Ring]	Split Ring
4		0730 103 510 [Split Ring]	Split Ring
4		0730 106 673 [Split Ring]	Split Ring
4		0730 106 674 [Split Ring]	Split Ring
4		0730 106 675 [Split Ring]	Split Ring
4		0769 145 001(S) [Split Ring series]	Split Ring series
5		0730 361 046 [Retaning Ring]	Retaning Ring
6		0769 140 002(S) [Shim sereis]	Shim sereis
6		1205 308 016 [Shim]	Shim
6		1205 308 020 [Shim]	Shim
6		1205 308 040 [Shim]	Shim
7		1250 302 373 [Gasket]	Gasket
8		0734 310 108 [Shaft Seal]	Shaft Seal
10		1250 302 265 [Connection Plate]	Connection Plate
11		0636 015 120 [Hexagon Screw]	Hexagon Screw
12		0635 374 019 [Roller Bearing]	Roller Bearing
13		115 303 030 [Layshaft]	Layshaft
14		115 303 005 [Double Gear]	Double Gear
15		115 303 009 [Helical Gear]	Helical Gear
16		115 303 014 [Helical Gear]	Helical Gear
17		0735 370 011 [Roller bearing]	Roller bearing
18		0630 501 112 [Reatining Ring]	Reatining Ring
18		0630 501 114 [Reatining Ring]	Reatining Ring
18		0630 501 116 [Reatining Ring]	Reatining Ring
18		0630 501 118 [Reatining Ring]	Reatining Ring
18		0630 501 147 [Reatining Pang]	Reatining Pang
18		0630 501 148 [Reatining Pang]	Reatining Pang
18		0630 531 064 [Reatining Pang]	Reatining Pang
18		0630 531 065 [Reatining Ring]	Reatining Ring
18		0769 144 001(S) [Reatining Ring series]	Reatining Ring series
19		0730 102 060 [Shim]	Shim
19		0730 102 061 [Shim]	Shim
19		0730 102 062 [Shim]	Shim
19		0730 102 063 [Shim]	Shim
19		0730 102 064 [Shim]	Shim
19		0730 102 065 [Shim]	Shim
19		0730 102 066 [Shim]	Shim
19		0730 102 067 [Shim]	Shim
19		0730 102 068 [Shim]	Shim
19		0730 102 069 [Shim]	Shim
19		0730 102 070 [Shim]	Shim
19		0730 102 071 [Shim]	Shim
19		0730 102 072 [Shim]	Shim
19		0730 102 073 [Shim]	Shim
19		0730 102 074 [Shim]	Shim
19		0730 102 098 [Shim]	Shim
19		0730 102 099 [Shim]	Shim
19		0730 102 100 [Shim]	Shim
19		0730 102 101 [Shim]	Shim
19		0730 102 102 [Shim]	Shim
19		0730 102 103 [Shim]	Shim
19		0730 102 104 [Shim]	Shim
19		0730 102 105 [Shim]	Shim
19		0730 102 106 [Shim]	Shim
19		0730 103 115 [Shim]	Shim
19		0730 103 116 [Shim]	Shim
19		0730 103 117 [Shim]	Shim
19		0730 103 118 [Shim]	Shim
19		0730 103 119 [Shim]	Shim
19		0730 103 120 [Shim]	Shim
19		0730 103 121 [Shim]	Shim
19		0730 103 122 [Shim]	Shim
19		0730 103 123 [Shim]	Shim
19		0730 103 124 [Shim]	Shim
19		0769 140 045(S) [Shim series]	Shim series
20		1268 303 071 [Gasket]	Gasket
21		1268 303 066 [Cover]	Cover
22		0636 015 114 [Hexagon Screw]	Hexagon Screw
23		0636 015 124 [Hexagon Screw]	Hexagon Screw
25		1250 305 003 [Reverse Idler Shaft]	Reverse Idler Shaft
27		0735 320 492 [Needle Cage]	Needle Cage
28		1250 305 006 [Bush]	Bush
29		115 305 002 [Reverse Idler Gear]	Reverse Idler Gear

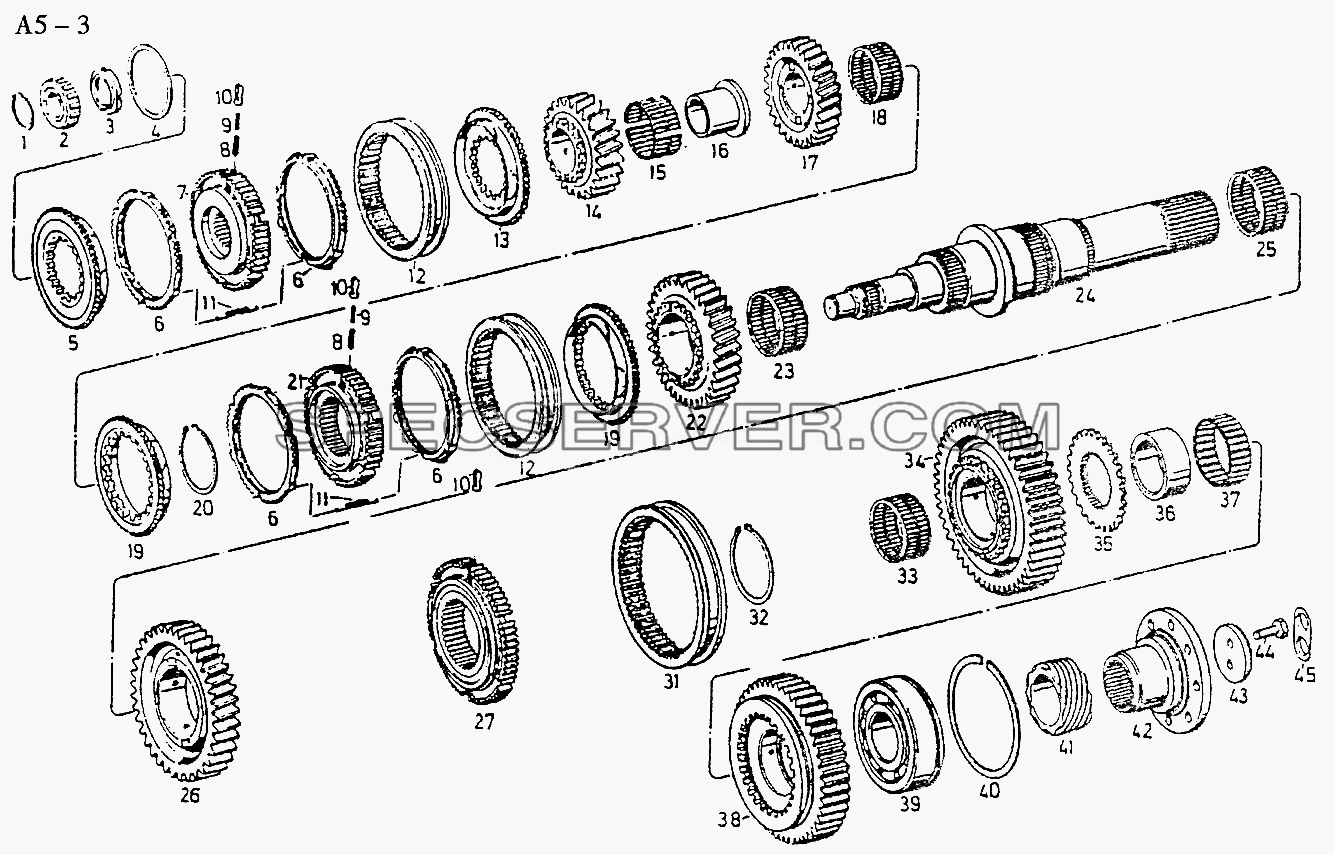

S6-120 MAIN SHAFT, SYNCHRONIZATION (A5-3) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		0630 531 217 [Retaining Ring]	Retaining Ring
2		0735 455 012 [Roller Bearing]	Roller Bearing
3		0630 501 111 [Retaining Ring]	Retaining Ring
3		0630 501 112 [Retaining Ring]	Retaining Ring
3		0630 501 113 [Retaining Ring]	Retaining Ring
3		0630 501 114 [Retaining Ring]	Retaining Ring
3		0630 501 115 [Retaining Ring]	Retaining Ring
3		0630 501 116 [Retaining Ring]	Retaining Ring
3		0630 501 117 [Retaining Ring]	Retaining Ring
3		0630 501 118 [Retaining Ring]	Retaining Ring
3		0630 501 145 [Reatining Ring]	Reatining Ring
3		0630 501 146 [Retaining Ring]	Retaining Ring
3		0630 501 147 [Retaining Ring]	Retaining Ring
3		0630 501 148 [Retaining Ring]	Retaining Ring
3		0630 501 150 [Retaining Ring]	Retaining Ring
3		0630 501 151 [Retaining Ring]	Retaining Ring
3		0630 501 159 [Retaining Ring]	Retaining Ring
3		0630 501 160 [Retaining Ring]	Retaining Ring
3		0630 501 294 [Retaining Ring]	Retaining Ring
3		0630 501 295 [Retaining Ring]	Retaining Ring
3		0630 501 296 [Retaining Ring]	Retaining Ring
3		0630 501 298 [Retaining Ring]	Retaining Ring
3		0630 501 299 [Retaining Ring]	Retaining Ring
3		0630 531 064 [Retaining Ring]	Retaining Ring
3		0630 531 065 [Retaining Ring]	Retaining Ring
3		0769 144 033(S) [Retaining Ring series]	Retaining Ring series
4		0730 002 680 [Shim]	Shim
4		0730 002 681 [Shim]	Shim
4		0730 002 682 [Shim]	Shim
4		0730 002 683 [Shim]	Shim
4		0730 002 684 [Shim]	Shim
4		0730 002 776 [Shim]	Shim
4		0730 002 777 [Shim]	Shim
4		0730 002 778 [Shim]	Shim
4		0730 002 780 [Shim]	Shim
4		0730 005 557 [Shim]	Shim
4		0769 140 115(S) [Shim series]	Shim series
5		115 304 058 [6G.Clutch Body]	6G.Clutch Body
6		1297 304 402 [Synchrowizer Ring]	Synchrowizer Ring
7		115 304 056 [Detend]	Detend
8		1311 304 021 [Compression spring]	Compression spring
10		1311 304 020 [Pressure Piece]	Pressure Piece
12		1312 302 057 [Sliding Sleeve]	Sliding Sleeve
13		115 304 057 [5G.clutch Body]	5G.clutch Body
14		115 304 062 [6G.gear]	6G.gear
15		0735 320 499 [Needle Bearing]	Needle Bearing
16		1268 304 141 [Bush]	Bush
17		115 304 065 [4G.gear]	4G.gear
18		0735 320 204 [Needle Bearing]	Needle Bearing
19		1312 304 027 [3/4G.Clutch Body]	3/4G.Clutch Body
20		0630 501 050 [Shim]	Shim
20		0630 501 304 [Shim]	Shim
20		0630 531 301 [Shim]	Shim
20		0769 144 003(s) [Shim series]	Shim series
21		115 304 055 [3/4G.Synchron.Body]	3/4G.Synchron.Body
22		115 304 068 [3G.Gear]	3G.Gear
23		0735 320 407 [3G.Needle Cage]	3G.Needle Cage
24		1268 304 274 [Main Shaft]	Main Shaft
25		0735 320 111 [2G.Needle Case]	2G.Needle Case
26		1126 304 002 [2G.Gear]	2G.Gear
27		1126 304 006 [1/2G.Synchronzer Body]	1/2G.Synchronzer Body
31		1126 304 004 [1/2G.Sliding Sleeve]	1/2G.Sliding Sleeve
32		0630 501 054 [Retaining Ring]	Retaining Ring
32		0630 531 302 [Retaining Ring]	Retaining Ring
32		0630 531 303 [Retaining Ring]	Retaining Ring
32		0769 144 002(S) [Retaining Ring series]	Retaining Ring series
33		0735 320 206 [1G.Needle Cage]	1G.Needle Cage
34		1126 304 001 [1G.Spur Gear]	1G.Spur Gear
35		1250 304 006 [Rg.Clutch Body]	Rg.Clutch Body
36		0730 160 344 [Bush]	Bush
37		0735 320 154 [Needle Cace]	Needle Cace
38		115 304 079 [Rg.Spur Gear]	Rg.Spur Gear
39		0635 333 049 [Ball Bearing]	Ball Bearing
40		0630 503 020 [Snap Ring]	Snap Ring
41		1250 304 198 [Speedometer Worm]	Speedometer Worm
42		1268 304 149 [Output Flange(plane)]	Output Flange(plane)
42		1268 304 149-1 [Ф165 Toothed Flange]	Ф165 Toothed Flange
43		1240 304 117 [Washer]	Washer
44		0636 016 012 [Hexagon Screw]	Hexagon Screw
45		1250 304 353 [Lockking Plate]	Lockking Plate
