№		Номер детали	Наименование запчасти
1		RT-11509C [9 - gear gearbox]	9 - gear gearbox
2		RT-11609A [9 - gear gearbox]	9 - gear gearbox
3		RT0-11609B [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
4		RT0-11609E [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
5		9JS150 [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
6		9JS180 [9 - gear gearbox]	9 - gear gearbox
7		9JS180A [9 - gear gearbox with overdrive]	9 - gear gearbox with overdrive
8		8JS100 [8 - gear gearbox]	8 - gear gearbox
9		8JS100T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
10		8JS100TA [8 - gear synchromesh gearbox with overdrive]	8 - gear synchromesh gearbox with overdrive
11		8JS130T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
12		8JS130TA [8 - gear synchromesh gearbox with overdrive]	8 - gear synchromesh gearbox with overdrive
13		8JS180T [8 - gear synchromesh gearbox]	8 - gear synchromesh gearbox
14		7JS100A [7 - gear gearbox with overdrive]	7 - gear gearbox with overdrive
15		7JS100 [7 - gear gearbox]	7 - gear gearbox

Fuller CLUTCH HOUSING, GEARBOX HOUSING (A4-2) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		19481 [Joint]	Joint
3		15410 [Clutch housing]	Clutch housing
3		A-3674 [Clutch housing C (Inc.25, 26)]	Clutch housing C (Inc.25, 26)
3		JS100-1015-1 [Clutch housing C]	Clutch housing C
3		JS180A-1601015 [Clutch housing C]	Clutch housing C
3		JS180A-1601015-5 [Clutch housing C]	Clutch housing C
4		14310 [Gasket]	Gasket
5		18420 [Cover]	Cover
10		14373 [O magnet]	O magnet
11		M16x1.5 [Nut]	Nut
12		Q40316 [Washer]	Washer
13		Q1231630 [Bolt]	Bolt
14		14334 [Pin]	Pin
15		18686 [Transmission housing]	Transmission housing
15		JS100-1701015 [Transmission housing]	Transmission housing
16		Q61412 [Plug]	Plug
17		Q61304 [Plug]	Plug
18		16920 [Gasket]	Gasket
19		16595 [Cover]	Cover
19		JS130T-1701020 [Cover]	Cover
20		M12x22 [Screw]	Screw
21		Q1231642 [Bolt]	Bolt
22		Q40316 [Waster]	Waster
23		M16x1.5 [Nut]	Nut
24		X-14558 [Plug]	Plug
25		8677 [Bush]	Bush
26		16374 [Plug]	Plug
27		M8x12 [Screw]	Screw
28		1565 [Cover]	Cover
29		Q16401 [Plug]	Plug
30		Q70170 [Grease nipple]	Grease nipple
31		Q70001 [Grease nipple (opt)]	Grease nipple (opt)
35		11203 [Release bearing holder]	Release bearing holder
36		996914 [Release bearing]	Release bearing
37		12817 [Release fork]	Release fork
38		X-6-11 [Spring]	Spring
39		X-7-603 [Bolt]	Bolt
40		14311 [Joint]	Joint
41		F500A-1802191 [Gasket]	Gasket
41		F91410 [Gasket]	Gasket
42		51016 [Hose]	Hose
43		4425 [Spring]	Spring
44		9293 [Spring]	Spring
45		1/8" [Grease cup]	Grease cup
46		M10x32 [Bolt]	Bolt
47		F91409 [Bearing seat]	Bearing seat
47		JS180A-1701040 [Bearing seat]	Bearing seat
47		T116E-1701040 [Bearing seat]	Bearing seat

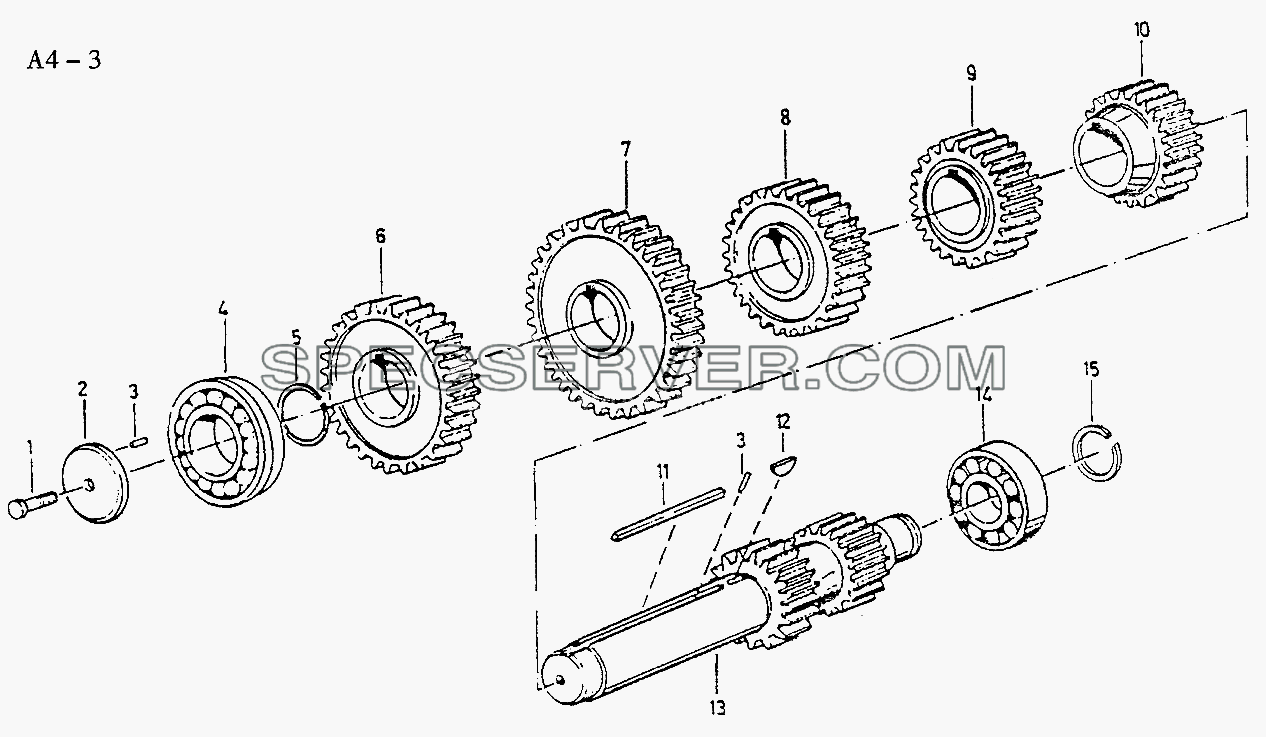

Fuller LAY SHAFT, WHEELS (A4-3) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		M16x1.5x45 [Bolt]	Bolt
2		19668 [Retainer]	Retainer
3		62511 [Flexibility roll pin]	Flexibility roll pin
4		192309 [Bearing]	Bearing
4		192309E [Bearing]	Bearing
4		370309Y [Bearing]	Bearing
5		19198 [Snap ring]	Snap ring
6		19552 [C/S driven gear]	C/S driven gear
6		19615 [C/S driven gear]	C/S driven gear
6		19631 [C/S driven gear]	C/S driven gear
6		JS100-170156 [C/S driven gear]	C/S driven gear
6		JS100A-1701056 [C/S driven gear]	C/S driven gear
6		JS100T-1701056 [C/S driven gear]	C/S driven gear
6		JS100TA-1701056 [C/S driven gear]	C/S driven gear
6		JS130T-1701056 [C/S driven gear]	C/S driven gear
6		JS150-1701054 [C/S driven gear]	C/S driven gear
6		JS180T-1701056 [C/S driven gear]	C/S driven gear
6		T116E-1701056 [C/S driven gear]	C/S driven gear
7		15953 [Left power take off gear]	Left power take off gear
7		20840 [Right power take off gear]	Right power take off gear
8		16749 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		19243 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		19639 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		JS100-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS100A-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS100TA-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS130T-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS130TA-1701051 [Gear C/S 4th gear]	Gear C/S 4th gear
8		JS130TA-1701056 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		JS150-1701053 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		JS180T-1701051 [Gear C/S 3rd gear]	Gear C/S 3rd gear
8		T115F-1701052 [Gear C/S overdrive gear]	Gear C/S overdrive gear
8		T115F-1701052 [Gear left C/S overdrive gear]	Gear left C/S overdrive gear
8		T116E-1701053 [Gear right C/S overdrive gear]	Gear right C/S overdrive gear
9		16751 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		19615 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		19623 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS100T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS10T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS150-1701052 [Gear C/S 2nd gear]	Gear C/S 2nd gear
9		JS180T-1701050 [Gear C/S 2nd gear]	Gear C/S 2nd gear
10		19247 [Gear C/S 1st gear]	Gear C/S 1st gear
10		19629 [Gear C/S 1st gear]	Gear C/S 1st gear
10		19753 [Gear C/S 1st gear]	Gear C/S 1st gear
10		JS100-1701049 [Gear C/S 1st gear]	Gear C/S 1st gear
10		JS150-1701051 [Gear C/S 1st gear]	Gear C/S 1st gear
11		19673 [Cotter]	Cotter
11		JS130T-1701055 [Cotter]	Cotter
12		X-6-E [Key]	Кеу
13		19549 [Countershaft]	Countershaft
13		JS100-1701048 [Countershaft]	Countershaft
13		JS130T-1701048 [Countershaft]	Countershaft
14		102308E [Bearing]	Bearing
15		14317 [Snap ring]	Snap ring
15		C01021 [Stop ring]	Stop ring

Fuller MAIN SHAFT AND WHEELS (A4-4) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		16118 [Sliding clutch]	Sliding clutch
1		JS130T-1701108 [Sliding clutch]	Sliding clutch
2		18701 [Washer]	Washer
3		14749 [Washer]	Washer
3		JS100-1701113 [Washer]	Washer
4		16748 [Gear M/S 3xd gear]	Gear M/S 3xd gear
4		19242 [Gear M/S 3rd gear]	Gear M/S 3rd gear
4		19638 [Gear M/S overdrive gear]	Gear M/S overdrive gear
4		JS100-1701131 [Gear M/S 3rd gear]	Gear M/S 3rd gear
4		JS100A-1701131 [Gear M/S 4th gear]	Gear M/S 4th gear
4		JS100T-1701131 [Gear M/S 3rd gear]	Gear M/S 3rd gear
4		JS100TA-1701131 [Gear M/S 4th gear]	Gear M/S 4th gear
4		JS130TA-1701131 [Gear M/S 4th gear]	Gear M/S 4th gear
4		JS150-1701113 [Gear M/S ovelxirive gear]	Gear M/S ovelxirive gear
4		JS180T-1701131 [Gear M/S 3rd gear]	Gear M/S 3rd gear
4		T116E-1701132 [Gear M/S overdrive gear]	Gear M/S overdrive gear
5		14750 [Locking ring]	Locking ring
6		16750 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		19614 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		19622 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		JS100T-1701130 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		JS130T-1701130 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		JS150-1701112 [Gear M/S 2nd gear]	Gear M/S 2nd gear
6		JS180T-1701130 [Gear M/S 2nd gear]	Gear M/S 2nd gear
7		16752 [Gear M/S 1st gear]	Gear M/S 1st gear
7		19246 [Gear M/S 1st gear]	Gear M/S 1st gear
7		19628 [Gear M/S 1st gear]	Gear M/S 1st gear
7		JS100-1701112 [Gear M/S 1st gear]	Gear M/S 1st gear
7		JS100T-1701112 [Gear M/S 1st gear]	Gear M/S 1st gear
7		JS130T-1701112 [Gear M/S 1st gear]	Gear M/S 1st gear
7		JS150-1701111 [Gear M/S 1st gear]	Gear M/S 1st gear
7		JS180T-1701112 [Gear M/S 1st gear]	Gear M/S 1st gear
8		16754 [Gear M/S LOW gear]	Gear M/S LOW gear
9		16756 [Gear M/S reverse gear]	Gear M/S reverse gear
9		JS100-1701111 [Gear M/S reverse gear]	Gear M/S reverse gear
9		JS180T-1701111 [Gear M/S reverse gear]	Gear M/S reverse gear
10		62504 [Flexibility roll pin]	Flexibility roll pin
11		17109 [Cotter]	Cotter
12		18729 [Main shaft]	Main shaft
12		JS130T-1701105 [Main shaft]	Main shaft
12		JS180-1701105 [Main shaft]	Main shaft
12		JS180T-1701105 [Main shaft]	Main shaft

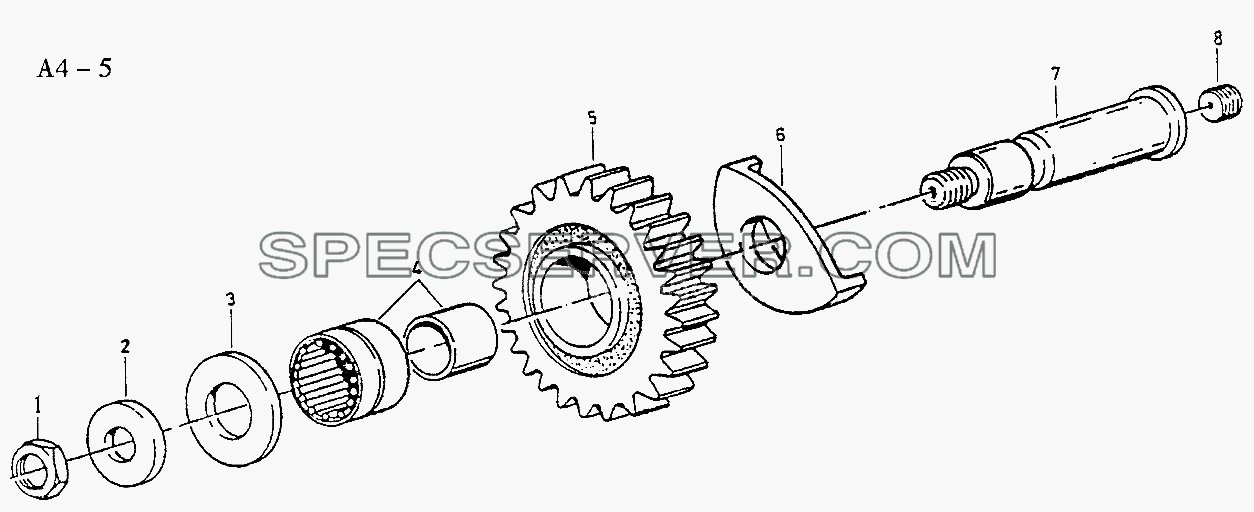

Fuller REVERSE GEAR (A4-5) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		X-12440 [Nut]	Nut
2		14283 [Plate]	Plate
3		14282 [Washer]	Washer
4		14287 [Roller bearing]	Roller bearing
5		16757 [Reverse gear idler]	Reverse gear idler
5		JS100-1701082 [Reverse gear idler]	Reverse gear idler
5		JS180T-1701082 [Reverse gear idler]	Reverse gear idler
6		16403 [Washer]	Washer
6		JS100-1701083 [Washer]	Washer
7		16405 [Reverse shaft]	Reverse shaft
8		5202 [Screw]	Screw

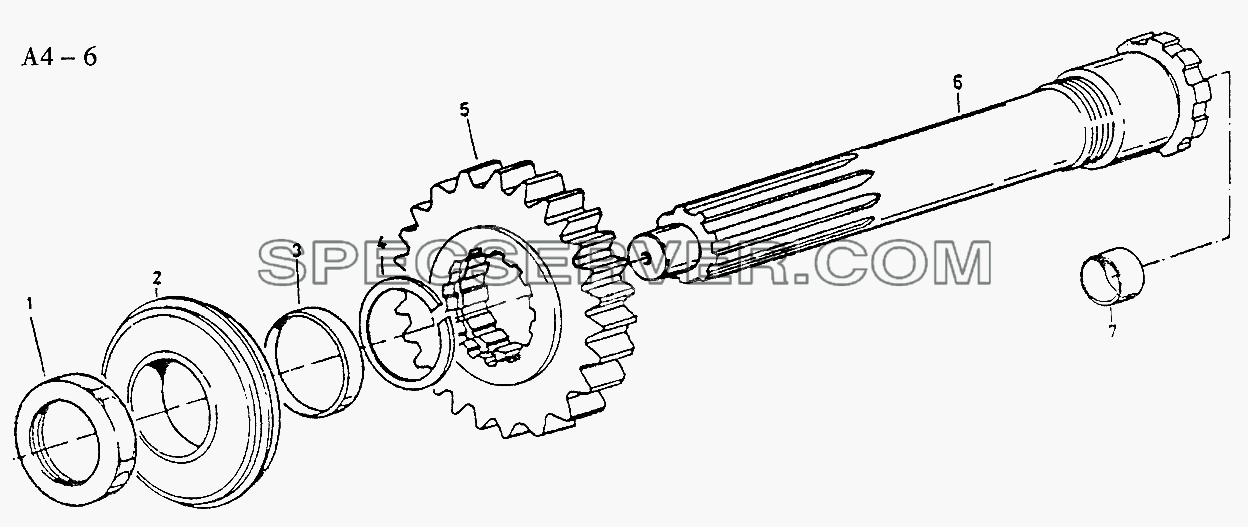

Fuller CLUTCH SHAFT (A4-6) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		8858 [Nut]	Nut
1		JS180A-1701036 [Nut]	Nut
2		150212K(81504) [Bearing]	Bearing
3		16463 [Spacer]	Spacer
4		14750 [Snap ring]	Snap ring
5		17568 [Gear input shaft]	Gear input shaft
5		19239 [Gear input shaft]	Gear input shaft
5		19630 [Gear input shaft]	Gear input shaft
5		JS100-1701031 [Gear input shaft]	Gear input shaft
5		JS100A-1701031 [Gear input shaft]	Gear input shaft
5		JS100T-1701031 [Gear input shaft]	Gear input shaft
5		JS100TA-1701031 [Gear input shaft]	Gear input shaft
5		JS130T-1701031 [Gear input shaft]	Gear input shaft
5		JS130TA-1701031 [Gear input shaft]	Gear input shaft
5		JS150-1701030 [Gear input shaft]	Gear input shaft
5		JS180T-1701031 [Gear input shaft]	Gear input shaft
5		T116E-1701032 [Gear input shaft]	Gear input shaft
6		19694 [Input shaft]	Input shaft
6		JS180A-1701030 [Input shaft]	Input shaft
6		T116E-1701031 [Input shaft]	Input shaft
7		16566 [Bushing]	Bushing
7		C01021 [Stop ring]	Stop ring
