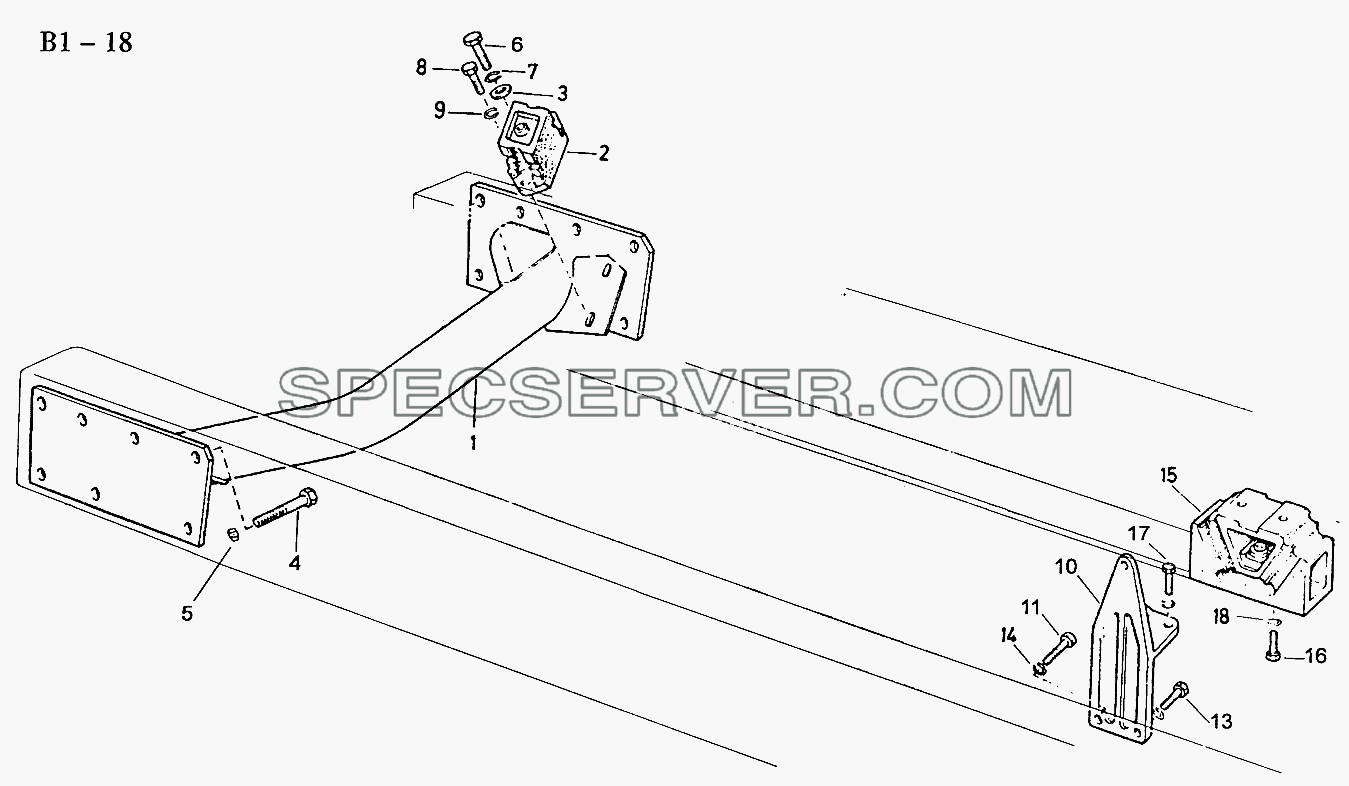

№		Номер детали	Наименование запчасти
-		AZ9132590051 [Bracket r.]	Bracket r.
-		AZ9132590062 [Bracket r.]	Bracket r.
-		AZ9638590002 [Bracket l.]	Bracket l.
-		AZ9638590004 [Bracket r.]	Bracket r.
-		WG9100590033 [Bracket r.]	Bracket r.
-		WG9100590126 [Bracket r.]	Bracket r.
1		WG9100590001 [Crossbar]	Crossbar
1		WG9118590001 [Crossbar]	Crossbar
2		WG1680590095 [Suppout]	Suppout
3		1480A 360058 [Washer]	Washer
4		Q151B1650 [Screw]	Screw
4		Q151B1660 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		Q150B1225 [Screw]	Screw
7		Q40312 [Spring]	Spring
8		Q150B0816 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		199100590020 [Bracket]	Bracket
10		AZ9124590001 [Bracket]	Bracket
10		AZ9132590050 [Bracket l.]	Bracket l.
10		AZ9132590061 [Bracket l.]	Bracket l.
10		AZ9638590001 [Bracket l.]	Bracket l.
10		AZ9638590003 [Bracket l.]	Bracket l.
10		WG9100590032 [Bracket l.]	Bracket l.
10		WG9100590034 [Bracket]	Bracket
10		WG9100590125 [Bracket l.]	Bracket l.
11		Q151B1440 [Screw]	Screw
12		Q151B1435 [Screw]	Screw
13		Q151B1450 [Screw]	Screw
14		Q40314 [Spring washer]	Spring washer
15		199112590102 [Bearing]	Bearing
15		WG9100590031 [Bearing]	Bearing
16		Q151C1230 [Screw]	Screw
17		Q151C1235 [Screw]	Screw
18		Q40312 [Spring washer]	Spring washer

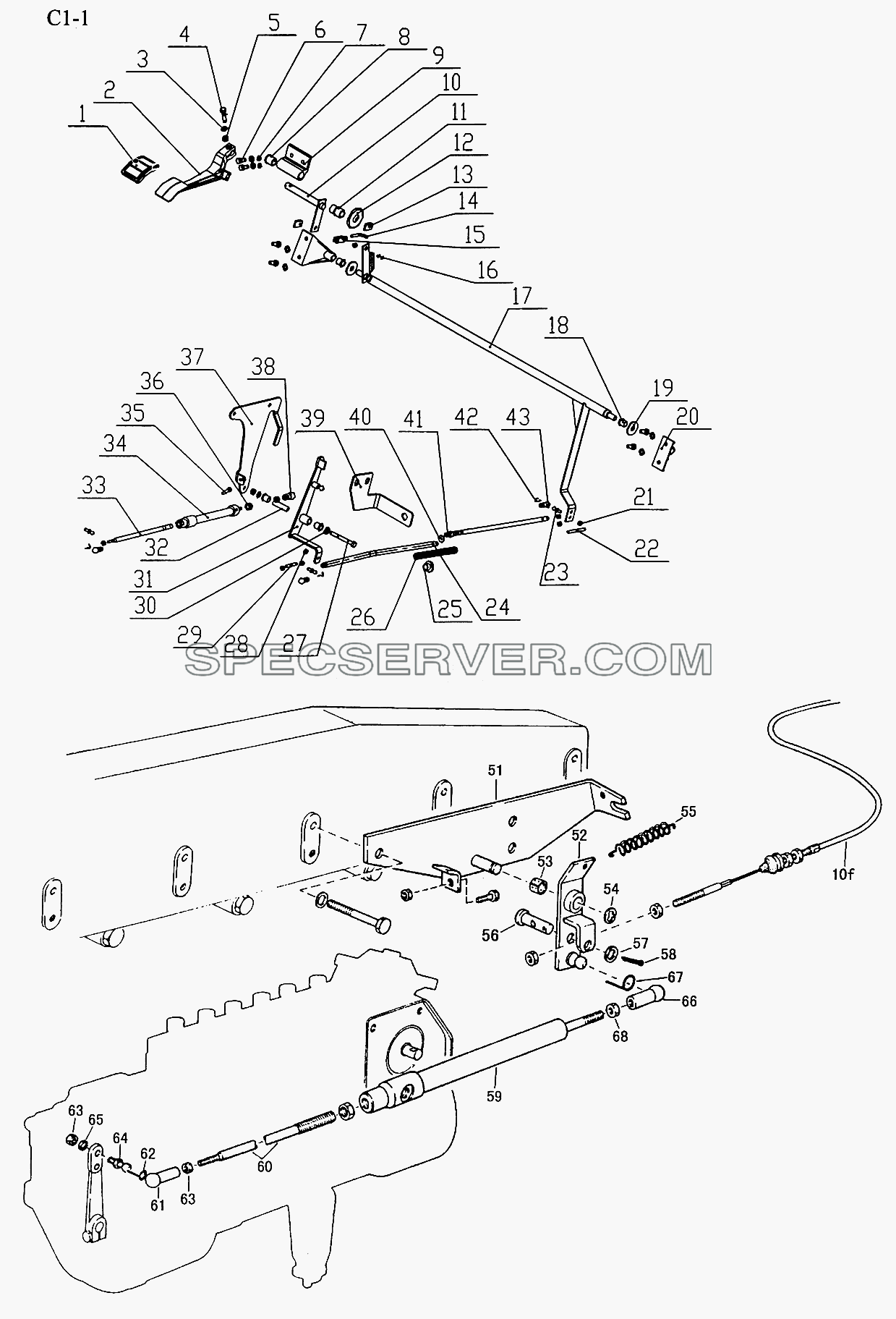

OPERATION DEVICE (C1-1) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1288 570057 [Spring]	Spring
-		1680 580023 [Clip]	Clip
-		AZ9719570073 [Bracket]	Bracket
-		AZ9719570085 [Plate]	Plate
-		Q150B0640 [Screw]	Screw
-		Q340B06 [Nut]	Nut
-		Q350B06T15 [Nut]	Nut
-		WG972557000 [Control cable]	Control cable
1		AZ9719570001 [Rubber footboard]	Rubber footboard
2		AZ9719470002 [Pedal]	Pedal
3		Q40108 [Washer]	Washer
4		Q150B0835 [Screw]	Screw
5		Q340B08 [Nut]	Nut
6		Q150B0820 [Screw]	Screw
7		Q40308 [Spring washer]	Spring washer
8		AZ9719570006 [Bush]	Bush
9		AZ9719570007 [Bracket]	Bracket
10		WG9719570003 [Control shaft]	Control shaft
10		WG9719570085 [Control shaft]	Control shaft
11		AZ9719570008 [Bush]	Bush
12		AZ9719570009 [Rubber ring]	Rubber ring
13		AZ9719570012 [Plastic clamp]	Plastic clamp
14		AZ9719570011 [Adjusting screw]	Adjusting screw
15		190003964412 [Fork head]	Fork head
16		Q43650 [Snap ring]	Snap ring
17		WG9719570015 [Lever]	Lever
18		AZ9719570023 [Bush]	Bush
19		Q40212 [Washer]	Washer
20		AZ9719570010 [Bracket]	Bracket
21		Q340B06 [Nut]	Nut
22		AZ9719570051 [Threaded bar]	Threaded bar
23		190003963313 [Ball pivot]	Ball pivot
24		AZ9719570040 [Brace rod]	Brace rod
25		AZ9719570060 [Sleeve]	Sleeve
26		AZ9719570061 [Spring]	Spring
27		Q150B0870 [Screw]	Screw
28		Q33206 [Nut]	Nut
29		AZ9719570052 [Threaded bar]	Threaded bar
30		AZ9719570034 [Rubber pad]	Rubber pad
31		AZ9719570029 [Lever]	Lever
32		AZ9719570033 [Spacer]	Spacer
33		199012570062 [Threaded rod]	Threaded rod
34		WG9100570002 [Operating cylinder]	Operating cylinder
35		Q150B0625 [Screw]	Screw
36		Q340B10 [Nut]	Nut
37		AZ9719570026 [Bracket]	Bracket
38		1900003963623 [Ball cup]	Ball cup
39		AZ9719570062 [Bracket]	Bracket
40		Q40206 [Washer]	Washer
41		AZ9719570045 [Brace rod]	Brace rod
42		190003936513 [Clip]	Clip
43		WG92570025 [Ball cup]	Ball cup
51		AZ9118570011 [Bracket]	Bracket
52		199100570018 [Lever]	Lever
53		WG99014180012 [Bush]	Bush
54		Q43680 [Snap ring]	Snap ring
55		199100570065 [Spring]	Spring
56		199012570084 [Bolt]	Bolt
57		Q40110 [Washer]	Washer
58		Q5003216 [Split pin]	Split pin
59		WG9100570002 [Operating cylinder]	Operating cylinder
60		AZ9118570003 [Threaded rod]	Threaded rod
61		WG92570025 [Ball cup]	Ball cup
62		190003936513 [Clip]	Clip
63		Q340B06 [Nut]	Nut
64		190003963313 [Ball pivot]	Ball pivot
65		Q40506 [Spring washer]	Spring washer
66		190003963623 [Ball cup]	Ball cup
67		190003936514 [Clip]	Clip
68		Q340B08 [Nut]	Nut

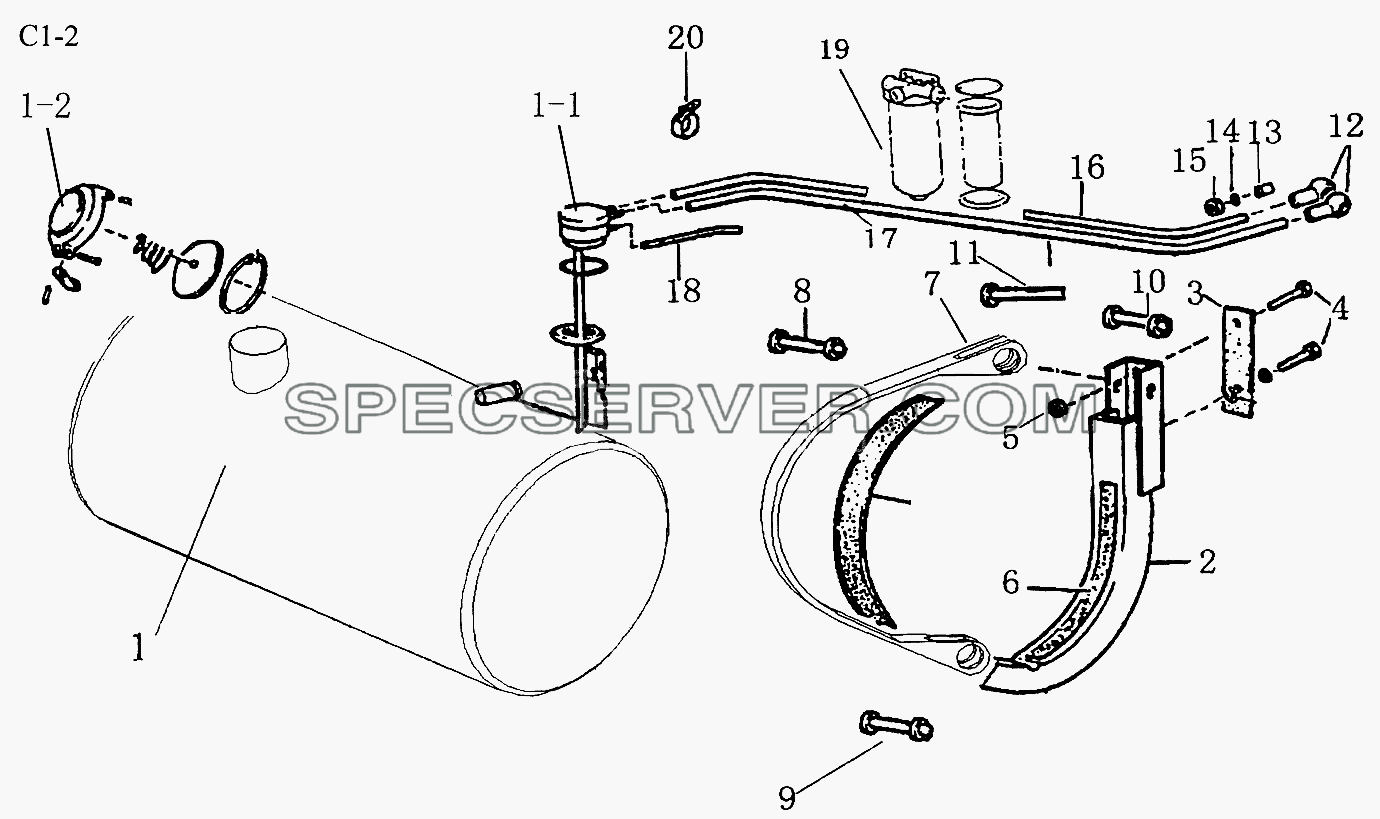

350L, 380L FUEL AL-TANK (C1-2) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1397 350169 [Angle]	Angle
-		AZ9112550210-1 [Fuel gauge]	Fuel gauge
-		AZ9112550210-2 [Cover]	Cover
-		Q340B06 [Nut]	Nut
-		Q40106 [Washer]	Washer
-		WG9100360134 [Clamp]	Clamp
-		WG9725550002-1 [Prefilter element]	Prefilter element
-		ZW9725550001-1 [Cover]	Cover
-		ZW9725550001-1 [Fuel gauge]	Fuel gauge
1		AZ9112550210 [380L Fuel tank]	380L Fuel tank
1		ZW9725550001 [350L Fuel tank]	350L Fuel tank
2		AZ9112550220 [Support]	Support
3		199112550128 [Plate]	Plate
4		Q151B1650TF2 [Screw]	Screw
5		190003888627 [Nut]	Nut
6		AZ9112550226 [Base]	Base
7		AZ9112550225 [Strap]	Strap
8		AZ9112550227 [Tension bolt]	Tension bolt
9		AZ9112550228 [Tension bolt]	Tension bolt
10		AZ9112550229 [Tension bolt]	Tension bolt
11		AZ9112550230 [Screw]	Screw
12		WG9014230017 [Hose connector]	Hose connector
13		190003962621 [Female screw]	Female screw
14		Q72314T5F [Washer]	Washer
15		Q33210 [Nut]	Nut
16		AZ9112550120 [Suction line]	Suction line
17		AZ9112550120 [Return line]	Return line
18		AZ9112550121 [Pipe]	Pipe
19		WG9725550002 [Fuel prefilter C]	Fuel prefilter C
20		190003171697 [Cable binder]	Cable binder

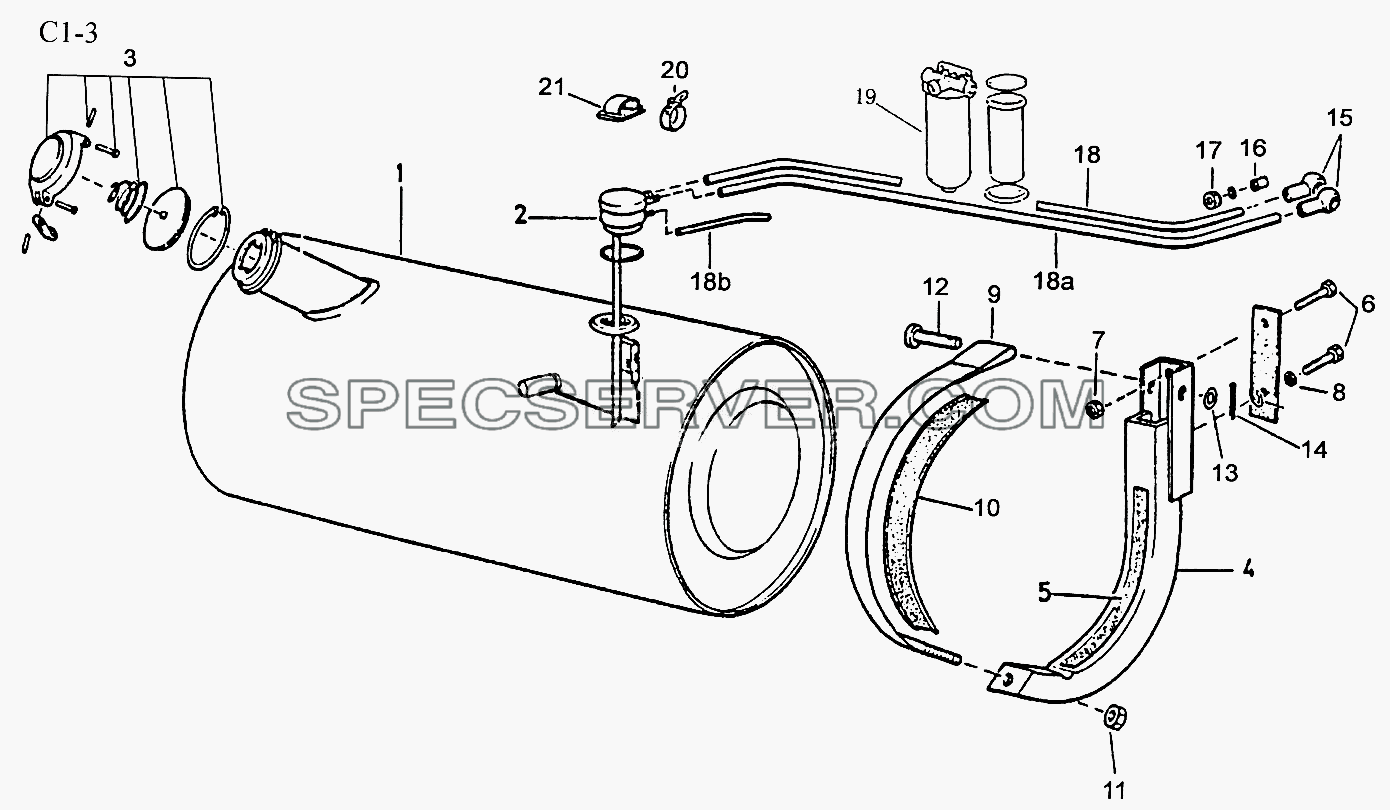

200L FUEL AL-TANK (C1-3) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1397 350169 [Angle]	Angle
-		199114550021 [Connector]	Connector
-		AZ9112550120 [Return line]	Return line
-		Q150B0630 [Screw]	Screw
-		Q340B06 [Nut]	Nut
-		Q72314T5F [Gasket]	Gasket
-		WG9100360134 [Space]	Space
-		WG9725550002-1 [Prefilter element]	Prefilter element
1		AZ9718559001 [200L Fuel AL-tank]	200L Fuel AL-tank
2		AZ9718559001-1 [Fuel gauge]	Fuel gauge
3		AZ9718559001-2 [Cover]	Cover
4		199100550006 [Support]	Support
5		199100550009 [Base]	Base
6		Q150B1440 [Screw]	Screw
7		19000388458 [Nut]	Nut
8		Q40314 [Spring washer]	Spring washer
9		WG9100550011 [Strap]	Strap
10		WG9100550081 [Base]	Base
11		Q33210 [Nut]	Nut
12		Q5101075 [Bolt]	Bolt
13		Q40110 [Washer]	Washer
14		Q5003214 [Split pin]	Split pin
15		WG9014230017 [Hose connector]	Hose connector
16		190003962621 [Female screw]	Female screw
17		Q33210 [Nut]	Nut
18		AZ9112550120 [Suction line]	Suction line
18		Q40106 [Washer]	Washer
19		WG972555000-2 [Feul prefilter C]	Feul prefilter C
20		190003171393 [Cable binder]	Cable binder
21		199000770296 [Clamp]	Clamp

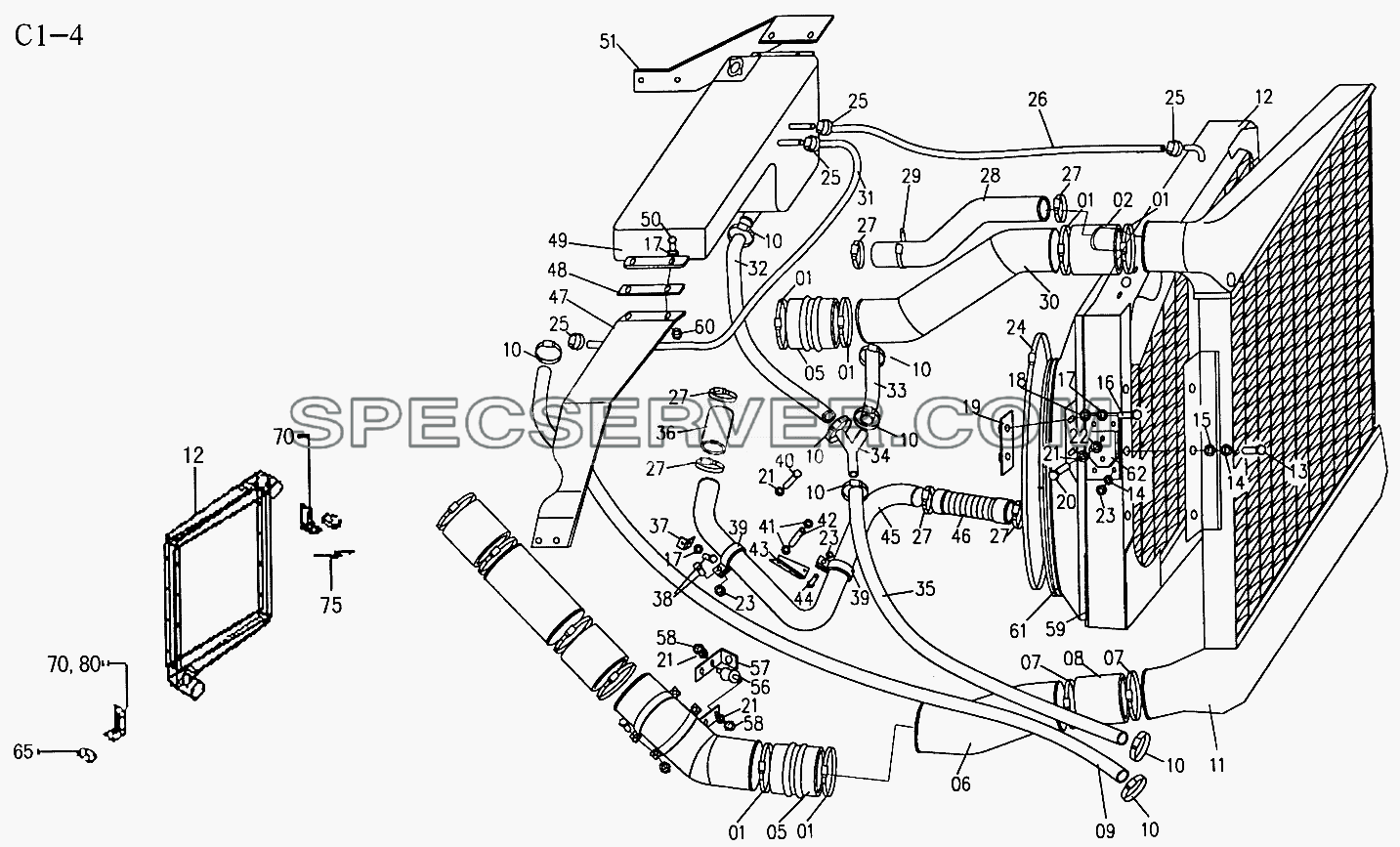

COOLING SYSTEM (C1-4) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9716530505 [Bracket]	Bracket
-		AZ9716530521 [Bracket]	Bracket
-		AZ9719530202 [Bracket right for radiator]	Bracket right for radiator
-		AZ9719530206 [Supporting plate right]	Supporting plate right
-		AZ9725538066 [Bottom supporter for radiator]	Bottom supporter for radiator
-		AZ9725538099 [Bracket]	Bracket
-		AZ9725538125 [Bottom bracket]	Bottom bracket
-		Q150B01816 [Screw]	Screw
-		Q150B1025 [Screw]	Screw
-		Q33210 [Nut]	Nut
-		Q340B10 [Nut]	Nut
-		Q40010 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
-		Q40310 [Spring washer]	Spring washer
1		190003989315 [Clamp]	Clamp
2		WG9719530108 [Hose]	Hose
2		WG9725538041 [Hose]	Hose
5		WG9719530107 [Hose connector]	Hose connector
5		WG9725538043 [Hose]	Hose
8		WG9719530108 [Hose]	Hose
8		WG9725530070 [Hose]	Hose
8		WG9725538042 [Hose]	Hose
9		WG1600840029 [Hose]	Hose
9		WG1620840060 [Hose]	Hose
10		1900043989301 [Clamp]	Clamp
11		WG9719530250 [Aftercooler]	Aftercooler
11		WG9725530020 [Aftercooler]	Aftercooler
11		WG9725530090 [Aftercooler]	Aftercooler
11		WG9725538060 [Aftercooler]	Aftercooler
12		WG9719530010 [Radiator]	Radiator
12		WG9719530230 [Radiator]	Radiator
12		WG9725537070 [Radiator]	Radiator
12		WG9725538050 [Radiator]	Radiator
13		Q150B0816 [Screw]	Screw
14		Q40008 [Washer]	Washer
15		Q41208 [Spring washer]	Spring washer
16		Q150B0820 [Screw]	Screw
17		Q40308 [Spring washer]	Spring washer
18		Q40108 [Washer]	Washer
19		1780530009 [Fastening sheet]	Fastening sheet
20		Q150B1018 [Screw]	Screw
21		Q40310 [Spring washer]	Spring washer
22		Q40110 [Washer]	Washer
23		Q33208 [Nut]	Nut
24		190003980204 [Clamp]	Clamp
25		190003989300 [Clamp]	Clamp
26		WG9114530138 [Hose]	Hose
27		AZ9003980010 [Clamp]	Clamp
28		WG9719530111 [Inletwater pipe]	Inletwater pipe
28		WG9725537005 [Inletwater pipe]	Inletwater pipe
28		WG9725538008 [Inletwater pipe]	Inletwater pipe
30		AZ9719530122 [Outlet air pipe]	Outlet air pipe
30		WG9725537004 [Outlet air pipe]	Outlet air pipe
30		WG9725538044 [Outlet air pipe]	Outlet air pipe
31		WG9114530139 [Hose]	Hose
32		WG9716530307 [Hose]	Hose
33		WG9716530305 [Hose]	Hose
34		WG9716530510 [Junction pipe]	Junction pipe
35		WG9112530468 [Hose]	Hose
36		WG9719530228 [Hose]	Hose
45		WG9719530003 [Outlet water pipe]	Outlet water pipe
45		WG9719530212 [Outlet water pipe]	Outlet water pipe
45		WG9719537007 [Outlet water pipe]	Outlet water pipe
45		WG9725538014 [Outlet water pipe]	Outlet water pipe
46		WG9719530227 [Hose]	Hose
46		WG9725537021 [Hose]	Hose
46		WG9725538063 [Hose]	Hose
49		AZ9112530333 [Expansion tank]	Expansion tank
49		WG9719530260 [Expansion tank]	Expansion tank
61		AZ9719530132 [Shroud]	Shroud
61		AZ9725530401 [Shroud]	Shroud
61		AZ9725533037 [Shroud]	Shroud
61		AZ9725538055 [Shroud]	Shroud
61		WG9725537001 [Shroud]	Shroud
65		AZ9719530272 [Rubber support]	Rubber support
70		AZ9719530201 [Bracket left for radiator]	Bracket left for radiator
75		AZ9719530205 [Supporting plate left]	Supporting plate left
80		AZ9725538065 [Top supporter for radiator]	Top supporter for radiator
81		AZ9725538073 [Left bracket for radiator]	Left bracket for radiator
85		AZ9725538076 [Right bracket for radiator]	Right bracket for radiator

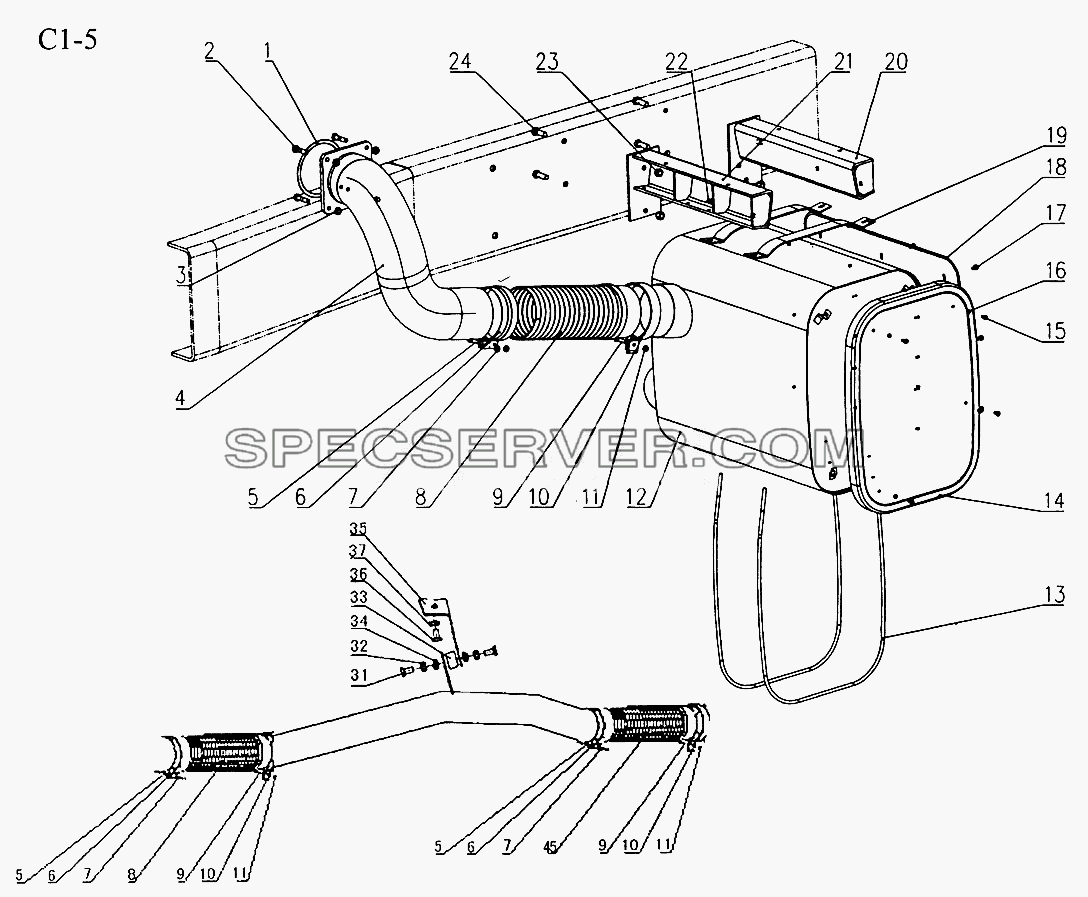

EXHAUST PIPING (C1-5) для Sinotruk 6x4 Tipper (290) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9725540012 [Heat shield]	Heat shield
-		Q150B0835 [Screw]	Screw
-		Q150B0845 [Screw]	Screw
-		Q33208 [Nut]	Nut
-		Q40108 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
1		AZ9719540019 [Gasket]	Gasket
1		WG9112540015 [Gasket]	Gasket
2		181560110187 [Stud]	Stud
2		Q150B1045 [Screw]	Screw
3		190003888470 [Nut]	Nut
3		Q33210 [Nut]	Nut
4		WG9719540009 [Exhaust line]	Exhaust line
4		WG9719540012 [Exhaust line]	Exhaust line
4		WG9725540001 [Exhaust line]	Exhaust line
4		WG9731540001 [Exhaust line]	Exhaust line
5		Q150B0830 [Screw]	Screw
6		WG9719540016 [Clamp]	Clamp
6		WG9725540009 [Clamp]	Clamp
7		Q33208 [Nut]	Nut
8		WG9719540021 [Corrugated flexible metal tube]	Corrugated flexible metal tube
8		WG9725540007 [Corrugated flexible metal tube]	Corrugated flexible metal tube
8		WG9731540002 [Corrugated flexible metal tube]	Corrugated flexible metal tube
9		Q150B0830 [Screw]	Screw
10		AZ9719540018 [Clamp]	Clamp
11		Q33208 [Nut]	Nut
12		WG9725540002 [Muffler]	Muffler
12		WG9725540010 [Muffler]	Muffler
13		AZ9719540008 [Strap]	Strap
14		WG9719540025 [Garnish plate]	Garnish plate
15		Q150B0620 [Screw]	Screw
16		Q40306 [Spring washer]	Spring washer
17		Q150B0610 [Screw]	Screw
18		WG9719540026 [Heat shield]	Heat shield
19		AZ9719540007 [Stop plate]	Stop plate
20		AZ9719540002 [Rear bracket]	Rear bracket
21		AZ9719540003 [Front bracket]	Front bracket
22		Q33208 [Nut]	Nut
23		Q33212 [Nut]	Nut
24		Q150B1235 [Screw]	Screw
30		WG9731540003 [Exhaust line]	Exhaust line
31		Q150B1025 [Screw]	Screw
32		Q40310 [Spring washer]	Spring washer
33		WG84D410007 [Rubber pad]	Rubber pad
34		Q40210 [Washer]	Washer
35		AZ9731540004 [Bracket]	Bracket
36		Q150B1016 [Screw]	Screw
37		Q40310 [Spring washer]	Spring washer
40		AZ9731540005 [Clamp]	Clamp
41		AZ9731540006 [Clamp]	Clamp
42		Q150B1035 [Screw]	Screw
43		Q150B1025 [Screw]	Screw
44		Q33210 [Nut]	Nut
45		WG9719540021 [Corrugated flexible metal tube]	Corrugated flexible metal tube
