№		Номер детали	Наименование запчасти
1		AZ9719430010 [Drag link]	Drag link
2		AZ9112430003 [Tie rod]	Tie rod
6		Q387B20T15 [Nut]	Nut
7		Q5004036 [Split pin]	Split pin

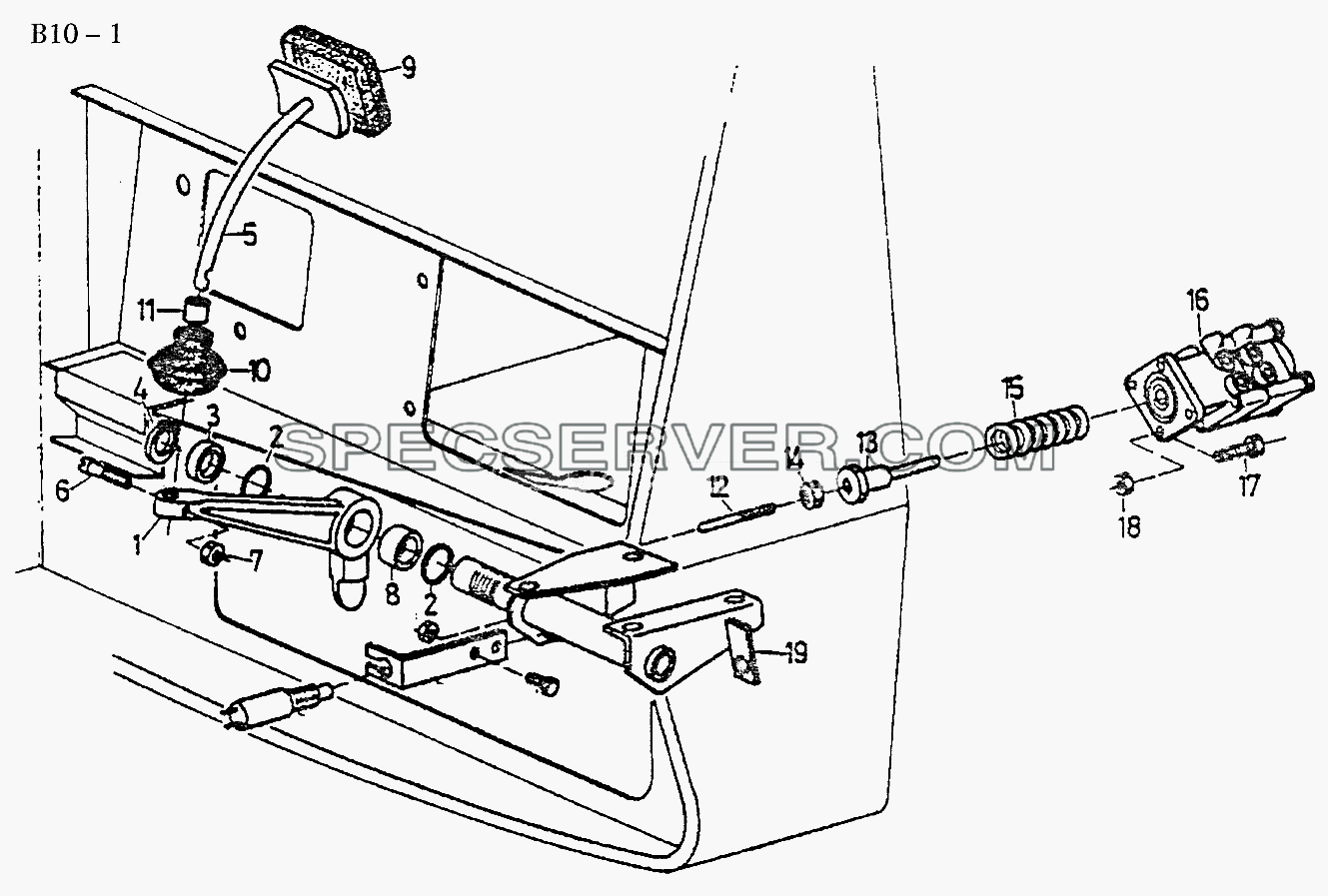

BRAKE MECHANISM (B10-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9100360427 [Brake foot pedal]	Brake foot pedal
2		1288 470029 [Gasket]	Gasket
3		1113 010023 [Support]	Support
4		Q43132 [Circlip]	Circlip
5		199100360128 [Push rod]	Push rod
6		11700 230009 [Bolt]	Bolt
7		Q33208 [Nut]	Nut
8		1880 360075 [Bush]	Bush
9		1880 230031 [Rubber]	Rubber
10		1681 270244 [Pedal sealing]	Pedal sealing
11		WG81 270245 [Sleeve]	Sleeve
12		WG9100360424 [Push rod]	Push rod
13		WG9100360425 [Push rod]	Push rod
14		Q340B08 [Nut]	Nut
15		189200320043 [Pressure spring]	Pressure spring
16		WC9000360152 [Service brake valve]	Service brake valve
17		Q150B0830 [Bolt]	Bolt
18		Q33208 [Nut]	Nut
19		199100230105 [Bracket]	Bracket

TWO CIRCUIT BRAKE SYSTEM FOR 4x2 TRACTOR TRUCK (B10-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

VALVE, SPECIAL HOSE (B10-10) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9000360115 [Drain valve]	Drain valve
2		WG9000360112 [Check valve]	Check valve
3		WG9000360134 [Relay valve]	Relay valve
4		WG9000360100 [Diaphram chamber]	Diaphram chamber
5		WG9000360101 [Diaphram chamber]	Diaphram chamber
6		WG9000360165 [Hand brake valve]	Hand brake valve
7		WG9000360366 [4-ciIcuit protection valve]	4-ciIcuit protection valve
8		WG9000360170 [Coupling]	Coupling
9		WG9000360171 [Coupling]	Coupling
10		WG9000360152 [Service brake valve]	Service brake valve
11		WG9100360303 [Spring brake actuator]	Spring brake actuator
12		WG9000360180 [Trailer control valve]	Trailer control valve
13		WG9000360412 [Air dryer]	Air dryer
14		WG9000360314 [Test connector]	Test connector
15		WG017360450 [Hose]	Hose
16		WG017360460 [Hose]	Hose
17		WG017360470 [Hose]	Hose
18		WG1736C1480 [Hose]	Hose
19		WG9100360184 [Hose]	Hose
20		WG9000360150 [Pressure valve]	Pressure valve
21		WG17017361000 [Screwy slecve]	Screwy slecve
22		WG9123360300 [Sleeve]	Sleeve
23		WG9123360200 [Slave]	Slave
24		WG9000360140 [Screwg pipe]	Screwg pipe

PARTS FOR BRAKE (B10-11) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		1188 730187 [Clamp]	Clamp
-		1280 770028 [Clamp]	Clamp
-		138091360181 [Clamp]	Clamp
-		1406 070015 [Gasket]	Gasket
-		1680 250092 [Gasket]	Gasket
-		190003098015 [Gasket]	Gasket
-		190003098031 [Gasket]	Gasket
-		190003171390 [Wire fastener]	Wire fastener
-		190003171393 [Wire fastener]	Wire fastener
-		193 760081 [Angle]	Angle
-		199000360408 [Clamp]	Clamp
-		199100360134 [Distance sleeve]	Distance sleeve
-		199100360174 [Clamp]	Clamp
-		199100360234 [Clamp]	Clamp
-		199l00360135 [Distance sleeve]	Distance sleeve
-		Q72312T5F [Gasket]	Gasket
-		WG9000360292 [Gasket]	Gasket
-		WG9100360319 [Gasket]	Gasket

BRACKET FOR BRAKES (B10-12) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9130360008 [Angle for hand brake valve]	Angle for hand brake valve
2		AZ9114360041 [Angle for relay valve]	Angle for relay valve
3		199000350085 [Angle for relay valve]	Angle for relay valve
6		AZ9130360003 [Angle for trailer control valve]	Angle for trailer control valve
7		WG9100360407 [Bracket for air dryer]	Bracket for air dryer
8		1880 360083 [Carrier]	Carrier
9		199000360315 [Carrier]	Carrier
10		19901236044l [Angle]	Angle
11		199000362186 [Angle]	Angle
12		199100360165 [Angle]	Angle
13		1397 350169 [Angle]	Angle
14		199100360168 [Angle]	Angle
15		199100360241 [Angle]	Angle
16		199100360207 [Support]	Support
17		199100360228 [Lashing]	Lashing
18		199100360229 [Angle]	Angle
19		199114360101 [Angle]	Angle
20		199100360154 [Cotter]	Cotter
