Запчасти: 4x2, 4x4 STABLIZER REAR (B8-9) для Sinotruk 4x2 Tractor (371)

4x2, 4x4 STABLIZER REAR (B8-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 4x4 STABLIZER REAR (B8-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9100681064 [Stabilizer C] Stabilizer C
3 WG80 680029 [Screw] Screw
4 1780 680030 [Washer] Washer
5 190003888459 [Lock nut] Lock nut
6 199100680067 [Rubber bearing] Rubber bearing
7 WG80 680032 [Bearing clip] Bearing clip
8 Q151C12100 [Screw] Screw
9 190003888457 [Lock nut] Lock nut
10 WG9100680015 [Connecting clip] Connecting clip
11 199100680037 [Bush] Bush
12 199100680066 [Bearing] Bearing
13 WG80 680029 [Screw] Screw
14 1780 680030 [Washer] Washer
15 190003888459 [Lock nut] Lock nut

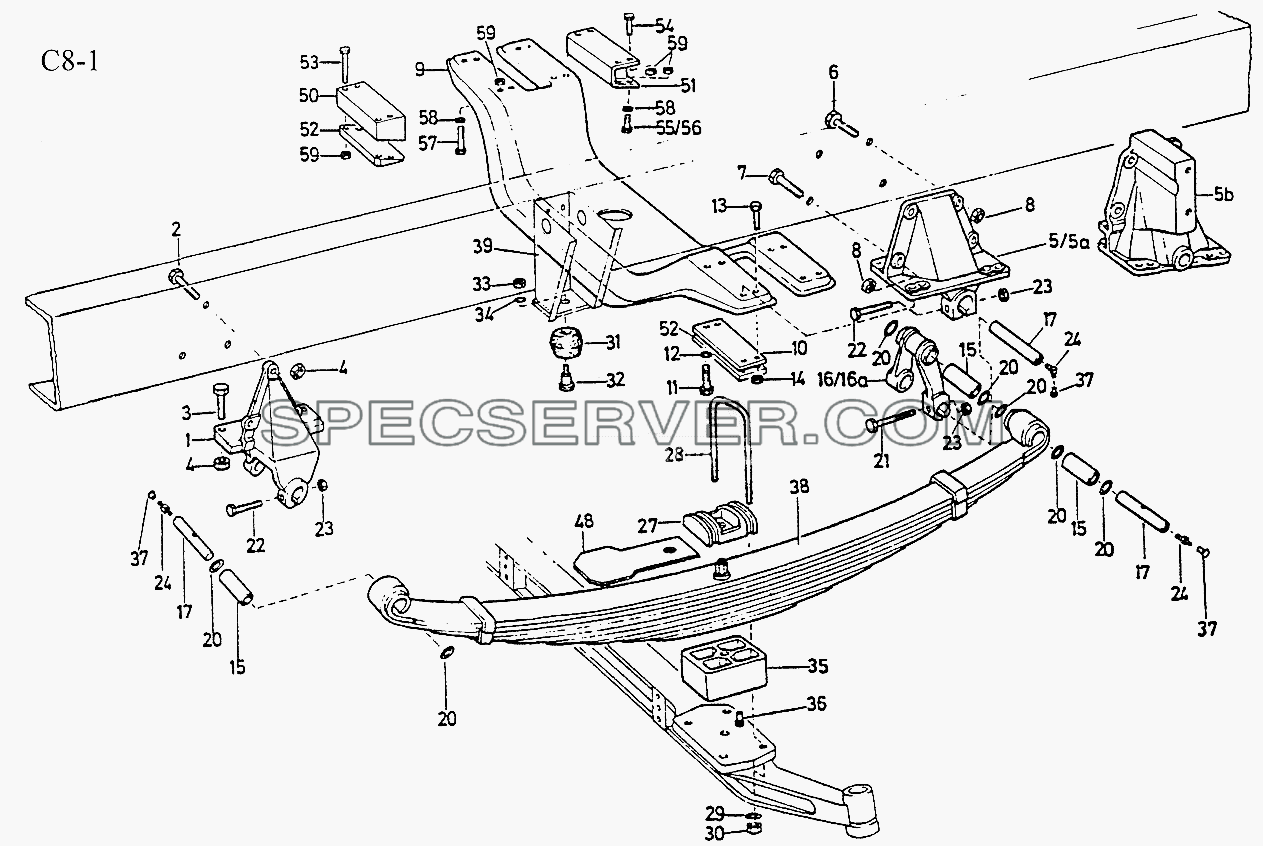

Запчасти: 4x2, 6x2, 6x4 FRONT SPRING (C8-1) для Sinotruk 4x2 Tractor (371)

4x2, 6x2, 6x4 FRONT SPRING (C8-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x2, 6x4 FRONT SPRING (C8-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- AZ9232520011 [Spring bracket rear,right] Spring bracket rear,right
- Q150B1230 [Screw] Screw
- Q150B1240 [Screw] Screw
- Q33212 [Lock nut] Lock nut
1 AZ9719520005 [Spring bracket front] Spring bracket front
2 Q151B1665 [Screw] Screw
3 Q151B1650 [Screw] Screw
4 19003888459 [Nut] Nut
5 AZ9232520010 [Spring bracket rear,left] Spring bracket rear,left
6 Q151B1650 [Screw] Screw
8 190003888459 [Lock nut] Lock nut
9 WG9114510510 [Cross member] Cross member
10 199100520025 [Plate] Plate
13 Q151G1260 [Screw] Screw
14 190003888457 [Lock nut] Lock nut
15 WG9000520078 [Bush] Bush
16 WG9100520034 [Spring shackle front C] Spring shackle front C
17 WG9100520065 [Spring bolt] Spring bolt
20 1680 520050 [Washer] Washer
21 Q151C1270 [Screw] Screw
22 Q151C1275 [Screw] Screw
23 190003888457 [Nut] Nut
24 190003963115 [Grease nipple] Grease nipple
26 190003963127 [Grease nipple] Grease nipple
27 WG80 52 0002 [Plate] Plate
28 199014520259 [Spring clip] Spring clip
28 AZ9100520015 [Spring clip] Spring clip
29 1680 52 0056 [Washer] Washer
30 190003888626 [Lock nut] Lock nut
31 WG9323520010 [Spring stop] Spring stop
32 1880520019 [Screw] Screw
33 Q340B10 [Nut] Nut
34 Q40310 [Spring washer] Spring washer
38 WG9100520002 [Front spring C,left] Front spring C,left
38 WG9100520042 [Front spring C,right] Front spring C,right
38 WG9725520072 [Front spring C,left] Front spring C,left
38 WG9725520073 [Front spring C,right] Front spring C,right
39 AZ9731520034 [Bracket for spring stop] Bracket for spring stop

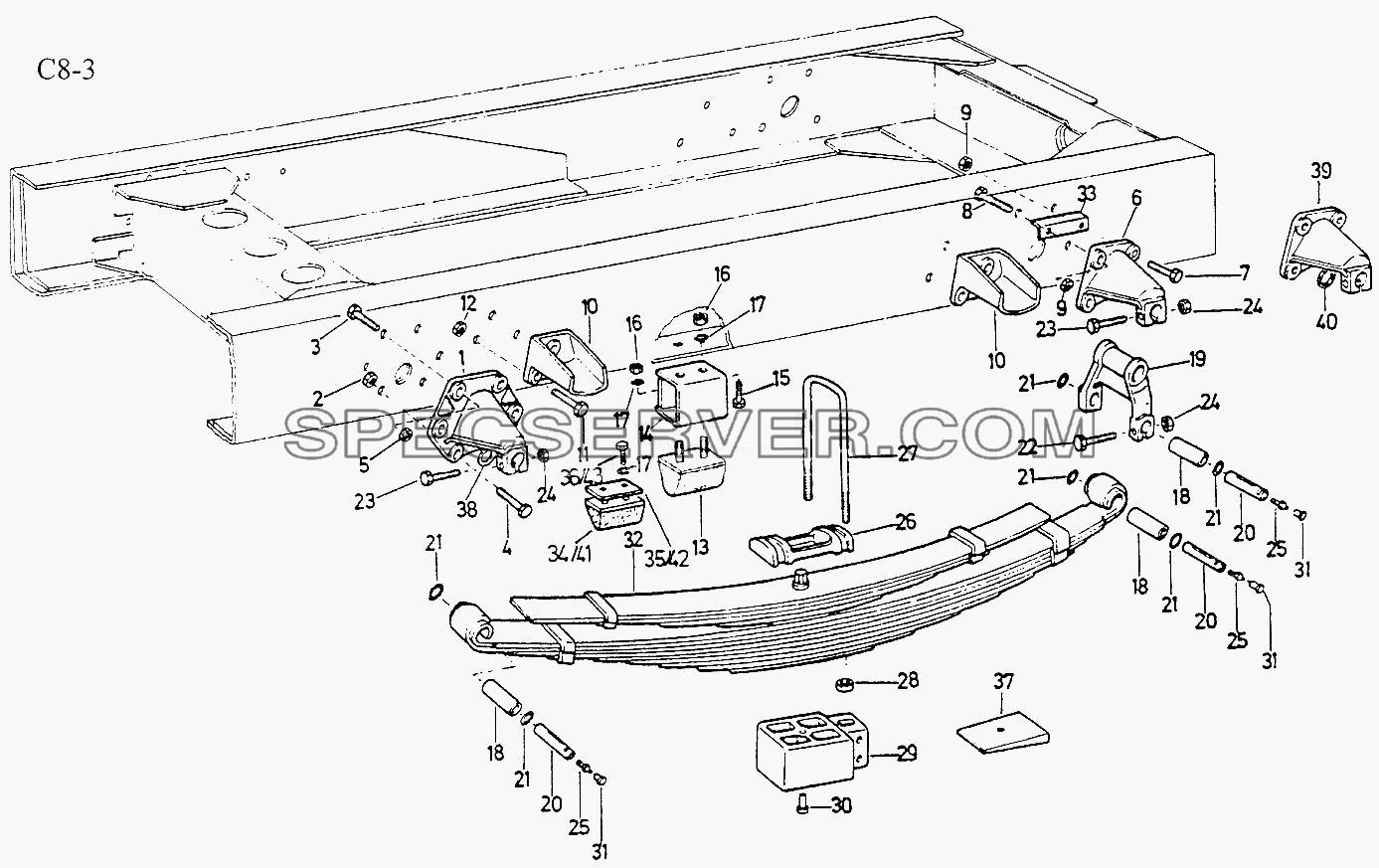

Запчасти: 4x2 REAR SPRING (C8-3) для Sinotruk 4x2 Tractor (371)

4x2 REAR SPRING (C8-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 REAR SPRING (C8-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
- 190003888459 [Lock nut] Lock nut
- AZ9719520011 [Stop bracket,right,front] Stop bracket,right,front
- AZ9719520012 [Stop bracket,left,rear] Stop bracket,left,rear
- AZ9719520013 [Stop bracket,right,rear] Stop bracket,right,rear
- AZ9719520016 [Plug] Plug
- AZ9719520018 [Washer] Washer
- AZ9719520018 [Washer] Washer
- Q33212 [Nut] Nut
1 AZ9719520007 [Spring bracket rear] Spring bracket rear
3 Q151B1655 [Screw] Screw
4 Q151B1855TF2 [Screw] Screw
5 190003888626 [Nut] Nut
6 AZ9719520008 [Spring bracket rear] Spring bracket rear
6 AZ9719520019 [Spring bracket rear] Spring bracket rear
7 Q151B1650 [Screw] Screw
9 190003888459 [Lock nut] Lock nut
10 AZ9719520010 [Stop bracket,left,front] Stop bracket,left,front
10 AZ9719520140 [Stop bracket] Stop bracket
11 Q151B1445 [Screw] Screw
12 190003888458 [Nut] Nut
14 199100520112 [Plate] Plate
17 Q40310 [Spring washer] Spring washer
18 WG9000520079 [Bush] Bush
19 WG9100520018 [Spring shackle C] Spring shackle C
20 199100520006 [Spring bolt] Spring bolt
21 1680 52 0050 [Washer] Washer
22 Q151C1270 [Screw] Screw
23 Q151C1275 [Screw] Screw
24 190003888457 [Lock nut] Lock nut
25 190003963124 [Grease nipple] Grease nipple
26 199014520295 [Plate] Plate
26 AZ9719520009 [Plate] Plate
27 199000520109 [Spring clip] Spring clip
27 AZ9112520312 [Spring clip] Spring clip
32 WG9719520020 [Spring rear] Spring rear
34 AZ9725520047 [Stop C for rear axle] Stop C for rear axle
34 AZ9725520048 [Stop C for rear axle] Stop C for rear axle
35 AZ9725520041 [Plate] Plate
36 Q151B1260 [Screw] Screw
38 WG9000520089 [Washer] Washer
4x2, 6x4 STABLIZER, SHOCK ABSORBER FRONT (C8-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x4 STABLIZER, SHOCK ABSORBER FRONT (C8-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x4 STABLIZER, SHOCK ABSORBER FRONT (C8-5) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9719680003 [Stabilizer C] Stabilizer C
2 1880680024 [Connect plate] Connect plate
3 WG880680027 [Plate] Plate
4 199100680068 [Rubber bearing] Rubber bearing
5 Q5211424 [Bolt] Bolt
6 Q150B1095TF2Q [Screw] Screw
7 Q40310 [Spring washer] Spring washer
10 WG9100680055 [Plate] Plate
11 199100680069 [Screw] Screw
12 Q40214 [Washer] Washer
13 190003888458 [Lock nut] Lock nut
16 199100680057 [Screw] Screw
17 Q40016 [Washer] Washer
18 190003888459 [Lock nut] Lock nut
19 AZ9719680013 [Bracket C] Bracket C
20 Q151C1240 [Screw] Screw
21 190003888457 [Lock nut] Lock nut
22 190003936012 [Washer] Washer
23 199100680065 [Bracket] Bracket
24 Q151B1660 [Screw] Screw
26 199012680025 [Fork] Fork
27 190003933242 [Snap ring] Snap ring
28 199012680009 [Screw] Screw
29 Q40116 [Washer] Washer
30 90003888459 [Nut] Nut
31 WG9719680008 [Shock absorber bracket C] Shock absorber bracket C
32 Q151C1240 [Screw] Screw
33 199100680021 [Plate] Plate
34 190003888457 [Lock nut] Lock nut
35 199100680036 [Screw] Screw
36 Q40016 [Washer] Washer
37 190003888459 [Lock nut] Lock nut
38 WG9100680001 [Shock absorber] Shock absorber
39 190003963112 [Grease nipple] Grease nipple
41 Q40316 [Washer] Washer
4x2 SHOCK ABSORBER (C8-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 SHOCK ABSORBER (C8-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 SHOCK ABSORBER (C8-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 WG9100680046 [Shock absorber] Shock absorber
2 199100680036 [Screw] Screw
3 190003888459 [Lock nut] Lock nut
4 AZ9719680010 [Bracket] Bracket
5 199012680025 [Joint fork] Joint fork
6 190003933242 [Snap ring] Snap ring
7 199012680009 [Screw] Screw
8 Q40116 [Lock nut] Lock nut
9 190003888459 [Grease nipple] Grease nipple
10 190003953112 [Washer] Washer
12 190003932965 [Washer] Washer

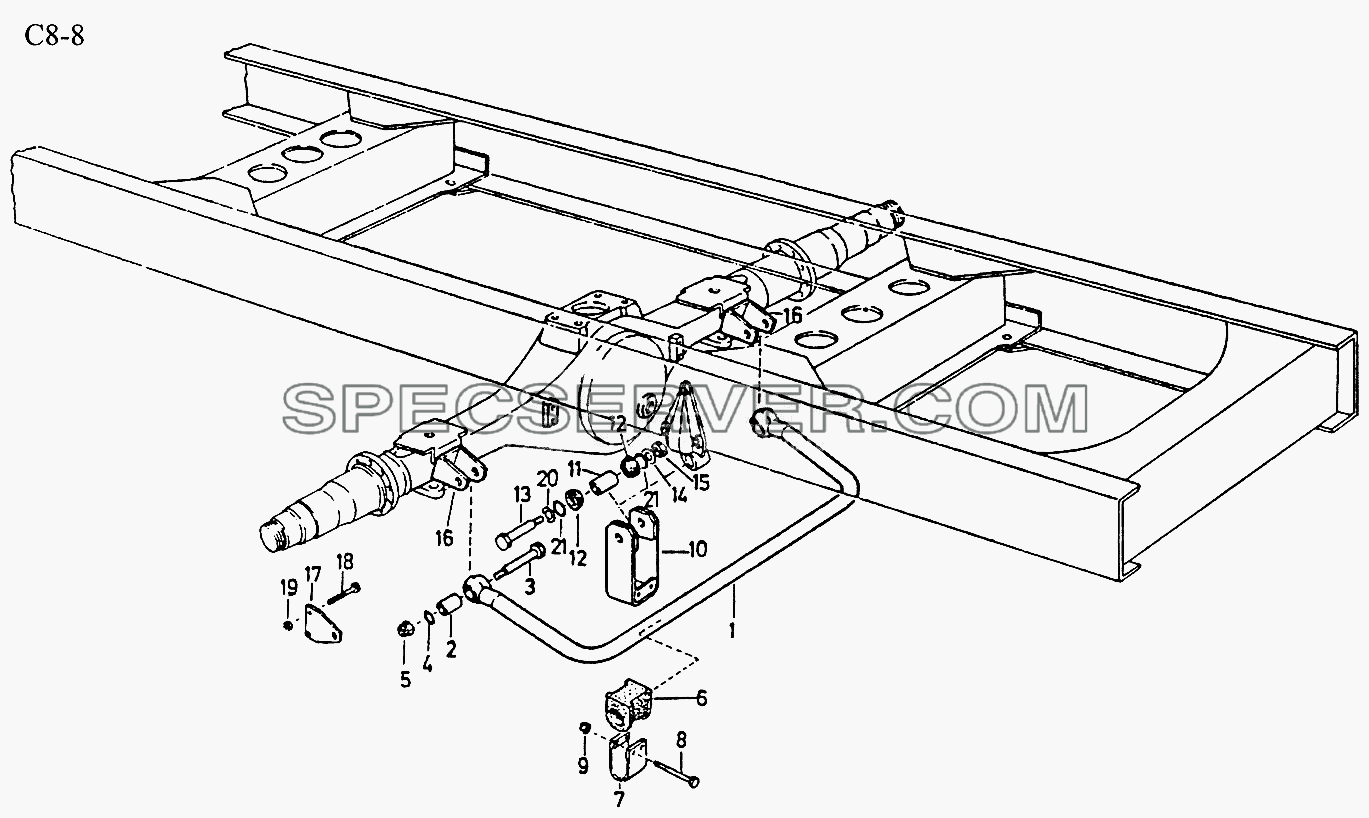

4x2 STABLIZER REAR (C8-8) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 STABLIZER REAR (C8-8) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 STABLIZER REAR (C8-8) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9719680006 [Stabilizer C] Stabilizer C
2 1780680035 [Bush] Bush
3 WG80680029 [Screw] Screw
4 1780 680030 [Washer] Washer
5 190003888459 [Lock nut] Lock nut
6 199100680067 [Rubber bearing] Rubber bearing
7 WG780680032 [Bearing clip] Bearing clip
8 Q151C12100 [Screw] Screw
9 190003888457 [Lock nut] Lock nut
10 WG9719680011 [Connecting clip] Connecting clip
11 199100680037 [Bush] Bush
12 199100680066 [Bearing] Bearing
13 WG80680029 [Screw] Screw
14 1780680030 [Washer] Washer
15 190003888459 [Lock nut] Lock nut
20 199100680071 [Washer] Washer
21 190003930010 [Washer] Washer
