Запчасти: 4x2, 6x2 PROPELLER SHAFTS 371/S32/6x2 (Ф180 toothed flange) (B5-1-9) для Sinotruk 4x2 Tractor (371)

4x2, 6x2 PROPELLER SHAFTS 371/S32/6x2 (Ф180 toothed flange) (B5-1-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x2 PROPELLER SHAFTS 371/S32/6x2 (Ф180 toothed flange) (B5-1-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9115311375 [Propeller shaft] Propeller shaft
4 Q151B1445 [Screw] Screw
5 190003888458 [Nut] Nut
Запчасти: 4x2, 6x2 PROPELLER SHAFTS 290/336/S32/6x2 (Ф165 toothed flange) (B5-1-10) для Sinotruk 4x2 Tractor (371)

4x2, 6x2 PROPELLER SHAFTS 290/336/S32/6x2 (Ф165 toothed flange) (B5-1-10) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2, 6x2 PROPELLER SHAFTS 290/336/S32/6x2 (Ф165 toothed flange) (B5-1-10) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9113310103 [Propeller shaft] Propeller shaft
Запчасти: 4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N56/4x2 (B5-3-1) для Sinotruk 4x2 Tractor (371)

4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N56/4x2 (B5-3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N56/4x2 (B5-3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9114310096 [Intermed shaft] Intermed shaft
1 AZ914310108 [Intermed shaft] Intermed shaft
2 AZ9114310097 [Intermed shaft] Intermed shaft
3 199114310093 [Propeller shaft] Propeller shaft
5 WG9000310049 [Screw] Screw
6 19000388459 [Nut] Nut
7 17600310094 [Angle] Angle
8 Q151B1435 [Screw] Screw
9 Q40114 [Washer] Washer
10 190000388458 [Nut] Nut
11 Q151C1230 [Screw] Screw
12 190003888457 [Nut] Nut
16 17600310082 [Angle] Angle

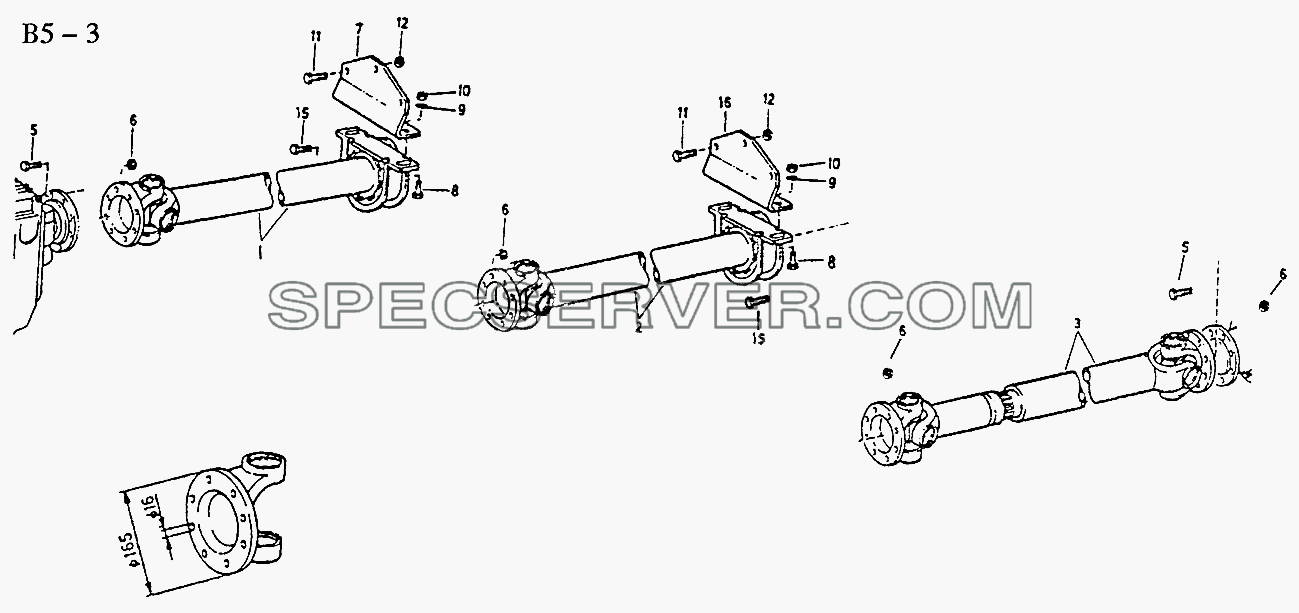

Запчасти: 4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N60/4x2 (Fuller gearbox) (B5-3-2) для Sinotruk 4x2 Tractor (371)

4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N60/4x2 (Fuller gearbox) (B5-3-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

4x2 PROPELLER SHAFTS FOR LONG WHEEL BASE 266, 290/N60/4x2 (Fuller gearbox) (B5-3-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 AZ9114311044 [Intermed shaft] Intermed shaft
2 AZ9232311672 [Intermed shaft] Intermed shaft
3 199114310084 [Propeller shaft] Propeller shaft
5 WG9000310049 [Screw] Screw
6 190003888459 [Nut] Nut
7 17600310094 [Angle] Angle
8 Q151B1435 [Screw] Screw
9 Q40114 [Washer] Washer
10 19000388458 [Nut] Nut
11 Q151C1230 [Screw] Screw
12 190003888457 [Nut] Nut
16 AZ9100310007 [Angle] Angle
Запчасти: INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 4x2 Tractor (371)

INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

INTERMEDIATE SHAFTS Intermediate Shaft with Spider D.Ф52 (B5-6-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 26013314062 [Ф165 Planar flange] Ф165 Planar flange
1 AZ9113314062 [Ф165 Toothed flange] Ф165 Toothed flange
2 26013314080 [Spider] Spider
4 26013310464 [Circlip] Circlip
4 26013314063 [Circlip] Circlip
4 26013314065 [Circlip] Circlip
4 26013314066 [Circlip] Circlip
4 26013314067 [Circlip] Circlip
5 26013314030 [Bearing Assemble] Bearing Assemble
6 26013314051 [Flange] Flange
12 Q700B01 [Grease Nipple] Grease Nipple
15 26013314052 [Nut] Nut
16 26013314042 [Board] Board
17 26013314032 [Washer] Washer
18 26013314033 [Scraper] Scraper
19 26013314037 [Circlip] Circlip
20 26013314045 [Bearing] Bearing
21 26013314035 [Bearing asembly] Bearing asembly
22 26013314020 [Connecting plate] Connecting plate
Запчасти: INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 4x2 Tractor (371)

INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

INTERMEDIATE SHAFTS Intermediate Shaft with spider D.Ф57 (B5-6-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей







№ Номер детали Наименование запчасти
1 19036311062 [Ф165 Plane flange] Ф165 Plane flange
1 AZ9114311062 [Ф180 Plane flange] Ф180 Plane flange
1 AZ9136311062 [Ф165 Toothed flange] Ф165 Toothed flange
2 19036311080 [Spider] Spider
4 19036311063 [Circlip] Circlip
4 19036311064 [Circlip] Circlip
4 19036311065 [Circlip] Circlip
4 19036311066 [Circlip] Circlip
4 19036311067 [Circlip] Circlip
5 26013314030 [Bearing Assemble] Bearing Assemble
6 26013314051 [Flange] Flange
6 AZ9114314051 [Flange] Flange
12 Q700B01 [Grease Nipple] Grease Nipple
15 26013314052 [Nut] Nut
16 26013314042 [Board] Board
17 26013314043 [Washer] Washer
18 26013314033 [Scraper] Scraper
19 26013314037 [Circlip] Circlip
20 26013314045 [Bearing] Bearing
21 26013314035 [Bearing asembly] Bearing asembly
22 26013314020 [Connecting plate] Connecting plate
