№		Номер детали	Наименование запчасти
1		1-21-225-038 [Driving shaft]	Driving shaft
2		190003961903 [Locking cover]	Locking cover
3		190003078775 [Seal]	Seal
4		1-21-225-037 [Flange]	Flange
4		199114250184 [Flange]	Flange
5		1-99-907-052 [Adjusting washer]	Adjusting washer
6		190003326236 [Taper roller bearing]	Taper roller bearing
7		1-99-907-053 [Washer]	Washer
8		1-99-905-003 [Nut]	Nut
9		1-99-905-004 [Nut]	Nut
11		199014250102 [Helical gear]	Helical gear
12		199014250064 [Sliding sleeve]	Sliding sleeve
13		199114250082 [Pignon]	Pignon
14		1880 250047 [Washer]	Washer
15		190003326534 [Taper roller bearing]	Taper roller bearing
16		1188 320021 [Adjusting washer]	Adjusting washer
16		1188 320022 [Adjusting washer]	Adjusting washer
16		1188 320023 [Adjusting washer]	Adjusting washer
16		199114250153 [Adjusting washer]	Adjusting washer
17		190003862316 [Screw]	Screw
18		1-99-936-002 [Cover]	Cover
19		199012250101 [Inner wheel]	Inner wheel
20		199012250100 [Outer wheel]	Outer wheel
21		190003330105 [Ball]	Ball
22		190003330052 [Ball]	Ball
23		1-99-936-001 [Housing]	Housing
24		199114250062 [Gear]	Gear
25		199014250055 [Roller bearing]	Roller bearing
26		190003323432 [Roller bearing]	Roller bearing
27		199114250109 [Plan.carrier]	Plan.carrier
28		179200250035 [Bolt]	Bolt
29		190003802817 [Screw]	Screw
30		199100370047 [Driving wheel]	Driving wheel
31		199114250012 [Washer]	Washer
32		190003078776 [Seal]	Seal
40		199114250003 [Sun gear]	Sun gear
41		199114250002 [Plan.gear]	Plan.gear
42		190003326164 [Taper roller bearing]	Taper roller bearing
43		199114250124 [Washer]	Washer
44		199014250079 [Adjusting washer]	Adjusting washer
44		199014250080 [Adjusting washer]	Adjusting washer
44		199014250081 [Adjusting washer]	Adjusting washer
44		199114250026 [Adjusting washer]	Adjusting washer
44		199114250028 [Adjusting washer]	Adjusting washer
45		1680M250030 [Adjusting washer]	Adjusting washer
45		1680M250031 [Adjusting washer]	Adjusting washer
45		1680M250032 [Adjusting washer]	Adjusting washer
46		199100370048 [Speedom.pinion]	Speedom.pinion
47		1-21-425-016 [Shifting rod]	Shifting rod
48		199014250085 [Shifting fork]	Shifting fork
49		12700240064 [Screw]	Screw
50		11800 320077 [Shifting block]	Shifting block
52		199114250107 [Shaft-plan.gear]	Shaft-plan.gear
53		190003330105 [Ball]	Ball
54		199114250016 [Rolling body set]	Rolling body set
55		1-99-907-055 [Washer]	Washer
56		199114250015 [Washer]	Washer
57		190003326116 [Taper roller bearing]	Taper roller bearing
58		199114250018 [Inner ring]	Inner ring
59		190003936040 [Snap ring]	Snap ring
60		199114250154 [Needle sleeve]	Needle sleeve
61		199114250024 [Gaslet]	Gaslet
62		179200250027 [Inern.ring gear]	Inern.ring gear
63		1-99-917-002 [Circlip]	Circlip
64		199114250008 [Output shaft]	Output shaft
65		190003326117 [Taper roller bearing]	Taper roller bearing
66		199114250022 [Oil guide ring]	Oil guide ring
67		190003909588 [Cyl.pin]	Cyl.pin
68		1-21-425-006 [Sleeve]	Sleeve
69		199114250004 [Shaft]	Shaft
70		190003934500 [Circlip]	Circlip
71		190003311033 [Grooved ball bear]	Grooved ball bear
72		190003078681 [Seal]	Seal
73		199114250014 [Flange]	Flange
74		1-99-905-003 [Nut]	Nut

SUSPENSION FOR VG1200 TRANSFER CASE (A7-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199000260001 [Bracket right]	Bracket right
2		199000260002 [Bracket left]	Bracket left
3		199014260003 [Spring puffer]	Spring puffer
4		199000260010 [Bracket assembly]	Bracket assembly
5		199014260007 [Bush]	Bush
6		199014260012 [Washer]	Washer
7		199014250014 [Bolt]	Bolt
8		190003872359 [Crown nut]	Crown nut
9		Q5004036 [Split pin]	Split pin
10		199000260005 [Plate]	Plate
10		199000260006 [Plate]	Plate
10		199000260007 [Plate]	Plate
11		1180A240030 [Shim]	Shim
12		1614 060017 [Ring]	Ring
13		1288 720042 [Washer]	Washer
14		Q151B1450 [Screw]	Screw
14		Q151B1645 [Screw]	Screw
15		190003888459 [Nut]	Nut
17		Q151B1435 [Screw]	Screw
18		Q151B1475 [Screw]	Screw
19		199014260025 [Bracket assembly]	Bracket assembly
20		199000260013 [Bracket assembly]	Bracket assembly
21		Q151B1425 [Screw]	Screw
22		1780 680031 [Rubber bearing]	Rubber bearing
23		199000260023 [Bearing shackle]	Bearing shackle
24		Q151C12100 [Screw]	Screw
25		Q40312 [Spring washer]	Spring washer
26		Q341C12 [Nut]	Nut
27		199114260003 [Pipe]	Pipe
28		Q151B1645 [Screw]	Screw
29		190003888459 [Nut]	Nut

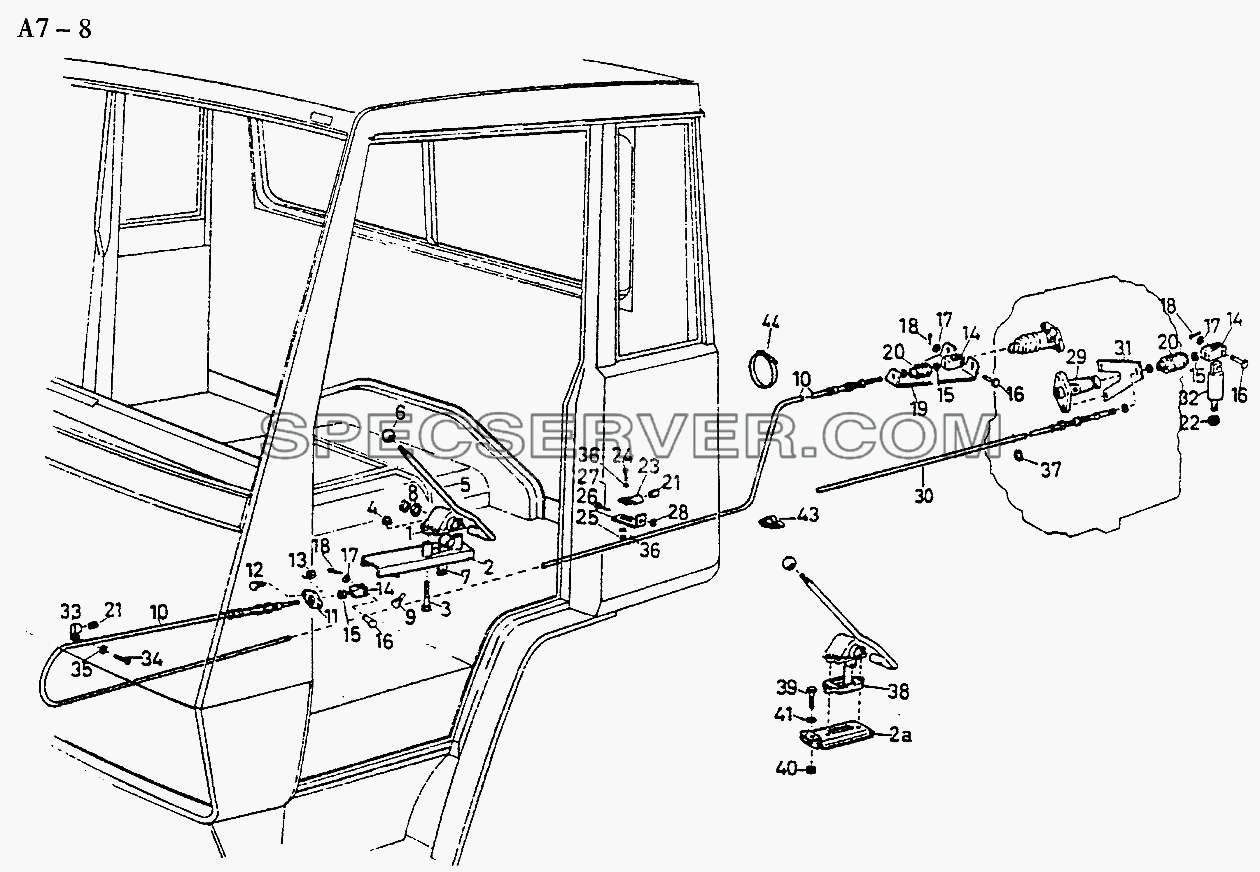

GEAR SHIFTING OF VG1200 TRANSFER CASE (A7-8) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		1680 180025 [Bearer]	Bearer
2		199100280001 [Bracket]	Bracket
3		Q150B0865 [Screw]	Screw
4		Q33208 [Nut]	Nut
5		199100280046 [Hand lever]	Hand lever
6		1680 350069 [Ball handle]	Ball handle
7		199100280004 [Lever]	Lever
8		1680 350068 [Washer]	Washer
9		12700 2400064 [Screw]	Screw
12		Q150B0620 [Screw]	Screw
13		Q33206 [Nut]	Nut
14		199014280020 [Fork bead]	Fork bead
15		Q340B06 [Nut]	Nut
16		Q5101024(H11) [Bolt]	Bolt
17		Q40110 [Washer]	Washer
18		Q5003216 [Split pin]	Split pin
20		199014280046 [Cup]	Cup
21		190003489238 [Hose]	Hose
22		Q33210 [Nut]	Nut
23		1680 360199 [Clamp]	Clamp
24		Q150B0620 [Screw]	Screw
25		Q33206 [Nut]	Nut
26		1397 350169 [Angle]	Angle
29		1880 250069 [Flange]	Flange
30		199100280027 [Control cable]	Control cable
31		199100280021 [Bracket]	Bracket
32		1-21-425-011 [Bolt]	Bolt
37		190003179045 [Edge protection]	Edge protection
44		190003171697 [Wine fastener]	Wine fastener

PNEUTRONIC GEAR SHIFTING FOR VG1200 TRANSFER CASE (A7-9) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		190003559482 [Nozzle]	Nozzle
1		190003179782 [Plastic pipe]	Plastic pipe
2		190003559766 [Double nozzle]	Double nozzle
3		Q72312T5F [Gasket]	Gasket
4		199014280016 [Sleeve]	Sleeve
5		179100710008 [Solenoid valve]	Solenoid valve
6		190003559561 [Cutting ring]	Cutting ring
7		190003559516 [Nut]	Nut
8		AZ9632360201 [Quick disconnect coupling]	Quick disconnect coupling
9		AZ6932360201 [Muffler]	Muffler

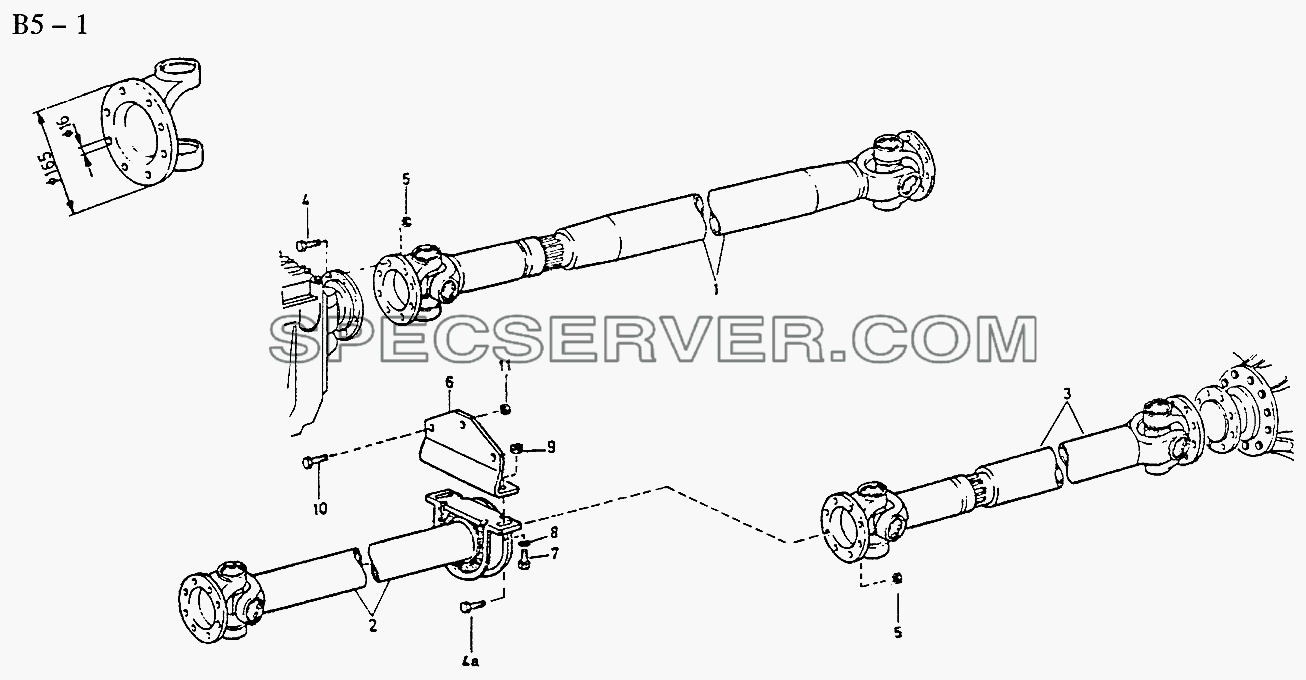

4x2, 6x2 PROPELLER SHAFTS 266/290/N56/4x2 (planar flange) (B5-1-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		AZ9219311958 [Intermed shaft]	Intermed shaft
2		AZ9232311987 [Intermed shaft]	Intermed shaft
3		199114310088 [Propeller shaft]	Propeller shaft
4		WG9000310049 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		17600310082 [Angle]	Angle
6		199100310065 [Angle]	Angle
7		Q151B1435 [Screw]	Screw
8		Q40114 [Washer]	Washer
9		190003888458 [Nut]	Nut
10		Q151C1230 [Screw]	Screw
11		190003888457 [Nut]	Nut

4x2, 6x2 PROPELLER SHAFTS 266/290/046/4x2 (planar flange) (B5-1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
2		AZ9114310096 [Intermed shaft]	Intermed shaft
2		AZ9114310108 [Intermed shaft]	Intermed shaft
3		AZ9114310015 [Propeller shaft]	Propeller shaft
4		WG9100310049 [Screw]	Screw
5		190003888459 [Nut]	Nut
6		199100310066 [Angle]	Angle
6		AZ9100310004 [Angle]	Angle
7		Q151B1435 [Screw]	Screw
8		Q40114 [Washer]	Washer
9		190003888458 [Nut]	Nut
10		Q151C1230 [Screw]	Screw
11		190003888457 [Nut]	Nut
