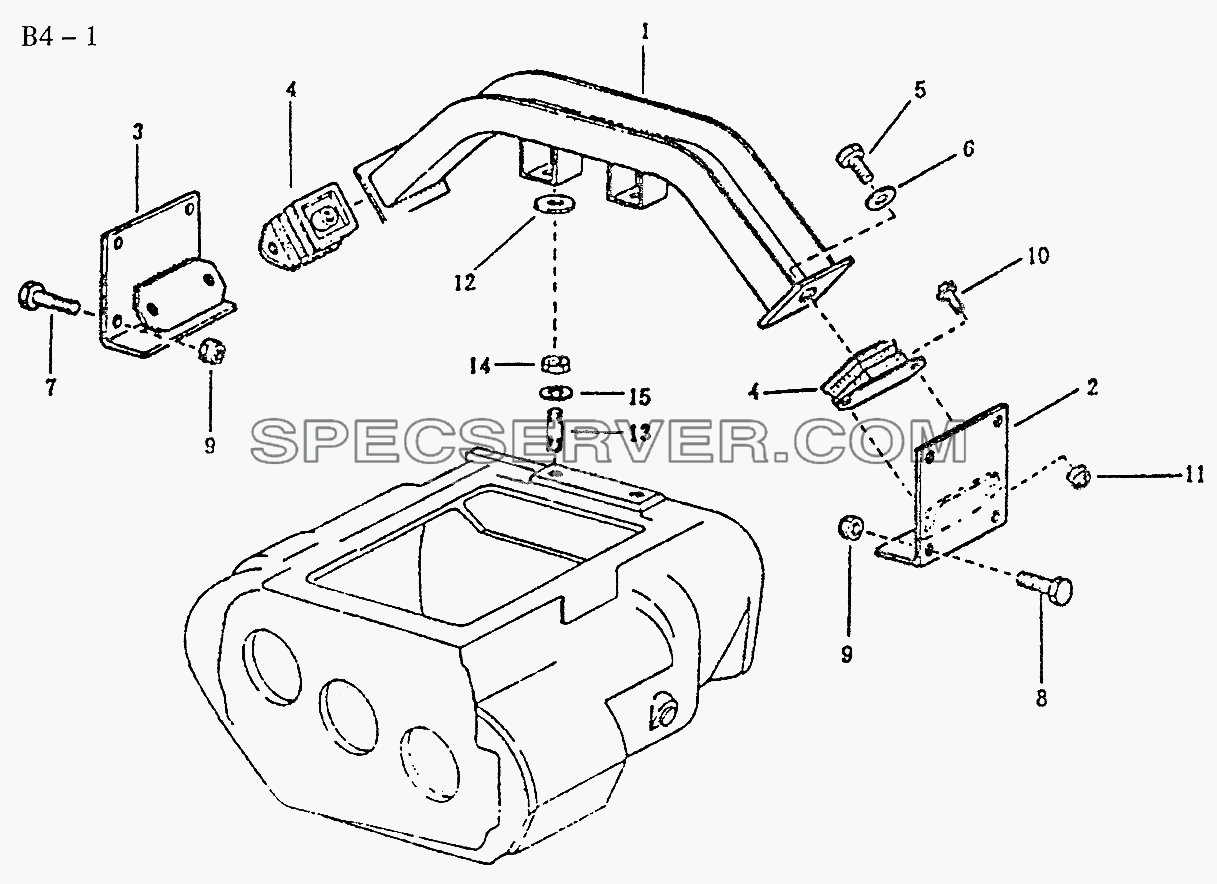

№		Номер детали	Наименование запчасти
1		AZ9631590017 [Cross member]	Cross member
1		AZ9631590020 [Cross member]	Cross member
1		WG9112590099 [Cross member]	Cross member
1		WG9112590100 [Cross member]	Cross member
1		WG9112591100 [Cross member]	Cross member
2		AZ9625590003 [Left bracket C]	Left bracket C
2		AZ9631590013 [Left bracket C]	Left bracket C
2		AZ9631590023 [Left bracket C]	Left bracket C
2		WG9112590096 [Left bracket C]	Left bracket C
2		WG9112590110 [Left bracket C]	Left bracket C
2		WG9112591096 [Left bracket C]	Left bracket C
3		AZ9625590004 [Right bracket C]	Right bracket C
3		AZ9625590014 [Right bracket C]	Right bracket C
3		AZ9631590024 [Right bracket C]	Right bracket C
3		WG9112590095 [Right bracket C]	Right bracket C
3		WG9112591095 [Right bracket C]	Right bracket C
3		WG9112950111 [Right bracket C]	Right bracket C
4		WG1680590095 [Support front]	Support front
5		Q151B1220 [Screw]	Screw
6		Q40312 [Washer]	Washer
7		Q151B1455 [Screw]	Screw
8		Q151B1455 [Screw]	Screw
9		190003888458 [Nut]	Nut
10		Q150B0820 [Screw]	Screw
11		Q33208 [Nut]	Nut
12		1480A360058 [Washer]	Washer
13		Q1231630 [Bolt]	Bolt
14		Q33216 [Nut]	Nut
15		Q40116 [Washer]	Washer

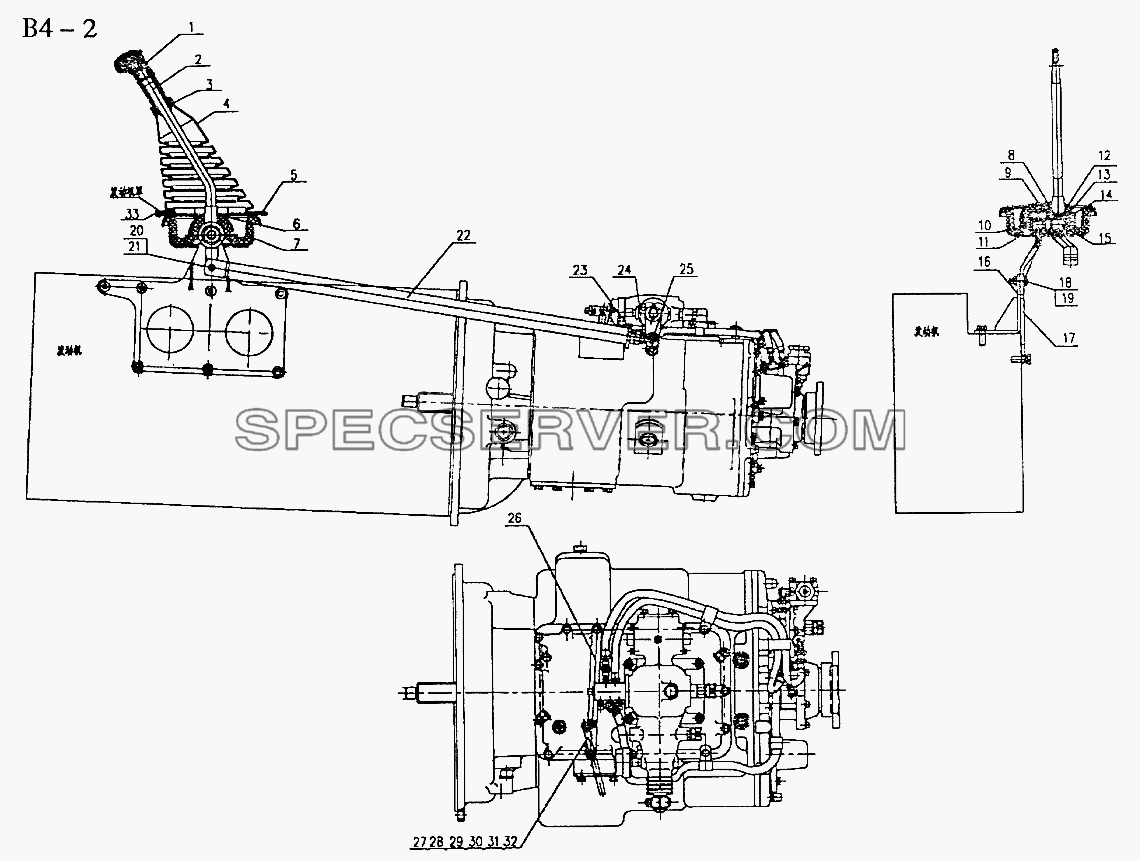

FULLER GEAR-CHANGE SYSTEM (B4-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9130240010 [Gear shift knob]	Gear shift knob
1		AZ9130240270 [Gear shift knob]	Gear shift knob
1		AZ9624240010 [Gear shift knob]	Gear shift knob
2		AZ9130240220 [Shift lever]	Shift lever
3		1792002240075 [Sleeve]	Sleeve
4		AZ9130240002 [Dust proof cover]	Dust proof cover
5		AZ9130240241 [Support plate]	Support plate
6		Q2630520 [Screw]	Screw
7		AZ9130240201 [Rubber seat]	Rubber seat
8		AZ9123240208 [Joint bearing]	Joint bearing
9		AZ9123240109 [Dust proof cover]	Dust proof cover
10		AZ9003886879 [Nut]	Nut
11		AZ9123240120 [Bracket]	Bracket
12		Q43042 [Snap ring]	Snap ring
13		AZ9123240106 [Cover]	Cover
14		Q43118 [Snap ring]	Snap ring
15		AZ9123240107 [Shift shaft]	Shift shaft
16		AZ9130240253 [Bracket]	Bracket
17		WG9130240251 [Shift bracket]	Shift bracket
17		WG9130240261 [Shift bracket]	Shift bracket
17		WG9130240263 [Shift bracket]	Shift bracket
18		Q150B1035 [Screw]	Screw
19		Q33210 [Nut]	Nut
20		1680 260012 [Pin]	Pin
21		190003936620 [Snap ring]	Snap ring
22		WG130240218 [Shift remote bar]	Shift remote bar
22		WG9130240224 [Shift remote bar]	Shift remote bar
22		WG9130240230 [Shift remote bar]	Shift remote bar
22		WG9130240233 [Shift remote bar]	Shift remote bar
22		WG9130240318 [Shift remote bar]	Shift remote bar
22		WG9130240324 [Shift remote bar]	Shift remote bar
22		WG9130240326 [Shift remote bar]	Shift remote bar
23		Q341B14T13F2 [Nut]	Nut
24		199112240085 [Ball joint]	Ball joint
25		Q33210 [Nut]	Nut
26		199112240165 [Support]	Support
27		WG9100240090 [Ball joint]	Ball joint
28		Q340B12 [Nut]	Nut
29		199112240122 [Ball joint]	Ball joint
30		190003871313 [Nut (left)]	Nut (left)
31		1-99-951-036 [Bolt M12]	Bolt M12
32		Q33210 [Nut]	Nut
33		AZ9130240248 [Gasket]	Gasket

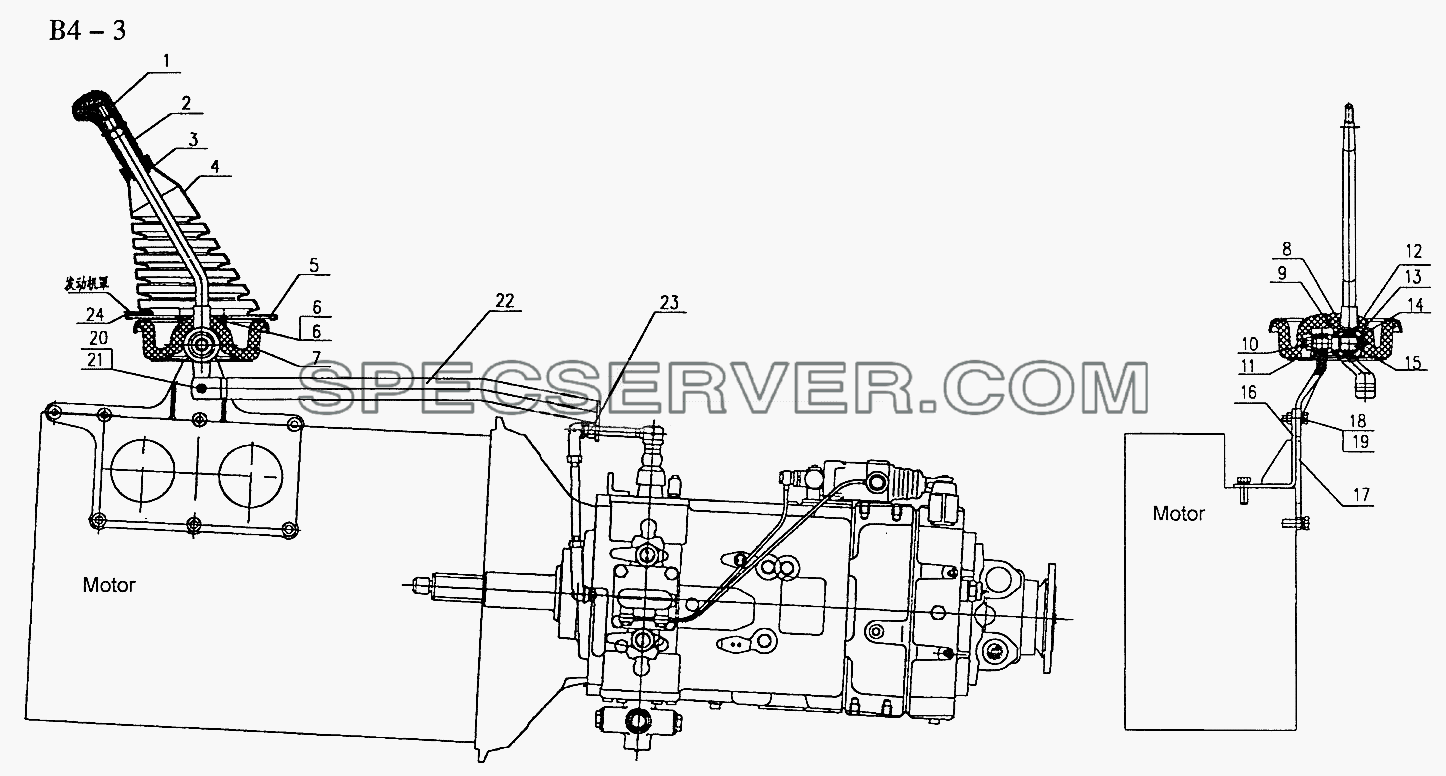

ZF GEAR-CHANGE SYSTEM (B4-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9130240010 [Gear shift knob]	Gear shift knob
1		AZ9130240236 [Gear shift knob]	Gear shift knob
1		AZ9624240010 [Gear shift knob]	Gear shift knob
2		AZ9130240220 [Shift lever]	Shift lever
3		179200240075 [Sleeve]	Sleeve
4		AZ9130240002 [Dust proof cover]	Dust proof cover
5		AZ9130240241 [Support plate]	Support plate
6		Q2630520 [Screw]	Screw
7		AZ9130240201 [Rubber seat]	Rubber seat
8		AZ9130240208 [Joint bearing]	Joint bearing
9		AZ9123240109 [Dust proof cover]	Dust proof cover
10		AZ9003886879 [Nut]	Nut
11		AZ9123240120 [Bracket]	Bracket
12		Q43042 [Snap ring]	Snap ring
13		AZ9123240106 [Cover]	Cover
14		Q43118 [Snap ring]	Snap ring
15		AZ9123240107 [Shift shaft]	Shift shaft
16		AZ9130240253 [Bracket]	Bracket
17		WG9130240251 [Shift bracket]	Shift bracket
17		WG9130240261 [Shift bracket]	Shift bracket
17		WG9130240263 [Shift bracket]	Shift bracket
18		Q150B1035 [Screw]	Screw
19		Q33210 [Nut]	Nut
20		1680 260012 [Pin]	Pin
21		190003936620 [Snap ring]	Snap ring
22		WG9130240227 [Shift remote bar]	Shift remote bar
22		WG9219240001 [Shift remote bar]	Shift remote bar
22		WG9232240001 [Shift remote bar]	Shift remote bar
22		WG9638240001 [Shift remote bar]	Shift remote bar
22		WG9638240003 [Shift remote bar]	Shift remote bar
22		WG9638240006 [Shift remote bar]	Shift remote bar
23		Q341B14 [Nut]	Nut
24		AZ9130240248 [Gasket]	Gasket

GEARBOX GEAR CHANGE SYSTEM (C3-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9716240008 [Operator]	Operator
-		WG9719240028 [Operator]	Operator
-		WG9725240009 [Gear shift lever]	Gear shift lever
-		WG9725240009 [Gear shift lever]	Gear shift lever
1		AZ9100240060 [Gear shift knob]	Gear shift knob
1		AZ9100240061 [Gear shift knob]	Gear shift knob
1		AZ9123240211 [Gear shift knob]	Gear shift knob
1		AZ9123240214 [Gear shift knob]	Gear shift knob
1		AZ9716240001 [Gear shift knob]	Gear shift knob
2		179200240075 [Cable sleeve]	Cable sleeve
3		AZ9719240002 [Siphon]	Siphon
4		190003989318 [Circlip]	Circlip
5		Q218B0825 [Screw]	Screw
6		Q40308 [Spring washer]	Spring washer
7		Q150B0850 [Screw]	Screw
8		Q150B0835 [Screw]	Screw
9		Q40308 [Spring washer]	Spring washer
10		AZ9719240032 [Connecting block]	Connecting block
11		WG9716240010 [Operator assembly]	Operator assembly
11		WG9719240031 [Operator assembly]	Operator assembly
12		WG9716240011 [Positioning cable]	Positioning cable
12		WG9719240007 [Positioning cable]	Positioning cable
12		WG9719240111 [Positioning cable]	Positioning cable
13		WG9716240013 [Gear shift cable]	Gear shift cable
13		WG9719240112 [Gear shift cable]	Gear shift cable
13		WG9725240008 [Gear shift cable]	Gear shift cable
14		1397 350169 [Angle]	Angle
15		Q150B0840 [Screw]	Screw
16		Q40308 [Spring washer]	Spring washer
17		Q340B08 [Nut]	Nut
18		1188 730187 [Clamp]	Clamp
19		AZ9719240017 [Sleeve]	Sleeve
20		WG9719240008 [Clamp]	Clamp
21		Q150B0835 [Screw]	Screw
22		Q40108 [Washer]	Washer
23		AZ9717240027 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9719240026 [Bracket for gear shift cable]	Bracket for gear shift cable
23		AZ9725240024 [Bracket for gear shift cable]	Bracket for gear shift cable
24		AZ9719240025 [Bracket for positioning cable]	Bracket for positioning cable
24		AZ9719240029 [Bracket for positioning cable]	Bracket for positioning cable
25		AZ9719240023 [Positioning lever]	Positioning lever
26		WG9719240117 [Support bar]	Support bar
27		WG9719240116 [Positioning bar]	Positioning bar
28		WG9719240118 [Gear shift bar]	Gear shift bar
29		AZ9725240026 [Protect sleeve for cable]	Protect sleeve for cable

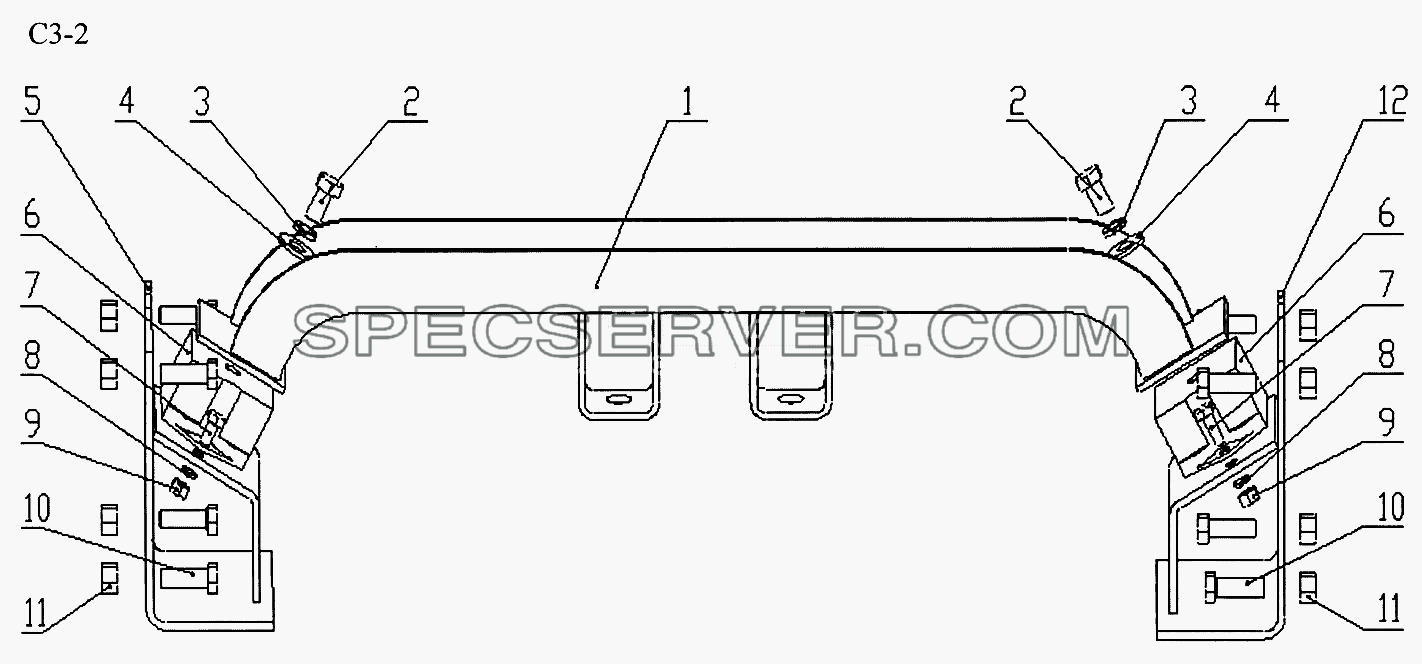

GEARBOX SUSPENSION (C3-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		AZ9725590008 [Cross member]	Cross member
1		AZ9725590090 [Cross member]	Cross member
1		AZ9725596010 [Cross member]	Cross member
1		AZ9731596160 [Cross member]	Cross member
2		Q150B1222 [Screw]	Screw
3		Q40312 [Spring washer]	Spring washer
4		1480A 360058 [Washer]	Washer
5		AZ9725590063 [Left bracket]	Left bracket
5		AZ9725590093 [Left bracket]	Left bracket
5		AZ9725590095 [Left bracket]	Left bracket
5		AZ9725596120 [Left bracket]	Left bracket
5		AZ9725596140 [Left bracket]	Left bracket
5		AZ9731596170 [Left bracket]	Left bracket
6		WG1680590095 [Support front]	Support front
7		Q150B0822 [Screw]	Screw
8		Q40308 [Spring washer]	Spring washer
9		Q340B08 [Nut]	Nut
10		Q150B1235 [Screw]	Screw
11		Q33212 [Nut]	Nut
12		AZ9725590018 [Bracket]	Bracket
12		AZ9725590060 [Right bracket]	Right bracket
12		AZ9725590094 [Right bracket]	Right bracket
12		AZ9725590096 [Right bracket]	Right bracket
12		AZ9725596130 [Right bracket]	Right bracket
12		AZ9725596150 [Right bracket]	Right bracket
12		AZ9731596180 [Right bracket]	Right bracket

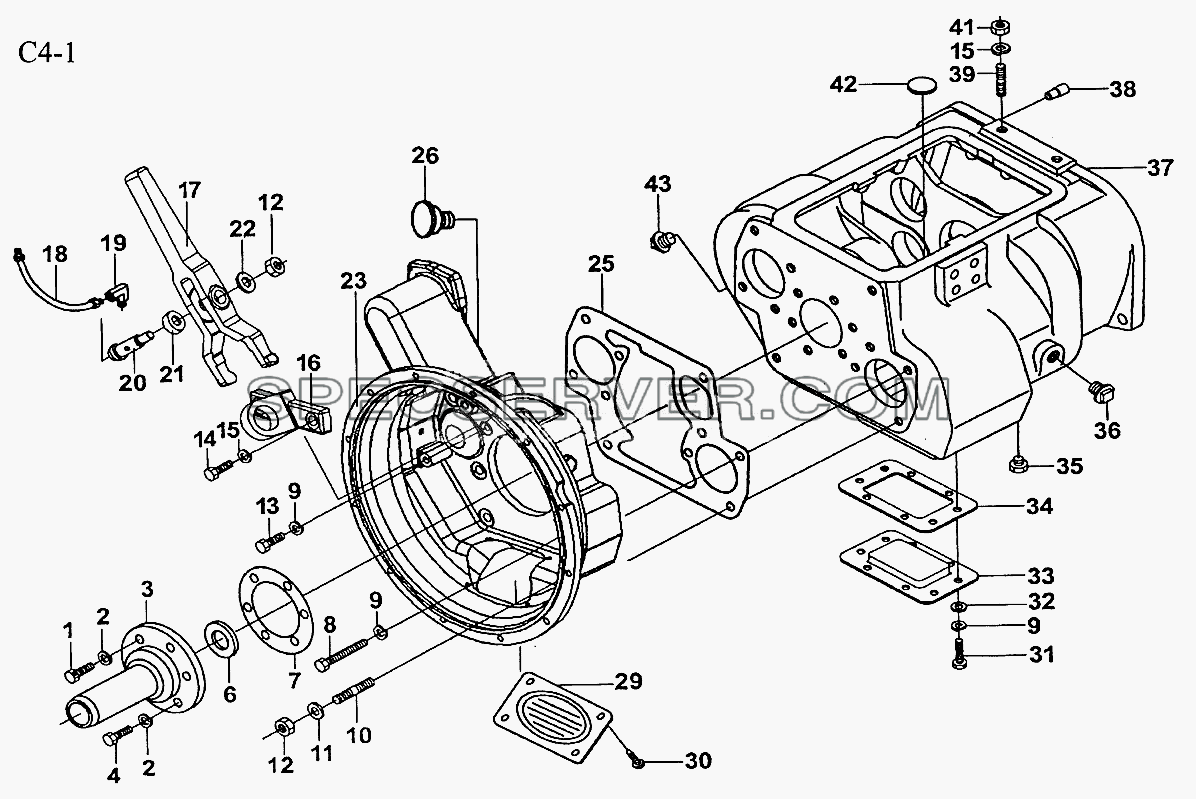

9JS150T GEARBOX HOUSING (C4-1) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		Q1701032 [Screw]	Screw
2		Q40310 [Spring washer]	Spring washer
3		JS180-1701040-1 [Cover]	Cover
4		M10x32 [Screw]	Screw
6		F500A-1802191 [Oil seal]	Oil seal
7		14311 [Gasket]	Gasket
8		M12x90 [Screw]	Screw
9		Q40312 [Spring washer]	Spring washer
10		C01056 [Stud]	Stud
11		Q40016 [Washer]	Washer
12		M16x1.5 [Nut]	Nut
13		M12x38 [Screw]	Screw
14		M16x45 [Screw]	Screw
15		Q40316 [Spring washer]	Spring washer
16		JS180-1601024-2 [T style board]	T style board
17		JS180-1601021-2 [Shifting fork]	Shifting fork
18		51016 [Oil pipe]	Oil pipe
19		12880 [Connector]	Connector
20		JS180-1601023-1 [Shifting fork shaft]	Shifting fork shaft
21		GB304-64UC25 [Joint bearing]	Joint bearing
22		JS180-1601022-1 [Washer]	Washer
23		JS180-1601015-5 [Clutch housing]	Clutch housing
25		20822 [Clutch housing gasket]	Clutch housing gasket
26		A-6 [Grease cup]	Grease cup
29		JS180-1701016-3 [Clutch cover]	Clutch cover
30		Q150B0812 [Screw]	Screw
31		Q150B1225 [Screw]	Screw
32		Q40112 [Washer]	Washer
33		16596 [Window cover]	Window cover
34		16929 [Gasket]	Gasket
35		Q614B06 [Plug]	Plug
36		Q614B12 [Plug]	Plug
37		18686 [Gearbox housing]	Gearbox housing
38		14334 [Stop pin]	Stop pin
39		Q1231630 [Stud]	Stud
41		M16x1.5 [Nut]	Nut
42		14373 [Magnet]	Magnet
43		Q61304 [Plug]	Plug
