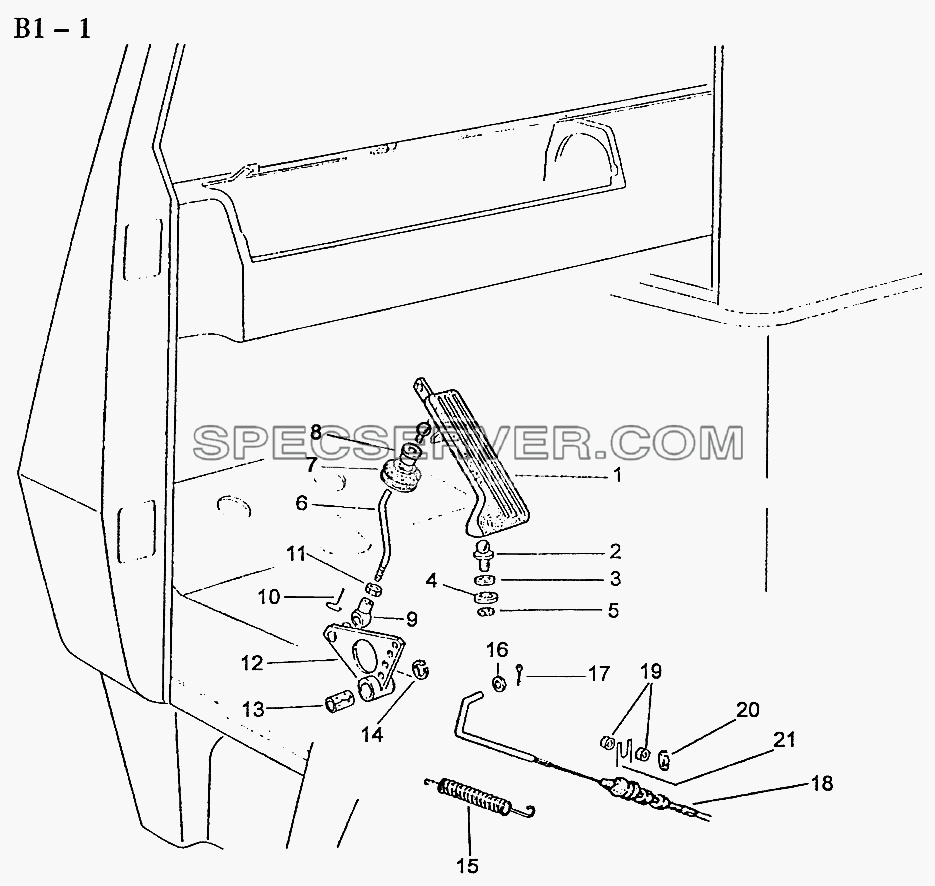

№		Номер детали	Наименование запчасти
-		199112570036 [Angle]	Angle
-		WG9112570008 [Cable for control of Max. feul volume]	Cable for control of Max. feul volume
1		199100570001 [Pedal]	Pedal
2		179100570031 [Ball pivot]	Ball pivot
3		Q40206 [Washer]	Washer
4		Q40506 [Spring washer]	Spring washer
5		Q340B06 [Nut]	Nut
6		199100570008 [Bar]	Bar
7		1882 270056 [Bellow]	Bellow
8		199000570017 [Sleeve]	Sleeve
9		WG92 570025 [Ball cup]	Ball cup
10		190003936513 [Safety clip]	Safety clip
11		Q340B06 [Nut]	Nut
12		199100570010 [Lever]	Lever
13		WG99014180012 [Bush]	Bush
14		190003936615 [Washer]	Washer
15		1288 570057 [Spring]	Spring
16		Q40006 [Washer]	Washer
17		Q5001610 [Splint]	Splint
18		WG9100576009 [Control cable]	Control cable
19		Q350806T15 [Nut]	Nut
20		Q40206 [Washer]	Washer
21		199112570033 [Lever]	Lever

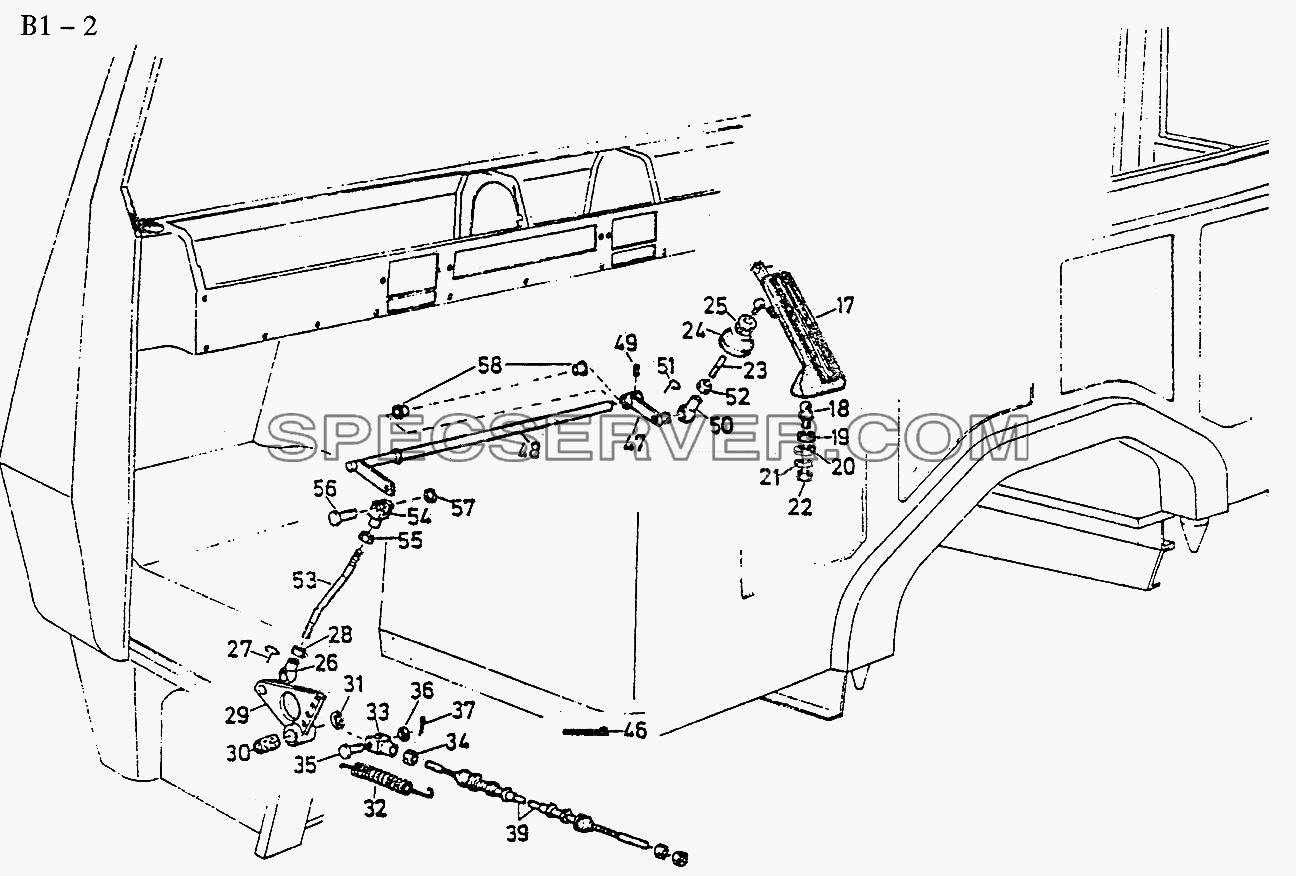

OPERATING LEVER FOR DRIVE RIGHT (B1-2) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		Q33205 [Nut]	Nut
-		Q40305 [Spring washer]	Spring washer
17		199100570001 [Pedal]	Pedal
18		179100570031 [Ball pivot]	Ball pivot
20		Q40206 [Washer]	Washer
21		Q40506 [Spring washer]	Spring washer
22		Q340806 [Nut]	Nut
23		199100570034 [Push rod]	Push rod
24		1882 270056 [Bellow]	Bellow
25		199000570017 [Sleeve]	Sleeve
26		WG992570025 [Ball cup]	Ball cup
27		90003936513 [Safety clip]	Safety clip
28		Q340B06 [Nut]	Nut
29		199100570029 [Lever]	Lever
30		WG99014180012 [Bush]	Bush
31		90003936615 [Washer]	Washer
32		1288570057 [Spring]	Spring
33		90003964412 [Fork head]	Fork head
34		90003871232 [Nut]	Nut
35		90003903605 [Bolt]	Bolt
36		90003930251 [Washer]	Washer
37		90003920031 [Split pin]	Split pin
38		90003870218 [Nut]	Nut
39		WG9100576010 [Control cable C]	Control cable C
47		199100570030 [Lever]	Lever
48		199100570070 [Shaft]	Shaft
49		90003909613 [Sleeve]	Sleeve
50		WG92570025 [Ball cup]	Ball cup
51		190003936513 [Cilp]	Clip
52		Q340B06 [Nut]	Nut
53		199100570072 [Bar]	Bar
54		WG92570025 [Fork head]	Fork head
55		Q340B06 [Nut]	Nut
56		Q150B0520 [Bolt]	Bolt
57		Q40105 [Washer]	Washer
58		199000570021 [Bush]	Bush
60		199112570033 [Lever]	Lever
61		199112570036 [Augle]	Augle
62		199112570038 [Cable]	Cable

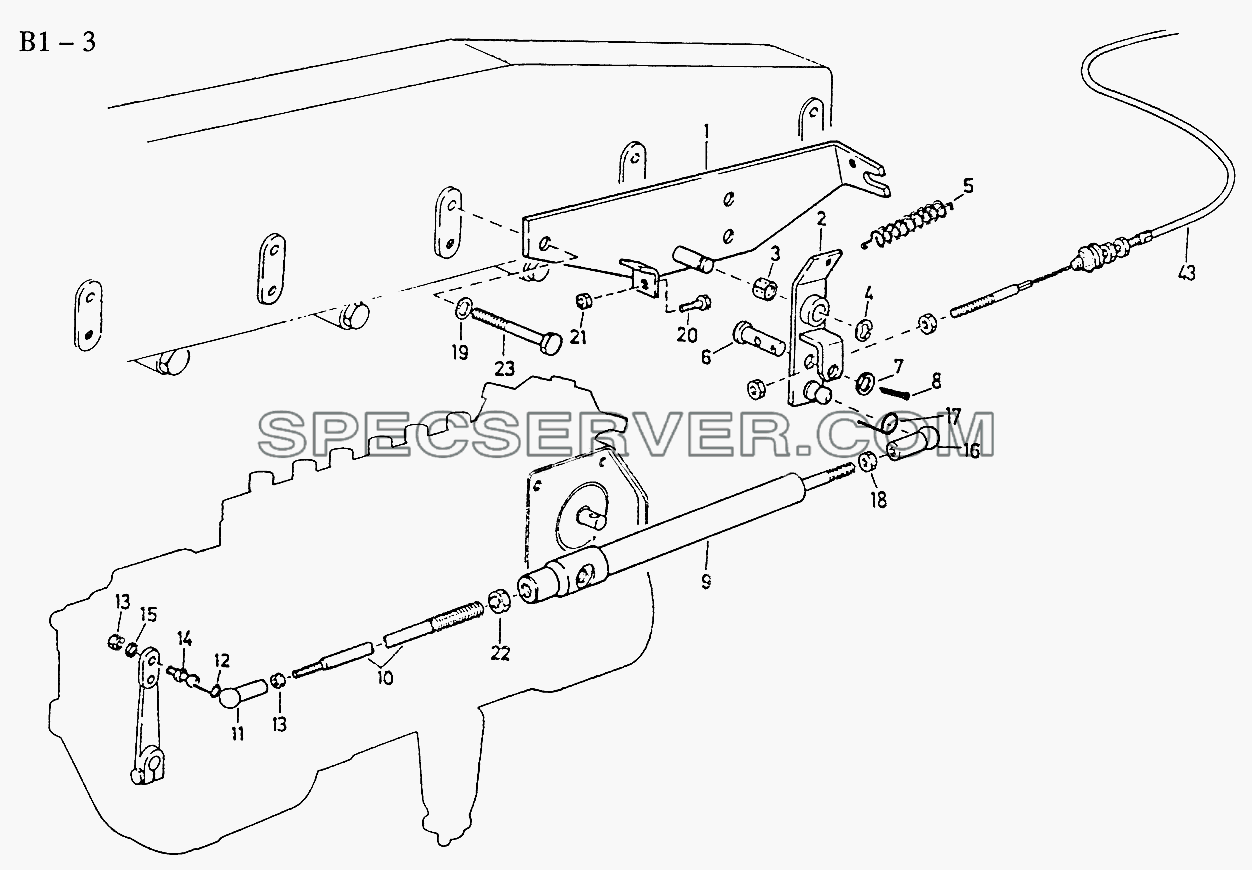

ACCELERATOR LINKAGE (B1-3) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		199100570015 [Bracket]	Bracket
1		AZ9118570011 [Bracket]	Bracket
2		199100570018 [Lever]	Lever
2		199100570086 [Lever]	Lever
3		WG99014180012 [Bush]	Bush
4		Q43680 [Washer]	Washer
5		199100570065 [Spring]	Spring
6		199012570084 [Bolt]	Bolt
7		Q40110 [Washer]	Washer
8		Q5003216 [Split pin]	Split pin
9		WG9100570002 [Compressed air cylinder]	Compressed air cylinder
10		199012570062 [Threaded rod]	Threaded rod
10		AZ9118570003 [Threaded rod]	Threaded rod
11		WG92570025 [Ball cup]	Ball cup
12		190003936513 [Clip]	Clip
13		Q340B06 [Nut]	Nut
14		190003963313 [Ball pivot]	Ball pivot
15		Q40506 [Spring washer]	Spring washer
16		190003963623 [Ball cup]	Ball cup
17		190003936514 [Clip]	Clip
18		Q340B08 [Nut]	Nut

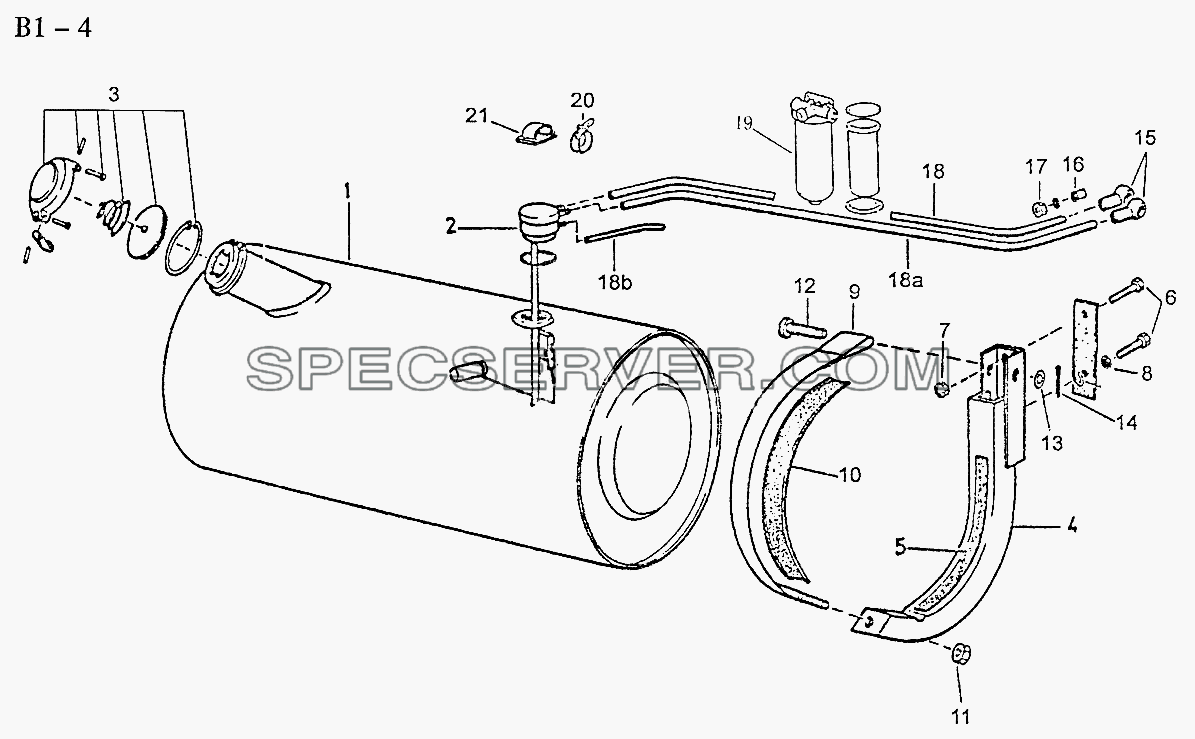

200L FUEL TANK (B1-4) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ9112550120 [Return line]	Return line
-		Q72314T5F [Gasket]	Gasket
-		WG9112550002-1 [Prefilter]	Prefilter
1		WG9100550120 [Fuel tank]	Fuel tank
2		WG9100550101 [Fuel gauge]	Fuel gauge
3		199100550101 [Cover]	Cover
4		199100550006 [Support]	Support
4		BZ9112550050 [Support]	Support
5		199100550009 [Base]	Base
6		Q150B1445 [Screw]	Screw
7		19000388458 [Nut]	Nut
8		Q40314 [Spring washer]	Spring washer
9		WG9100550011 [Strap]	Strap
10		WG9100550081 [Base]	Base
11		Q33210 [Nut]	Nut
12		Q5101075 [Bolt]	Bolt
13		Q40110 [Washer]	Washer
14		Q5003214 [Split pin]	Split pin
15		WG9014230017 [Joint]	Joint
16		190003962621 [Screw]	Screw
17		Q33210 [Nut]	Nut
18		AZ9112550120 [Suction line]	Suction line
19		WG9112550002 [Feul fielter C]	Feul fielter C
20		190003171393 [Cable wrench]	Cable wrench
21		199000770296 [Cilps]	Cilps

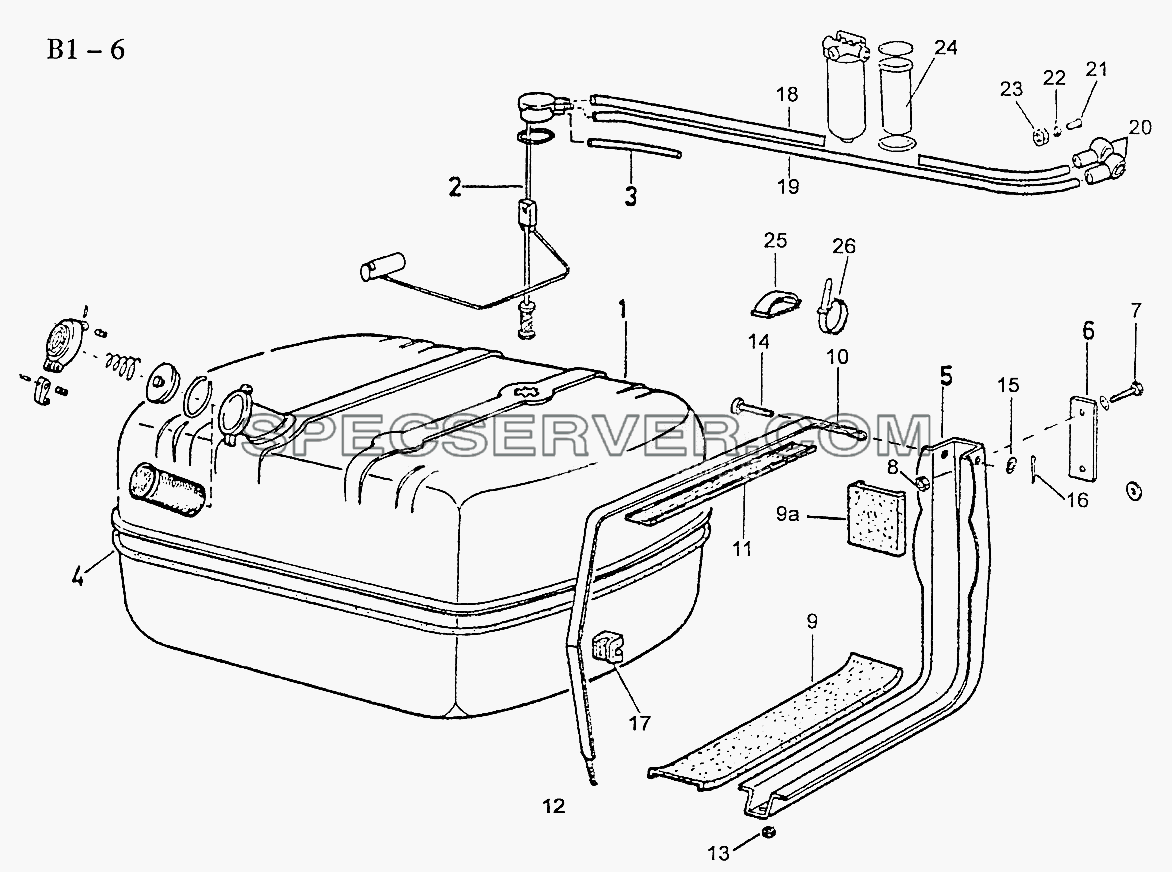

380L FUEL TANK (B1-6) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG9112550002-1 [Profiter]	Profiter
1		WG9112550001 [Fuel tank]	Fuel tank
2		WG9114550125 [Fuel gauge]	Fuel gauge
3		AZ9112550121 [Pipe]	Pipe
4		190003179030 [Base]	Base
5		WG9114550292 [Support]	Support
6		199100550012 [Plate]	Plate
6		199114550293 [Plate]	Plate
7		Q151B1650TF2 [Screw]	Screw
8		190003888627 [Nut]	Nut
9		199114550012 [Base]	Base
9		WG9114550113 [Base]	Base
10		WG9114550011 [Strap]	Strap
11		WG9100550089 [Base]	Base
12		190003962621 [Screw]	Screw
13		Q33210 [Nut]	Nut
14		190003903197 [Bolt]	Bolt
14		Q5101070 [Bolt]	Bolt
15		Q40110 [Washer]	Washer
16		Q5003214 [Split pin]	Split pin
17		WG9114550015 [Base]	Base
18		AZ9112550120 [Suction line]	Suction line
19		AZ9112550120 [Return line]	Return line
20		WG9014230017 [Joint]	Joint
21		Q150B1060 [Screw]	Screw
22		Q72314T5F [Gasket]	Gasket
23		Q33210 [Nut]	Nut
24		WG9112550002 [Fuel filter C]	Fuel filter C
25		199000770296 [Clips]	Clips
26		190003171697 [Cable binder]	Cable binder
30		WG9100558002 [Change valve]	Change valve
31		WG9130580190 [Change switch]	Change switch

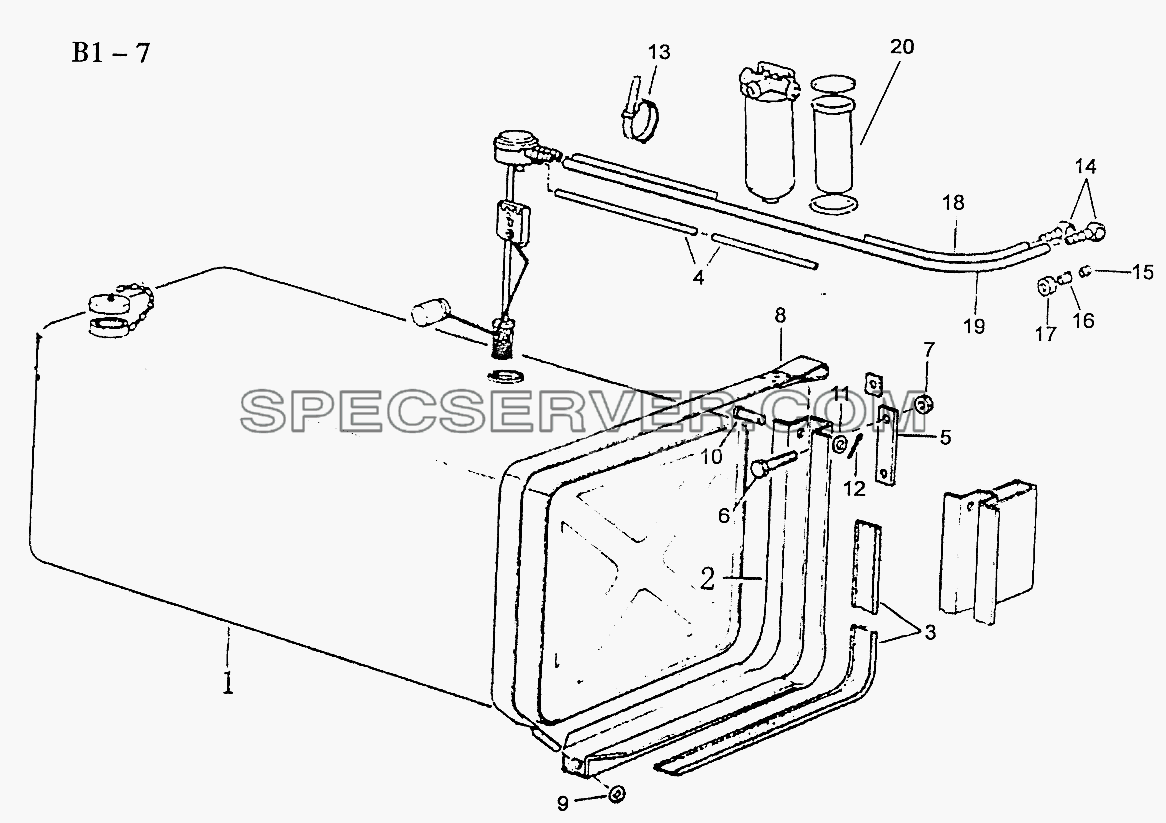

400L FUEL TANK (B1-7) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9114550042 [Fuel tank]	Fuel tank
2		AZ9114550043 [Support]	Support
2		WG9114550041 [Support]	Support
3		AZ9118550014 [Base]	Base
4		AZ9112550121 [Pipe]	Pipe
5		AZ9224550001 [Plate]	Plate
6		Q151B1655TF2 [Screw]	Screw
7		190003888627 [Nut]	Nut
8		WG9118550016 [Tension strap]	Tension strap
9		190003888457 [Nut]	Nut
10		Q5101670 [Bolt]	Bolt
11		Q40016 [Washer]	Washer
12		Q5004028 [Split pin]	Split pin
13		190003171697 [Cable wrench]	Cable wrench
14		WG9014230017 [Joint]	Joint
15		190003962621 [Screw]	Screw
16		Q72314T5F [Washer]	Washer
17		Q33210 [Nut]	Nut
18		AZ9112550120 [Suction line]	Suction line
19		AZ9112550120 [Return line]	Return line
20		WG9112550002 [Fuel filter C]	Fuel filter C
21		WG9112550002-1 [Pre filter]	Pre filter
