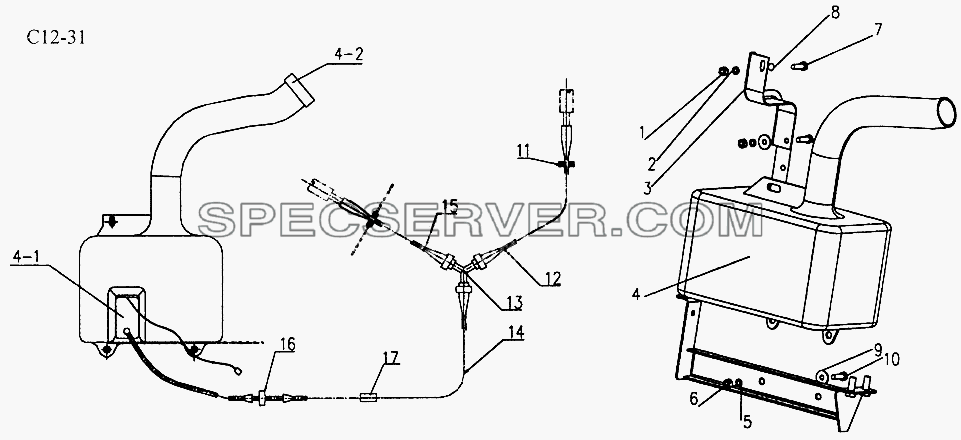

WINDSCREEN WASHING EQUIPMENT (C12-31) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1630840013 [Bottom housing]	Bottom housing
-		AZ1630840015 [Air intake assembly]	Air intake assembly
-		AZ1630840016 [Seal ring]	Seal ring
-		AZ1630840021 [Plate]	Plate
-		AZ1630840034 [Bevel gear]	Bevel gear
-		AZ1630840035 [Shaft]	Shaft
-		AZ1630840036 [Air intake rear]	Air intake rear
-		AZ1630840037 [Air intake left]	Air intake left
-		AZ1630840038 [Air intake right]	Air intake right
-		AZ1630840039 [Rod I]	Rod I
-		AZ1630840040 [Air intake front]	Air intake front
-		AZ1630840041 [Rod]	Rod
-		AZ1630840045 [Rod II]	Rod II
-		AZ1630840046 [Rod III]	Rod III
-		AZ1630840047 [Rod IV]	Rod IV
-		AZ1630840049 [Rotary plate]	Rotary plate
-		AZ1630840050 [Rotary arm]	Rotary arm
-		AZ1630840051 [Torsion spring]	Torsion spring
-		AZ1630840052 [Washer]	Washer
-		AZ1630840053 [Base]	Base
-		AZ1630840053 [Base]	Base
-		AZ1630840063 [Clip]	Clip
-		AZ1630840063 [Clip]	Clip
-		AZ1630840065 [Snap ring]	Snap ring
-		AZ1630840066 [O-ring]	O-ring
-		AZ1630840072 [Water outlet pipe assembly]	Water outlet pipe assembly
-		AZ1630840073 [Water inlet pipe assembly]	Water inlet pipe assembly
-		AZ1630840074 [Water tank]	Water tank
-		AZ1630840091 [Water pipe]	Water pipe
-		AZ1630840092 [Seal strip]	Seal strip
-		AZ1630840093 [Seal strip II]	Seal strip II
-		AZ1630840311 [Above housing]	Above housing
-		AZ1630840312 [Middle housing]	Middle housing
-		AZ1630840313 [Lever]	Lever
-		AZ1630840314 [Rod]	Rod
-		AZ1630840315 [Shaft for bevel gear]	Shaft for bevel gear
-		AZ1630840319 [Water tank with electro valve]	Water tank with electro valve
-		AZ1630840320 [Water valve with electro switch]	Water valve with electro switch
-		AZ1630840321 [Fan speed changer]	Fan speed changer
-		AZ1630840323 [Electrical line for fan]	Electrical line for fan
-		AZ1630840324 [1# water changer]	1# water changer
-		AZ1630840325 [2# water changer]	2# water changer
-		AZ1630840326 [3# water changer]	3# water changer
-		AZ1630840401 [Gasket]	Gasket
-		AZ1642820010 [Evaporator assembly]	Evaporator assembly
-		AZ1642820010 [Fan]	Fan
-		AZ1642820010-1 [Expansion valve]	Expansion valve
-		AZ1642820010-2 [Temperature sensor]	Temperature sensor
-		Q150B0830 [Screw]	Screw
-		Q2714216 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q2723525 [Screw]	Screw
-		Q33008 [Nut]	Nut
-		Q340B08 [Nut]	Nut
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40206 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40306 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q43660 [Snap ring]	Snap ring
-		WG1500130016/3 [V-belt]	V-belt
-		WG1500139000/3 [Compressor]	Compressor
-		WG1642828011 [Bracket left for condenser]	Bracket left for condenser
-		WG1642828012 [Bracket right for condenser]	Bracket right for condenser
1		WG1642820002 [Air conditioner with electro air intake]	Air conditioner with electro air intake
3		AZ1630840062 [Rubber sleeve]	Rubber sleeve
4		Q2714825 [Screw]	Screw
5		190003989340 [Circlip]	Circlip
6		WG1642840091 [Hose I]	Hose I
7		AZ1642840013 [Steel pipe]	Steel pipe
8		Q1840816 [Screw]	Screw
9		AZ1642840084 [Protect net]	Protect net
10		Q150B0620 [Screw]	Screw
11		Q1840825 [Screw]	Screw
12		WG1642840092 [Hose II]	Hose II
13		Q150B0640 [Screw]	Screw
14		WG1630820073 [Condenser assembly]	Condenser assembly
15		WG1642820011 [Bracket left for condenser]	Bracket left for condenser
15		WG1642820012 [Bracket right for condenser]	Bracket right for condenser
16		Q150B0825 [Screw]	Screw
17		WG1642820017 [Condenser-receiver connect tube]	Condenser-receiver connect tube
18		WG1642820019 [Evaporator-compressor connect tube]	Evaporator-compressor connect tube
18		WG1642828019 [Evaporator-compressor connect tube]	Evaporator-compressor connect tube
19		Q150B0625 [Screw]	Screw
19		Q40206 [Washer]	Washer
19		Q40306 [Spring washer]	Spring washer
20		WG1642820015 [Receiver tank]	Receiver tank
21		WG1642820018/1 [Receiver-evaporator connect tube]	Receiver-evaporator connect tube
22		WG1642820016 [Compressor-condenser connect tube]	Compressor-condenser connect tube
22		WG1642828016 [Compressor-condenser connect tube]	Compressor-condenser connect tube
23		WG1630820019 [Rubber sleeve]	Rubber sleeve
24		WG1630840032 [Control panel]	Control panel
25		WG1630820313 [Temprature sensor]

№		Номер детали	Наименование запчасти
-		WG1642860001-1 [Pump]	Pump
-		WG1642860001-2 [Cover]	Cover
1		Q340B06 [Nut]	Nut
2		Q40306 [Spring washer]	Spring washer
3		AZ1642860009 [Bracket]	Bracket
3		AZ1646860005 [Bracket]	Bracket
4		WG1642860001/1 [Washing equipment]	Washing equipment
4		WG1646860001 [Reservoir/pump]	Reservoir/pump
5		Q40308 [Spring washer]	Spring washer
6		340B08 [Nut]	Nut
7		Q150B0625 [Screw]	Screw
8		Q40206 [Washer]	Washer
9		Q40208 [Washer]	Washer
10		Q150B0830 [Screw]	Screw
11		AZ1642860007 [Protect ring]	Protect ring
12		AZ1642860003 [Hose I]	Hose I
13		116100770121 [V nozzle]	V nozzle
14		AZ1642860005 [Hose III]	Hose III
15		AZ1642860004 [Hose II]	Hose II
16		AZ1600860121 [Nozzle]	Nozzle
17		WG1600860008 [Clip]	Clip
18		AZ1646860004 [Bracket]	Bracket

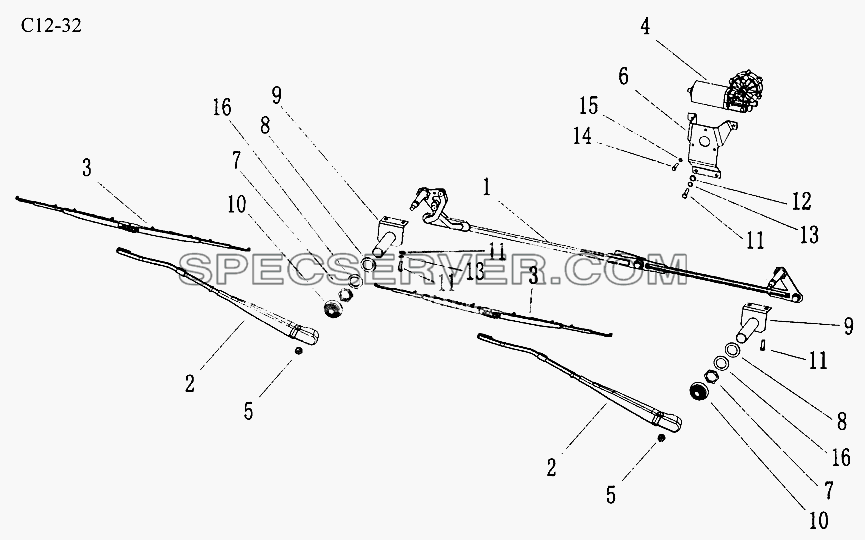

WINDSCREEN WIPER (C12-32) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		WG1642740002 [Wiper (incl.1~ 5)]	Wiper (incl.1~ 5)
-		WG1646740002 [Wiper (incl.1~ 5)]	Wiper (incl.1~ 5)
1		WG1642740009/1 [Rod]	Rod
1		WG1642740009/2 [Rod]	Rod
1		WG1646740009 [Rod]	Rod
2		WG1642740010-2 [Wiper arm]	Wiper arm
2		WG1642740010/1 [Wiper arm]	Wiper arm
2		WG1646740001 [Wiper arm]	Wiper arm
3		WG1642740011/1 [Wiper rubber]	Wiper rubber
3		WG1642740011/2 [Wiper rubber]	Wiper rubber
4		WG1642740008/1 [Wiper anchor]	Wiper anchor
4		WG1642740008/2 [Wiper anchor]	Wiper anchor
5		Q33010 [Lock nut]	Lock nut
6		WG1642740003/1 [Bracket for anchor]	Bracket for anchor
6		WG1642740003/2 [Bracket for anchor]	Bracket for anchor
7		AZ1642740004 [Nut]	Nut
8		AZ1642740005 [Washer]	Washer
9		AZ1642740006 [Base]	Base
10		AZ1642740007 [Protect cover]	Protect cover
11		Q150B0812 [Screw]	Screw
12		Q40108 [Washer]	Washer
13		Q40308 [Spring washer]	Spring washer
14		Q150B0616 [Screw]	Screw
15		Q40306 [Spring washer]	Spring washer
16		Q40126 [Washer]	Washer

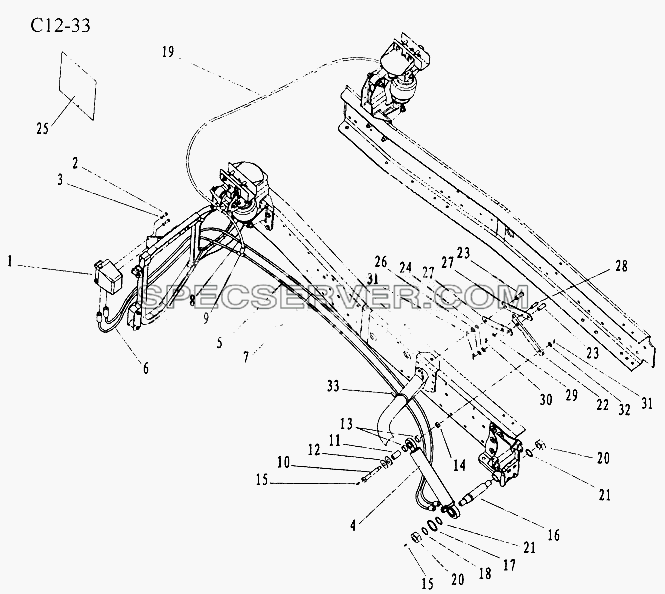

TILTING EQUIPMENT (C12-33) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9719820001 [Hydr.hand pump]	Hydr.hand pump
1		WG9719826001 [Hydr.hand pump]	Hydr.hand pump
2		Q150B1020 [Screw]	Screw
3		Q40310 [Spring washer]	Spring washer
4		WG9719820002 [Hydr.cylinder]	Hydr.cylinder
5		WG9719820005 [High pressure hose]	High pressure hose
5		WG9719821005 [High pressure hose]	High pressure hose
6		WG9719820006 [High pressure hose]	High pressure hose
6		WG9719821006 [High pressure hose]	High pressure hose
7		WG9719820007 [High pressure hose]	High pressure hose
8		WG1642440075 [High pressure hose]	High pressure hose
9		190003559482 [T-nozzle]	T-nozzle
10		AZ9719820008 [Support shaftI]	Support shaftI
11		AZ9719820009 [Bush]	Bush
12		Q40216 [Washer]	Washer
13		AZ9719820012 [Bush]	Bush
14		190003888459 [Lock nut]	Lock nut
15		Q700B06 [Grease nipple]	Grease nipple
16		AZ9719820010 [Support shaft II]	Support shaft II
17		WG9719820011 [Washer]	Washer
18		Q40124 [Washer]	Washer
19		WG1642440072 [Hose]	Hose
20		Q33424 [Lock nut]	Lock nut
21		WG9719820013 [Washer]	Washer
22		AZ9719820021 [Above brace]	Above brace
23		Q5101428 [Bolt]	Bolt
24		Q40114 [Washer]	Washer
26		Q41814 [Washer]	Washer
27		AZ9719820022 [Bottom brace]	Bottom brace
28		190003903452 [Bolt]	Bolt
29		Q41710 [Washer]	Washer
30		Q5003216 [Split pin]	Split pin
31		Q5004028 [Split pin]	Split pin
32		Q40112 [Washer]	Washer
33		190003171356 [Plastic circlip]	Plastic circlip

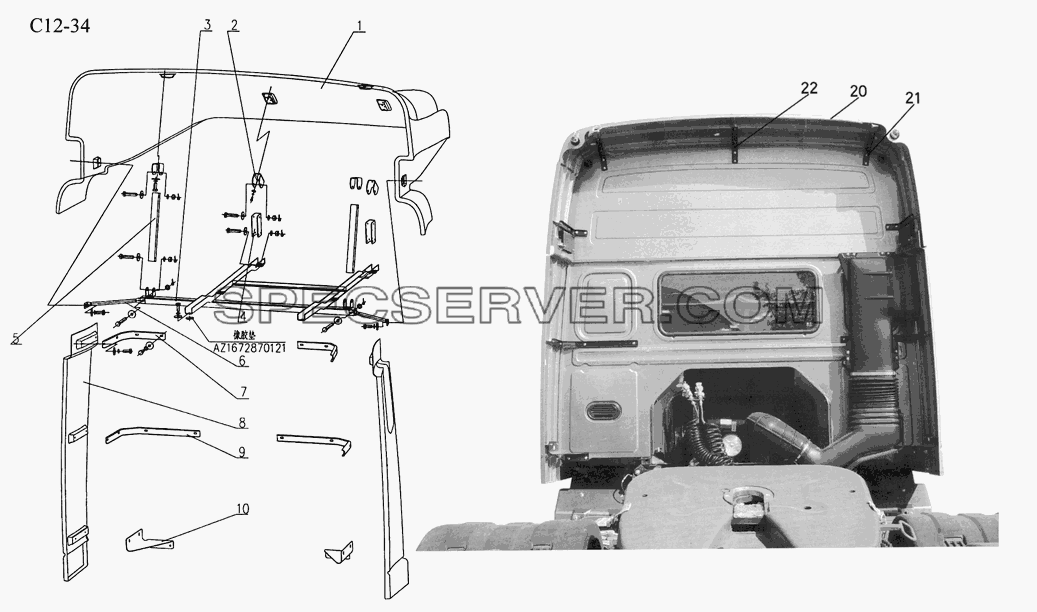

WING, WIND SHEET (C12-34) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
-		AZ1644870012 [Side wind sheet left]	Side wind sheet left
-		AZ1644870018 [Bottom bracket left]	Bottom bracket left
-		AZ1672870121 [Rubber pad]	Rubber pad
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q150B0820 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q173B0870 [Screw]	Screw
-		Q241B08 [Nut]	Nut
-		Q341B08 [Nut]	Nut
-		Q341B08 [Nut]	Nut
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40208 [Washer]	Washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q40308 [Spring washer]	Spring washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q41208 [Toothed washer]	Toothed washer
-		Q5002020 [Split pin]	Split pin
-		Q5002020 [Split pin]	Split pin
-		Q5002020 [Split pin]	Split pin
1		WG1642870141 [Wing]	Wing
2		AZ1642870145 [Base]	Base
3		AZ1642870143 [Bracket]	Bracket
4		AZ1642870148 [Front bracket]	Front bracket
5		AZ1642870146 [Rear bracket]	Rear bracket
6		AZ1642870147 [Side bracket]	Side bracket
7		AZ1642870153 [Bracket for side wind sheet]	Bracket for side wind sheet
7		WG1644870013 [Top bracket left]	Top bracket left
7		WG1644870019 [Top bracket right]	Top bracket right
8		WG1644870011 [Side wind sheet right]	Side wind sheet right
9		AZ1642870014 [Middle bracket]	Middle bracket
10		AZ1644870015 [Bottom bracket right]	Bottom bracket right
11		AZ1630230125 [Rubber pad]	Rubber pad
12		AZ1672870121 [Rubber pad]	Rubber pad
13		AZ1642930061 [Plate with nut]	Plate with nut
20		WG1644870016 [Top wind sheet]	Top wind sheet
21		WG1644870017 [Side bracket for top wind sheet]	Side bracket for top wind sheet
22		WG1644870020 [Middle bracket for top wind sheet]	Middle bracket for top wind sheet

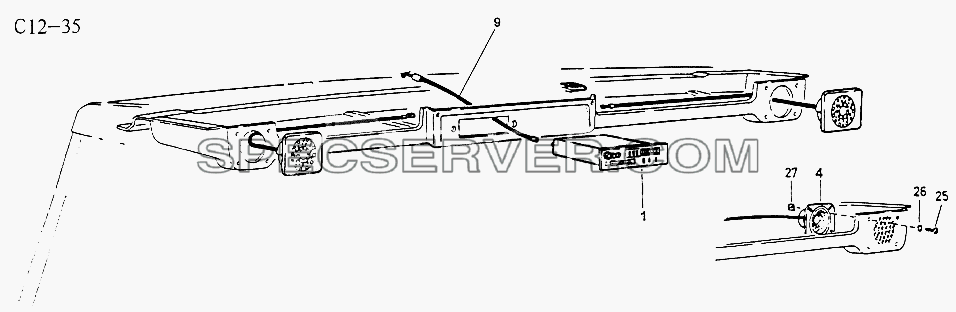

RADIO (C12-35) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№		Номер детали	Наименование запчасти
1		WG9130780026 [Radio]	Radio
1		WG9719780001 [Radio with electro adjuster]	Radio with electro adjuster
1		WG9719780002 [Radio with CD]	Radio with CD
4		WG9719780003 [Reproducer]	Reproducer
5		AZ9719770003 [Electrical line on roof of cab]	Electrical line on roof of cab
5		AZ9719770006 [Electrical line on roof of cab]	Electrical line on roof of cab
9		WG9130780001 [Cable]	Cable
25		Q2714216 [Screw]	Screw
26		Q40004 [Washer]	Washer
27		1900039699563 [Elastic nut]	Elastic nut
