Запчасти: HIGH ROOF FOR CAB "C/F" (B12-20) для Sinotruk 4x2 Tractor (371)

HIGH ROOF FOR CAB "C/F" (B12-20) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
1	WG1614170001 [Luxury High coping]	Luxury High coping
2	90007990071 [Glue]	Glue
3	90007990156 [Glue]	Glue
4	WG1614170015 [High coping]	High coping
6	WG1614170003 [Coping inner trim of High coping]	Coping inner trim of High coping
7	WG1614170004 [Left inner trim of High coping]	Left inner trim of High coping
8	WG1614170005 [Right inner trim of High coping]	Right inner trim of High coping
9	WG1614170006 [Rear inner trim of High coping]	Rear inner trim of High coping
10	WG1614170007 [Handle of upper sleeper]	Handle of upper sleeper
11	WG1614170008 [Inner trim over the left door]	Inner trim over the left door
12	WG1614170009 [Inner trim over the right door]	Inner trim over the right door
13	WG1614170010 [Upper storage box]	Upper storage box
14	WG1614170011 [Upper storage box support]	Upper storage box support
15	WG1614170012 [Icebox support]	Icebox support
16	WG1614170013 [Storage box]	Storage box
17	WG1614170014 [Upper storage box support]	Upper storage box support
18	Q2140616 [Srew]	Srew
19	Q69208 [Plastic pin]	Plastic pin
20	Q2723516 [Tapping screw]	Tapping screw
21	Q40204 [Washer]	Washer
22	Q1840816 [Flange bolt]	Flange bolt
23	Q1840616 [Flange bolt]	Flange bolt
24	Q4420408 [Rivet]	Rivet
25	Q4420408 [Rivet]	Rivet
26	Q2723516 [Tapping screw]	Tapping screw
27	WG1600770001 [Sun visor]	Sun visor
28	Q2140525 [Screw]	Screw
29	Q340B05 [Nut]	Nut
30	Q40105 [Washer]	Washer

Запчасти: RADIO (B12-21) для Sinotruk 4x2 Tractor (371)

RADIO (B12-21) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

Запчасти: FIXATION FOR JACK, TOOL BOX (B12-22) для Sinotruk 4x2 Tractor (371)

Таблица запасных частей

№	Номер детали	Наименование запчасти
2	AZ1600290001 [Toolbox with handle assembly]	Toolbox with handle assembly
3	116000290212 [Spring blade]	Spring blade
4	116100290013 [Support]	Support
5	116100290027 [Pad]	Pad
6	116100290014 [Holder]	Holder
7	Q2714838 [Crosshead bolt]	Crosshead bolt
9	116100290030 [Jack fixed bracket assem]	Jack fixed bracket assem
9	AZ1600290060 [Jack fixed bracket assem]	Jack fixed bracket assem
10	190003844559 [Hexagon head tap bolt]	Hexagon head tap bolt
11	116100290037 [Plate]	Plate
13	199100860001 [Fixed clamp]	Fixed clamp
14	Q2300512 [Assembled crosshead and washer]	Assembled crosshead and washer
15	Q150B0825 [Hexagon head tap bolt]	Hexagon head tap bolt
16	Q340B08 [Hexagon head tap bolt]	Hexagon head tap bolt
17	Q40208 [Washer]	Washer

Запчасти: SLEEPER FOR STANDART, MED.- ROOF CAB (B12-23) для Sinotruk 4x2 Tractor (371)

Таблица запасных частей

№	Номер детали	Наименование запчасти
-	AZ1600573013 [Sleeper mat]	Sleeper mat
-	AZ1615570013 [Sleeper support]	Sleeper support
2	AZ1600572001 [Frame]	Frame
2	AZ1613570015 [Sleeper]	Sleeper
2	AZ1672570011 [Lower sleeper]	Lower sleeper
3	AZ1672570013 [Sleeper supporter]	Sleeper supporter
4	Q150B0825 [Bolt]	Bolt
5	Q40008 [Washer]	Washer
6	AZ1672570021 [Upper sleeper]	Upper sleeper
7	AZ1672570015 [Right hinge]	Right hinge
8	AZ1672570016 [Left hinge]	Left hinge
9	Q150B1020Q [Bolt]	Bolt
10	AZ1672570020 [Rear hinge of upper sleeper]	Rear hinge of upper sleeper
11	Q150B0825 [Bolt]	Bolt
12	Q40008 [Washer]	Washer
13	Q5100850 [Pin]	Pin
14	Q5003220 [Splint pin]	Splint pin
15	Q40008 [Washer]	Washer
16	16002570192 [Saft belt base]	Saft belt base
17	90003846960 [Bolt]	Bolt
18	16102570149 [Pillow]	Pillow

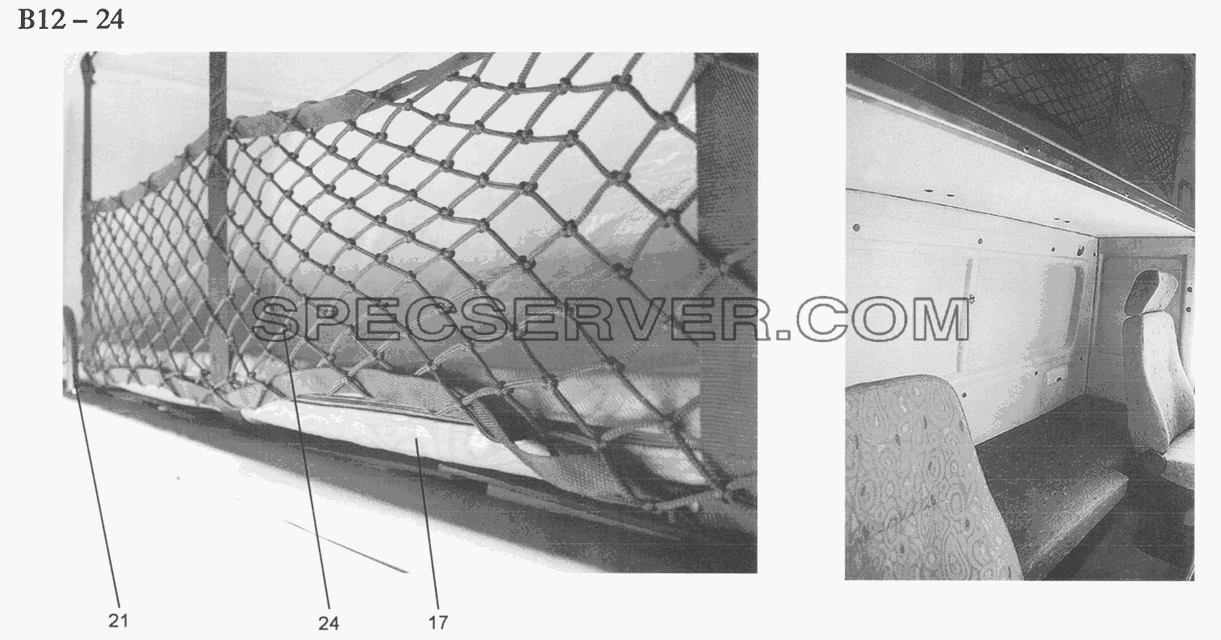

SLEEPER FOR HIGH ROOF CAB (B12-24) для Sinotruk 4x2 Tractor (371) (список запасных частей)

Таблица запасных частей

№	Номер детали	Наименование запчасти
2	AZ1672570002 [Sleeper]	Sleeper
3	Q150B0825 [Bolt]	Bolt
4	Q40008 [Washer]	Washer
5	AZ1600576026 [Pothook]	Pothook
6	AZ1600576028 [Bushing]	Bushing
7	Q150B0635 [Bolt]	Bolt
8	Q40306 [Spring washer]	Spring washer
9	AZ1600576015 [Pillow]	Pillow
10	WG1600576031 [Storage box]	Storage box
11	Q150B0825 [Bolt]	Bolt
12	Q40008 [Washer]	Washer
13	WG1600576036 [Sleeper support]	Sleeper support
14	Q15080825 [Bolt]	Bolt
15	Q40008 [Washer]	Washer
16	AZ1692570001 [Upper sleeper assemble]	Upper sleeper assemble
17	AZ1692570004 [Upper sleeper mat]	Upper sleeper mat
18	AZ1692570002 [Left Sleeper support board]	Left Sleeper support board
19	AZ1692570003 [Right Sleeper support board]	Right Sleeper support board
20	Q2714216 [Tapping screw]	Tapping screw
21	WG1692570007 [Sleeper handle]	Sleeper handle
22	Q150B0616 [Bolt]	Bolt
23	Q40206 [Washer]	Washer
24	AZ1692570010 [Net]	Net
25	116102570066 [Board]	Board
26	Q150B0616 [Bolt]	Bolt
27	AZ1692570011 [Cover]	Cover
28	AZ1692570013 [Anger board]	Anger board
29	Q4400512 [Rivet]	Rivet
30	AZ1692570012 [Support board]	Support board
31	Q2714216 [Tapping screw]	Tapping screw
33	AZ1692570015 [Step]	Step
34	Q150B0820 [Bolt]	Bolt
35	Q40108 [Washer]	Washer
36	Q40308 [Spring washer]	Spring washer
