Honda Ridgeline. Manual - part 572

０１

ＳＪＣ８Ａ００Ｋ７９１０００Ｒ４３１ＸＦＡＡＴ０１

−

DTC 43-1x (‘‘x’’ can be 0 thru 9 or A thru F):

Special Tools Required

YES

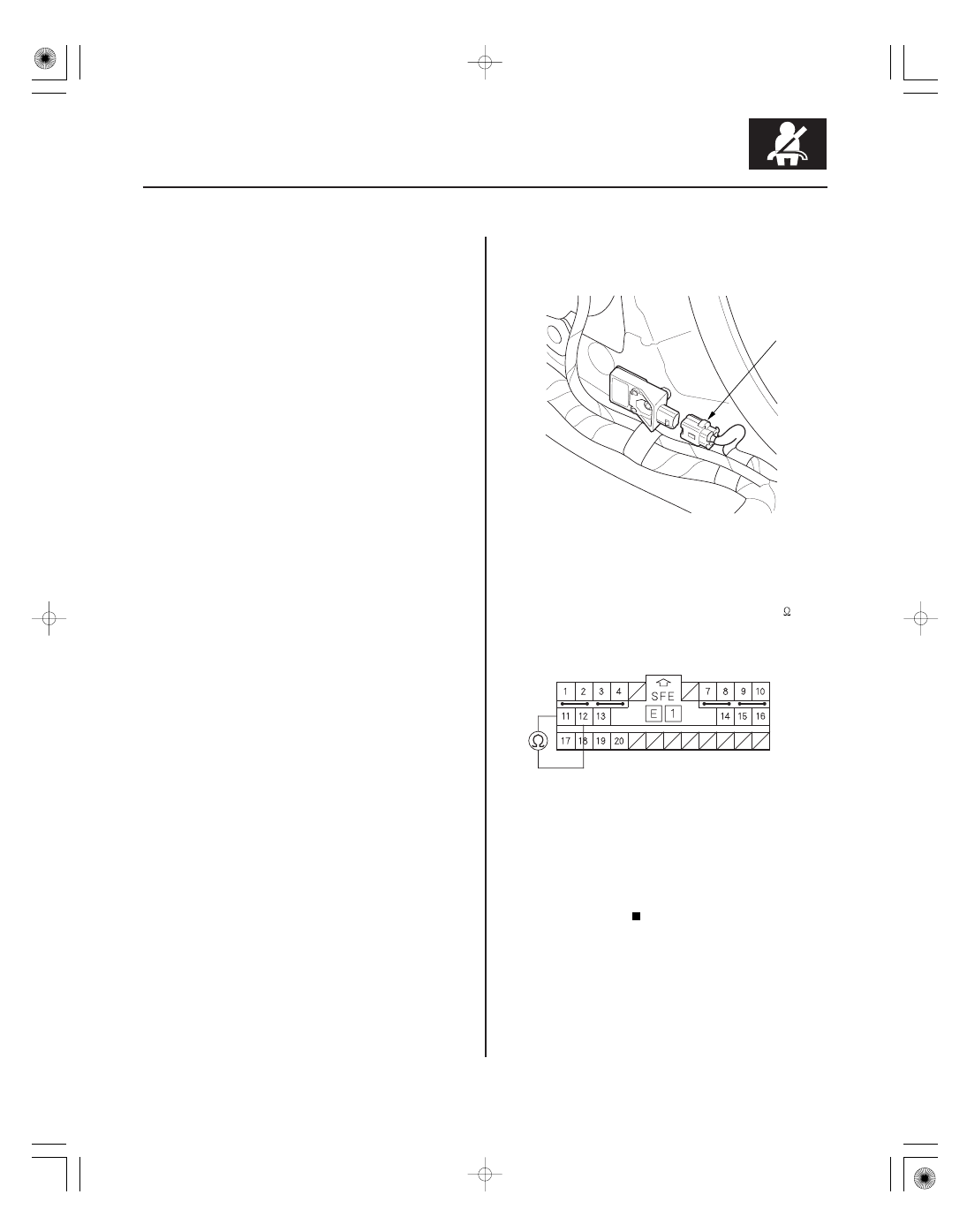

24-113

SRS UNIT CONNECTOR C (28P)

No Signal from the Left Side Impact Sensor
(first)

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

4. Check the connection between the floor wire

harness 2P connector and the left side impact
sensor (first) (see page 24-189).

Go to step 5.

Repair the poor connection and retest. If DTC

43-1x is still present, go to step 5.

5. Disconnect the floor wire harness 2P connector (A)

from the left side impact sensor (first) (see page
24-14).

6. Disconnect SRS unit connector C (28P) from the

SRS unit (see step 7 on page 24-26).

7. Measure the resistance between the No. 11 and

No. 12 terminals of SRS unit connector C (28P).
There should be an open circuit or at least 1 M

Go to step 8.

Short in the floor wire harness; replace the

floor wire harness.

(cont’d)

Wire side of female terminals

Does the SRS indicator stay on, and is DT C 43-1x
indicated?

Is the connection OK ?

Is the r esistance as specif ied?

０２

０３

０５

−

YES

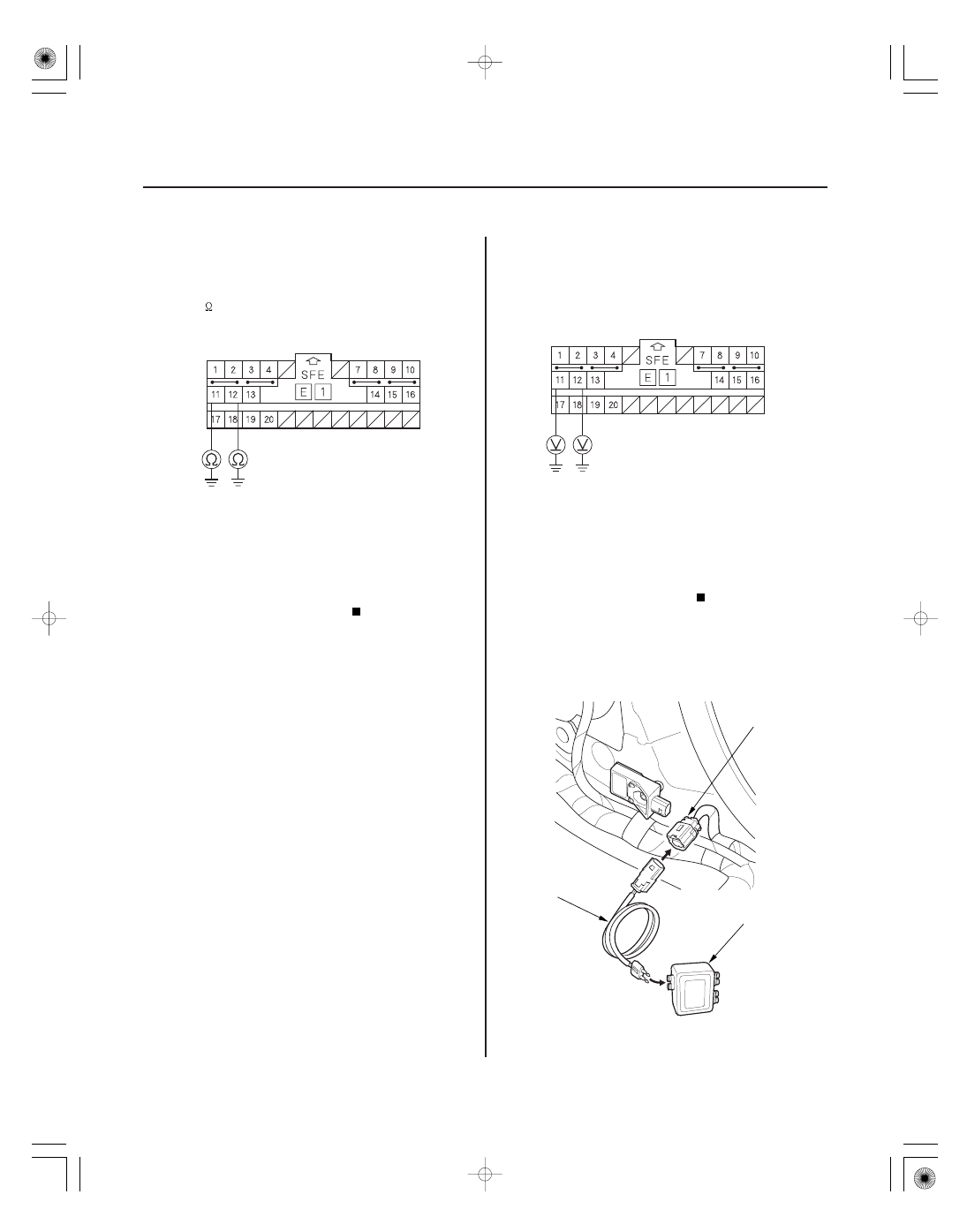

24-114

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR C (28P)

07SAZ-TB4011A

07YAZ-S3AA100

8. Measure the resistance between the No. 11

terminal of SRS unit connector C (28P) and body
ground, and between the No. 12 terminal and body
ground. There should be an open circuit or at least
1 M

Go to step 9.

Short to ground in the floor wire harness;

replace the floor wire harness.

9. Reconnect the negative cable to the battery.

10. Turn the ignition switch ON (II).

11. Measure the voltage between the No. 11 terminal

of SRS unit connector C (28P) and body ground,
and between the No. 12 terminal and body ground.
There should be 1 V or less.

Go to step 12.

Short to power in the floor wire harness;

replace the floor wire harness.

12. Turn the ignition switch OFF.

13. Connect the SRS inflator simulator (jumper

connector) and simulator lead H to the floor wire
harness 2P connector (A).

Wire side of female terminals

Is the r esistance as specif ied?

Is the voltage as specif ied?

０４

ＳＪＣ８Ａ００Ｋ７９１０００Ｒ４４１ＸＦＡＡＴ００

−

YES

Special Tools Required

YES

DTC 44-1x (‘‘x’’ can be 0 thru 9 or A thru F):

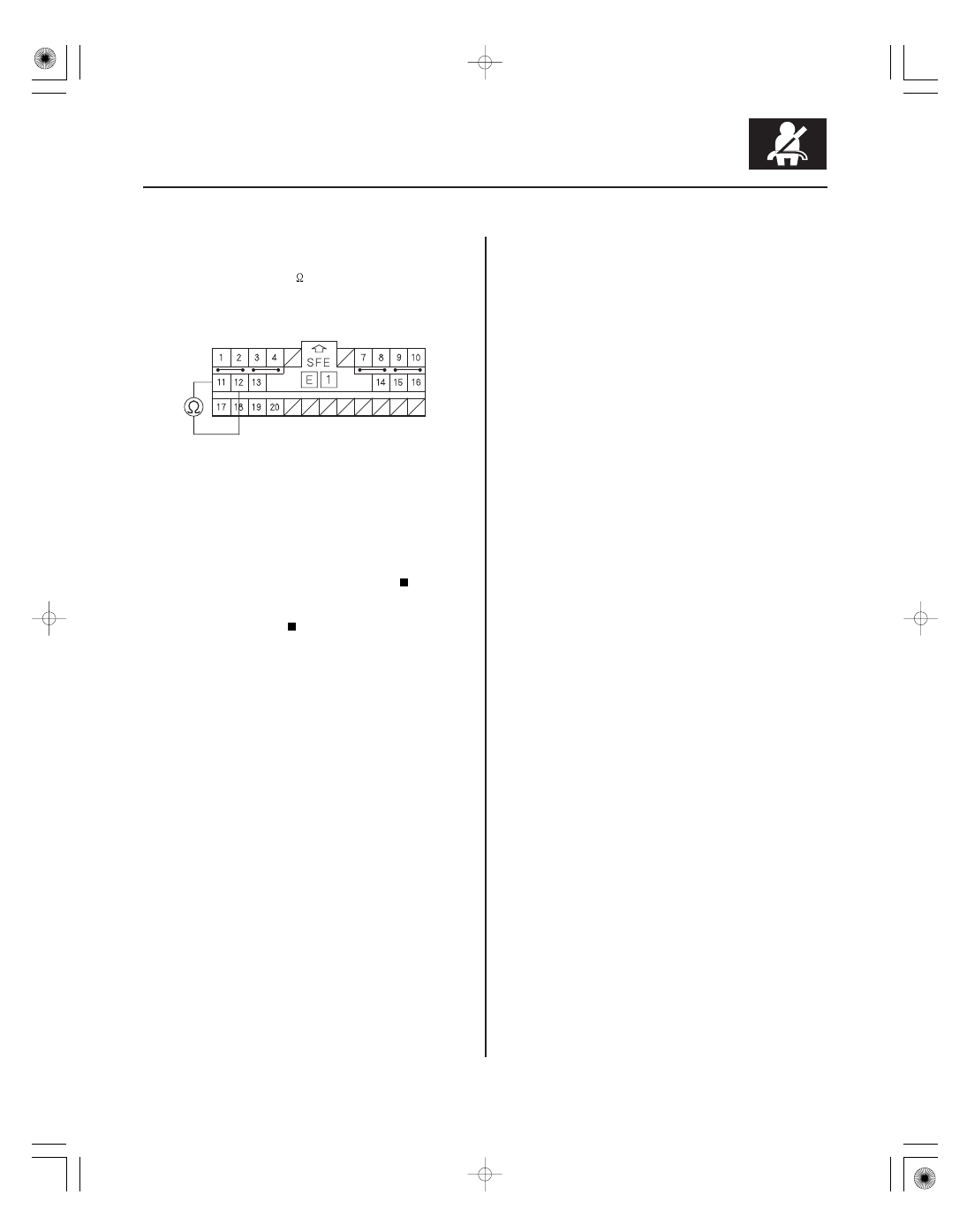

24-115

SRS UNIT CONNECTOR C (28P)

14. Measure the resistance between the No. 11 and

No. 12 terminals of SRS unit connector C (28P).
There should be 1.0

or less.

Faulty left side impact sensor (first) or SRS

unit; replace the left side impact sensor (first)
(see page 24-189). If the problem is still present,
replace the SRS unit (see page 24-188).

Open in the floor wire harness; replace the

floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead H 07YAZ-S3AA100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

4. Check the connection between the floor wire

harness 2P connector and the right side impact
sensor (first) (see page 24-189).

Go to step 5.

Repair the poor connection and retest. If the

DTC 44-1x is still present, go to step 5.

(cont’d)

No Signal from the Right Side Impact Sensor
(first)

Wire side of female terminals

Is the r esistance as specif ied?

Does the SRS indicator stay on, and is DT C 44-1x
indicated?

Is the connection OK ?

０１

０２

−

YES

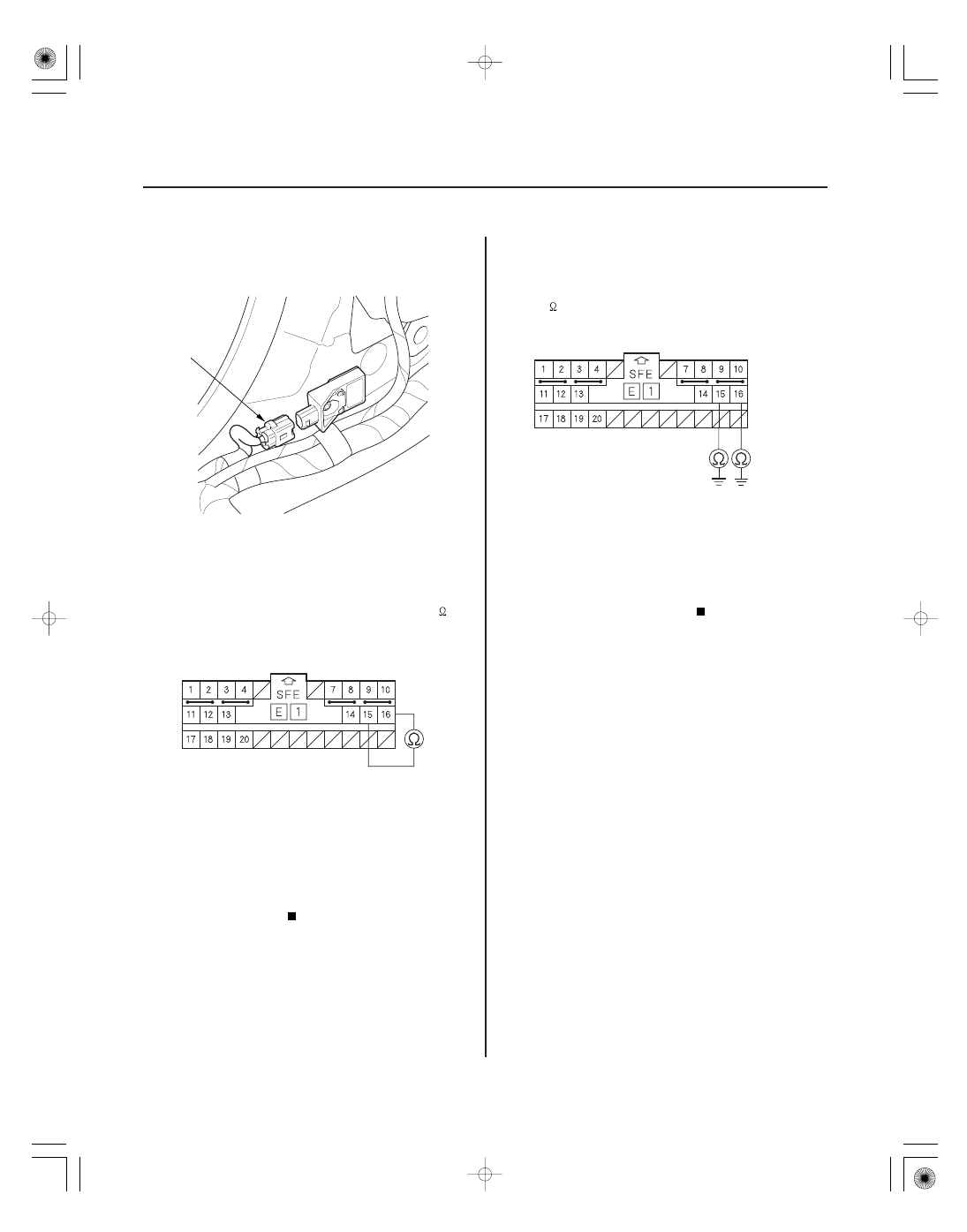

24-116

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR C (28P)

5. Disconnect the floor wire harness 2P connector (A)

from the right side impact sensor (first) (see page
24-14).

6. Disconnect SRS unit connector C (28P) from the

SRS unit (see step 7 on page 24-26).

7. Measure the resistance between the No. 15 and

No. 16 terminals of SRS unit connector C (28P).
There should be an open circuit or at least 1 M

Go to step 8.

Short in the floor wire harness; replace the

floor wire harness.

8. Measure the resistance between the No. 15

terminal of SRS unit connector C (28P) and body
ground, and between the No. 16 terminal and body
ground. There should be an open circuit or at least
1 M

Go to step 9.

Short to ground in the floor wire harness;

replace the floor wire harness.

9. Reconnect the negative cable to the battery.

10. Turn the ignition switch ON (II).

Wire side of female terminals

Is the r esistance as specif ied?
