Honda Ridgeline. Manual - part 538

ＳＪＣ８ＡＮ１Ｊ３６１００００００００ＦＡＡＴ２２

１２

ＳＪＣ８ＡＮ１Ｊ３６１００００００００ＦＡＡＴ２３

−

Display can be opened and/or closed even
when a CD is being inserted or ejected

OPEN/CLOSE function of the display does
not work

YES

23-118

Navigation System

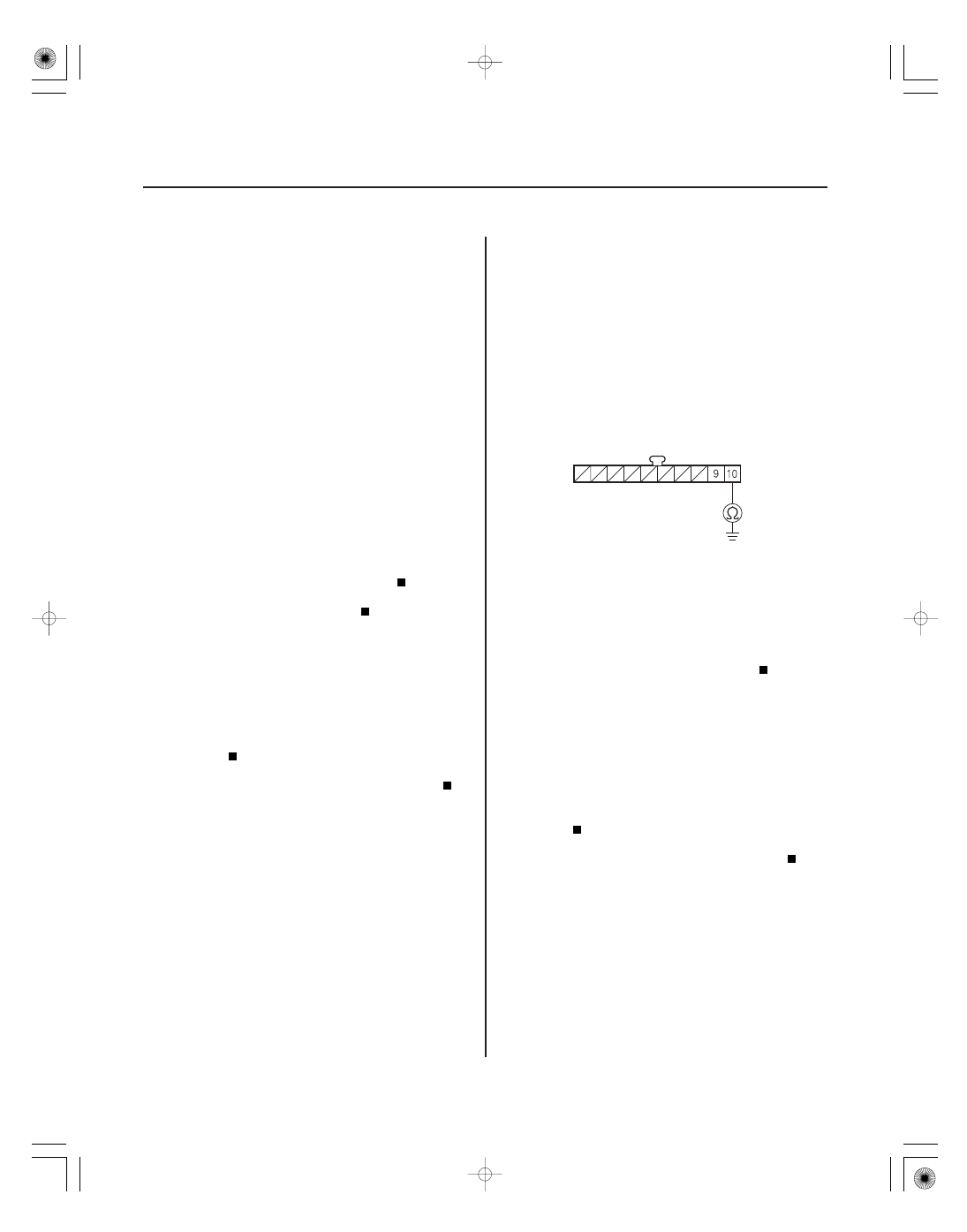

Symptom Troubleshooting (cont’d)

NAVIGATION DISPLAY CONNECTOR B (10P)

CD EJECT (GRN/RED)

1. Go into the Diagnostic Menu and use the ‘‘Navi

System Link’’ test (see page 23-121) to check the
connection between the navigation display and the
CD changer.

Go to step 2.

Go to step 3.

2. Check to see if the navigation display connector B

(10P) and the CD changer connector A (18P) are
connected securely.

Check open in the wire between the

navigation display connector B (10P) terminal
No. 10 and the CD changer connector A (18P)
terminal No. 4. If open, repair the wire.

Reconnect the connectors.

3. Substitute a known-good navigation display, and

check to see if the display and the CD changer work
normally.

Replace the navigation display (see page

23-141).

Replace the CD changer (see page 23-58).

1. Turn the ignition switch OFF.

2. Disconnect the navigation display connector B

(10P) and CD changer connector A (18P).

3. Check for continuity between navigation display

connector B (10P) terminal No. 10 and body ground.

Repair short in the wire between navigation

display connector B (10P) terminal No. 10 and CD
changer connector A (18P) terminal No. 4.

Go to step 4.

4. Substitute a known-good navigation display, and

check to see if the display opens and closes
normally.

Replace the navigation display (see page

23-141).

Replace the CD changer (see page 23-58).

Wire side of female terminals

Is the ‘‘6CD’’ icon r ed?

Ar e the connector s connected secur ely?

Do the display and the CD changer wor k
nor mally?

Is ther e continuity?

Does the display wor k nor mally?

ＳＪＣ８ＡＮ１Ｊ３６１００００００００ＦＡＡＴ２４

ＳＪＣ８ＡＮ１Ｊ３６１００００００００ＦＡＡＴ２５

−

Navigation display will not close

Navigation display does not open or opens
part way

YES

23-119

1. Check the CD door. Look for foreign objects, stuck

CD, broken or sticking door.

Go to step 2.

Repair/replace the CD changer.

2. Remove the CD changer (see page 23-58). Check

the voltage on the navigation display connector B
(10P) terminal No. 10.

Check the connections on connector B (10P)

terminal No. 10 at the navigation display unit. If OK,
substitute a known-good navigation display and
recheck. If the problem is repaired, replace the
navigation display (see page 23-141).

Go to step 3.

3. Disconnect the navigation display connector B

(10P) and the CD changer connector A (18P). Check
for continuity to body ground on terminal No. 4 of
the CD changer connector.

Repair short in the wire between the

navigation display and the CD changer.

Replace the CD changer (see page 23-58).

1. Press the Open/Close button.

Check the navigation display for foreign

objects. If there are none, substitute a known-good
navigation display and recheck. If the problem is
repaired, replace the original navigation display
(see page 23-141).

Remove the navigation display and check for

loose connections to the display. If the connections
are OK, substitute a known-good navigation display
and recheck. If the problem is repaired, replace the
navigation display (see page 23-141).

Is the CD door OK ?

Is ther e about 3.0 V ?

Is ther e continuity?

Does a beep sound?

＋

−

０１

＊０１

ＳＪＣ８ＡＮ１Ｊ３６１００００００００ＦＥＡＴ００

Start-up procedure and Diagnosis Menu

Factory diagnostic screen ‘‘In Line Diag’’

23-120

Navigation System

System Diagnostic Mode

Select Diagnosis Items

Return

Navi System

Monitor Check

Unit Check

Car Status

GPS Information

Yaw Rate

Tire Calibrate

Functional Set up

Version

DIAGNOSTIC MENU SCREEN

GPS Antenna

Navi ECU

A/C

Radio

F-CAN

XM(HIP)

HFL

Display

XXXXCorrect PIN

Rear Camera

In Line Diag

Exit Diag

Start Diag

BACK

Delete

Done

There are two ways to enter the diagnostic mode:

1. Connect the SCS service connector to the

navigation service connector located in the trunk.
Turn the ignition switch to the ON (II) position. The
display will go directly to the diagnostic menu
screen.

NOTE: When finished troubleshooting, make sure
to remove the SCS service connector.

2. Turn the ignition switch ON (II). Use the navigation

display hard buttons, press and hold the 3 buttons
(Menu, Map/Guide, and cancel), and keep them
pressed for about 5 seconds. The display screen
will go directly to the Select Diagnosis Items menu.

3. After the display changes to the Diagnostic items

menu, select the item you want to check, and the
diagnostic will start. To return to the previous
screen, select ‘‘Return’’.

• Navi System (Link)
• Monitor Check
• Unit Check
• Car Status
• F-CAN (System link)
• GPS Information
• Yaw Rate
• Tire Calibrate
• Functional Setup
• Version

NOTE: If the vehicle left the factory in the factory
diagnosis mode, you will see this screen every time you
turn on the ignition.

When a navigation control unit is powered up for the
first time at the factory, the ‘‘factory diagnosis‘‘ screen
(In Line Diag) shows up. Normally the factory performs
the steps necessary to verify proper operation and
terminate the ‘‘factory diagnostic‘‘.
Until the proper confirmation sequence is performed,
the screen will show up every time the vehicle is started.

Follow the steps below to prevent the screen from
showing up in the future:

• Hold down the buttons (Menu

Map/Guide

Cancel) for about 5 seconds (the ‘‘Select Diagnosis
items’’ screen will appear).

• Hold down the Map/Guide button for 5

10 seconds

(A screen with a ‘‘Complete’’ button, will appear).

• Touch ‘‘Complete’’, and then the ‘‘Return’’ button (the

system may re-boot).

• Restart the vehicle, and confirm normal operation by

completing the ‘‘TQI of the Navigation System’’
Service Bulletin.

０１

−

Navi System Link

23-121

Navi System Link

Navi.ECU

Return

Exit Diag

BACK

Air

Con

Display

Radio

6CD

R- Camera

GPS Ant.

• This diagnostic tests the cables connecting the

navigation components. Ensure that the ignition
switch is in the ON (II) position. When the diagnostic
begins, you hear a ‘‘bong‘‘ sound. The system is in a
‘‘Detecting’’ mode, and is waiting for all items in
white to be tested. This includes the voice control
switch (TALK/BACK buttons), and microphone. Press
the TALK button on the steering wheel, and in a
normal voice, say ‘‘testing‘‘. The talk indicator on the
screen should turn green, and the voice level
indicator should move to at least the 6th bar to pass.
Next, press the BACK button. The ‘‘Cancel‘‘ indicator
should turn green.

• If all of the communication lines connecting the

system components, and the TALK/BACK buttons/
microphone check out OK (all block diagram items
green), then the ‘‘OK’’ indicator turns green.

• If there is a problem with the system, the faulty

system component item turns red, and the screen will
show ‘‘NG’’ in red. Use the troubleshooting index,
and other diagnostic screens to help locate the
problem.

• The indication on the screen may not change until

you cycle the ignition switch. After repairing the
affected cable or system, repeat this diagnostic.
NOTE: Green boxes and green ‘‘OK’’ indicate that the
communications lines (cables) are intact. This
diagnostic does not necessarily imply that the
individual components are functioning properly. For
instance, the GPS antenna wire may be crushed, but
still show as ‘‘green’’. A road test, or other diagnostic
may be necessary to find the problem. The rearview
camera feature is optional. If the camera is not
installed, the ‘‘rear camera’’ icon is yellow/orange.
When the camera is installed the icon is green. If the
icon is not green with the rearview camera installed,
check for opens or shorts in the rearview camera
cable.

• Select ‘‘Return’’ to return to the Diagnostic Menu or

the ‘‘Exit Diag’’ button to exit.

NOTE:

• The Mic Level indicator must reach the 6th bar or

greater to pass the test.

• If the XM link is red or flashing red, go to audio

system symptom troubleshooting, or see XM (HIP)
diagnostic screen.

(cont’d)
