SJC8A00J54283214411DBAT00

Starter Cable

Alternator

B Cable

Battery Ground Cable

Engine Ground Cable A

Engine Ground Cable B

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-16

Connectors and Harnesses

Connector to Harness Index

T1

1

Right side of engine compartment

Under-hood fuse/relay box

T2

4

Middle of engine compartment

Starter motor

T5

2

Left side of engine compartment

Auxiliary under-hood fuse
box

(

)

Battery

Battery positive terminal

T101

9

Right side of engine compartment

Under-hood fuse/relay box

T102

6

Front of engine compartment

Alternator B terminal

G1

3

Left side of engine compartment

Body ground, via engine
ground cable

(

)

Battery

Battery negative terminal

G2

7

Right side engine compartment

Body ground, via engine
ground cable

T4

8

Right side engine compartment

Right side engine mount

T3

5

Left side of engine compartment

Transmission housing

(

)

Battery

Battery negative terminal

*01

22-17

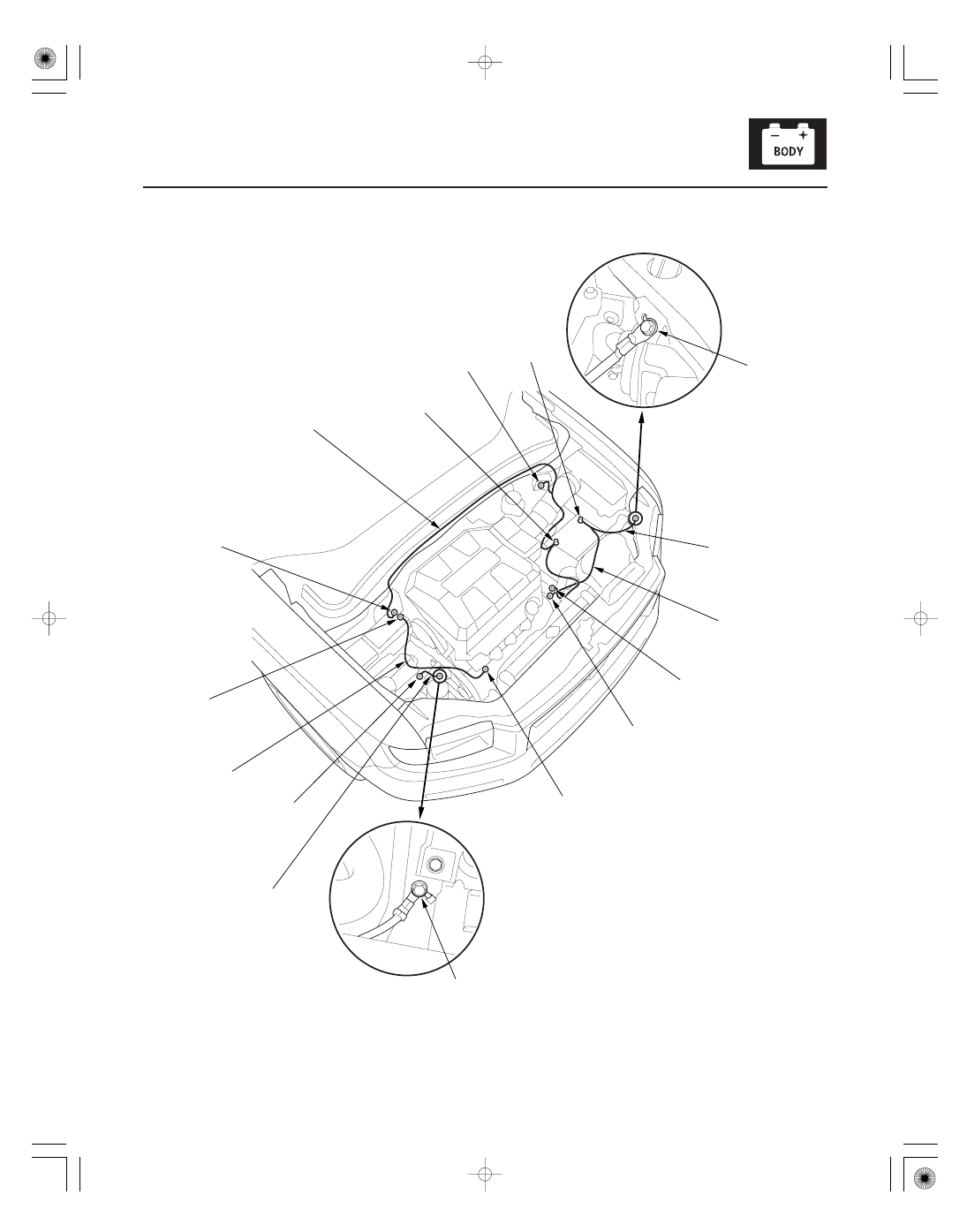

ENGINE GROUND
CABLE A

ALTERNATOR

B

CABLE

BATTERY GROUND
CABLE

ENGINE GROUND
CABLE B

STARTER CABLE

(

)

(

)

2

3

4

5

1

6

7

8

9

SJC8A00J54283225101DBAT00

Engine Wire Harness

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-18

Connectors and Harnesses

Connector to Harness Index (cont’d)

A/F sensor, front (Bank 2, sensor 2)

36

8

Cylinder head

A/F sensor, rear (Bank 1, sensor 1)

10

8

Exhaust manifold (front bank)

Alternator

44

4

Middle of engine compartment

A/T clutch pressure control valve A

26

2

Transmission housing

A/T clutch pressure control valve B

25

2

Transmission housing

A/T clutch pressure control valve C

18

2

Transmission housing

ATF temperature sensor

27

2

Transmission housing

CMP sensor

48

3

Right side of engine compartment

CKP sensor

54

6

Right side of engine compartment

ECT sensor 1

13

2

Left side of engine compartment

ECT sensor 2

16

2

Left side of engine compartment

EGR valve and valve position sensor

34

6

Middle of engine compartment

Engine oil pressure switch

49

1

Right side of engine compartment

EVAP canister purge valve

12

2

Middle of engine compartment

IAT sensor

33

2

Middle of engine compartment

Ignition coil No. 1

5

3

Middle of engine compartment

Ignition coil No. 2

7

3

Middle of engine compartment

Ignition coil No. 3

9

3

Middle of engine compartment

Ignition coil No. 4

43

3

Middle of engine compartment

Ignition coil No. 5

41

3

Middle of engine compartment

Ignition coil No. 6

38

3

Middle of engine compartment

Injector No. 1

46

2

Middle of engine compartment

Injector No. 2

42

2

Middle of engine compartment

Injector No. 3

39

2

Middle of engine compartment

Injector No. 4

45

2

Middle of engine compartment

Injector No. 5

40

2

Middle of engine compartment

Injector No. 6

37

2

Middle of engine compartment

Input shaft (mainshaft) speed sensor

31

3

Transmission housing

Intake manifold tuning (IMT) actuator

53

5

Right side of engine compartment

Knock sensor

47

1

Right side of engine compartment

Manifold absolute pressure (MAP)
sensor

14

3

Middle of engine compartment

Output shaft (countershaft) speed
sensor

30

3

Transmission housing

PCM connector B

52

44

Right side of engine compartment

PCM connector C

51

44

Right side of engine compartment

Rocker arm oil pressure switch (VTEC
oil pressure switch)

50

2

Right side of engine compartment

Rocker arm control solenoid valve
(VTEC solenoid valve)

55

1

Right side of engine compartment

Secondary heated oxygen sensor
(SHO2), front (Bank 2, Sensor 2)

35

4

Middle of engine compartment

Secondary heated oxygen sensor
(SHO2), rear (Bank 1, Sensor 2)

11

4

Middle of engine compartment

Starter solenoid

29

1

Left side of engine compartment

Throttle body

15

6

Left side of engine compartment

Transmission range switch

28

10

Transmission housing

3rd clutch transmission fluid pressure
switch

32

1

Transmission housing

4th clutch transmission fluid pressure
switch

19

1

Transmission housing

01

22-19

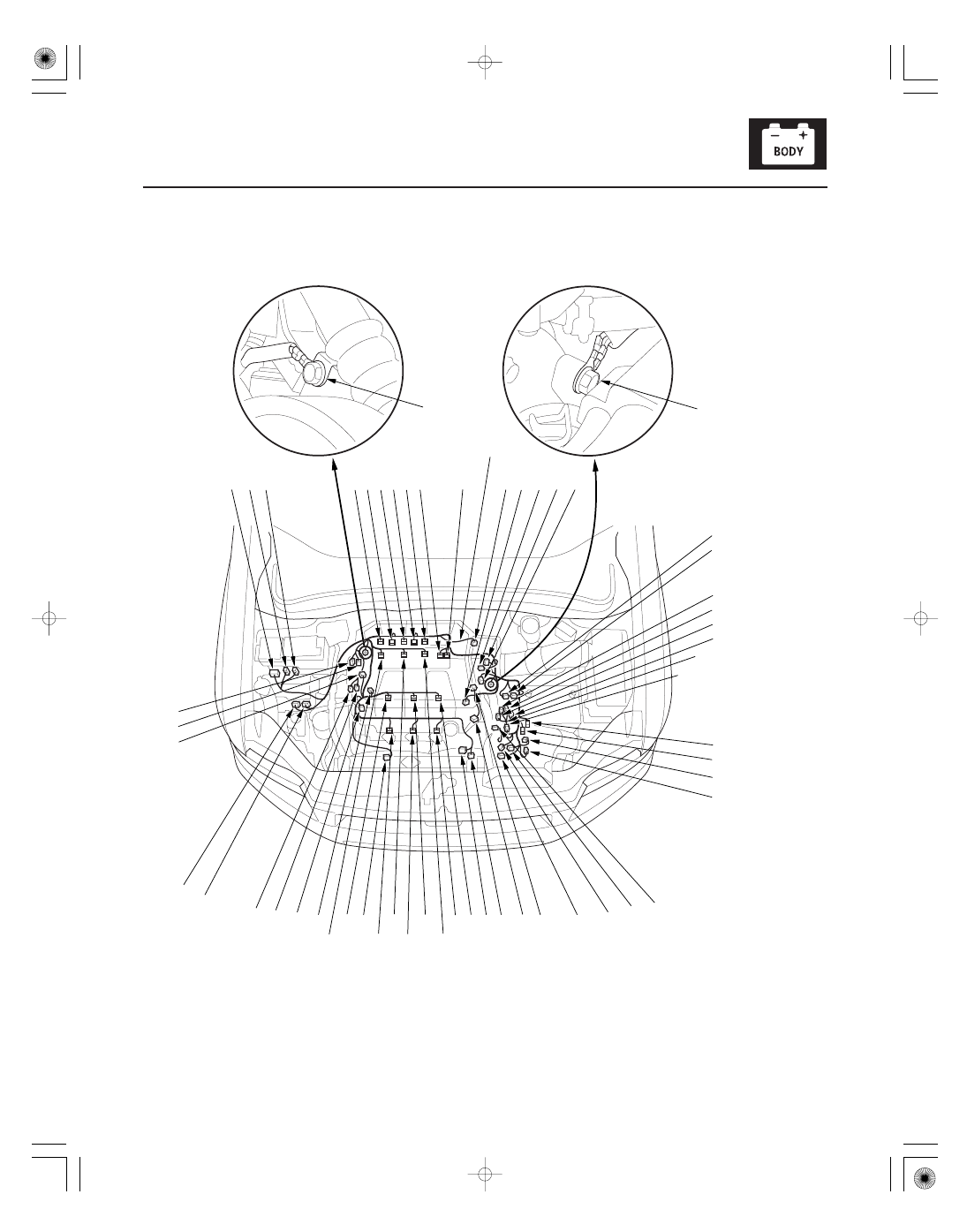

SHIFT SOLENOID/
TORQUE CONVERTER
CLUTCH SOLENOID
WIRE HARNESS

ENGINE
WIRE HARNESS

1

2

3

4

5 6 7 8 9 10

11

12 13 14 15 16

17

18

19

20

21
22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

(cont’d)
