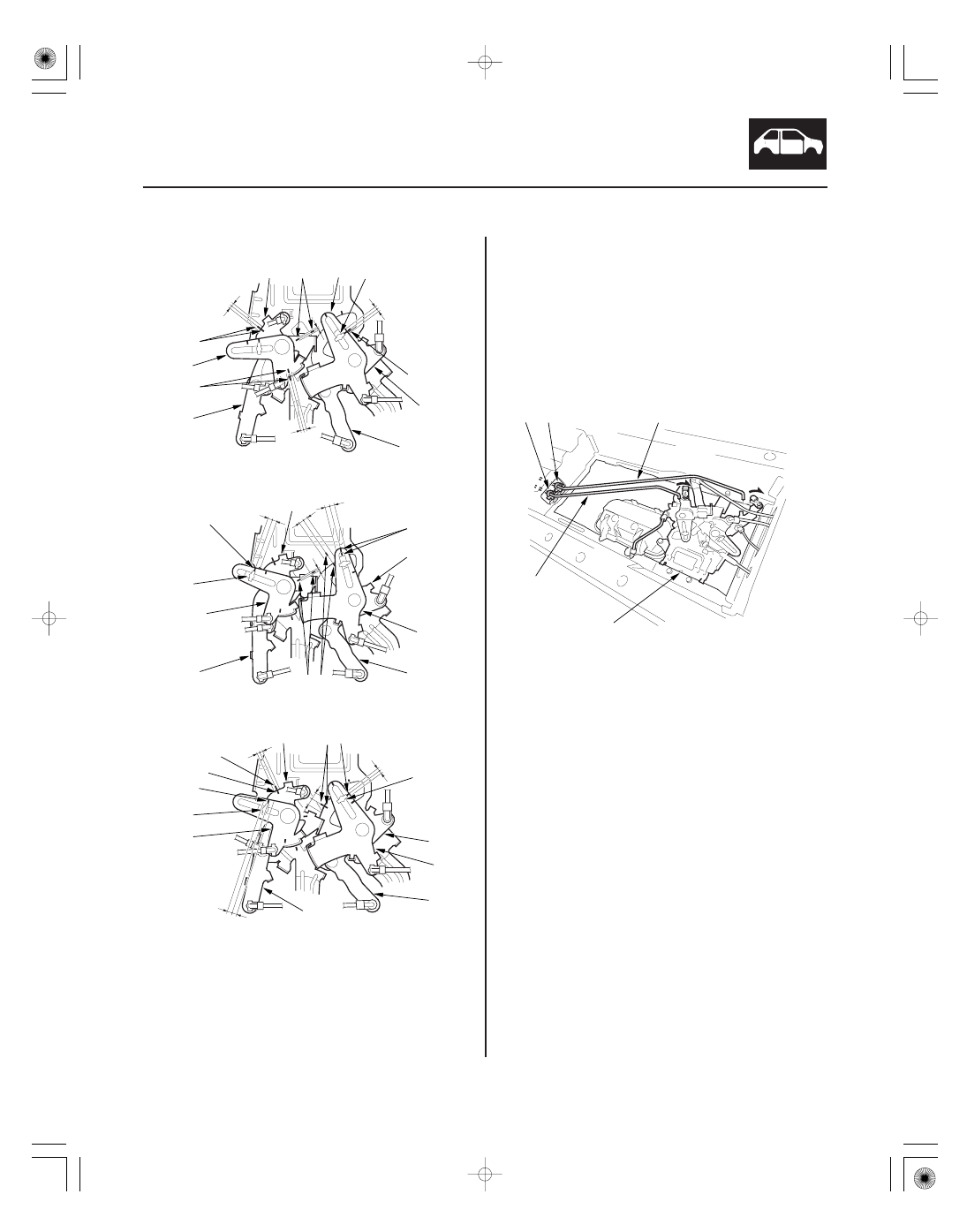

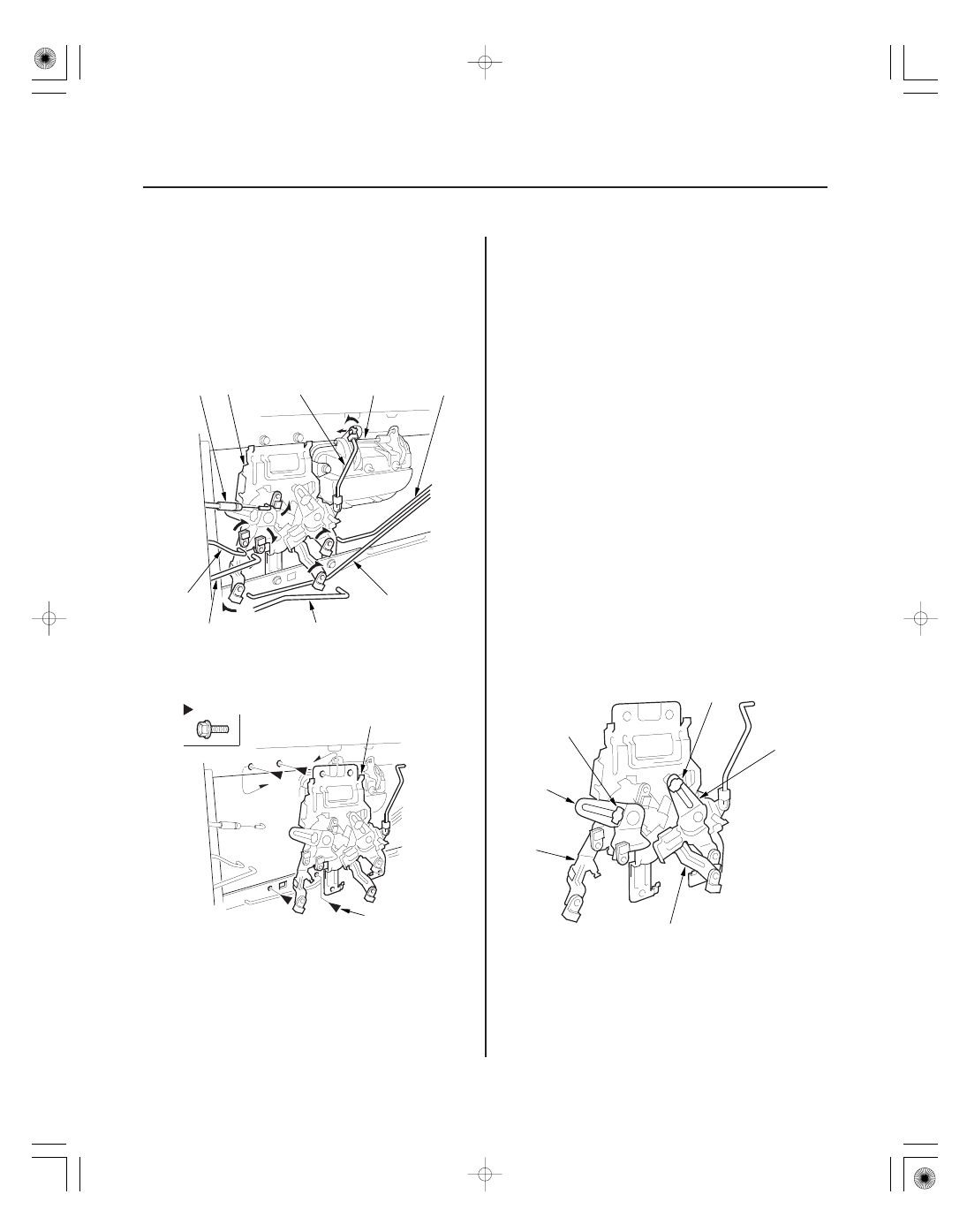

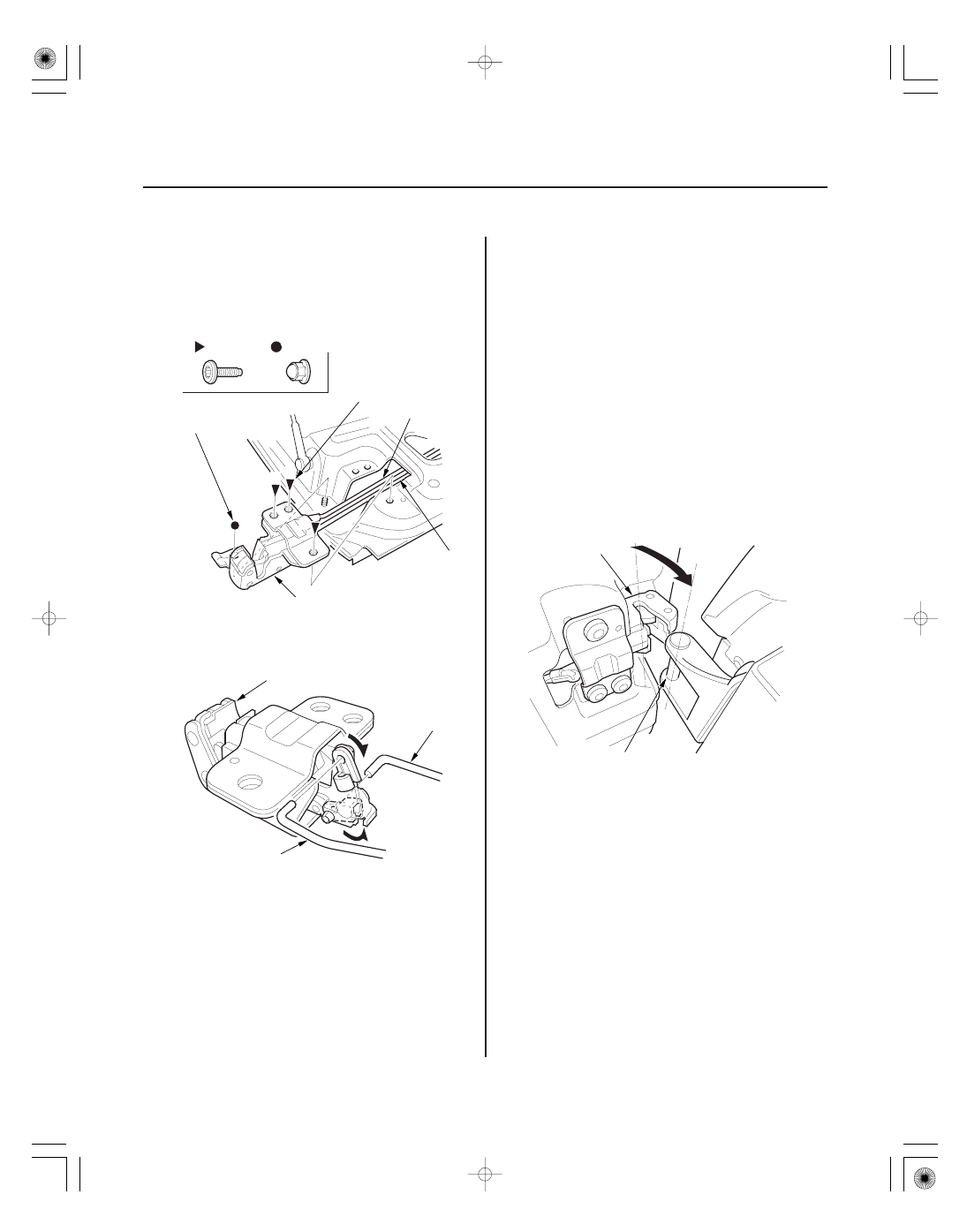

01 02 03 SJC8A00J18573958315KBAT00 Off the tailgate 20-142 Tailgate Tailgate Latch Synchronizer Replacement A B C D E F G H I Fastener Locations : Bolt, 4 6 x 1.0 mm A A B C D E C NOTE: Put on gloves to protect your hands. 1. Remove the tailgate trim panel (see page 20-140). 2. Disconnect the upper handle rod (A) from the upper handle (B), lower handle cable (C), right upper lock 3. Remove the bolts, and then remove the latch synchronizer (A). 4. Install the latch synchronizer in the reverse order of removal, and note these items: • The latch synchronizer is equipped with a fail- safe function for misconnected sensor rods. If • Make sure each cable and rod is connected securely. • After installing the latch synchronizer, check the positions of the timing marks (F) on both sensor • Make sure the tailgate operates properly: – The tailgate that is closed should open in drop- down mode by pulling on the upper handle. – The tailgate that is closed should open in swing mode by pulling on the lower handle. – The upper handle doesn’t function with the tailgate opened in swing mode. – The lower handle doesn’t function with the tailgate opened in drop-down mode. |
