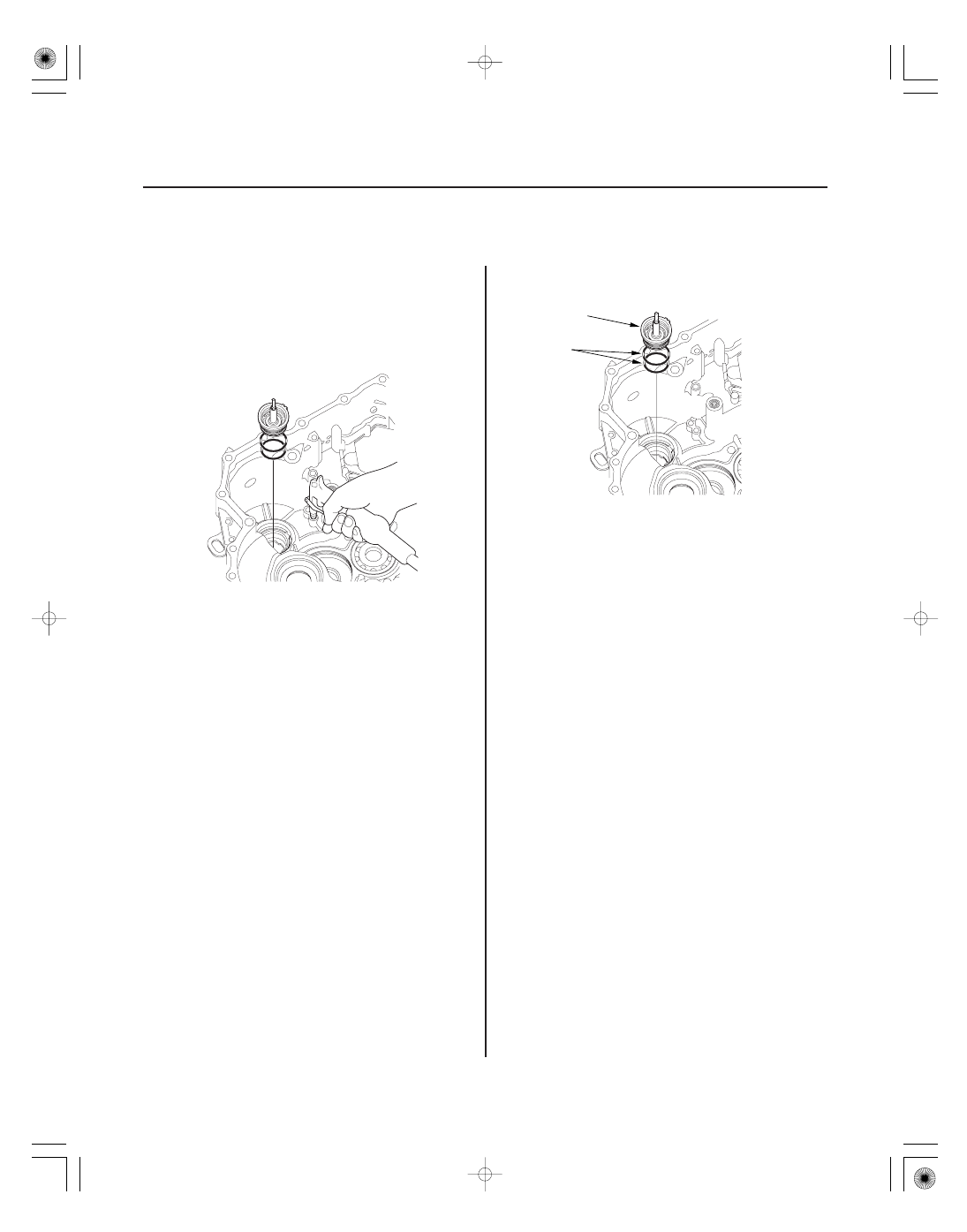

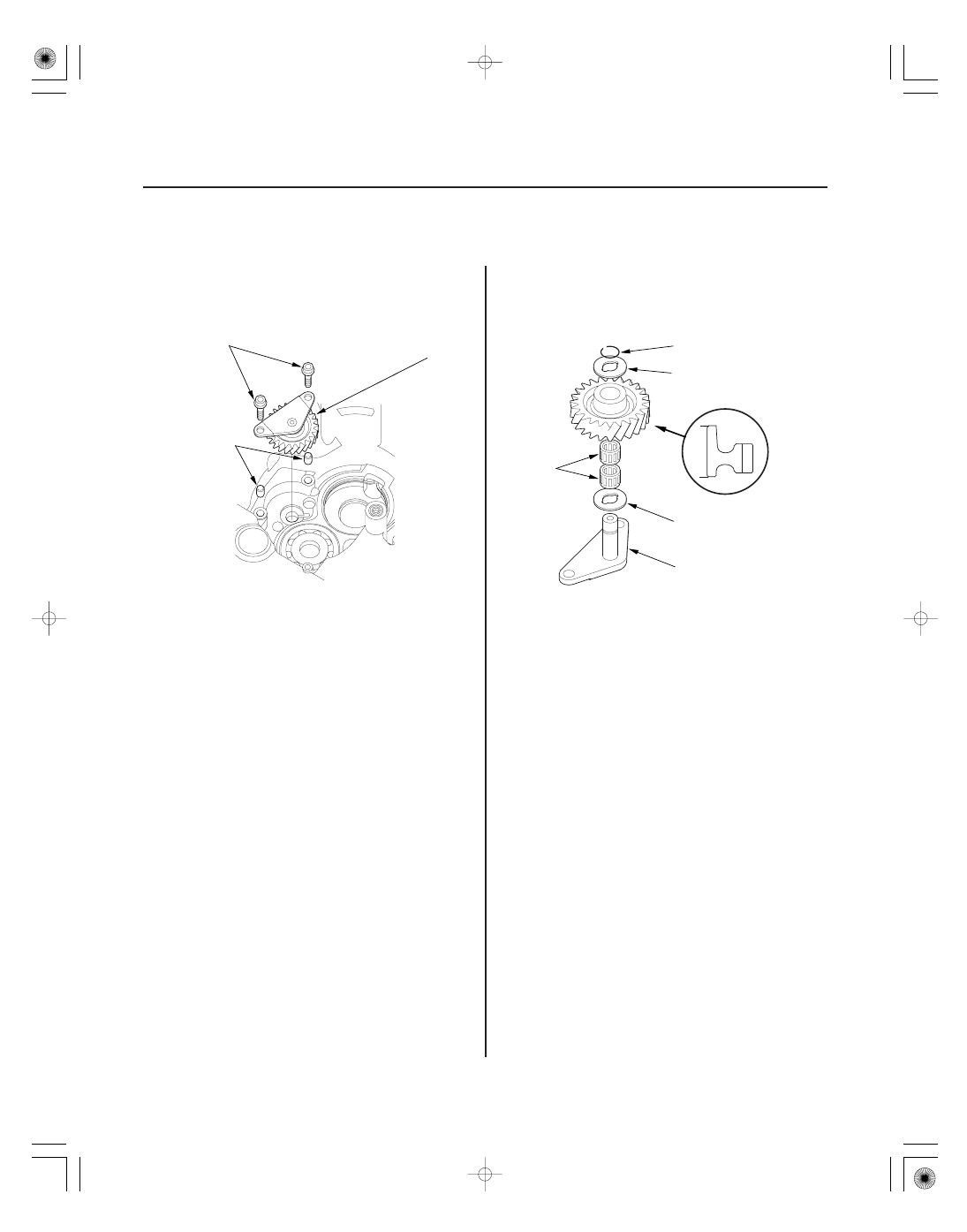

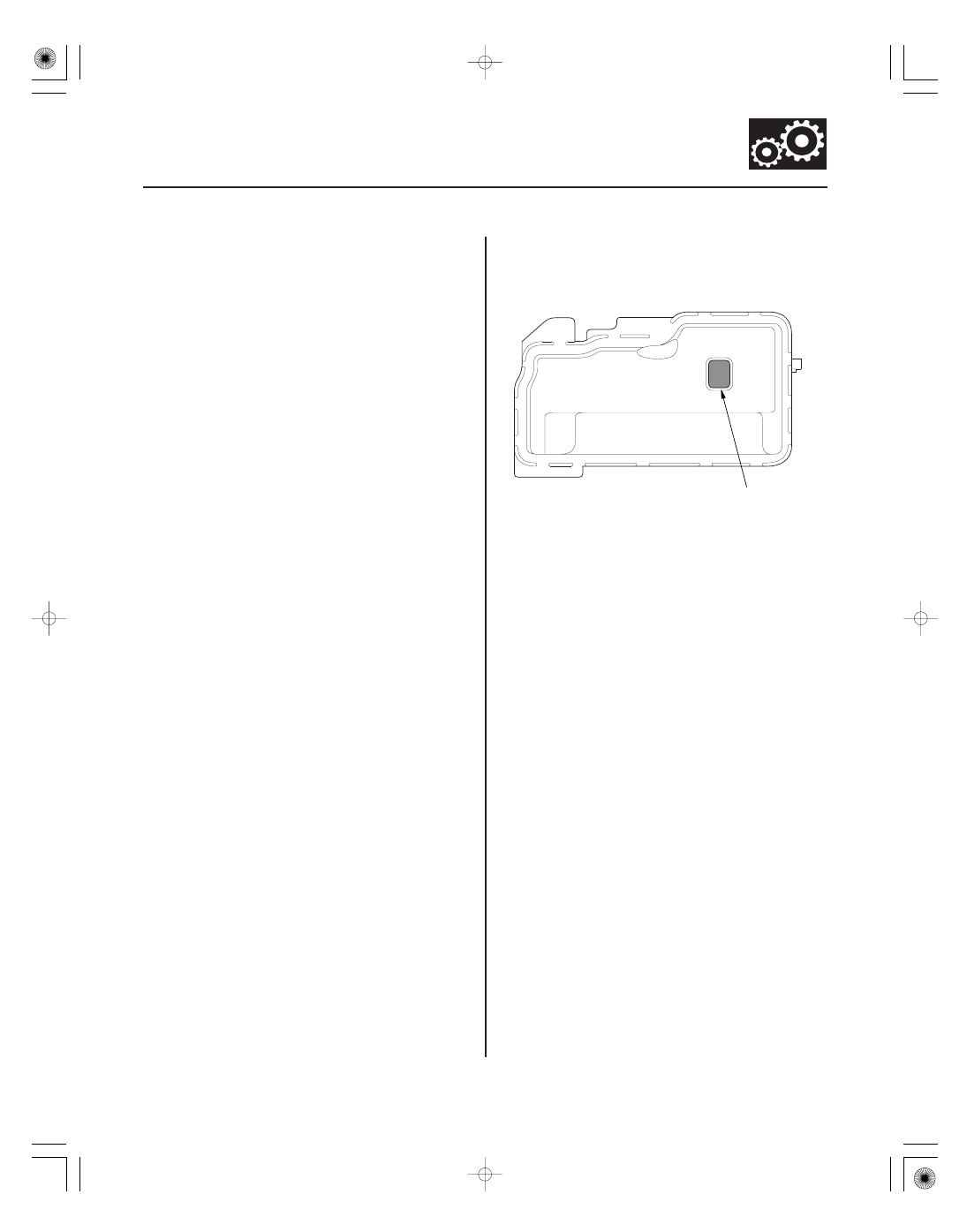

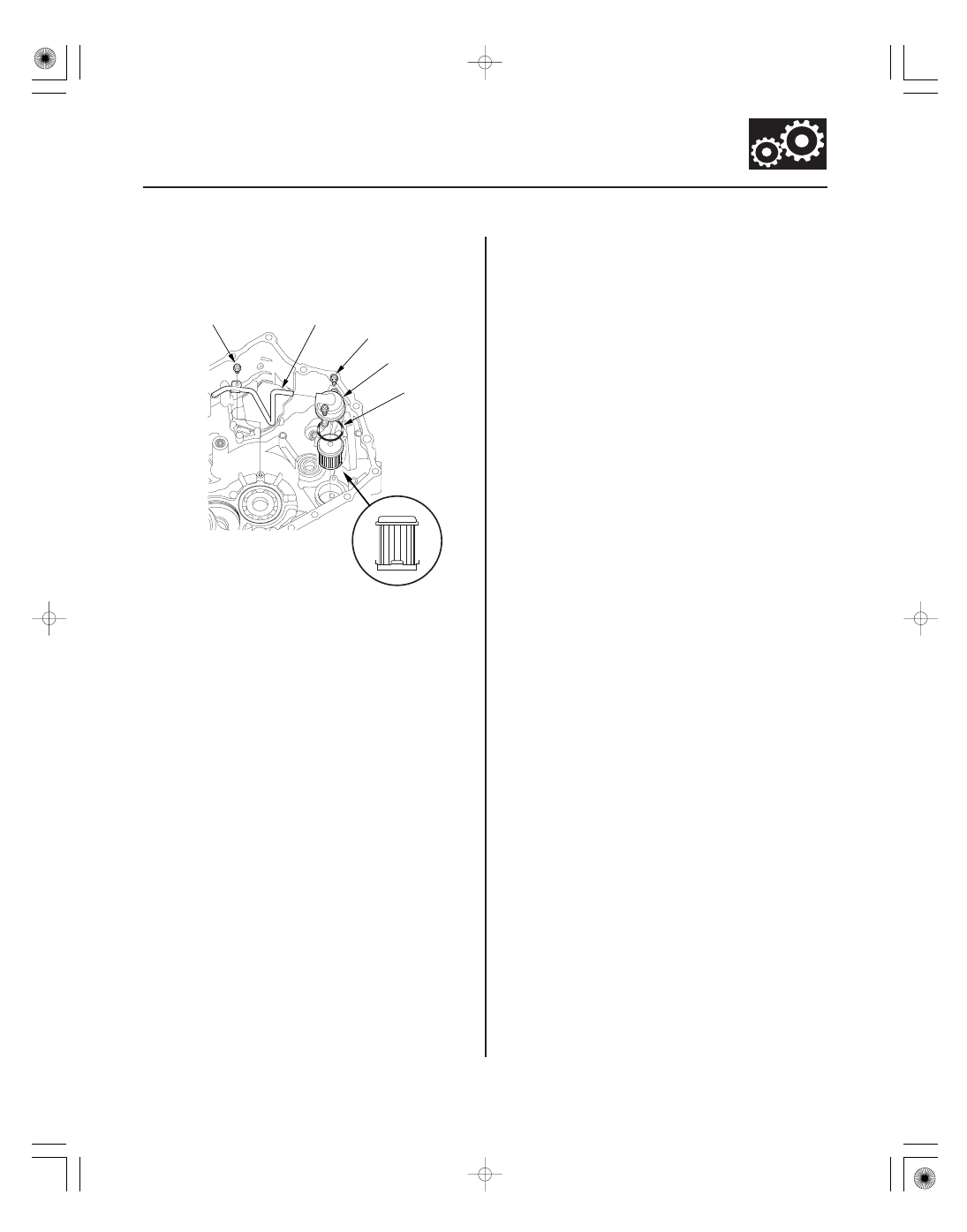

10 14-297 A B 36. Remove the ATF feed pipe (F) from the main valve body. 37. Remove the secondary valve body (G) (one bolt), the dowel pins (two), and the separator plate (H). 38. Remove the regulator valve body (K) (eight bolts), the stator shaft (L), the stator shaft stop (M), the 39. Remove the main valve body (O) (8 mm: three bolts, 6 mm: seven bolts). Do not let the cooler check 40. Remove the torque converter check valve (S) and the valve spring (T). 41. Remove the ATF pump driven gear shaft (U), then remove the ATF pump drive gear (V) and the driven 42. Remove the dowel pins (two) and the main separator plate (X). 43. Remove the ATF passage pipe (Y). 44. Remove the ATF magnet (Z), clean it, then reinstall. 45. Remove the O-ring (AA) from the ATF strainer, and replace the new O-ring when reassembling the 46. Remove the O-ring (BB) from the stator shaft, and replace the new O-ring when reassembling the 47. Clean the inlet opening (A) of the ATF strainer (B) thoroughly with compressed air, then check that it 48. Test the ATF strainer by pouring clean ATF through the inlet opening, and replace if it is clogged or |
