Honda Ridgeline. Manual - part 147

−

０１

ＳＪＣ８Ａ００Ｋ７７１０００９０４５２ＦＡＡＴ３０

−

DTC P0452:

YES

11-352

EVAP System

DTC Troubleshooting (cont’d)

FTP SENSOR 3P CONNECTOR

VCC7 (YEL/BLU)

FTP Sensor Circuit Low Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Remove the fuel fill cap.

5. Turn the ignition switch ON (II).

6. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 10.

Go to step 7.

7. Install the fuel fill cap.

8. Start the engine.

9. Monitor the OBD STATUS for DTC P0452 in the

DTCs MENU with the HDS.

Go to step 10.

If the screen indicates PASSED, intermittent

failure, the system is OK at this time. Check for
poor connections or loose terminals at the FTP
sensor and the PCM. If the screen indicates NOT
COMPLETED, go to step 5 and recheck.

10. Turn the ignition switch OFF.

11. Disconnect the FTP sensor 3P connector.

12. Turn the ignition switch ON (II).

13. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 24.

Go to step 14.

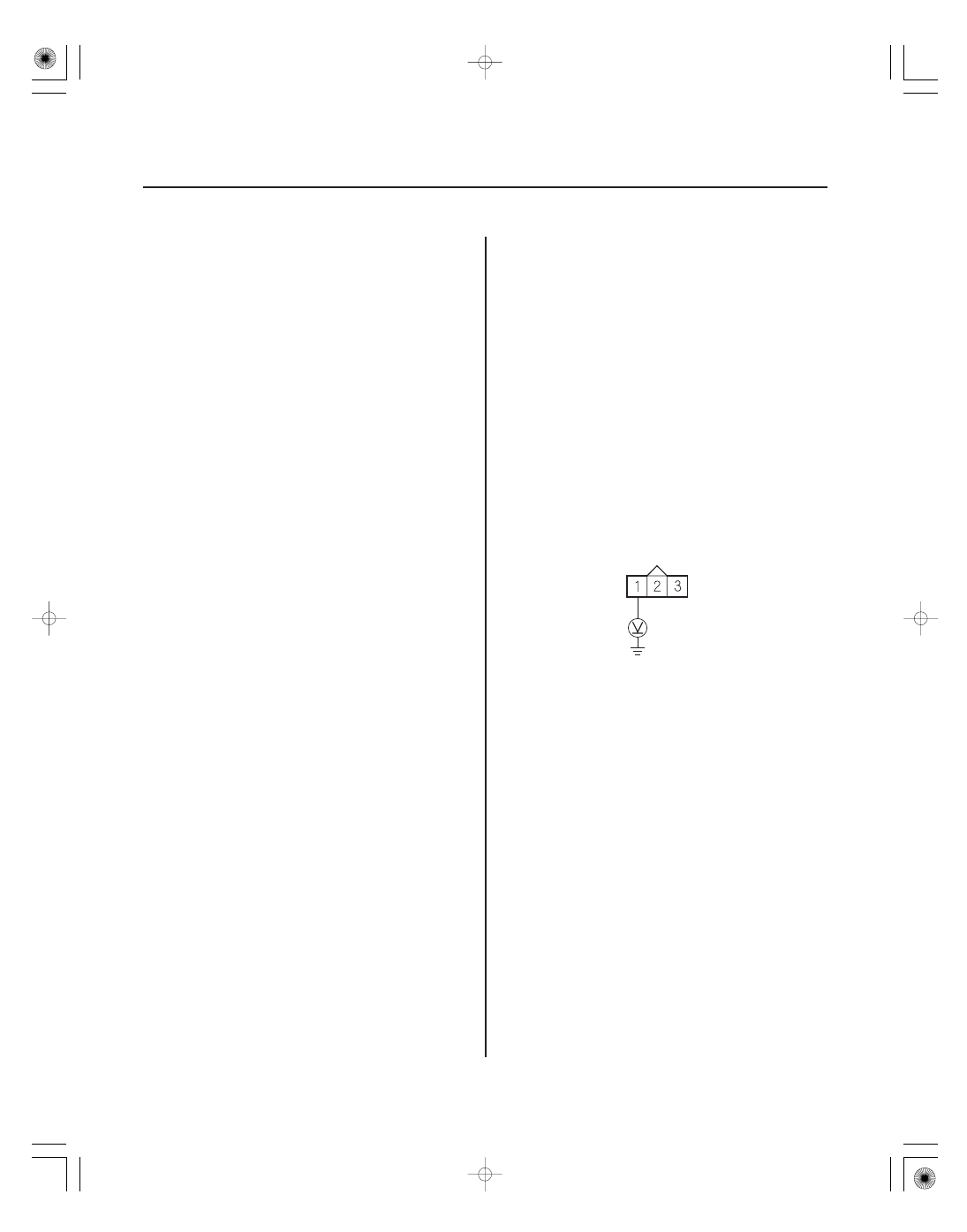

14. Measure voltage between FTP sensor 3P connector

terminal No. 1 and body ground.

Go to step 20.

Go to step 15.

Wire side of female terminals

Is about

7 .3 kPa (

2.16 in.Hg,

55 mmHg), or

0.3 V or less indicated?

Does the scr een indicate F AILED?

Is about 7 .3 kPa ( 2.15 in.Hg, 54.7 mmHg), or
4.90 V indicated?

Is ther e about 5 V ?

０２

０３

０４

−

YES

11-353

FTP SENSOR 3P CONNECTOR

VCC7 (YEL/BLU)

JUMPER WIRE

PCM CONNECTOR A (44P)

VCC7
(YEL/BLU)

FTP SENSOR 3P CONNECTOR

FTP (LT GRN)

15. Turn the ignition switch OFF.

16. Jump the SCS line with the HDS.

17. Disconnect PCM connector A (44P).

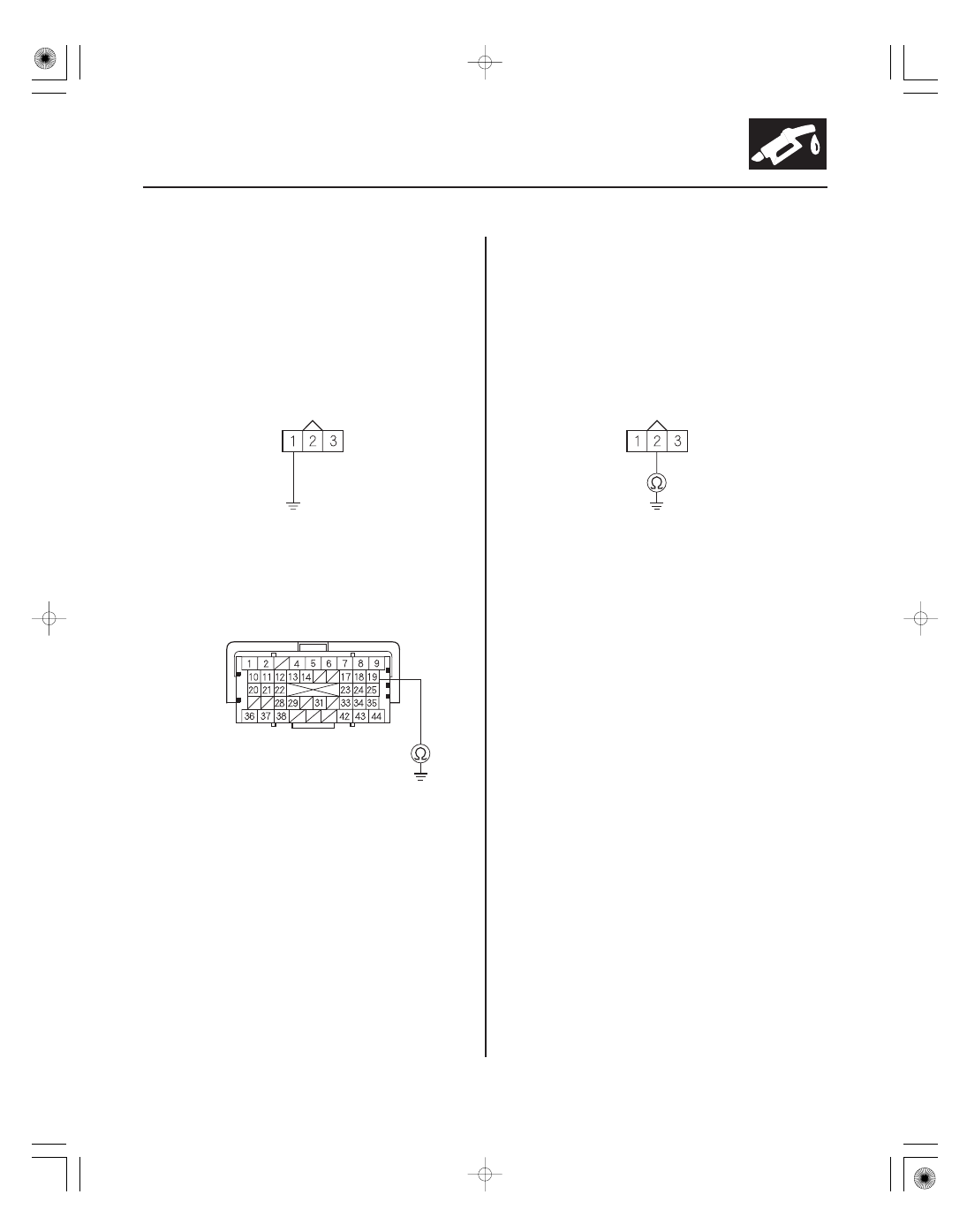

18. Connect FTP sensor 3P connector terminal No. 1 to

body ground with a jumper wire.

19. Check for continuity between PCM connector

terminal A19 and body ground.

Go to step 32.

Repair open in the wire between the PCM

(A19) and the FTP sensor, then go to step 26.

20. Turn the ignition switch OFF.

21. Jump the SCS line with the HDS.

22. Disconnect PCM connector A (44P).

23. Check for continuity between FTP sensor 3P

connector terminal No. 2 and body ground.

Repair short in the wire between the PCM

(A33) and the FTP sensor, then go to step 26.

Go to step 32.

24. Turn the ignition switch OFF.

25. Replace the FTP sensor (see page 11-374).

26. Reconnect all connectors.

27. Turn the ignition switch ON (II).

28. Reset the PCM with the HDS.

29. Do the PCM idle learn procedure (see page 11-273).

(cont’d)

Wire side of female terminals

Terminal side of female terminals

Wire side of female terminals

Is ther e continuity?

−

YES

11-354

EVAP System

DTC Troubleshooting (cont’d)

30. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the FTP sensor and the PCM, then go
to step 1.

Go to step 31.

31. Monitor the OBD STATUS for DTC P0452 in the

DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 30,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the FTP sensor
and the PCM, then go to step 1. If the screen
indicates NOT COMPLETED, keep idling until a
result comes on.

32. Reconnect all connectors.

33. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

34. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the FTP sensor and the PCM. If the
PCM was updated, substitute a known-good PCM
(see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

Go to step 34.

35. Monitor the OBD STATUS for DTC P0452 in the

DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 34,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the FTP sensor
and the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-8), then recheck. If
the PCM was substituted, go to step 1. If the screen
indicates NOT COMPLETED, keep idling until a
result comes on.

Is DT C P0452 indicated?

Does the scr een indicate PASSED?

Is DT C P0452 indicated?

Does the scr een indicate PASSED?

０１

０２

ＳＪＣ８Ａ００Ｋ７７１０００９０４５３ＦＡＡＴ３０

−

DTC P0453:

YES

11-355

FTP SENSOR 3P CONNECTOR

SG7
(GRN/YEL)

FTP
(LT GRN)

JUMPER WIRE

FTP SENSOR 3P CONNECTOR

SG7
(GRN/YEL)

VCC7
(YEL/BLU)

FTP Sensor Circuit High Voltage

NOTE: Before you troubleshoot, record all freeze data
and any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Remove the fuel fill cap.

5. Turn the ignition switch ON (II).

6. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 10.

Go to step 7.

7. Install the fuel fill cap.

8. Start the engine.

9. Monitor the OBD STATUS for DTC P0453 in the

DTCs MENU with the HDS.

Go to step 10.

If the screen indicates PASSED, intermittent

failure, the system is OK at this time. Check for
poor connections or loose terminals at the FTP
sensor and the PCM. If the screen indicates NOT
COMPLETED, go to step 6 and recheck.

10. Turn the ignition switch OFF.

11. Disconnect the FTP sensor 3P connector.

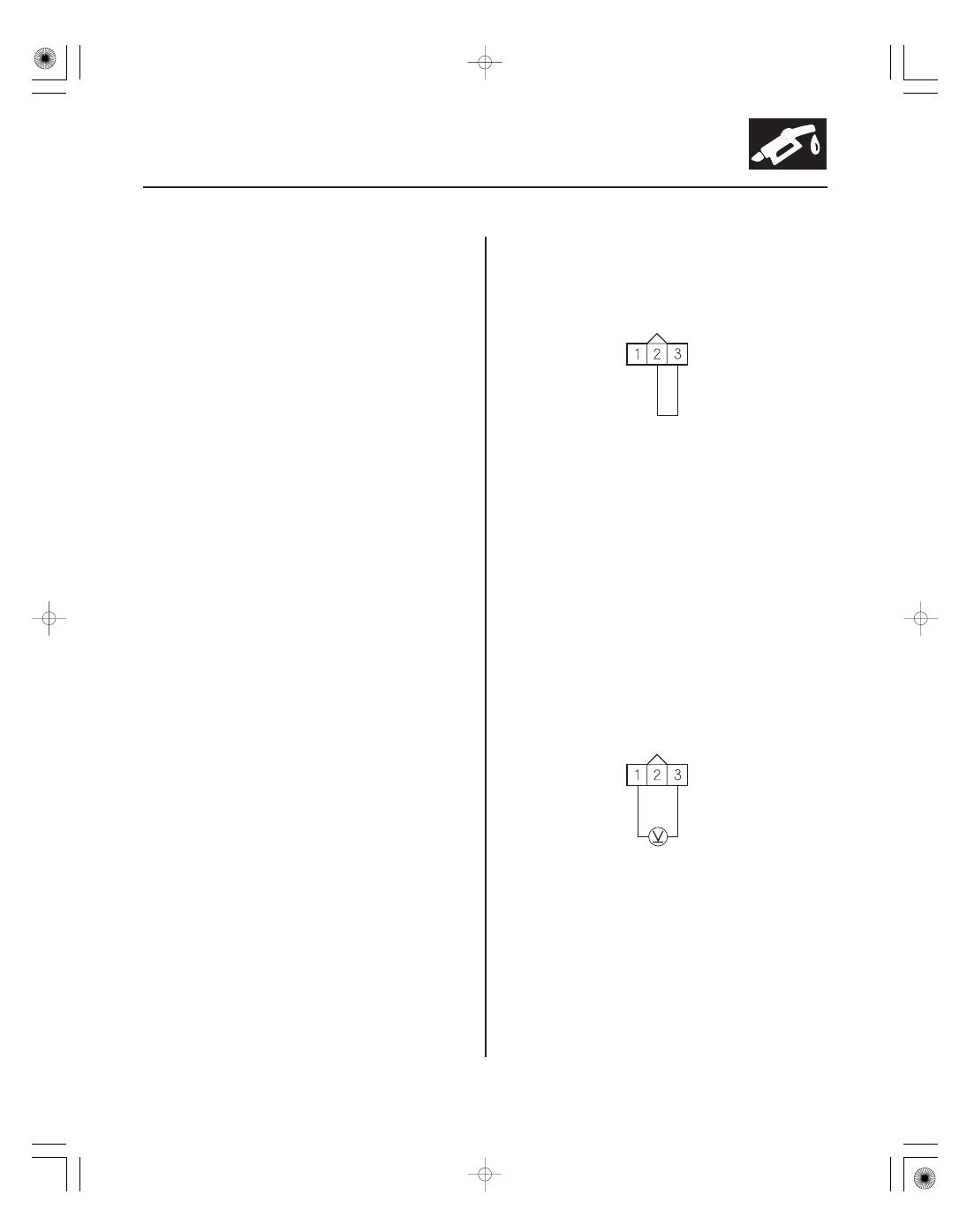

12. Connect FTP sensor 3P connector terminals No. 2

and No. 3 with a jumper wire.

13. Turn the ignition switch ON (II).

14. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 15.

Go to step 26.

15. Measure voltage between FTP sensor 3P connector

terminals No. 1 and No. 3.

Go to step 21.

Go to step 16.

(cont’d)

Wire side of female terminals

Is about 7 .3 kPa ( 2.16 in.Hg, 55 mmHg), or 4.7 V
or mor e indicated?

Does the scr een indicate F AILED?

Is about 7 .3 kPa ( 2.16 in.Hg, 55 mmHg), or 4.7 V
or mor e indicated?

Is ther e about 5 V ?
