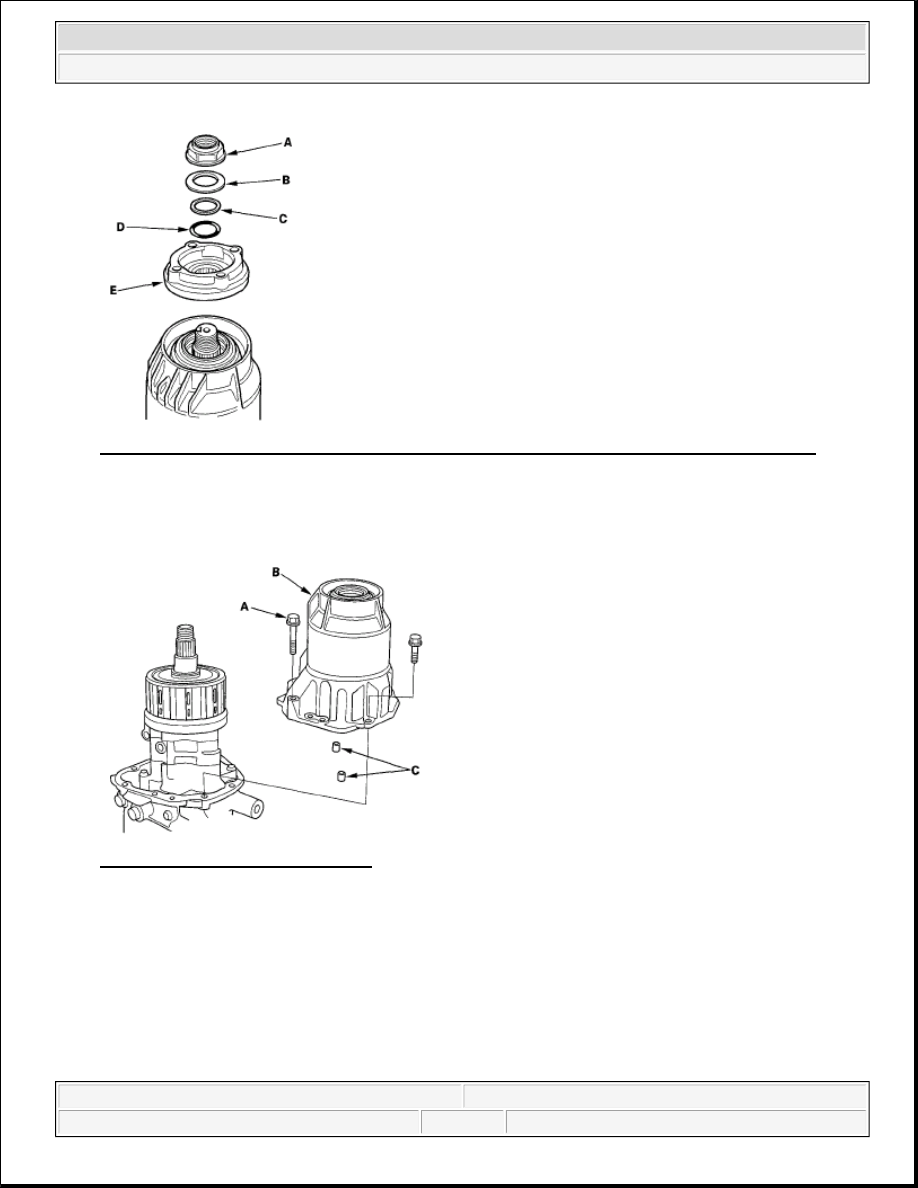

Fig. 36: Identifying Locknut, Spring Washer, Back-Up Ring, O-Ring And Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the eight mounting bolts (A) in a crisscross pattern in several steps, then remove the torque

control differential (TCD) case (B) and the dowel pins (C).

Fig. 37: Identifying Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

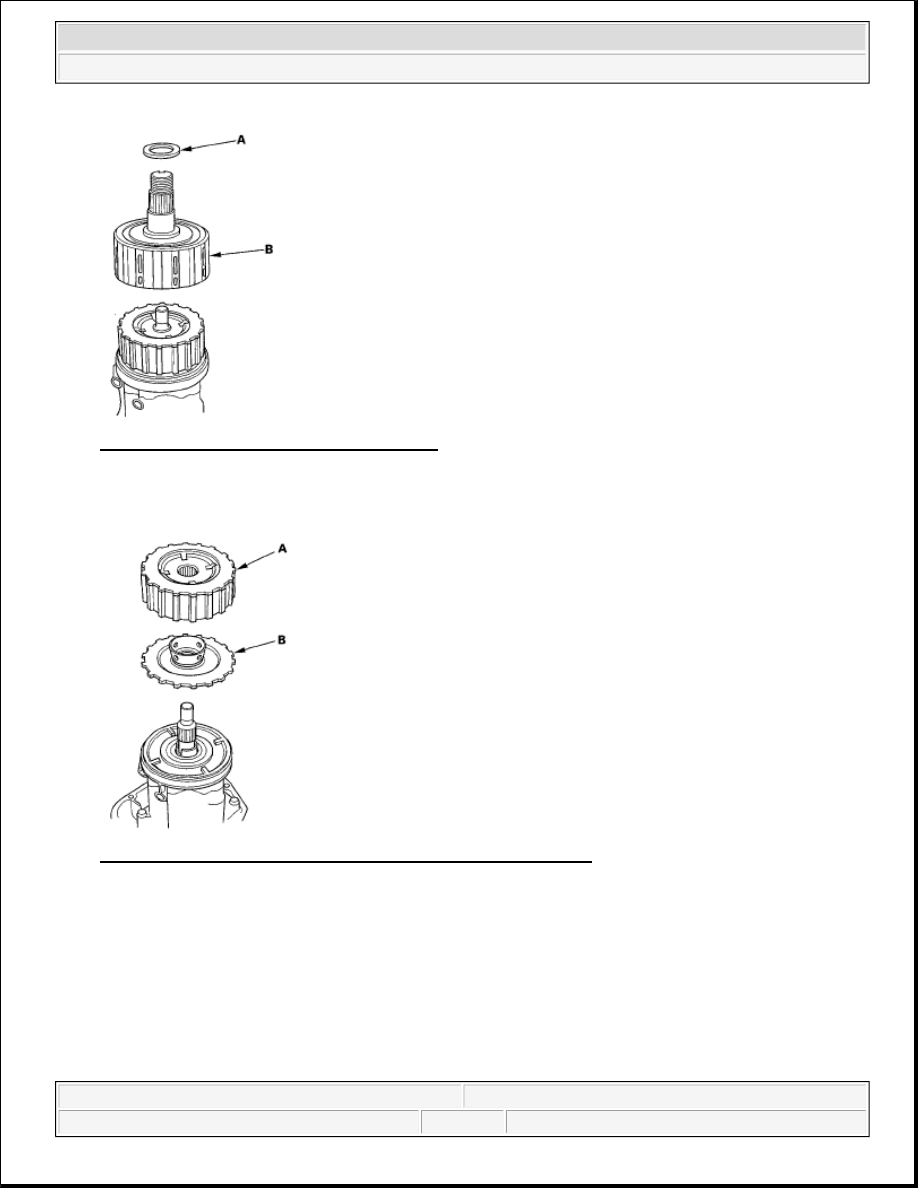

9. Remove the 30 mm shim (A) and the clutch guide (B).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



Fig. 38: Identifying Shim And Clutch Guide
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the clutch hub/plates/discs (A) and the pressure plate (B).

Fig. 39: Identifying Clutch Hub/Plates/Discs And Pressure Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

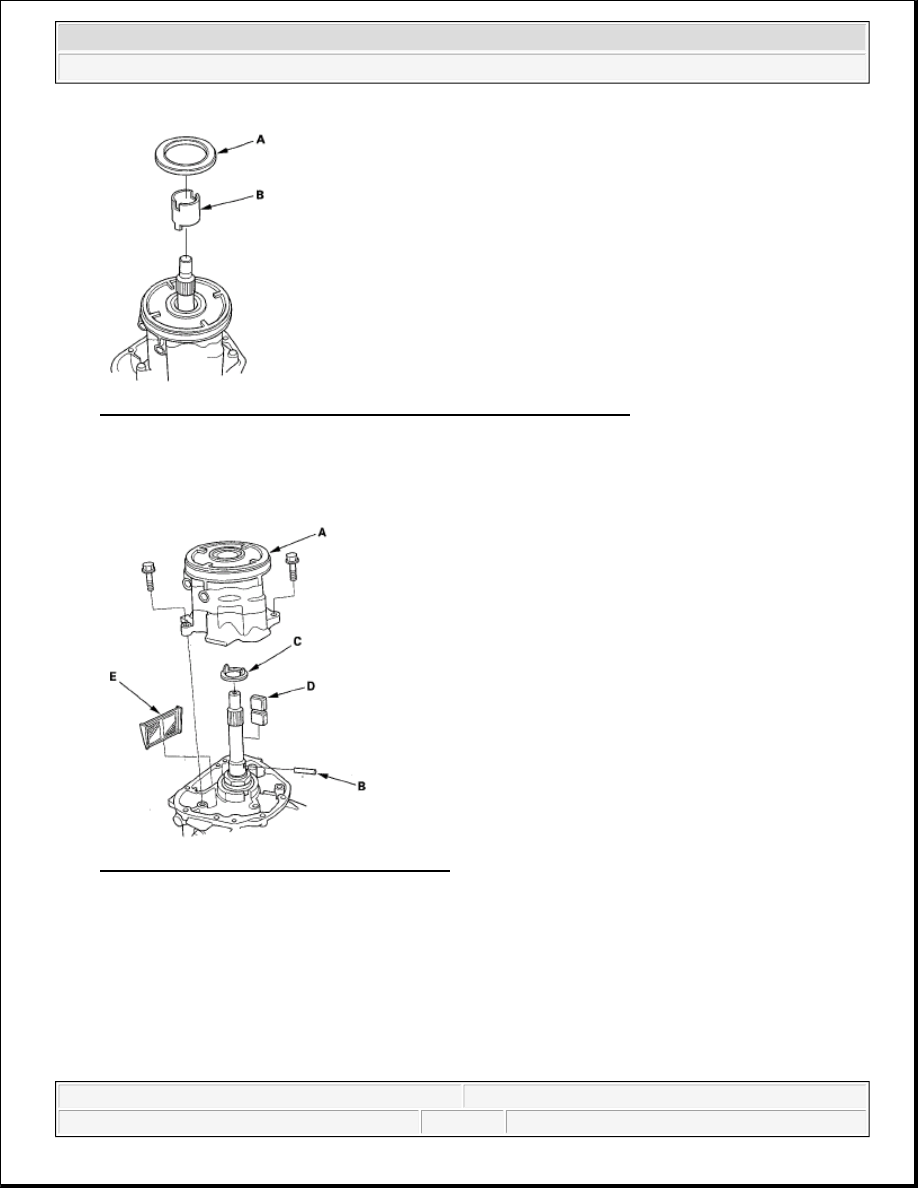

11. Remove the thrust needle bearing (A) and the oil pump driveshaft (B).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



Fig. 40: Identifying Thrust Needle Bearing And Oil Pump Driveshaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the oil pump body assembly (A), the oil pump pin (B), the collar (C), the magnet (D), and the

fluid strainer (E).

Fig. 41: Identifying Oil Pump Body Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REAR DIFFERENTIAL REASSEMBLY

EXPLODED VIEW



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element

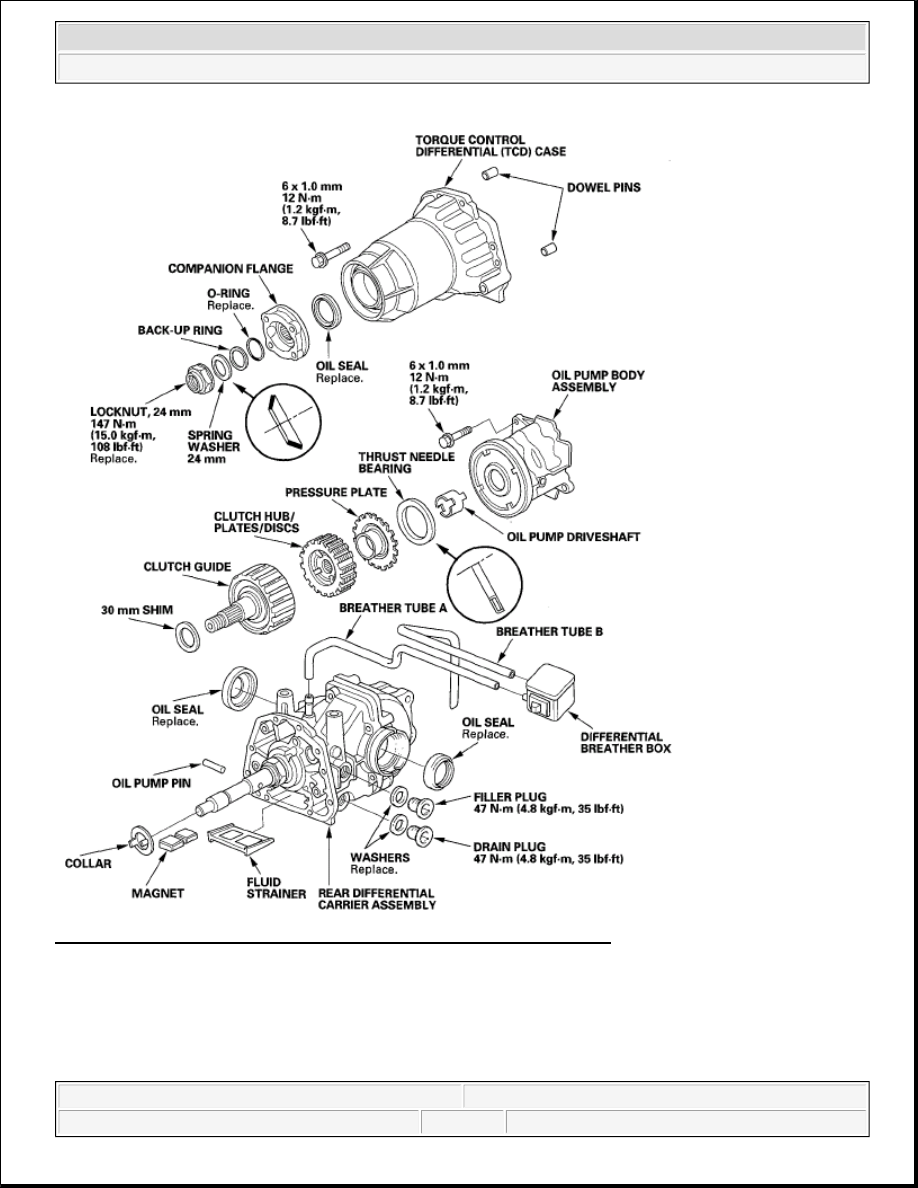

Fig. 42: Exploded View Of Rear Differential With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required



Holder handle 07JAB-001020A



Companion flange holder 07RAB-TB4010B



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element
