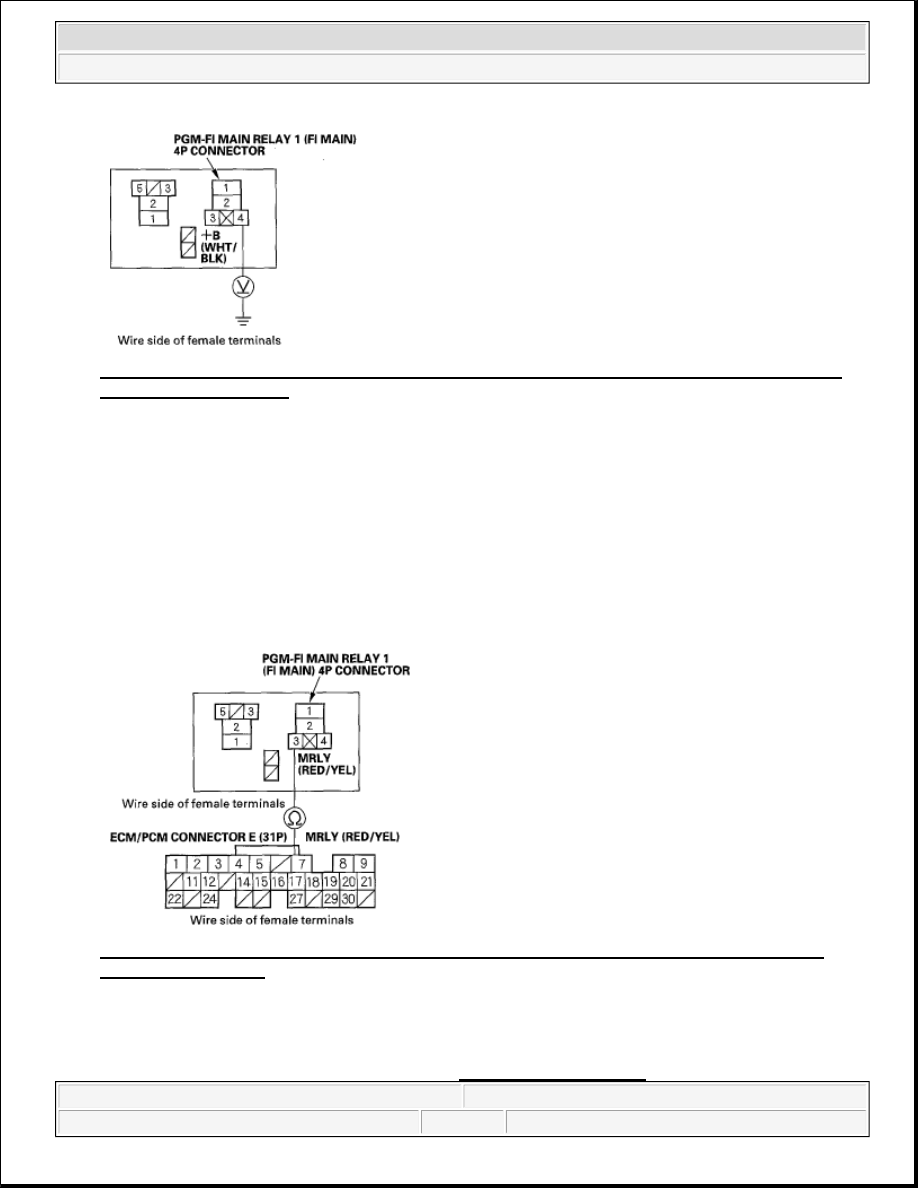

Fig. 158: Measuring Voltage Between PGM-FI Main Relay 1 (FI MAIN) 4P Connector Terminal
No. 4 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 64.

NO -Repair open in the wire between the No. 6 FI ECU (15 A) fuse and PGM-FI main relay 1 (FI
MAIN).

64. Check for continuity between PGM-FI main relay 1 (FI MAIN) 4P connector terminal No. 3 and

ECM/PCM connector terminal E7.

Fig. 159: Checking Continuity Between PGM-FI Main Relay 1 (FI MAIN) 4P And ECM/PCM
Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Test PGM-FI main relay 1 (FI MAIN) (see POWER RELAY TEST ). If the relay is faulty,



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



replace it. If the relay is OK, update the ECM/PCM if it does not have the latest software (see
UPDATING THE ECM/PCM ), or substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then recheck. If the symptom/indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ).

NO -Repair open in the wire between the ECM/PCM (E7) and PGM-FI main relay 1 (FI MAIN).

65. Reconnect ECM/PCM connector E (31P).

66. Turn the ignition switch ON (II).

67. Measure voltage between body ground and ECM/PCM connector terminals A2 and A3 individually.

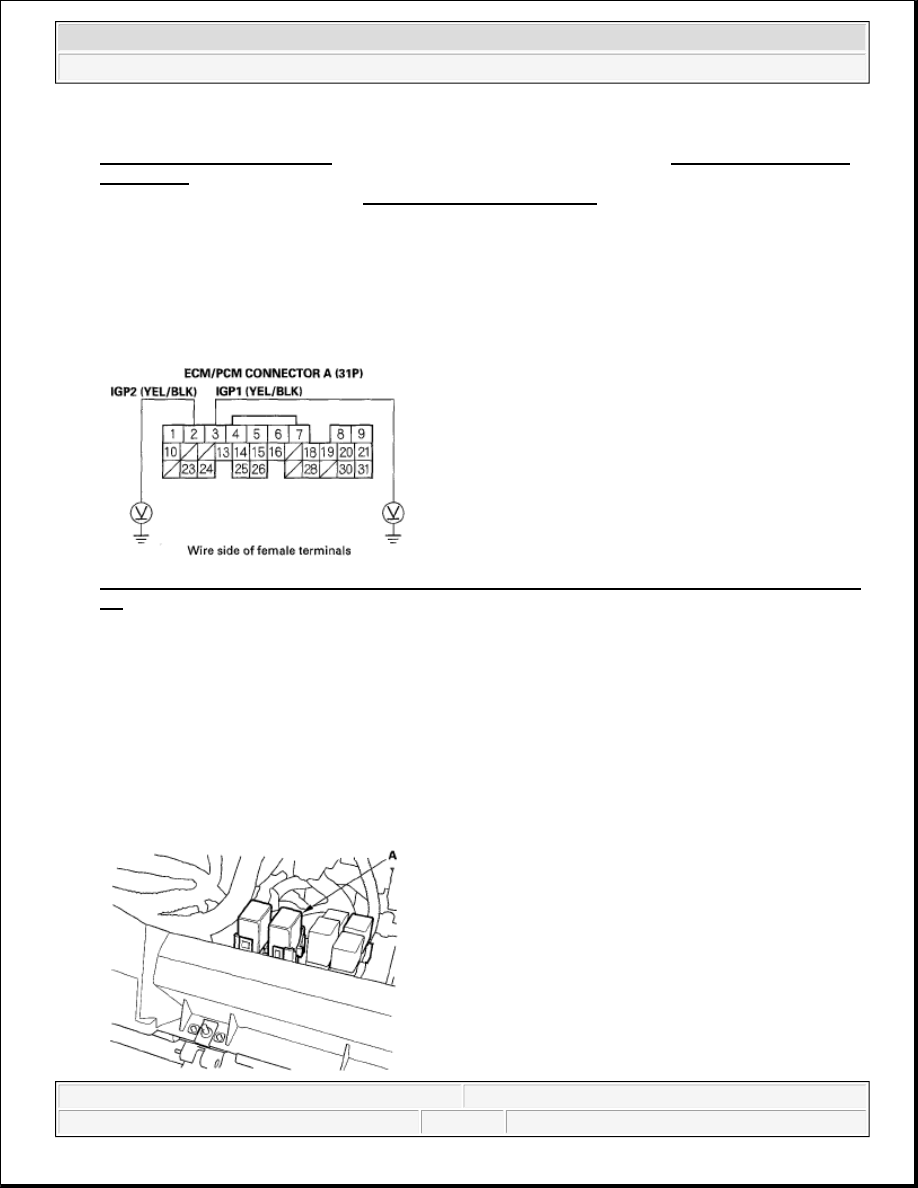

Fig. 160: Measuring Voltage Between Body Ground And ECM/PCM Connector Terminals A2 And
A3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 72.

NO -Go to step 68.

68. Turn the ignition switch OFF.

69. Remove PGM-FI main relay 1 (FI MAIN) (A).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Fig. 161: Identifying PGM-FI Main Relay 1 (FI MAIN)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

70. Measure voltage between PGM-FI main relay 1 (FI MAIN) 4P connector terminal No. 2 and body

ground.

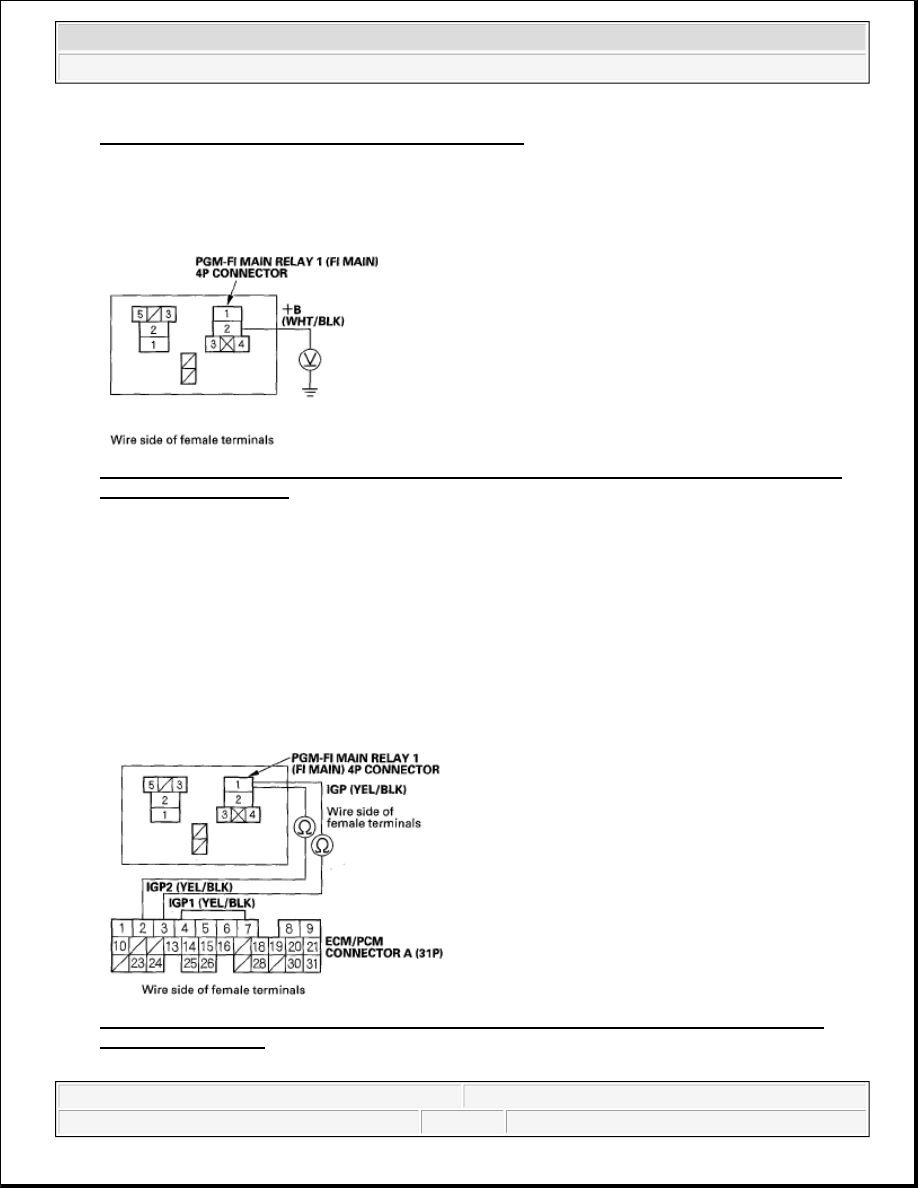

Fig. 162: Measuring Voltage Between PGM-FI Main Relay 1 (FI MAIN) 4P Connector Terminal
No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 71.

NO -Repair open in the wire between the No. 6 FI ECU (15 A) fuse and PGM-FI main relay 1 (FI
MAIN).

71. Check for continuity between PGM-FI main relay 1 (FI MAIN) 4P connector terminal No. 1 and

ECM/PCM connector terminals A2 and A3 individually.

Fig. 163: Checking Continuity Between PGM-FI Main Relay 1 (FI MAIN) 4P And ECM/PCM
Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Is there continuity?

YES -Test PGM-FI main relay 1 (FI MAIN) (see POWER RELAY TEST ). If the relay is faulty,
replace it. If the relay is OK, update the ECM/PCM if it does not have the latest software (see
UPDATING THE ECM/PCM ), or substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then recheck. If the symptom/indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ).

NO -Repair open in the wire between PGM-FI main relay 1 (FI MAIN) and the ECM/PCM (A2, A3).

72. Measure voltage between body ground and ECM/PCM connector terminals A4, A5, A8, A9, and E3

individually.

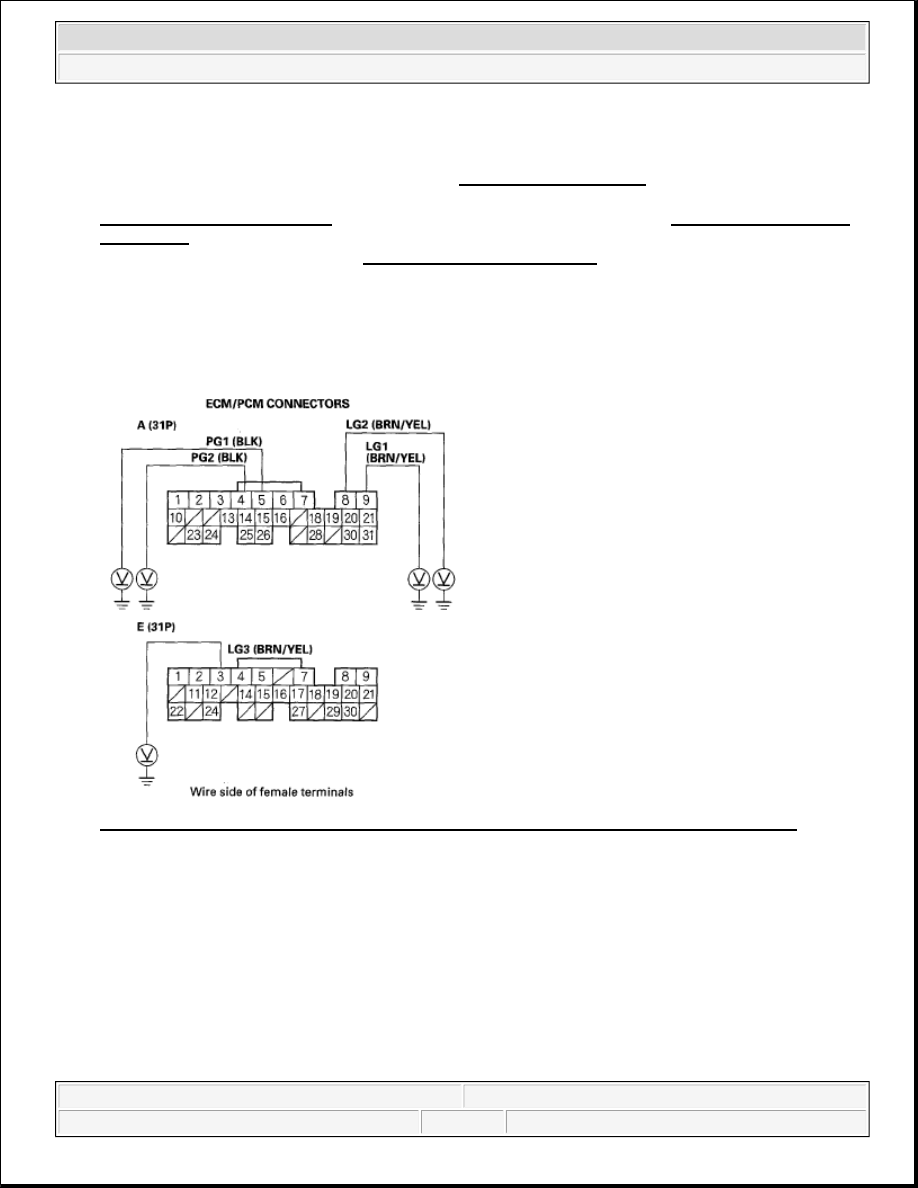

Fig. 164: Measuring Voltage Between Body Ground And ECM/PCM Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 1.0 V?

YES -Go to step 73.

NO -Repair open in the wire(s) that had more than 1.0 V between G101 and the ECM/PCM (A4, A5, A8,
A9, E3).

73. Turn the ignition switch ON (II).

74. Measure voltage between body ground and ECM/PCM connector terminal A21.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element
