Engine coolant temperature (ECT SENSOR 1) above 158°F (70°C)



A/T in D position (M/T in 4th gear)



REL TP SENSOR between 12 deg and 20 deg for 3 seconds

10. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2227 indicated?

YES -Check for poor connections or loose terminals at the ECM/PCM. If the ECM/PCM was updated,
substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then go to step 8. If the
ECM/PCM was substituted, go to step 1.

NO -Go to step 11.

11. Monitor the OBD STATUS for DTC P2227 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs were indicated in step 10, go to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the ECM/PCM. If
the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then go to step 8. If the ECM/PCM was substituted, go to step 1. If the screen indicates
NOT COMPLETED, go to step 8.

DTC P2228: BARO SENSOR CIRCUIT LOW VOLTAGE

1. Turn the ignition switch ON (II).

2. Check the BARO SENSOR in the DATA LIST with the HDS.

Is about 53 kPa (15.6 in.Hg, 397 mmHg), or 1.31 V or less indicated?

YES -Go to step 3.

NO -Intermittent failure, the system is OK at this time.

3. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

4. Check for Temporary DTCs or DTCs with the HDS.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Is DTC P2228 indicated?

YES -Check for poor connections or loose terminals at the ECM/PCM. If the ECM/PCM was updated,
substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the
ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING.

DTC P2229: BARO SENSOR CIRCUIT HIGH VOLTAGE

1. Turn the ignition switch ON (II).

2. Check the BARO SENSOR in the DATA LIST with the HDS.

Is about 160 kPa (47.2 in.Hg, 1,200 mmHg), or 4.49 V or more indicated?

YES -Go to step 3.

NO -Intermittent failure, the system is OK at this time.

3. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

4. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2229 indicated?

YES -Check for poor connections or loose terminals at the ECM/PCM. If the ECM/PCM was updated,
substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the
ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING.

DTC P2238: A/F SENSOR (SENSOR 1) AFS+ CIRCUIT LOW VOLTAGE

1. Turn the ignition switch ON (II).

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2238 indicated?

YES -Go to step 4.

NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
the A/F sensor (Sensor 1) and the ECM/PCM.

4. Turn the ignition switch OFF.

5. Jump the SCS line with the HDS.

6. Disconnect the A/F sensor (Sensor 1) 4P connector.

7. Disconnect ECM/PCM connector A (31P).

8. Check for continuity between ECM/PCM connector terminal A31 and body ground.

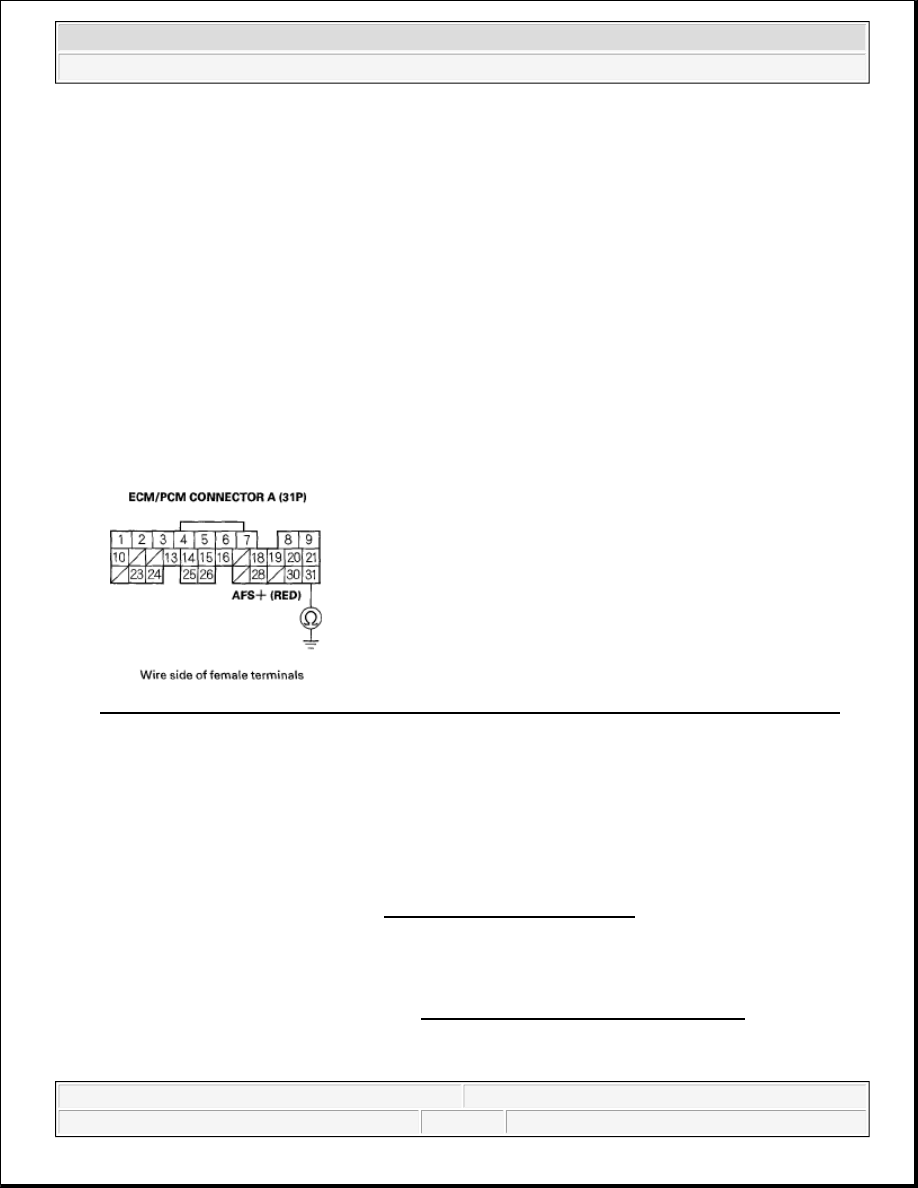

Fig. 111: Checking Continuity Between ECM/PCM Connector Terminal A31 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between the ECM/PCM (A31) and the A/F sensor (Sensor 1), then go to
step 10.

NO -Go to step 9.

9. Replace the A/F sensor (Sensor 1) (see A/F SENSOR REPLACEMENT ).

10. Reconnect all connectors.

11. Turn the ignition switch ON (II).

12. Reset the ECM/PCM with the HDS.

13. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

14. Check for Temporary DTCs or DTCs with the HDS.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Is DTC P2238 indicated?

YES -Check for poor connections or loose terminals at the A/F sensor (Sensor 1) and the ECM/PCM. If
the connector and terminal fits are OK, go to step 16.

NO -Go to step 15.

15. Monitor the OBD STATUS for DTC P2238 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 14, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, keep idling
until a result comes on.

16. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

17. Start the engine, and let it idle.

18. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2238 indicated?

YES -If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then go to step 17. If the ECM/PCM was substituted, go to step 1.

NO -Go to step 19.

19. Monitor the OBD STATUS for DTC P2238 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs were indicated in step 18, go to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, go to step 1. If the ECM/PCM was updated, substitute a known-
good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then go to step 17. If the ECM/PCM was
substituted, go to step 1. If the screen indicates NOT COMPLETED, keep idling until a result comes on.

DTC P2252: A/F SENSOR (SENSOR 1) AFS- CIRCUIT LOW VOLTAGE

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
