Honda Element. Manual - part 599

Fig. 14: Removing Air Cleaner Housing And Air Cleaner Element
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the air cleaner element (B) from the air cleaner housing (C).

3. Check the air cleaner element for damage or clogging. It the element is damaged or clogged, replace it.

4. Clean and remove any debris from inside the air cleaner housing.

5. Install the parts in the reverse order of removal.

RESONATOR REMOVAL/INSTALLATION

1. Make sure you have the anti-theft code for the audio system.

2. Remove the battery.

3. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

4. Remove the bolts (A).

NOTE:

Do not use compressed air to clean the air cleaner element.

NOTE:

If the maintenance minder indicated the air cleaner element required
replacement, check for other items that may also be displayed in the
maintenance minder main items (see MAINTENANCE MAIN ITEMS ) and
the sub items (see MAINTENANCE SUB ITEMS ) before resetting the
maintenance minder.



2007 Honda Element EX

2007-08 ENGINE PERFORMANCE Intake Air System - Element



Fig. 15: Identifying Resonator And Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the resonator (B).

6. Install the parts in the reverse order of removal.

7. Enter the anti-theft code for the audio system.

8. Set the clock.

INTAKE AIR BYPASS CONTROL THERMAL VALVE REPLACEMENT

1. Remove the engine cover (see step 3 on REMOVAL ).

2. Disconnect the hoses (A).

Fig. 16: Identifying Intake Air Bypass Control Thermal Valve Parts Location With Torque
Specification



2007 Honda Element EX

2007-08 ENGINE PERFORMANCE Intake Air System - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the intake air bypass control thermal valve (B).

4. Make sure the items below are correctly positioned, then install the parts in the reverse order of removal.



Position the valve (B) and the clamp (C) angle as shown.



Make sure that the clamp (D) is in the position within the lever end of it the range shown.



2007 Honda Element EX

2007-08 ENGINE PERFORMANCE Intake Air System - Element



2007-08 ACCESSORIES AND EQUIPMENT

Interior Trim - Element

COMPONENT LOCATION INDEX

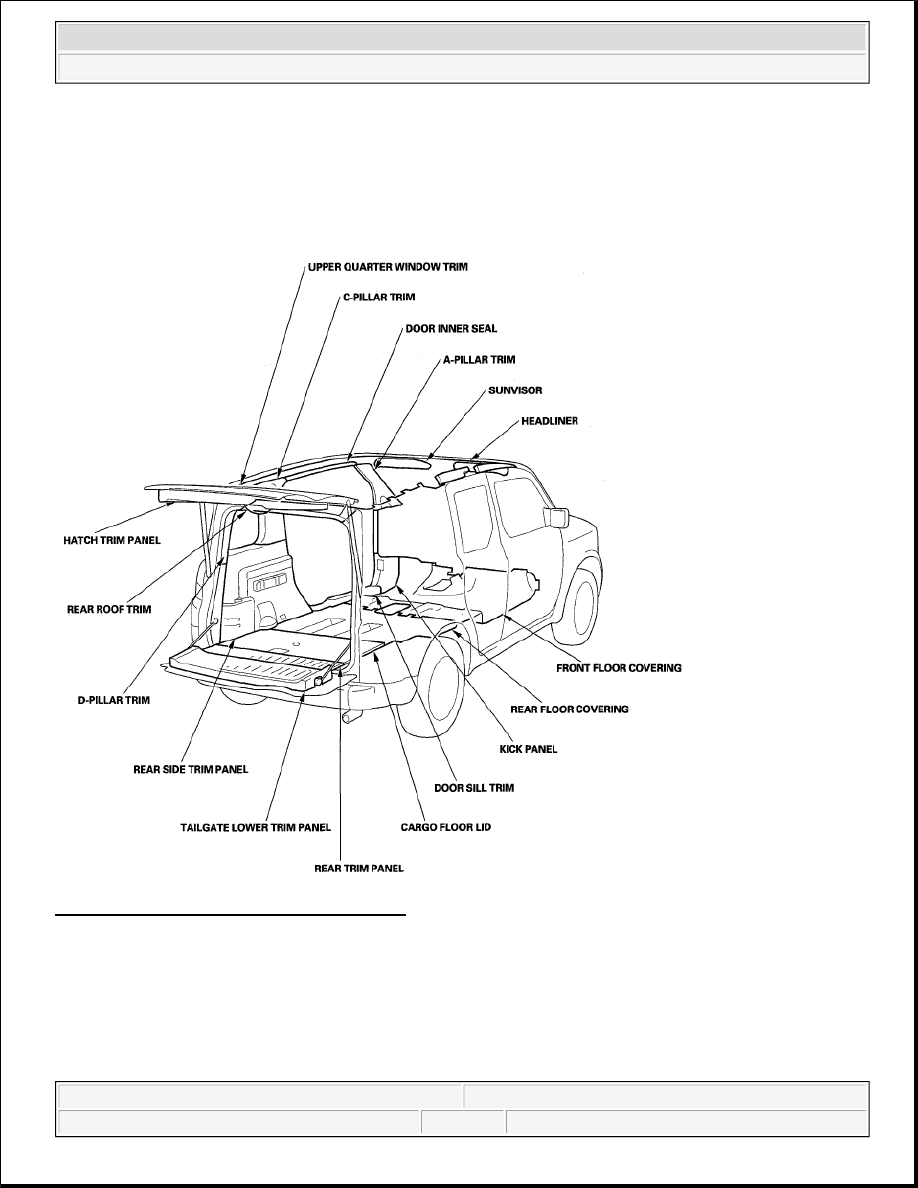

Fig. 1: Identifying Interior Trim Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.

TRIM REMOVAL/INSTALLATION - DOOR AREAS

Special Tools Required

KTC trim tool set SOJATP2014 *



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element





2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Interior Trim - Element
