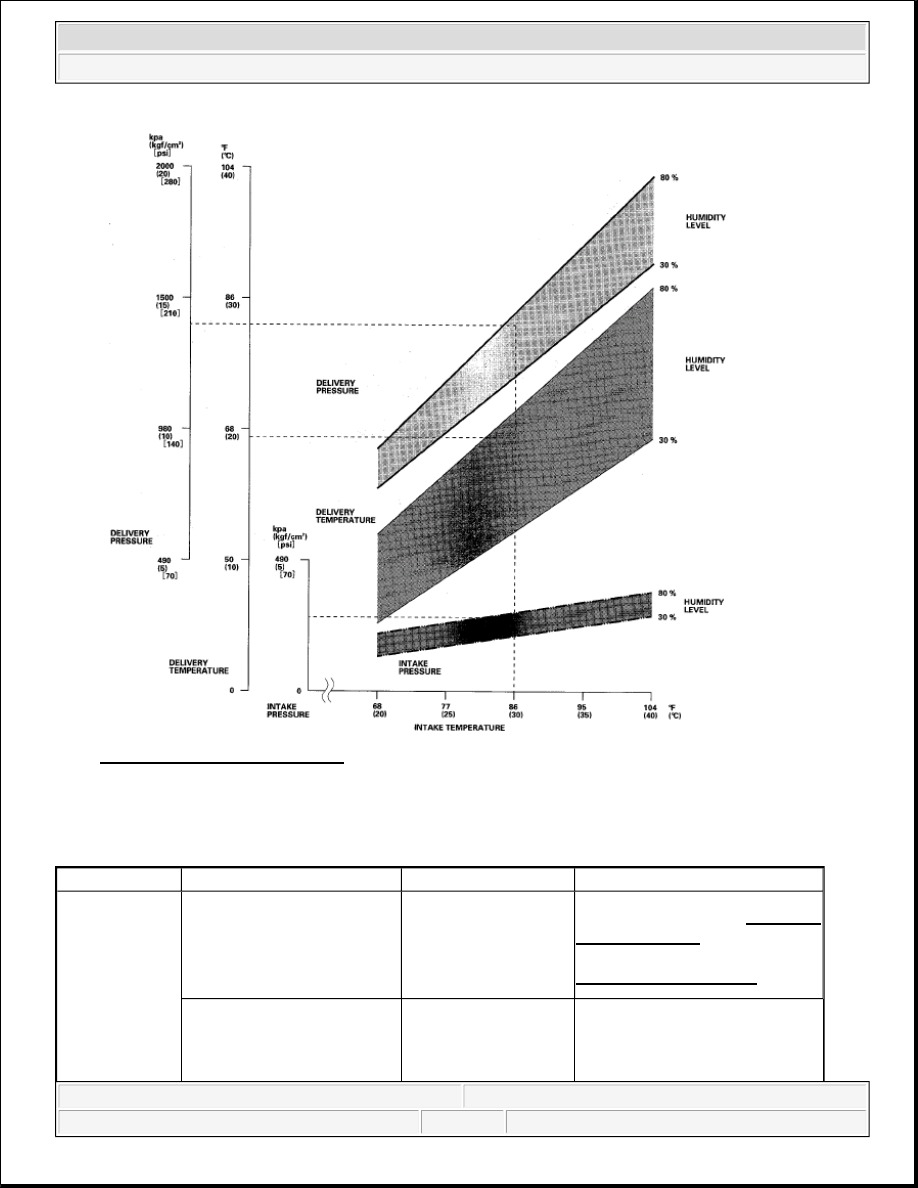

Fig. 109: Inspection Data Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PRESSURE TEST

PRESSURE TEST REFERENCE

Test results

Related symptoms

Probable cause

Remedy

Discharge
(high) pressure
abnormally high

After stopping A/C
compressor, pressure drops
about 196 kPa (2.0 kgf/cm

2

 ,

28 psi) quickly, and then falls
gradually.

Air in system

Recover, evacuate (see SYSTEM
EVACUATION ), and recharge
with specified amount (see
SYSTEM CHARGING ).

Reduced or no airflow



Clogged A/C
condenser or
radiator fins



Clean.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



through A/C condenser.



A/C condenser
or radiator fan
not working
properly



Check voltage and fan rpm.



Check fan direction.

Line to A/C condenser is
excessively hot.

Restricted flow of
refrigerant in system

Restricted lines.

Discharge
pressure
abnormally low

High and low-pressures are
balanced soon after stopping
A/C compressor. Low side is
higher than normal.



Faulty A/C
compressor
discharge valve



Faulty A/C
compressor seal

Replace the A/C compressor.

Outlet of expansion valve is
not frosted, low-pressure
gauge indicates vacuum.



Faulty expansion
valve



Moisture in
system



Replace.



Recover, evacuate, and
recharge with specified
amount.

Suction (low)
pressure
abnormally low

Expansion valve is not
frosted, and low-pressure line
is not cold. Low-pressure
gauge indicates vacuum.



Frozen
expansion valve
(Moisture in
system)



Faulty expansion
valve



Recover, evacuate, and
recharge with specified
amount.



Replace the expansion
valve.

Discharge temperature is low,
and the airflow from vents is
restricted.

Frozen evaporator

Run the fan with A/C compressor
off, then check evaporator
temperature sensor.

Expansion valve is frosted.

Clogged expansion
valve

Clean or replace.

Suction pressure
abnormally high

Low-pressure hose and check
joint are cooler than the
temperature around
evaporator.

Expansion valve open
too long

Repair or replace.

Suction pressure is lowered
when A/C condenser is
cooled by water.

Excessive refrigerant
in system

Recover, evacuate, and recharge
with specified amount.

High and low-pressures are
equalized as soon as the A/C
compressor is stopped, and
both gauges fluctuate while
running.



Faulty gasket



Faulty high-
pressure valve



Foreign particle
stuck in high-
pressure valve

Replace the A/C compressor.

Suction and
discharge

Reduced airflow through A/C



Clogged A/C
condenser or
radiator fins



Clean.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



pressures
abnormally high

condenser.



A/C condenser
or radiator fan
not working
properly



Check voltage and fan rpm.



Check fan direction.

Suction and
discharge
pressures
abnormally low

Low-pressure hose and metal
end areas are cooler than
evaporator.

Clogged or kinked
low-pressure hose
parts

Repair or replace.

Temperature around
expansion valve is too low
compared with that around
receiver/dryer.

Clogged high-pressure
line

Repair or replace.

Refrigerant
leaks

A/C compressor clutch is
dirty.

A/C compressor shaft
seal leaking

Replace the A/C compressor.

A/C compressor bolt(s) are
dirty.

Leaking around bolt(s)

Tighten bolt(s) or replace the A/C
compressor.

A/C compressor gasket is wet
with oil.

Gasket leaking

Replace the A/C compressor.

A/C fitting is dirty.

Leaking O-ring

Clean A/C fitting and replace O-
ring.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



2007-08 ENGINE PERFORMANCE

Idle Control System - Element

COMPONENT LOCATION INDEX

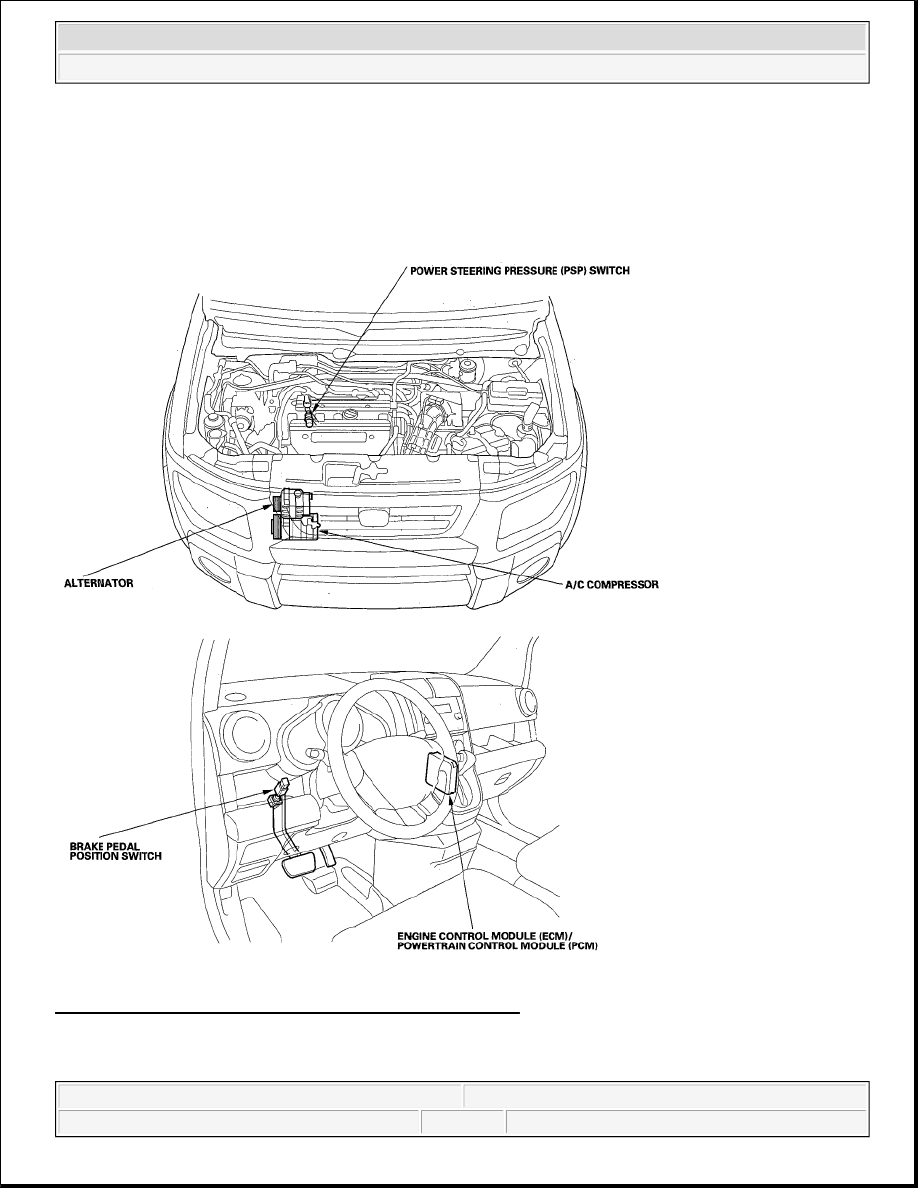

Fig. 1: Identifying Idle Control System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DTC TROUBLESHOOTING



2007 Honda Element EX

2007-08 ENGINE PERFORMANCE Idle Control System - Element
