YES -Go to step 11.

NO -Repair open in the wire between the A/C condenser fan relay socket in the under-hood fuse/relay
box and the A/C condenser fan.

11. Check for continuity between the No. 1 terminal of the A/C condenser fan 2P connector and body ground.

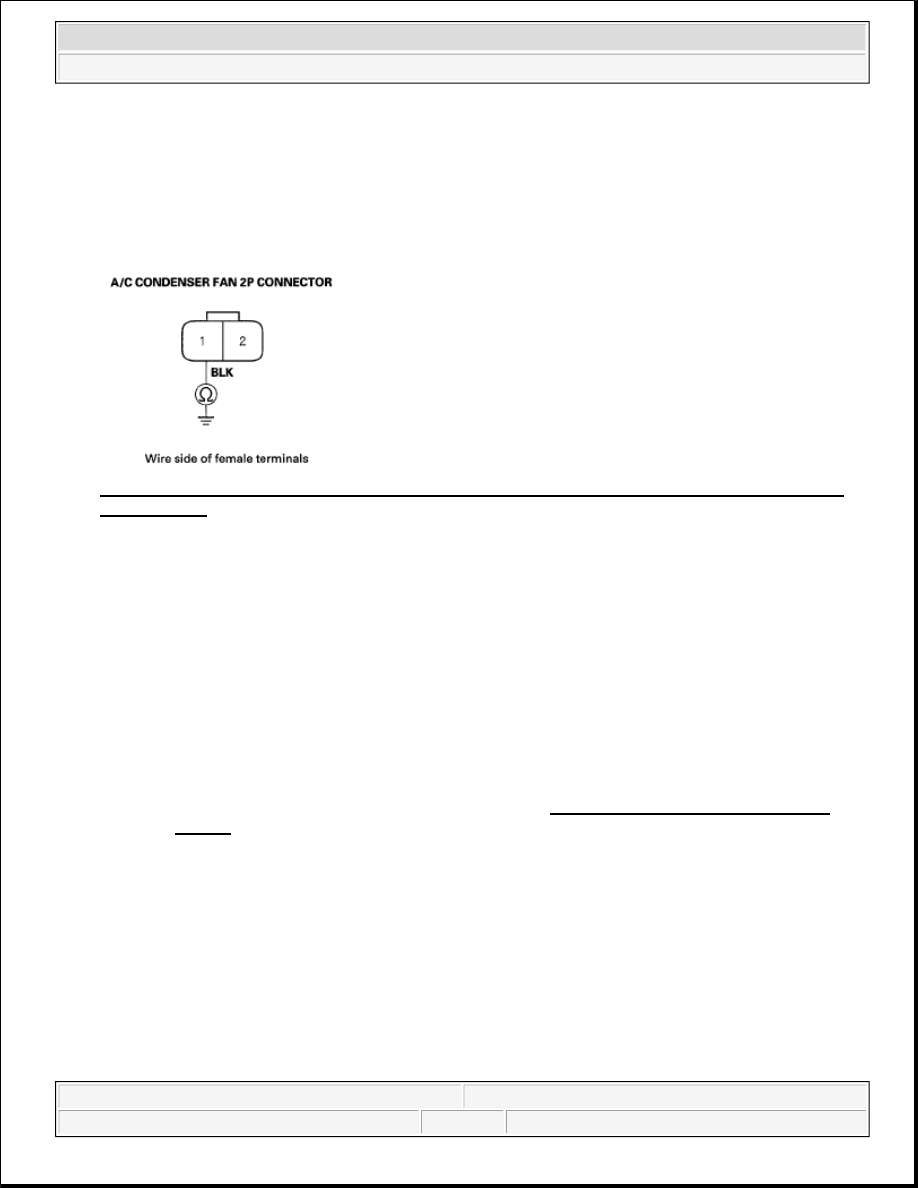

Fig. 47: Checking Continuity Between No. 1 Terminal Of A/C Condenser Fan 2P Connector And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Replace the A/C condenser fan motor.

NO -Check for an open in the wire between the A/C condenser fan and body ground. If the wire is OK,
check for poor ground at G201.

RADIATOR AND A/C CONDENSER FAN COMMON CIRCUIT
TROUBLESHOOTING

1. Check the No. 1 (30 A) and No. 4 (20 A) fuses in the under-hood fuse/relay box, and the No. 14 (10 A)

fuse in the under-dash fuse/relay box.

Are the fuses OK?

YES -Go to step 2.

NO -Replace the fuse(s), and recheck.

2. Remove the A/C condenser fan relay from the under-hood fuse/relay box.

NOTE:

Do not use this troubleshooting procedure if only one fan is inoperative, or the
A/C compressor is inoperative. Refer to the SYMPTOM TROUBLESHOOTING
INDEX.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



3. Turn the ignition switch ON (II).

4. Measure the voltage between the No. 3 terminal of the A/C condenser fan relay 4P socket and body

ground.

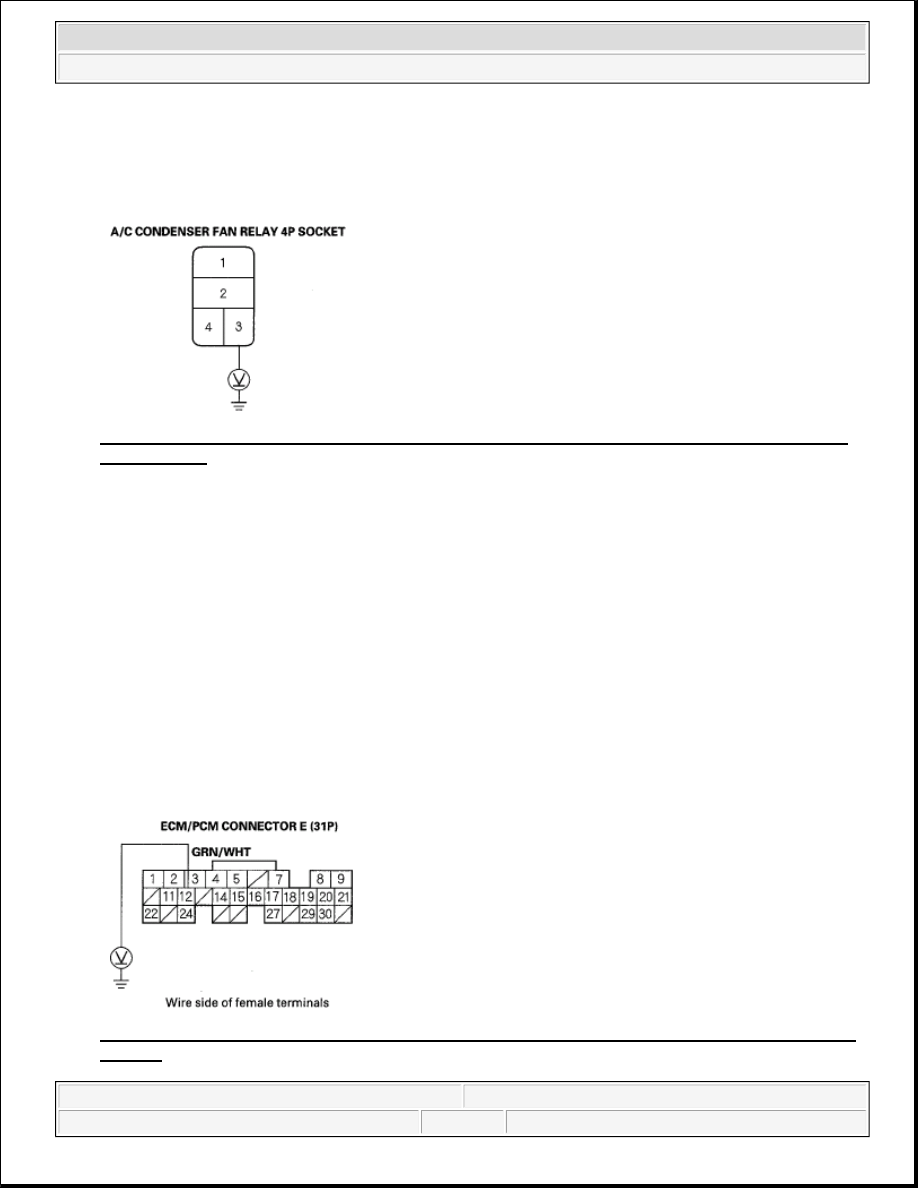

Fig. 48: Measuring Voltage Between No. 3 Terminal Of A/C Condenser Fan Relay 4P Socket And
Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 5.

NO -Repair open in the BLK/YEL wire between the No. 14 (10 A) fuse in the under-dash fuse/relay box
and the radiator fan relay socket, and the A/C condenser fan relay socket.

5. Turn the ignition switch OFF.

6. Reinstall the A/C condenser fan relay.

7. Make sure the A/C switch is OFF.

8. Turn the ignition switch ON (II).

9. Using the backprobe set, measure the voltage between the No. 12 terminal of ECM/PCM connector E

(31P) and body ground with the ECM/PCM connectors connected.

Fig. 49: Measuring Voltage Between No. 12 Terminal Of ECM/PCM Connector E (31P) And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



Is there battery voltage?

YES -Check for loose wires or poor connections at ECM/PCM connector E (31P). If the connections are
good, substitute a known-good ECM/PCM, and recheck. If the symptom/indication goes away, replace
the original ECM/PCM (see ECM/PCM REPLACEMENT ).

NO -Repair open in the wire between the radiator fan relay socket, the A/C condenser fan relay socket
and the ECM/PCM.

A/C COMPRESSOR CLUTCH CIRCUIT TROUBLESHOOTING

1. Check the No. 1 (30 A) fuse in the under-hood fuse/relay box, and the No. 14 (10 A) fuse in the under-

dash fuse/relay box.

Are the fuses OK?

YES -Go to step 2.

NO -Replace the f use(s), and recheck.

2. Connect the HDS to the DLC.

3. Start the engine.

4. Turn on the A/C on the heater control panel.

5. Using the HDS, confirm the following values in the PGM-FI Data List at idle.

DATA LIST

Are all the values within specifications?

YES -Go to step 6.

NO -Troubleshoot the value that is not within the specifications.

6. Remove the A/C compressor clutch relay from the under-hood fuse/relay box, and test it (see POWER

RELAY TEST ).

Is the relay OK?

YES -Go to step 7.

TP SENSOR

About 0.5 V

RPM

720 ± 50

ECT SENSOR 2 39-230°F
A/C SWITCH

ON

A/C CLUTCH

ON



2007 Honda Element EX

2007-2008 HVAC HVAC - Element



NO -Replace the A/C compressor clutch relay.

7. Measure the voltage between the No. 2 terminal of the A/C compressor clutch relay 4P socket and body

ground.

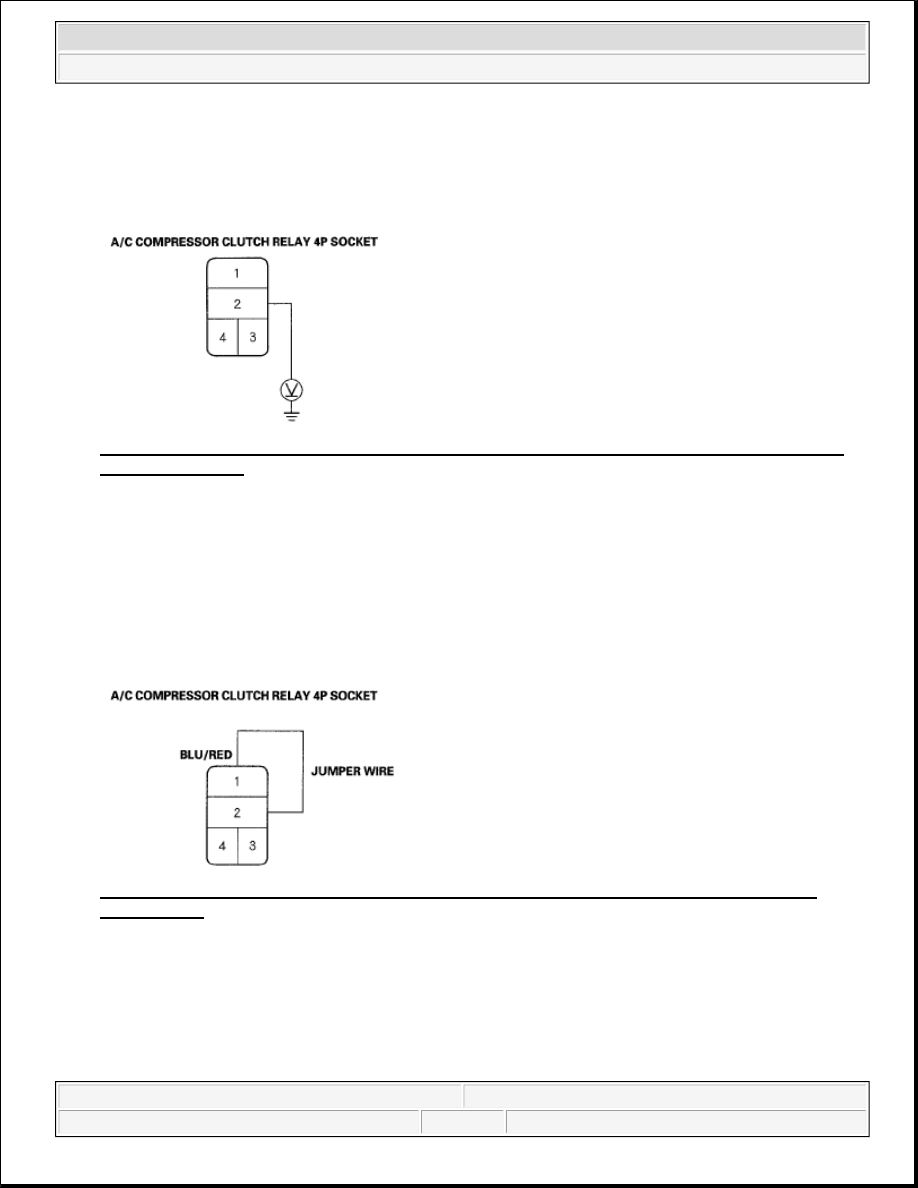

Fig. 50: Measuring Voltage Between No. 2 Terminal Of A/C Compressor Clutch Relay 4P Socket
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 8.

NO -Replace the under-hood fuse/relay box.

8. Connect the No. 1 and No. 2 terminals of the A/C compressor clutch relay 4P socket with a jumper wire.

Fig. 51: Connecting No. 1 And 2 Terminals Of A/C Compressor Clutch Relay 4P Socket With
Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Does the A/C compressor clutch click?

YES -Go to step 9.

NO -Go to step 17.
