ECM/PCM INPUTS AND OUTPUTS AT CONNECTOR B (24P)

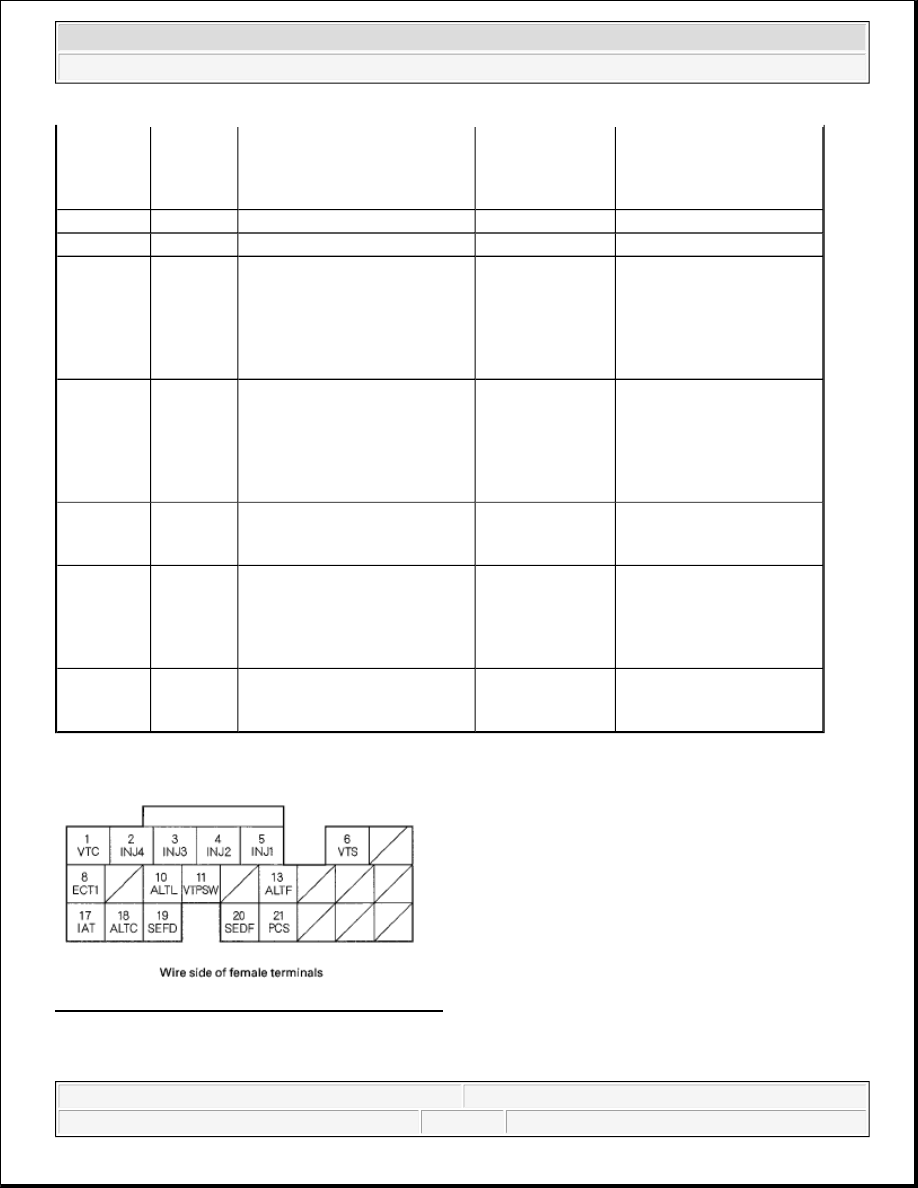

Fig. 22: Identifying ECM/PCM Connector B (24P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21

YEL/RED VCC1 (SENSOR VOLTAGE)

Provides sensor
voltage

With ignition switch ON
(II): about 5.0 V
With ignition switch OFF:
about 0 V

23

GRN/BLK SG2 (SENSOR GROUND)

Sensor ground

Less than 1.0 Vat all times

24

GRN/WHT SG1 (SENSOR GROUND)

Sensor ground

Less than 1.0 V at all times

25

RED/YEL

APSB (ACCELERATOR
PEDAL POSITION (APP)
SENSOR B)

Detects APP
sensor B signal

With ignition switch ON
(II) and accelerator pedal
pressed: about 2.3 V
With ignition switch ON
(II) and accelerator pedal
released: about 0.2 V

26

RED/BLU

APSA (ACCELERATOR
PEDAL POSITION (APP)
SENSOR A)

Detects APP
sensor A signal

With ignition switch ON
(II) and accelerator pedal
pressed: about 4.5 V
With ignition switch ON
(II) and accelerator pedal
released: about 0.5 V

28

BLU

AFS- (AIR FUEL RATIO
(A/F) SENSOR, SENSOR 1-
SIDE)

Detects A/F sensor
(sensor 1) signal



30

GRN/RED

MAP (MANIFOLD
ABSOLUTE PRESSURE
SENSOR)

Detects MAP
sensor signal

With ignition switch ON
(II): about 3.0 V
At idle: about 1.0 V
(depending on engine
speed)

31

RED

AFS+ (AIR FUEL RATIO
(A/F) SENSOR, SENSOR 1
+SIDE)

Detects A/F sensor
(sensor 1) signal



NOTE:

Standard battery voltage is about 12 V.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



ECM/PCM CONNECTOR B REFERENCE

Terminal

number

Wire color

Terminal name

Description

Signal

1

BLU/WHT

VTC (VTC OIL CONTROL
SOLENOID VALVE)

Drives VTC oil
control solenoid
valve

With ignition switch ON (II):
about 0 V

2

YEL

INJ4 (No. 4 INJECTOR)

Drives No. 4
injector

At idle: duty controlled
With ignition switch ON (II):
battery voltage

3

BLU

INJ3 (No. 3 INJECTOR)

Drives No. 3
injector

4

RED

INJ2 (No. 2 INJECTOR)

Drives No. 2
injector

5

BRN

INJ1 (No. 1 INJECTOR)

Drives No. 1
injector

6

GRN/YEL

VTS (ROCKER ARM OIL
CONTROL SOLENOID)

Drives rocker arm
oil control solenoid

At idle: about 0 V

8

RED/WHT

ECT1 (ENGINE COOLANT
TEMPERATURE SENSOR
1)

Detects ECT sensor
1 signal

With ignition switch ON (II):
about 0.1- 4.8 V (depending
on engine coolant
temperature)
With fully warmed up engine:
about 0.5-0.7 V

10

WHT/BLU

ALTL (ALTERNATOR L
SIGNAL)

Detects alternator
signal

With ignition switch ON (II):
about 0 V
With engine running: battery
voltage

11

BLU/BLK

VTPSW (ROCKER ARM
OIL PRESSURE SWITCH)

Detects rocker arm
oil pressure switch
signal

At low engine speed: about 0
V
At high engine speed: battery
voltage

13

WHT/RED

ALTF (ALTERNATOR FR
SIGNAL)

Detects alternator
FR signal

With engine running: about 0-
5.0 V (depending on electrical
load)

17

RED/YEL

IAT (INTAKE AIR
TEMPERATURE SENSOR)

Detects IAT sensor
signal

With ignition switch ON (II):
about 0.1-4.8 V (depending
on intake air temperature)

18

WHT/GRN

ALTC (ALTERNATOR
CONTROL)

Sends alternator
control signal

With fully warmed up engine
running: about 8.0 V

19

GRN

SEFD (THROTTLE
ACTUATOR CONTROL
SERIAL SIGNAL)

Sends throttle
actuator control
serial signal



20

BLU

SEDF (THROTTLE
ACTUATOR CONTROL
SERIAL SIGNAL)

Detects throttle
actuator control
serial signal



With engine running, engine



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



ECM/PCM INPUTS AND OUTPUTS AT CONNECTOR C (22P)

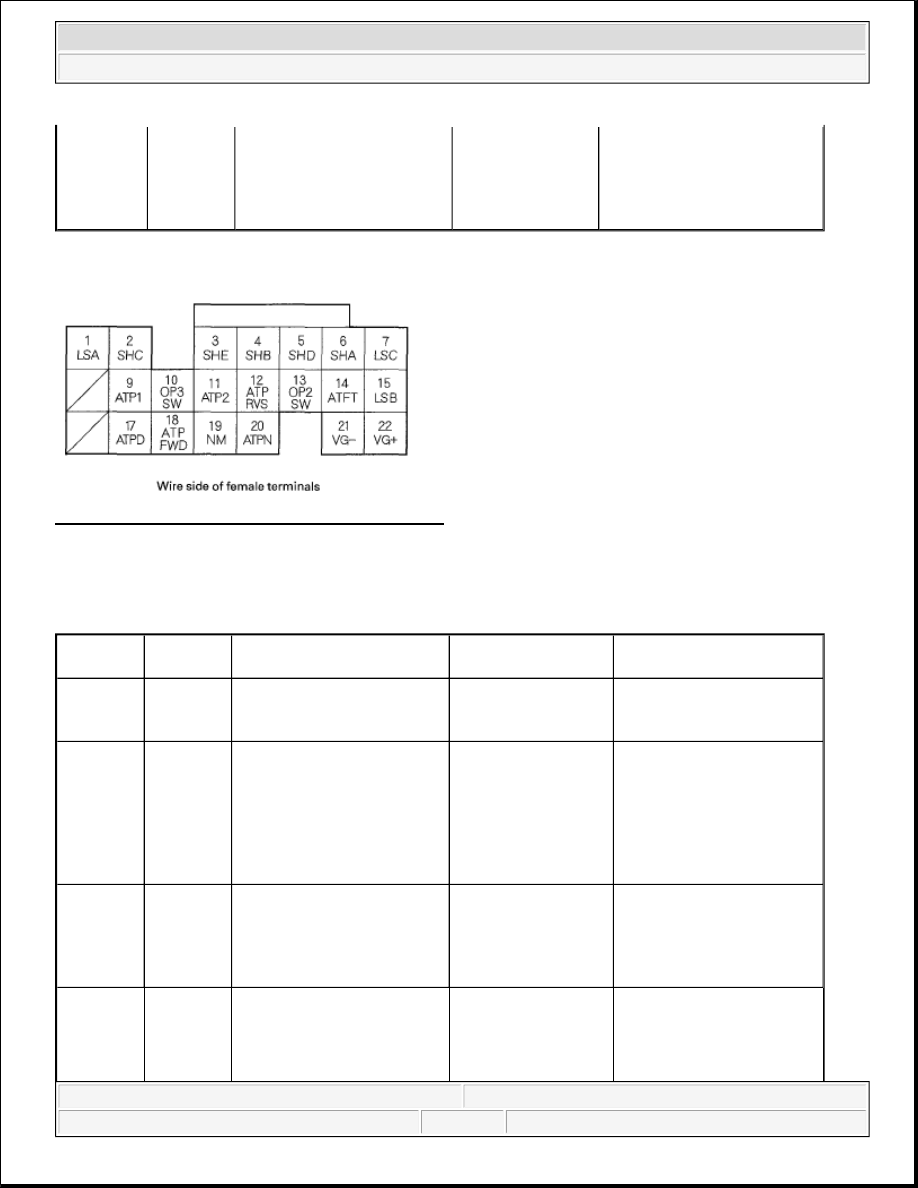

Fig. 23: Identifying ECM/PCM Connector C (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ECM/PCM CONNECTOR C REFERENCE

21

YEL/GRN

PCS (EVAPORATIVE
EMISSION CANISTER
PURGE VALVE)

Drives EVAP
canister purge
valve

coolant below 131°F (55°C):
battery voltage
With engine running, engine
coolant above 131°F (55°C):
duty controlled

NOTE:

Standard battery voltage is about 12 V.

Terminal

number

Wire color

Terminal name

Description

Signal

1

(1)

BLK/BLU

LSA (A/T CLUTCH
PRESSURE CONTROL
SOLENOID VALVE A)

Drives A/T clutch
pressure control
solenoid valve A

With ignition switch ON
(II): current control

2

(1)

GRN

SHC (SHIFT SOLENOID
VALVE C)

Drives shift solenoid
valve C

With engine running in N
and 1 position, or in D
position (in 1st, 3rd, and 5th
gears): battery voltage
With engine running in P,
R, 2, or D position (in 2nd,
4th gears): about 0 V

3

(1)

YEL

SHE (SHIFT SOLENOID
VALVE E)

Drives shift solenoid
valve E

With engine running in P, R
position: battery voltage
With engine running in N,
D, 2, or 1 position: about
0V

4

(1)

GRN/WHT

SHB (SHIFT SOLENOID
VALVE B)

Drives shift solenoid
valve B

With engine running in P,
R, N, 2, and 1 position, or D
position (in 1st, 2nd gears):
battery voltage



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE Fuel and Emissions Systems - Element



With engine running in D
position (in 3rd, 4th, 5th
gears):about 0 V

5

(1)

GRN/RED

SHD (SHIFT SOLENOID
VALVE D)

Drives shift solenoid
valve D

With engine running in 2 or
D position (in 2nd, 5th
gears): battery voltage
With engine running in P,
R, N, 1 position, or D
position (in 1st, 3rd, 4th
gears): about 0V

6

(1)

BLU/BLK

SHA (SHIFT SOLENOID
VALVE A)

Drives shift solenoid
valve A

With engine running in R
and 1 position, or D position
(in 1st, 4th, 5th gears):
battery voltage
With engine running in P, N
and 2 position, or D position
(in 2nd, 3rd gears): about 0
V

7

(1)

BLU/YEL

LSC (A/T CLUTCH
PRESSURE CONTROL
SOLENOID VALVE C)

Drivers A/T clutch
pressure control
solenoid valve C

With ignition switch ON
(II): current control

9

(1)

BRN

ATP1 (TRANSMISSION
RANGE SWITCH 1
POSITION)

Detects transmission
range switch 1
position signal input

In 1 position: about 0 V
In any position other than 1
position: battery voltage

10

(1)

BLU/WHT

OP3SW (3RD CLUTCH
TRANSMISSION FLUID
PRESSURE SWITCH)

Detects 3rd clutch
transmission fluid
pressure switch signal
input

With ignition switch ON
(II): about 5.0 V
With 3rd clutch pressure: 0
V

11

(1)

BLU

ATP2 (TRANSMISSION
RANGE SWITCH 2
POSITION)

Detects transmission
range switch 2
position signal input

In 2 position: about 0V
In any position other than 2
position: battery voltage

12

(1)

RED/WHT

ATPRVS (TRANSMISSION
RANGE SWITCH R
POSITION)

Detects transmission
range switch R
position signal input

In R position: about 0 V
In any position other than R
position: battery voltage

(1)

A/T
