Turn signal switch

Fig. 15: Turn Signal Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

DAYTIME RUNNING LIGHTS CONTROL UNIT INPUT TEST

CANADA MODELS

1. Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER

REMOVAL/INSTALLATION ).

2. Disconnect the 14P connector (A) from the daytime running lights control unit (B).

Fig. 16: Identifying Daytime Running Lights Control Unit Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



3. Inspect the connector and socket terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.



If the terminals look OK, go to step 4.

4. Connect the 14P connector (A) and test these inputs at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, go to step 5.

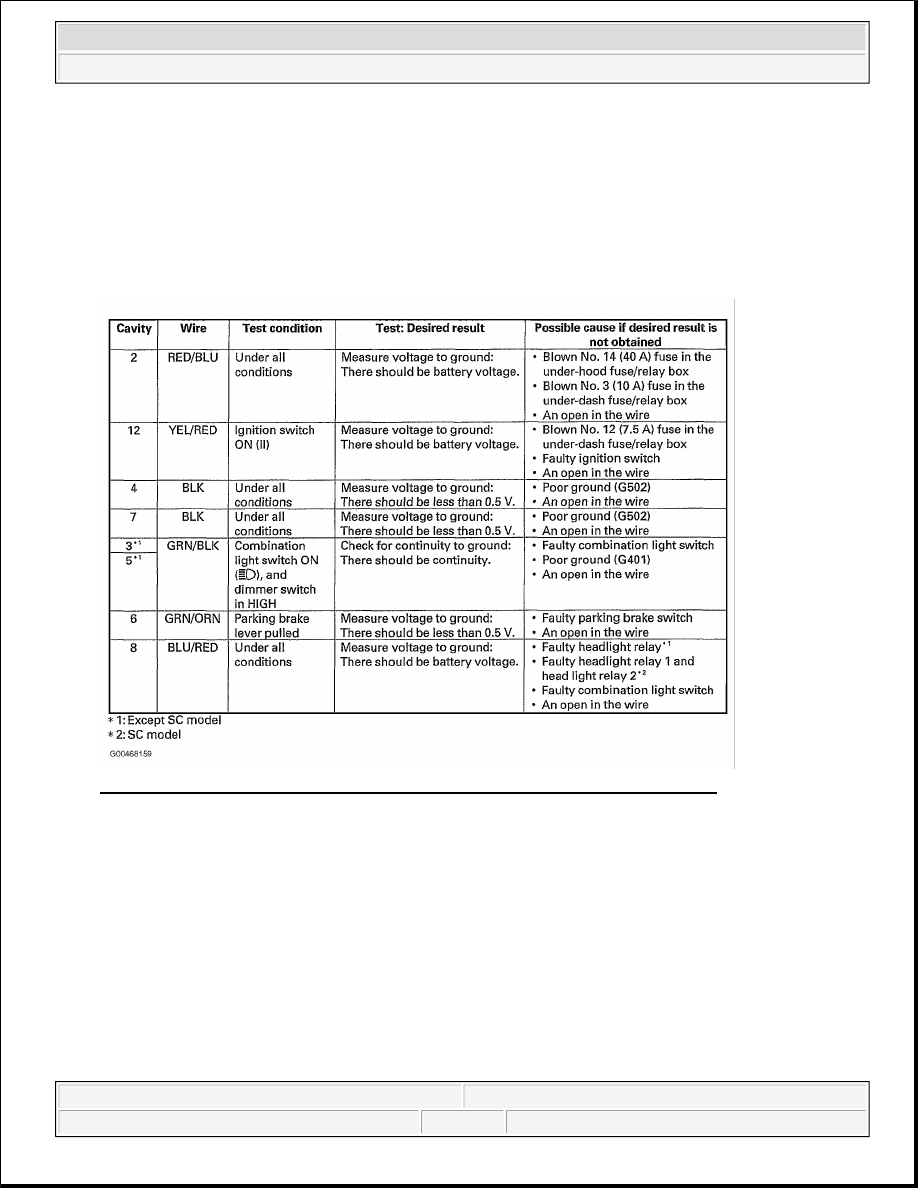

Fig. 17: Identifying Daytime Running Lights Control Unit Input Test Connected
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the 14P connector (A) and test these inputs at the connector.



If any test indicates a problem, find and correct the cause, then recheck the system.



If all the input tests prove OK, the control unit must be faulty; replace it.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

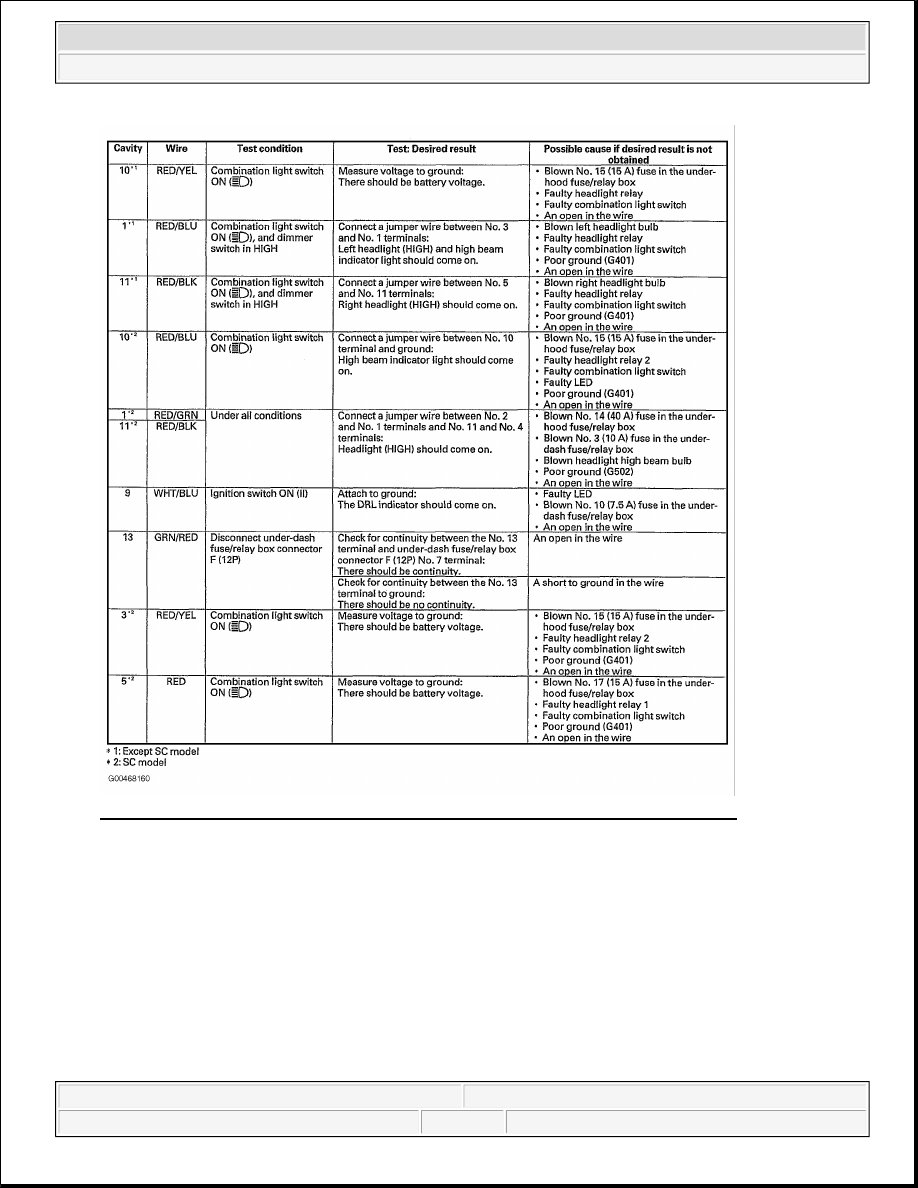

Fig. 18: Identifying Daytime Running Lights Control Unit Input Test Disconnected
Courtesy of AMERICAN HONDA MOTOR CO., INC.

HEADLIGHT ADJUSTMENT

Before adjusting the headlights:



Park the vehicle on a level surface.



Make sure the tire pressures are correct.

CAUTION: Headlights become very hot during use; do not touch them or any

attaching hardware immediately after they have been turned off.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element





The driver or someone who weighs the same should sit in the driver's seat.

1. Clean the outer lens so that you can see the center of the headlights (A).

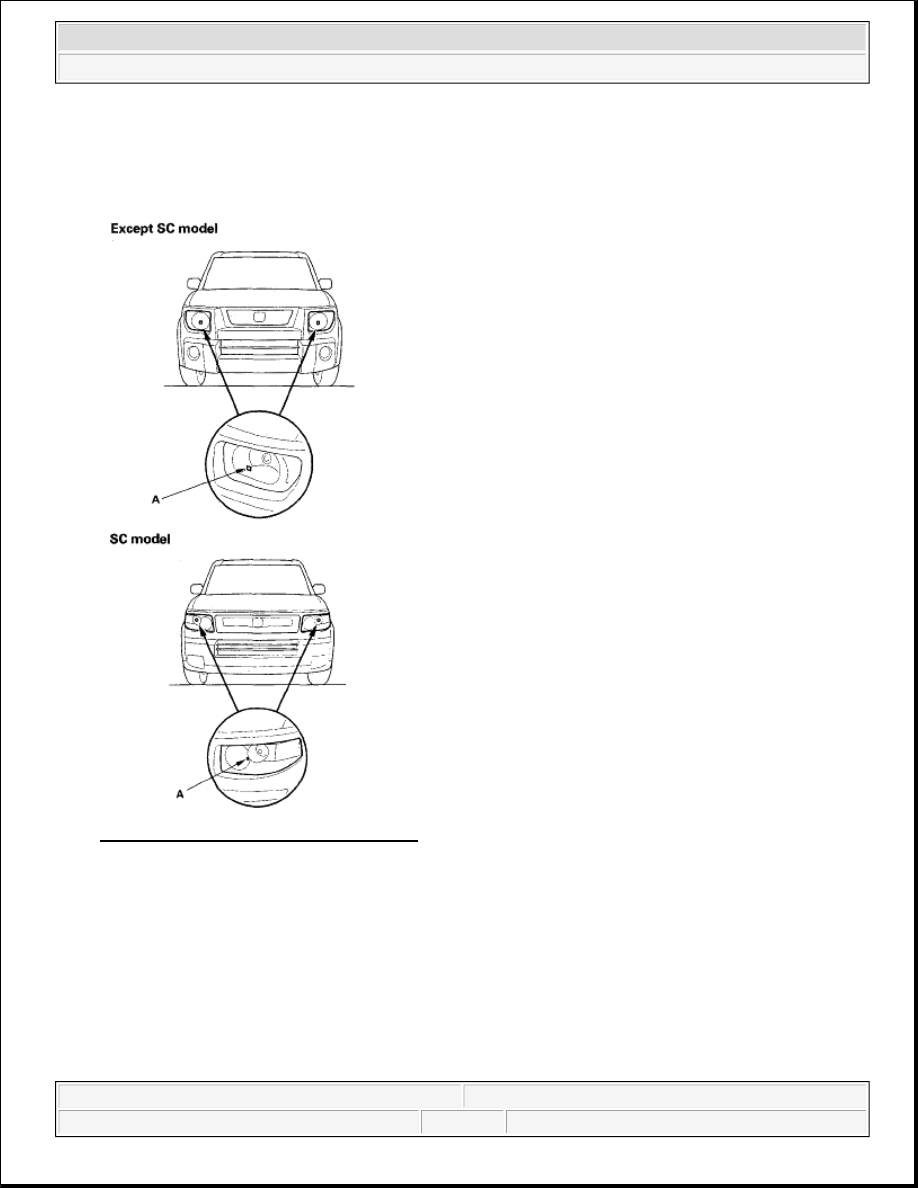

Fig. 19: Identifying Center Of Headlights
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Park the vehicle 7.5 m (25 ft) away from a wall or a screen (A).
