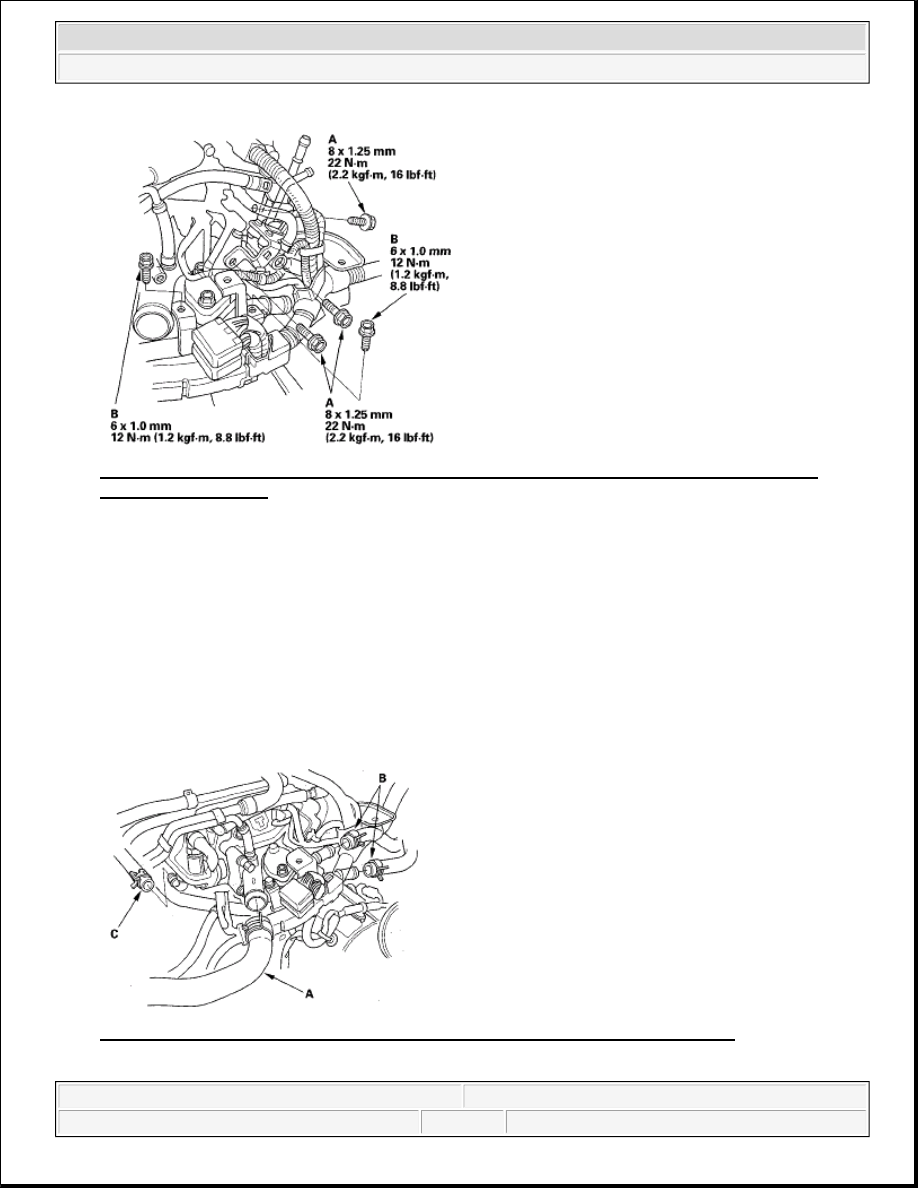

Fig. 128: Identifying Evaporative Emission (EVAP) Canister Purge Valve Bracket Bolts With
Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Install the engine wire harness connectors, and install the wire harness clamps from the cylinder head.



Four injector connectors



Engine coolant temperature (ECT) sensor 1 connector



Camshaft position (CMP) sensor A connector (Intake side)



Camshaft position (CMP) sensor B connector (Exhaust side)



Rocker arm oil control solenoid (VTEC solenoid valve) connector



Rocker arm oil pressure switch (VTEC oil pressure switch) connector

15. Install the upper radiator hose (A), heater hoses (B), and water bypass hose (C).

Fig. 129: Identifying Upper Radiator Hose, Heater Hoses, And Water Bypass Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



16. Install the positive crankcase ventilation (PCV) hose (A) and ground cable (B).

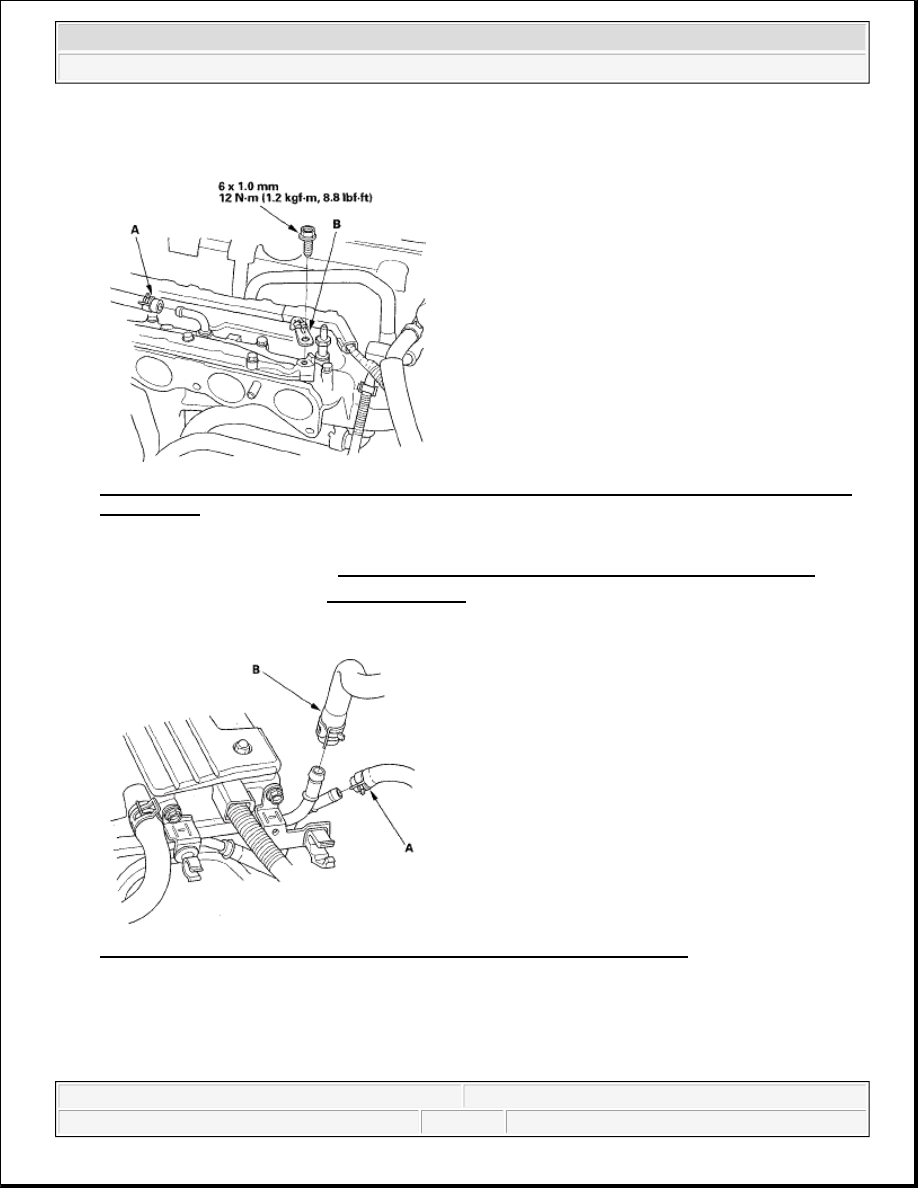

Fig. 130: Identifying Positive Crankcase Ventilation (PCV) Hose And Ground Cable With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

17. Install the exhaust manifold (see EXHAUST MANIFOLD REMOVAL AND INSTALLATION ).

18. Install the intake manifold (see INSTALLATION ).

19. Install the EVAP canister hose (A) and brake booster vacuum hose (B).

Fig. 131: Identifying EVAP Canister Hose And Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

20. Torque the bolt securing the connecting pipe support bracket to the engine block.



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



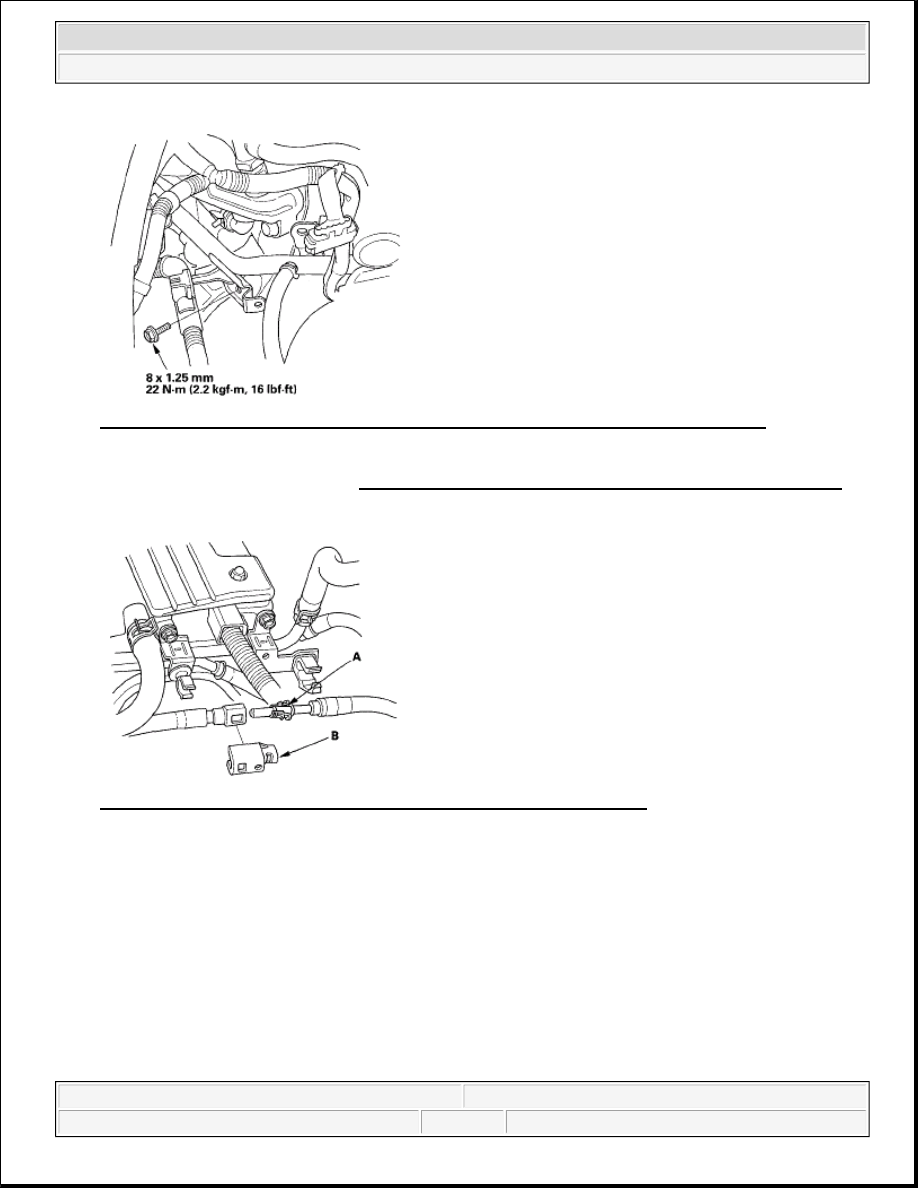

Fig. 132: Identifying Connecting Pipe Support Bracket Bolt With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

21. Connect the fuel feed hose (A) (see FUEL LINE/QUICK-CONNECT FITTING INSTALLATION ),

then install the quick-connect fitting cover (B).

Fig. 133: Identifying Fuel Feed Hose And Quick-Connect Fitting Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

22. Install the intake air duct (A), then connect the mass airflow (MAF) sensor/intake air temperature (IAT)

sensor connector (B), and connect the vacuum hose (C) and breather pipe (D).



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element



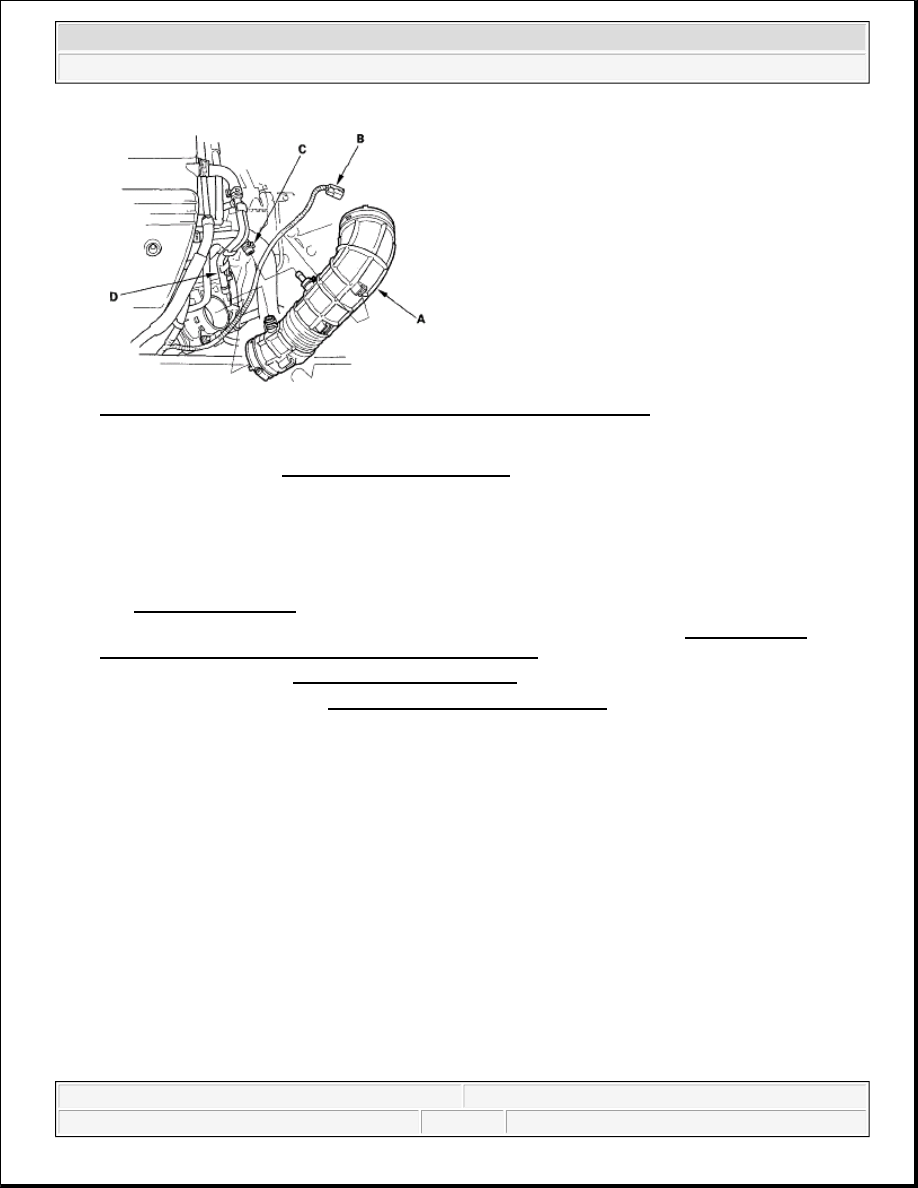

Fig. 134: Identifying Intake Air Duct, Vacuum Hose And Breather Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

23. Install the drive belt (see DRIVE BELT INSPECTION ).

24. After installation, check that all tubes, hoses, and connectors are installed correctly.

25. Inspect for fuel leaks. Turn the ignition switch ON (II) (do not operate the starter) so the fuel pump runs

for about 2 seconds and pressurizes the fuel line. Repeat this operation three times, then check for fuel
leakage at any point in the fuel line.

26. Refill the radiator with engine coolant, and bleed air from the cooling system with the heater valve open

(see COOLANT CHECK ).

27. Do the crankshaft position (CKP) pattern clear/CKP pattern learn procedure (see CRANK (CKP)

PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).

28. Inspect the idle speed (see IDLE SPEED INSPECTION ).

29. Inspect the ignition timing (see IGNITION TIMING INSPECTION ).
