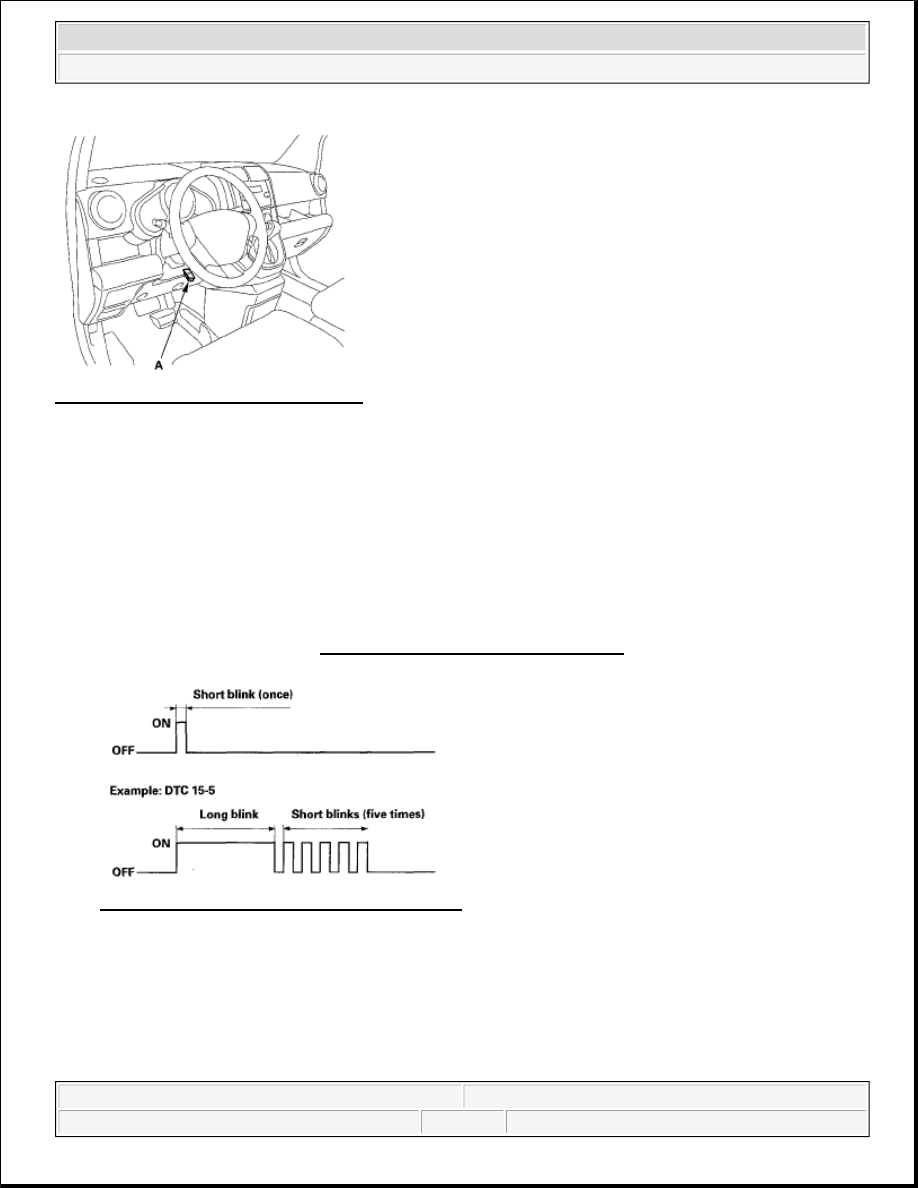

Fig. 6: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the D indicator and the MIL come on at the same time, or if a driveability problem is suspected, do this:

1. Connect the HDS to the DLC. (See the HDS user's manual for specific instructions.)

2. Turn the ignition switch ON (II), select SCS mode, then observe the D indicator in the gauge control

module. Codes 1 through 9 are indicated by individual short blinks. Codes 10 and above are indicated by
a series of long and short blinks. One long blink equals 10 short blinks. Add the long and short blinks
together to determine the code.

Fig. 7: Data Link Connector - Blinking Pattern
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Record all fuel and emissions DTCs and A/T DTCs.

4. If there is a fuel and emissions DTC, first check the fuel and emissions system as indicated by the DTC.

5. Clear the DTC and data.

6. Drive the vehicle for several minutes under the same conditions as those indicated by the freeze data, and

then recheck for DTC. If the A/T DTC returns, go to the indicated DTCs troubleshooting. If the DTC

NOTE:

If the HDS does not communicate with the PCM, troubleshoot the DLC
circuit (see DLC CIRCUIT TROUBLESHOOTING ).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



does not return, there was an intermittent problem within the circuit. Make sure all pins and terminals in
the circuit are tight.

HOW TO TROUBLESHOOT CIRCUITS AT THE PCM

Special Tools Required



Digital multimeter KS-AHM-32-003 (1) or a commercially available digital multimeter



Backprobe set 07SAZ-001000A (2)

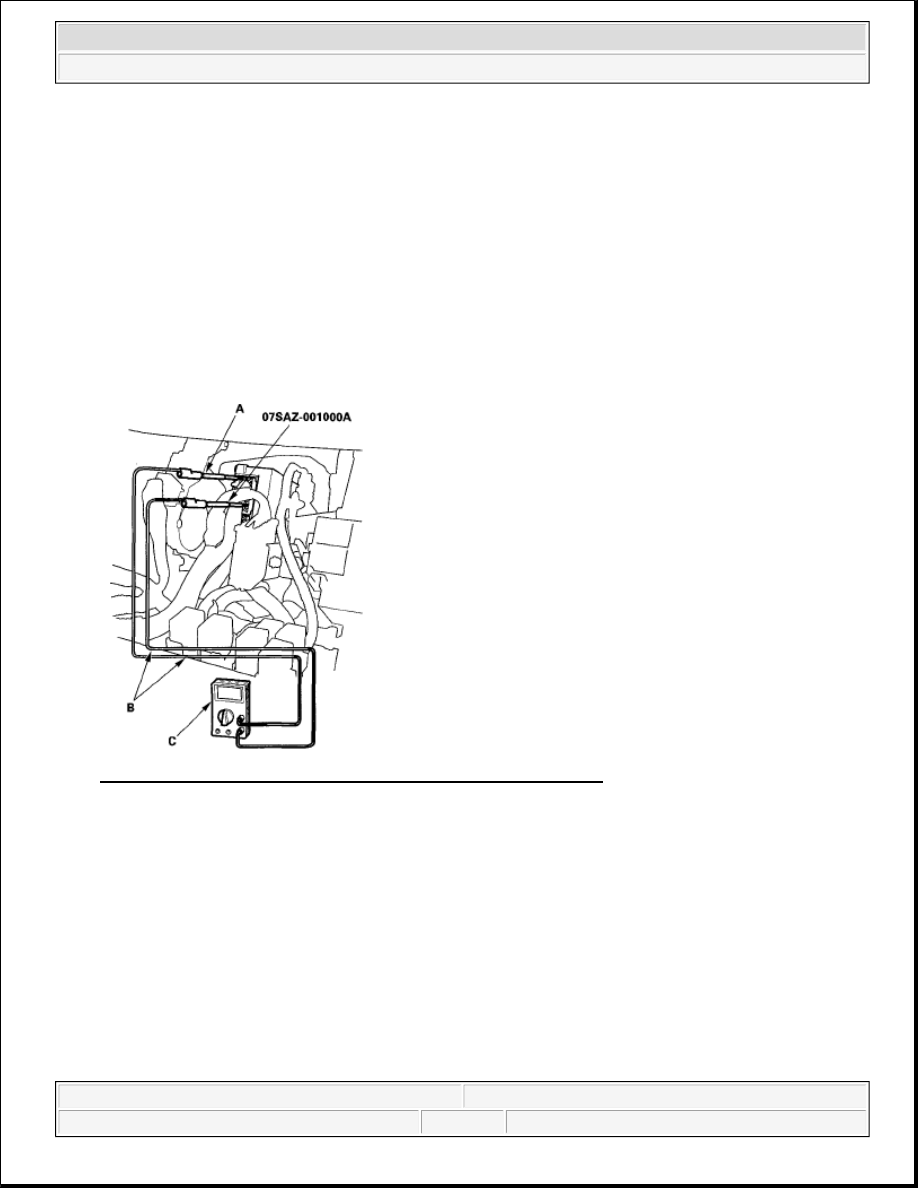

1. Connect the backprobe adapters (A) to the stacking patch cords (B), and connect the cords to a digital

multimeter (C).

Fig. 8: Connecting Backprobe Adapters To Stacking Patch Cords
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Using the wire insulation as a guide for the contoured tip of the backprobe adapter, gently slide the tip

into the connector from the wire side until it touches the end of the wire terminal.

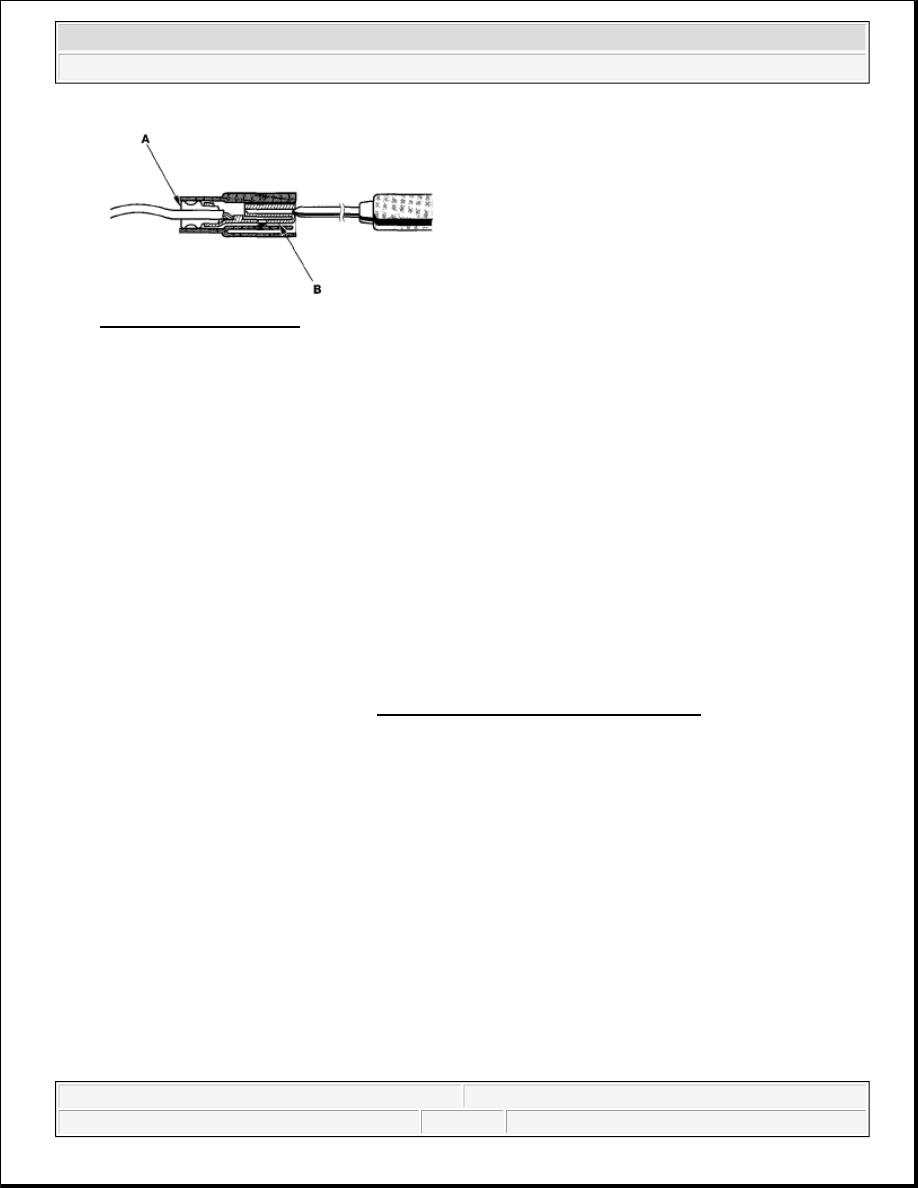

3. If you cannot get to the wire side of the connector or the wire side is sealed (A), disconnect the connector

and probe the terminals (B) from the terminal side. Do not force the probe into the connector.

NOTE:

Do not puncture the insulation on a wire. Punctures can cause poor or
intermittent electrical connections.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Fig. 9: Probing Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CLEAR A/T DTCS PROCEDURE

1. Connect the HDS to the DLC.

2. Turn the ignition switch ON (II).

3. Clear the DTC(s) on the HDS screen.

PCM RESET PROCEDURE

1. Connect the HDS to the DLC.

2. Turn the ignition switch ON (II).

3. Reset the PCM with the HDS.

4. Turn the ignition switch OFF.

5. Turn the ignition switch ON (II), and wait for 30 seconds.

6. Turn the ignition switch OFF, and disconnect the HDS from the DLC.

7. Do the PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

OBD STATUS

The OBD Status shows the current system status of each DTC and all of the parameters. This function is used to
see if the technician's repair was successfully finished. The results of diagnostic tests for the DTC are displayed
as:



PASSED: The on-board diagnosis is successfully finished.



FAILED: The on-board diagnosis has finished but failed.



NOT COMPLETED: The on-board diagnosis was running but is out of the enable conditions of the DTC.

HOW TO END A TROUBLESHOOTING SESSION

This procedure must be done after any troubleshooting.

1. Turn the ignition switch OFF.

2. Connect the HDS to the DLC.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



3. Turn the ignition switch ON (II).

4. Clear the DTC(s) on the HDS screen.

5. Turn the ignition switch ON (II).

6. Start the engine in the P or N position, and warm it up to normal operating temperature (the radiator fan

comes on).

7. To verify that the problem is repaired, test-drive the vehicle for several minutes at speeds over 31 mph

(50 km/h) or in freeze data range.

UPDATING THE PCM

Special Tools Required



Honda diagnostic system (HDS) tablet tester



Honda interface module (HIM) and an iN workstation with HDS and CM update software



HDS pocket tester



GNA600 and an iN workstation with HDS and CM update software

1. Turn the ignition switch ON (II), but do not start the engine.

2. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

NOTE:



Use this procedure when you need to update the PCM during
troubleshooting procedures.



Make sure the HDS/HIM has the latest software version.



Before you update the PCM, make sure the battery in the vehicle is fully
charged.



Never turn the ignition switch OFF during the update. If there is a problem
with the update, leave the ignition switch ON.



To prevent PCM damage, do not operate anything electrical (headlights,
audio system, brakes, A/C, power windows, door locks, etc.) during the
update.



To ensure the latest program is installed, do a PCM update whenever the
PCM is substituted or replaced.



You cannot update a PCM with a program it already has. It will only accept
a new program.



If you need to diagnose the Honda interface module (HIM) because the
HIM's red (# 3) lamp came on or was flashed during the update, leave the
ignition switch in the ON (II) position when you disconnect the HIM from
the data link connector (DLC). This will prevent PCM damage.
