And 3

Is the resistance as specified?

YES -Go to step 10.

NO -Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear
the DTC.

10. Disconnect the negative cable from the battery, and wait for 3 minutes.

11. Disconnect both seat belt tensioner 4P connectors (see step 7 on ) and both seat belt buckle tensioner 4P

connectors (see step 8 on )

12. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on ).

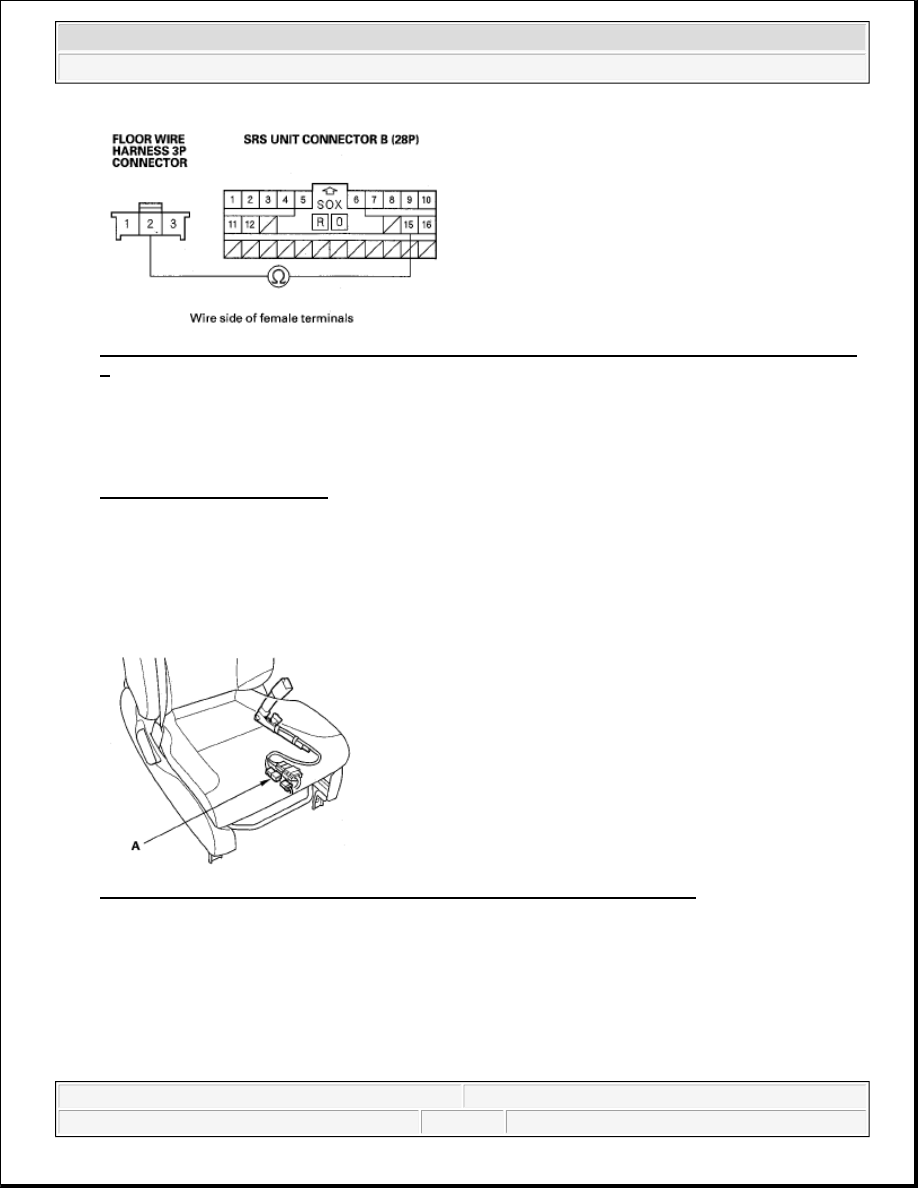

13. Measure the resistance between the No. 16 terminal of SRS unit connector B (28P) and the No. 3 terminal

of the floor wire harness 3P connector. There should be 0-1 ohms.

Fig. 183: Measuring Resistance Between SRS Unit Terminal 16 And Floor Wire Harness Terminal
3

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the
connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit (see
SRS UNIT REPLACEMENT ).

NO -Open in the floor wire harness; replace the floor wire harness.

14. Turn the ignition switch OFF.

15. Disconnect the floor wire harness 3P connector from the front passenger's seat belt buckle switch 3P

connector (A).



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



Fig. 184: Identifying Front Passenger's Seat Belt Buckle Switch 3P Connector

16. Unbuckle the front passenger's seat belt.

17. Measure the resistance between the No. 1 and No. 2 terminals of the front passenger's seat belt buckle

switch 3P connector. There should be 0-1 ohms.

Fig. 185: Measuring Resistance Between Front Passenger's Seat Belt Buckle Switch Terminal 1
And 2

Is the resistance as specified?

YES -Go to step 18.

NO -Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear
the DTC.

18. Disconnect the negative cable from the battery, and wait for 3 minutes.

19. Disconnect both seat belt tensioner 4P connectors (see step 7 on ) and both seat belt buckle tensioner 4P

connectors (see step 8 on ).

20. Disconnect SRS unit connector B (28P) from the SRS unit (see step 9 on ).

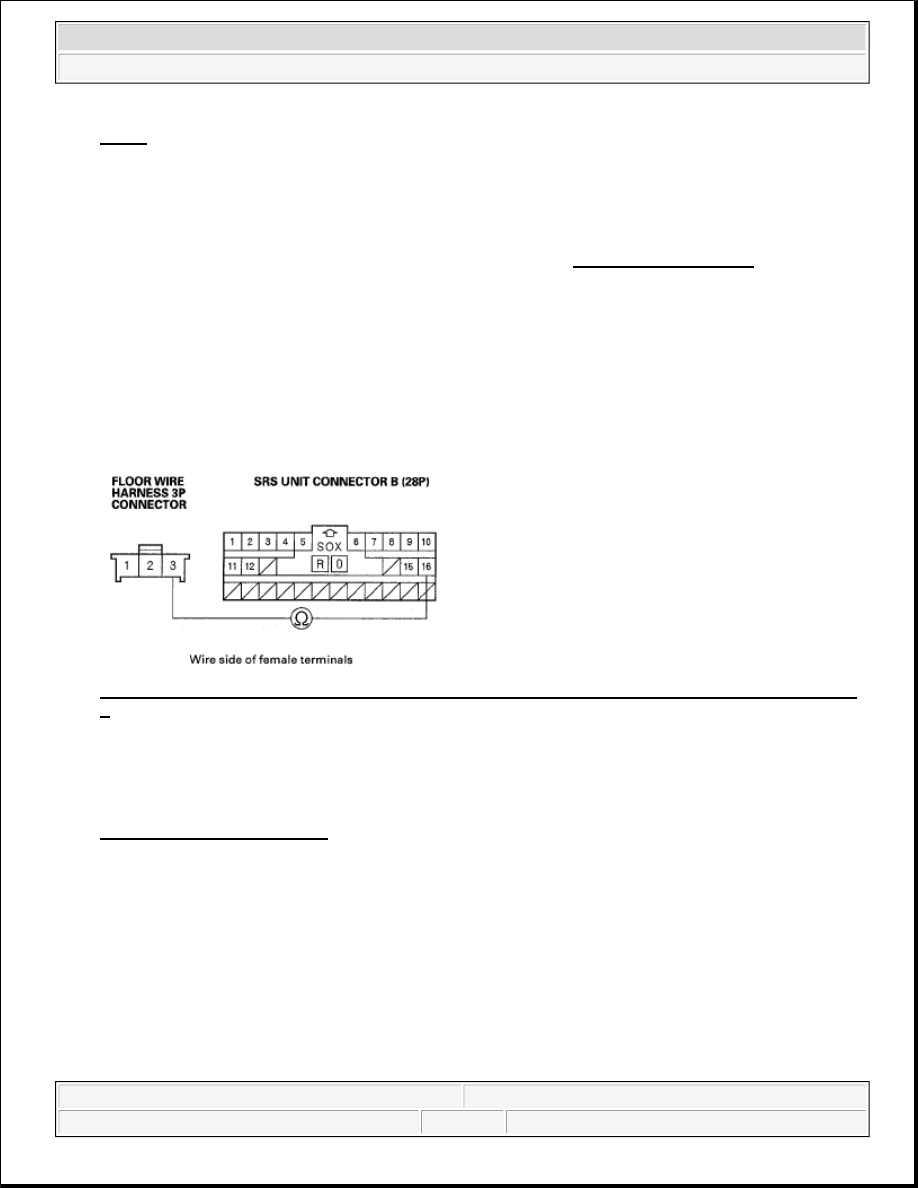

21. Measure the resistance between the No. 15 terminal of SRS unit connector B (28P) and the No. 2 terminal

of the floor wire harness 3P connector. There should be 0-1 ohms.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



Fig. 186: Measuring Resistance Between SRS Unit Terminal 15 And Floor Wire Harness Terminal
2

Is the resistance as specified?

YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the
connection between the connector and the SRS unit. If the connection is OK, replace the SRS unit (see
SRS UNIT REPLACEMENT ).

NO -Open in the floor wire harness; replace the floor wire harness.

22. Turn the ignition switch OFF.

23. Disconnect the floor wire harness 3P connector from the front passenger's seat belt buckle switch 3P

connector (A).

Fig. 187: Identifying Front Passenger's Seat Belt Buckle Switch 3P Connector

24. Unbuckle the front passenger's seat belt.

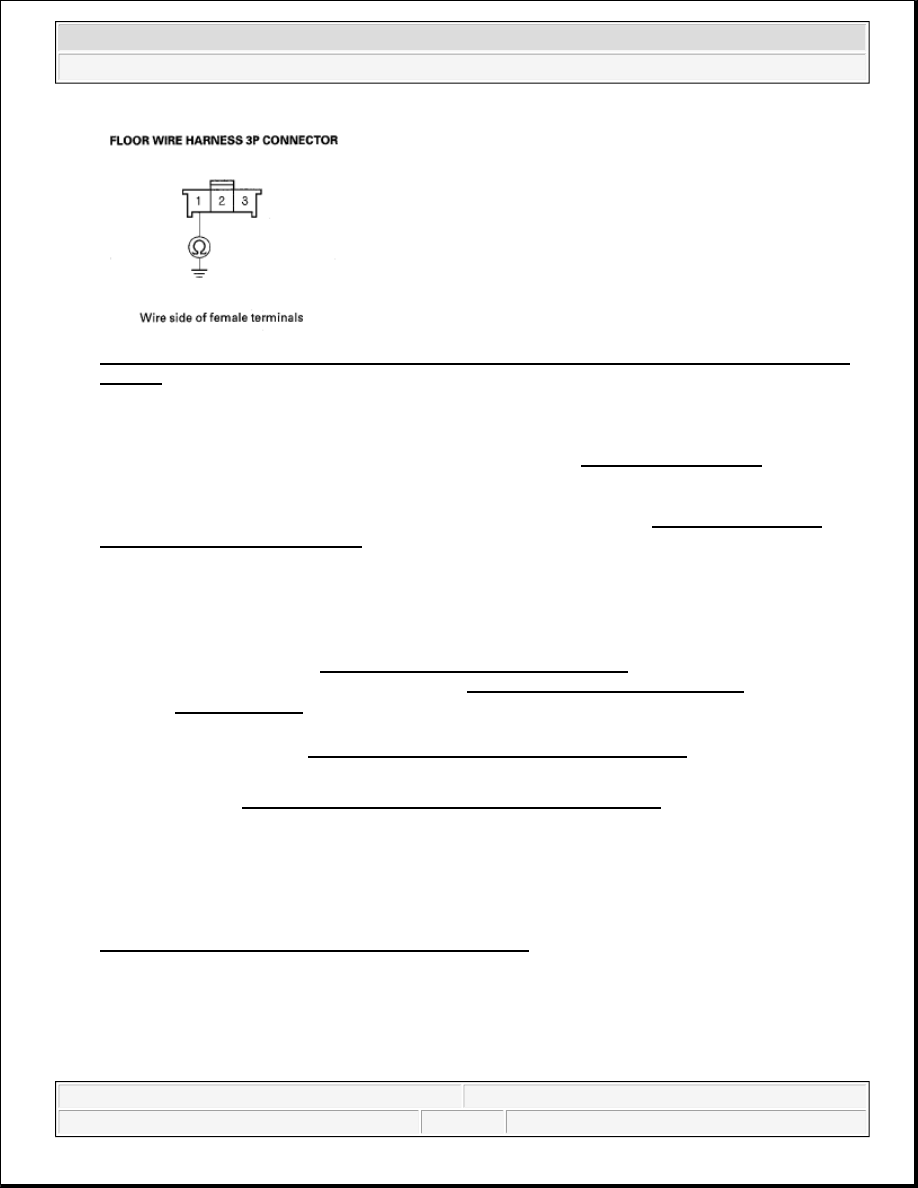

25. Measure the resistance between the No. 1 terminal of the floor wire harness 3P connector and body

ground. There should be 0-1 ohms.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element



Fig. 188: Measuring Resistance Between Floor Wire Harness 3P Connector Terminal 1 And Body
Ground

Is the resistance as specified?

YES -Replace the front passenger's seat belt buckle assembly (see SEAT BELT BUCKLE ), then clear
the DTC.

NO -Open in the floor wire harness or poor ground connection at G502 (see DASHBOARD WIRE
HARNESS A (RIGHT BRANCH) ). If G501 is OK, replace the floor wire harness.

DTC 62-2X ("X" CAN BE 0 THRU 9 OR A THRU F): SHORT IN FRONT PASSENGER'S SEAT
BELT BUCKLE SWITCH

1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ).

2. Turn the ignition switch ON (II), then buckle and unbuckle the front passenger's seat belt several times.

3. Read the DTC (see GENERAL TROUBLESHOOTING INFORMATION ).

Is DTC 62-2x indicated?

YES -Go to step 4.

NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see
TROUBLESHOOTING INTERMITTENT FAILURES ). If another DTC is indicated, troubleshoot
the DTC.

4. Turn the ignition switch OFF.

5. Disconnect the floor wire harness 3P connector from the front passenger's seat belt buckle switch 3P

connector (A).

NOTE:

Before doing this troubleshooting procedure, review SRS Precautions and
Procedures (see PRECAUTIONS AND PROCEDURES ) and General
Troubleshooting Information (see GENERAL TROUBLESHOOTING
INFORMATION ).
