temperature. When an inappropriate temperature is detected after comparing the temperature readings of each
sensor, a malfunction in the corresponding sensor is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

A malfunction is detected if these three conditions are present after the engine and the ignition switch have been
off for at least 6 hours before restarting the engine.



When the temperature difference between the IAT and ECT1 is 61 °F (34 °C) or more.



When the temperature difference between the IAT and ECT2 is 28 °F (16 °C) or more.



When the temperature difference between the ECT2 and ECT1 is 60 °F (33 °C) or more.

Driving Pattern

1. Turn the ignition off, and wait at least 6 hours.

2. Start the engine, and let it idle for at least 10 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

Execution

Once per driving cycle

Sequence

None

Duration

10 seconds or more

DTC Type

Two drive cycles, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Engine off time 6 hours

-

No active DTCs P0111, P0112, P0113, P0116, P0117, P0118, P0125, P1116, P2184, P2185, P2610



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P2184 (192): ADVANCED DIAGNOSTICS

DTC P2184: ENGINE COOLANT TEMPERATURE (ECT) SENSOR 2 CIRCUIT LOW VOLTAGE

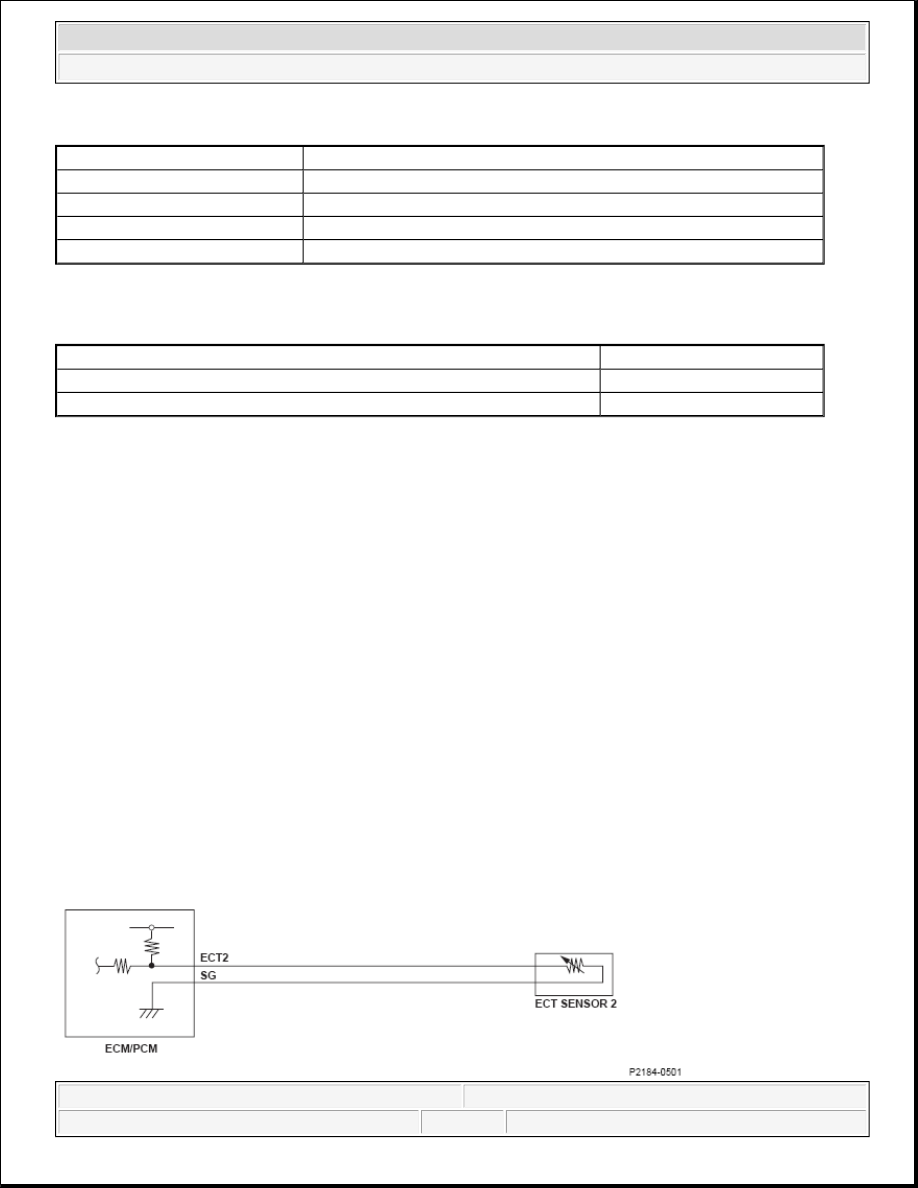

Fig. 226: Engine Coolant Temperature (ECT) Sensor 2 Circuit Diagram

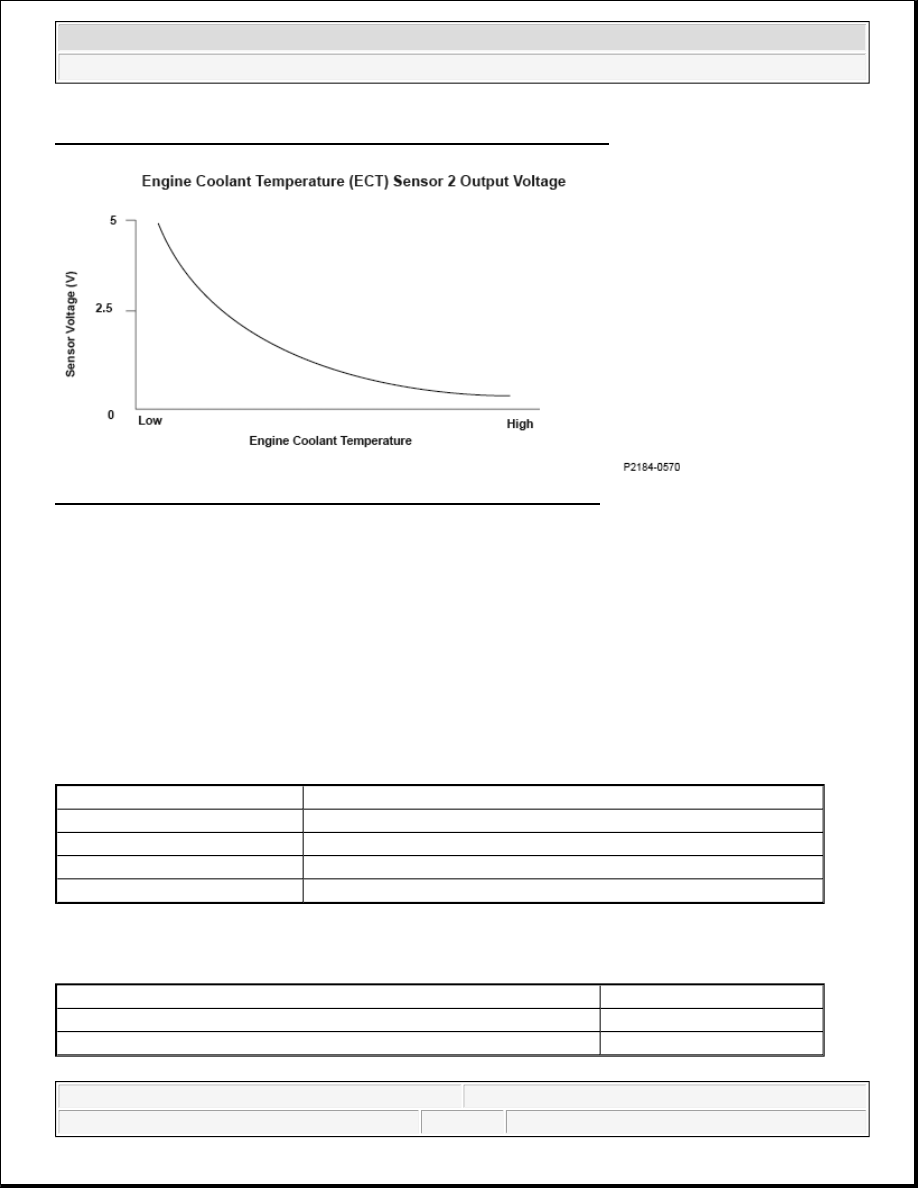

Fig. 227: Engine Coolant Temperature Sensor Output Voltage - Graph

General Description

The engine coolant temperature (ECT) sensor 2 is a thermistor attached to the radiator. The ECM/PCM applies
voltage (about 5 V) to the ECT2 signal circuit through a pull up resistor. As the engine coolant temperature
cools, ECT sensor 2 resistance increases, and the ECM/PCM detects a high signal voltage. As the engine
coolant warms, the sensor resistance decreases, and the ECM/PCM detects a low ECT2 signal voltage.

If the ECT sensor 2 output voltage is less than a set value when the engine coolant temperature is high, the
ECM/PCM detects a malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The ECT sensor 2 output voltage is 0.08 V or less for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P2185 (192): ADVANCED DIAGNOSTICS

DTC P2185: ENGINE COOLANT TEMPERATURE (ECT) SENSOR 2 CIRCUIT HIGH VOLTAGE

Execution

Continuous

Sequence

None

Duration

2 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P2185



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



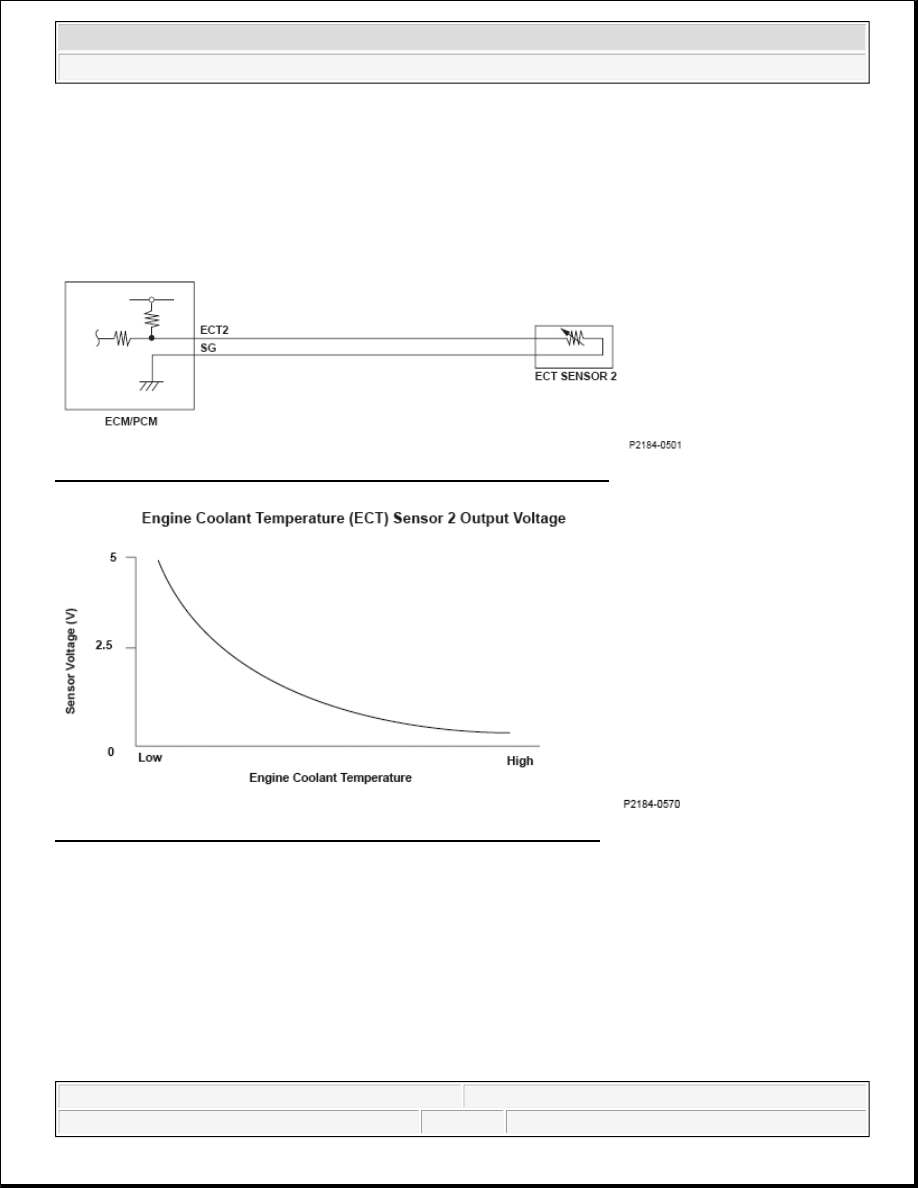

Fig. 228: Engine Coolant Temperature (ECT) Sensor 2 Circuit Diagram

Fig. 229: Engine Coolant Temperature Sensor Output Voltage - Graph

General Description

The engine coolant temperature (ECT) sensor 2 is a thermistor attached to the radiator. The ECM/PCM applies
voltage (about 5 V) to the ECT2 signal circuit through a pull up resistor. As the engine coolant temperature
cools, ECT sensor 2 resistance increases, and the ECM/PCM detects a high signal voltage. As the engine
coolant warms, the sensor resistance decreases, and the ECM/PCM detects a low ECT2 signal voltage.

If the ECT sensor 2 output voltage is more than a set value when the engine coolant temperature is low, the
ECM/PCM detects a malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

2 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P2184



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
