The return signal does not match the command to turn ON shift solenoid valve E for at least 1 second.

Driving Pattern

Start the engine, shift to P position, and wait for at least 1 second.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0986 (61): ADVANCED DIAGNOSTICS

DTC P0986: OPEN IN SHIFT SOLENOID VALVE E CIRCUIT

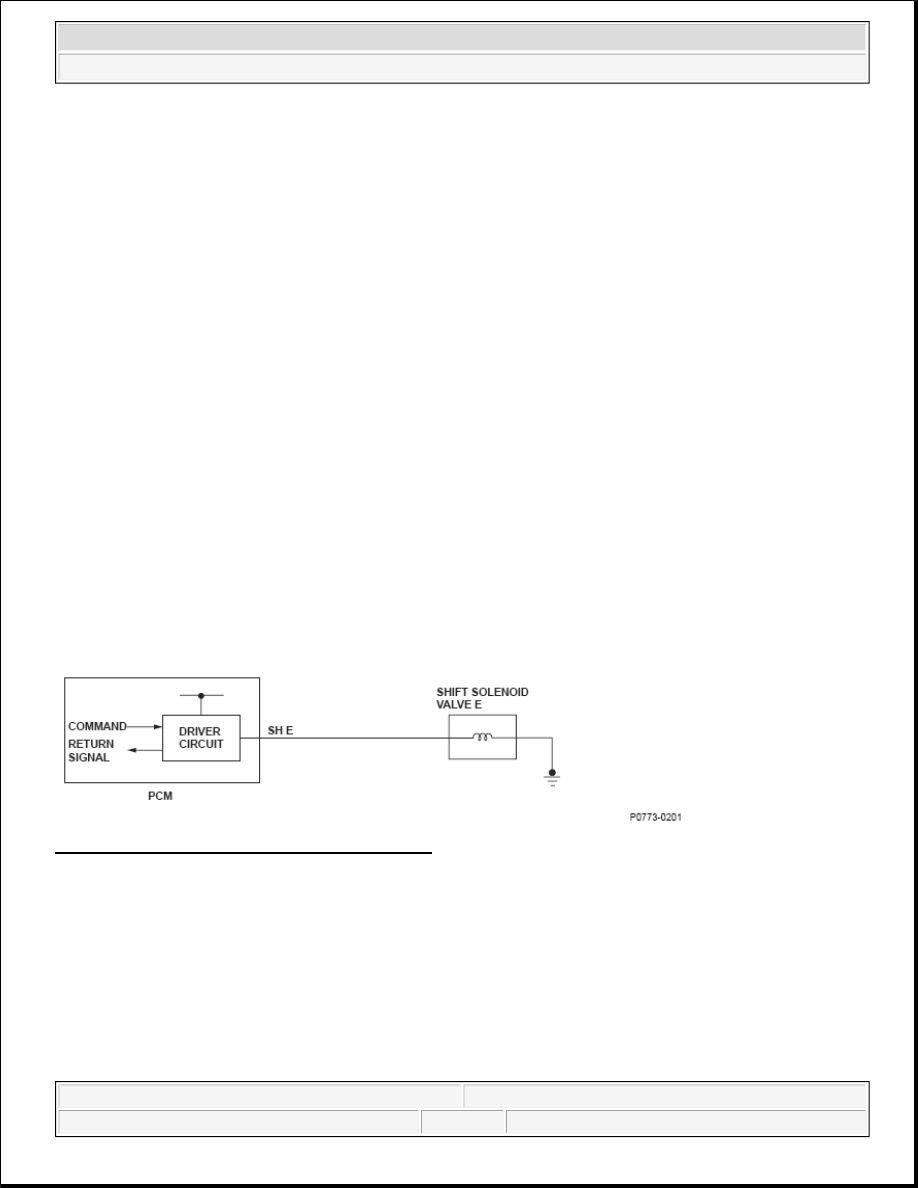

Fig. 179: Shift Solenoid Valve E Circuit Diagram



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



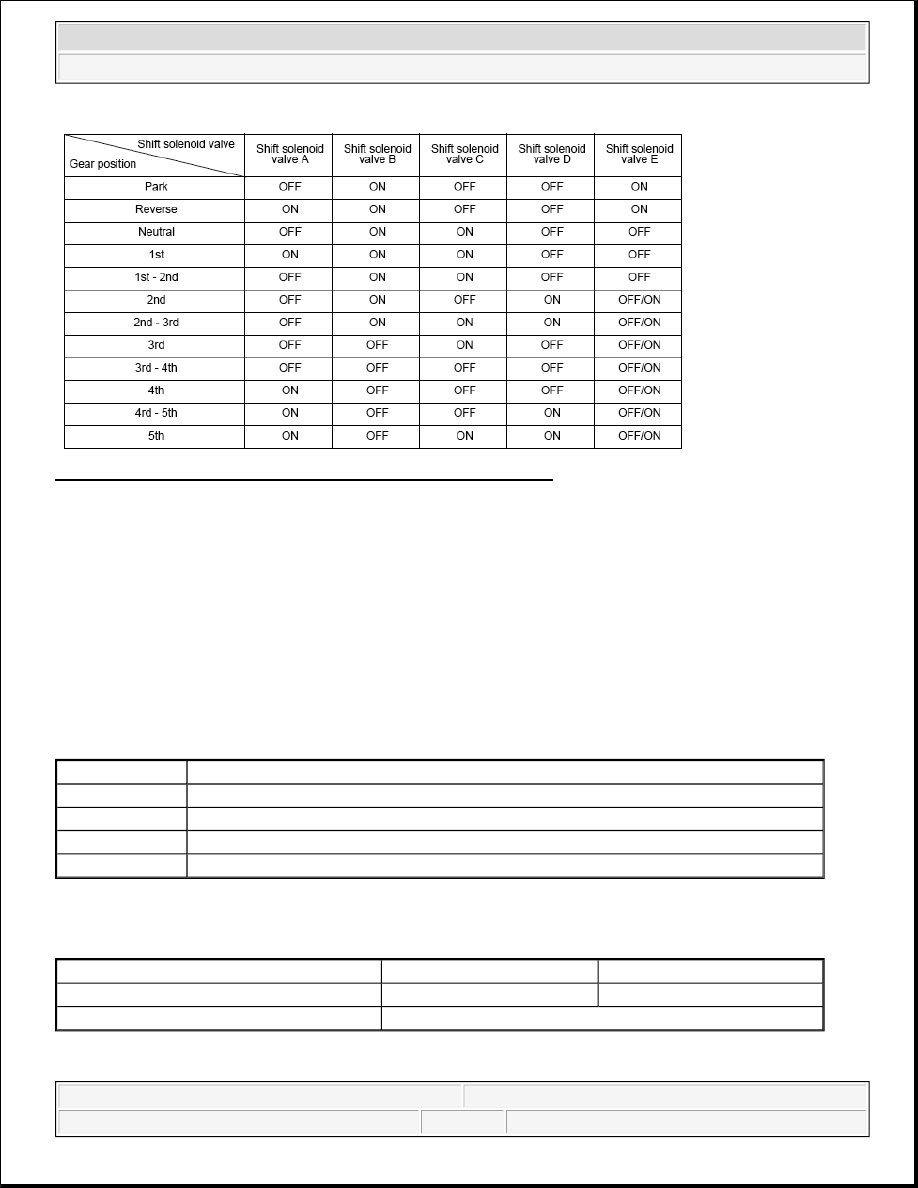

Fig. 180: Shift Solenoid Valve Driving Signal Combination Table

General Description

When shift solenoid valves A, B, C, D, and E are turned ON, the hydraulic pressure circuit opens. The hydraulic
pressure circuit supplies/discharges hydraulic pressure to/from each clutch according to the combination of the
ON/OFF status of those valves and the shift valves. The powertrain control module (PCM) commands the
driver circuit to turn on the shift solenoid valve. The circuit diagnoses malfunctions such as a circuit short or
open, and sends back a return signal during the PCM's command. When the return signal does not match the
PCM command, a malfunction is detected by the PCM. The malfunction is detected when the return signal does
not match the PCM command to turn OFF the shift solenoid valve, and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

Execution

Continuous

Sequence

None

Duration

1 second or more

DTC Type

One drive cycle, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery voltage

11.0 V

-

No active DTCs

P0976, P0977, P0985



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The return signal does not match the command to turn OFF shift solenoid valve E for at least 1 second.

Driving Pattern

Start the engine, and drive the vehicle in 2nd gear in D position for at least 1 second.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P1009 (56): ADVANCED DIAGNOSTICS

DTC P1009: VARIABLE VALVE TIMING CONTROL (VTC) ADVANCE MALFUNCTION



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



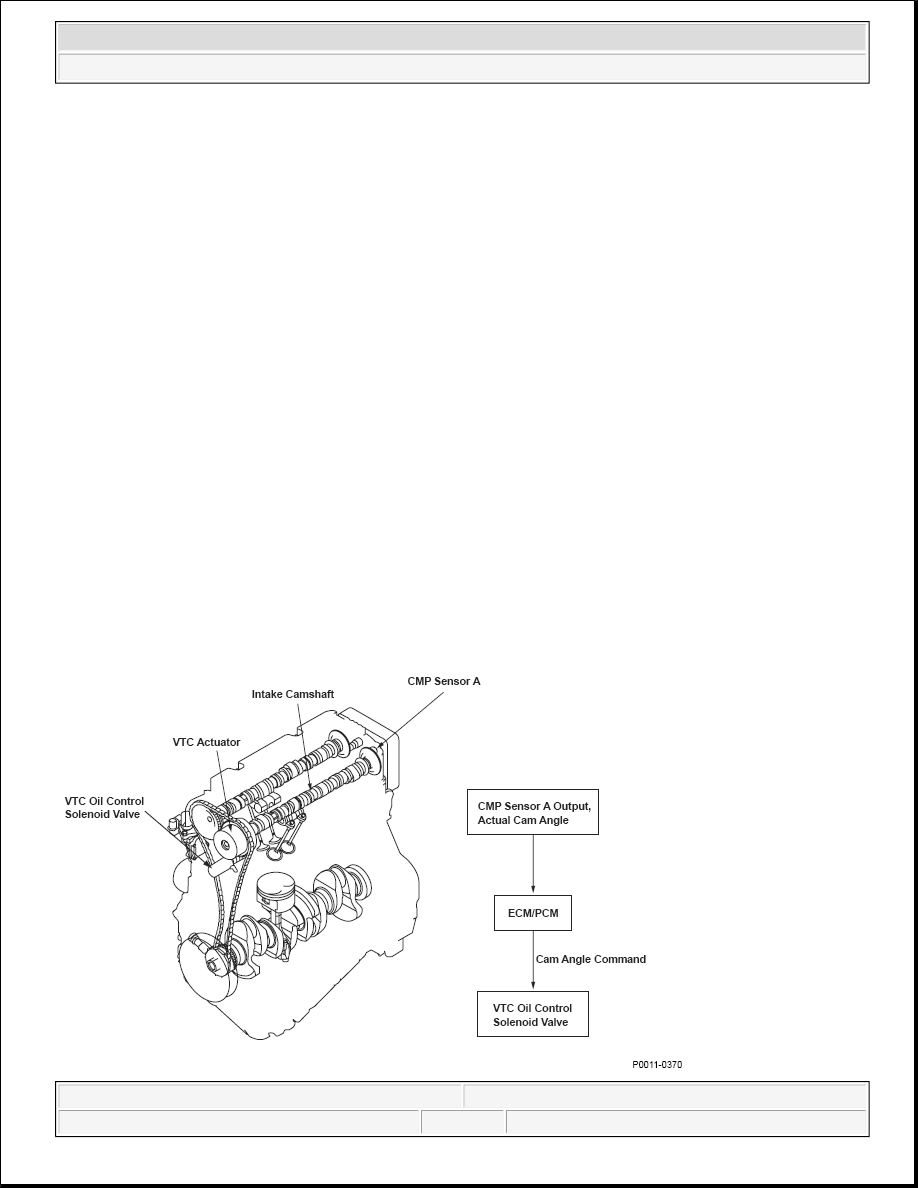

Fig. 181: Identifying Variable Valve Timing Control Components Location With Flow Diagram

General Description

The variable valve timing control (VTC) system controls the phase of the intake camshaft. It uses oil pressure to
operate the VTC actuator so the valve timing is optimized depending on driving conditions. The engine control
module (ECM)/powertrain control module (PCM) monitors the phase control command and the actual timing of
the camshaft by using camshaft position (CMP) sensor A. If an over-advanced camshaft phase (compared to the
directed value) continues or when the camshaft phase is otherwise abnormal, a malfunction is detected and a
DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

When the camshaft phase value is not 24.0 ° or less within the monitored area (camshaft phase control directed
value plus failure judgment value) after 3 seconds have passed, or when the camshaft phase value is 20.0 ° or
less and continues for 3 seconds or more, even when the VTC does not actuate.

Driving Pattern

Start the engine. Let it idle.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Execution

Continuous

Sequence

None

Duration

0.5 second or more, up to 3 seconds

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Elapsed time after starting the
engine

0.5 second

-

No active DTCs

P0335, P0339, P0340, P0341, P0344

Other

After restarting the engine with the intake camshaft angle 10 ° for 0.5
second or more
