Honda Element. Manual - part 36

The ATF temperature sensor output voltage is less than 0.07 V for at least 10 seconds.

Driving Pattern

Start the engine, shift to the P position, and wait for at least 10 seconds.

Diagnosis Details

Conditions for illuminating the indicator

When a malfunction is detected, the D indicator blinks, and the DTC and the freeze frame data are stored in the
PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting
the battery.

DTC P0713 (28): ADVANCED DIAGNOSTICS

DTC P0713: OPEN IN ATF TEMPERATURE SENSOR CIRCUIT

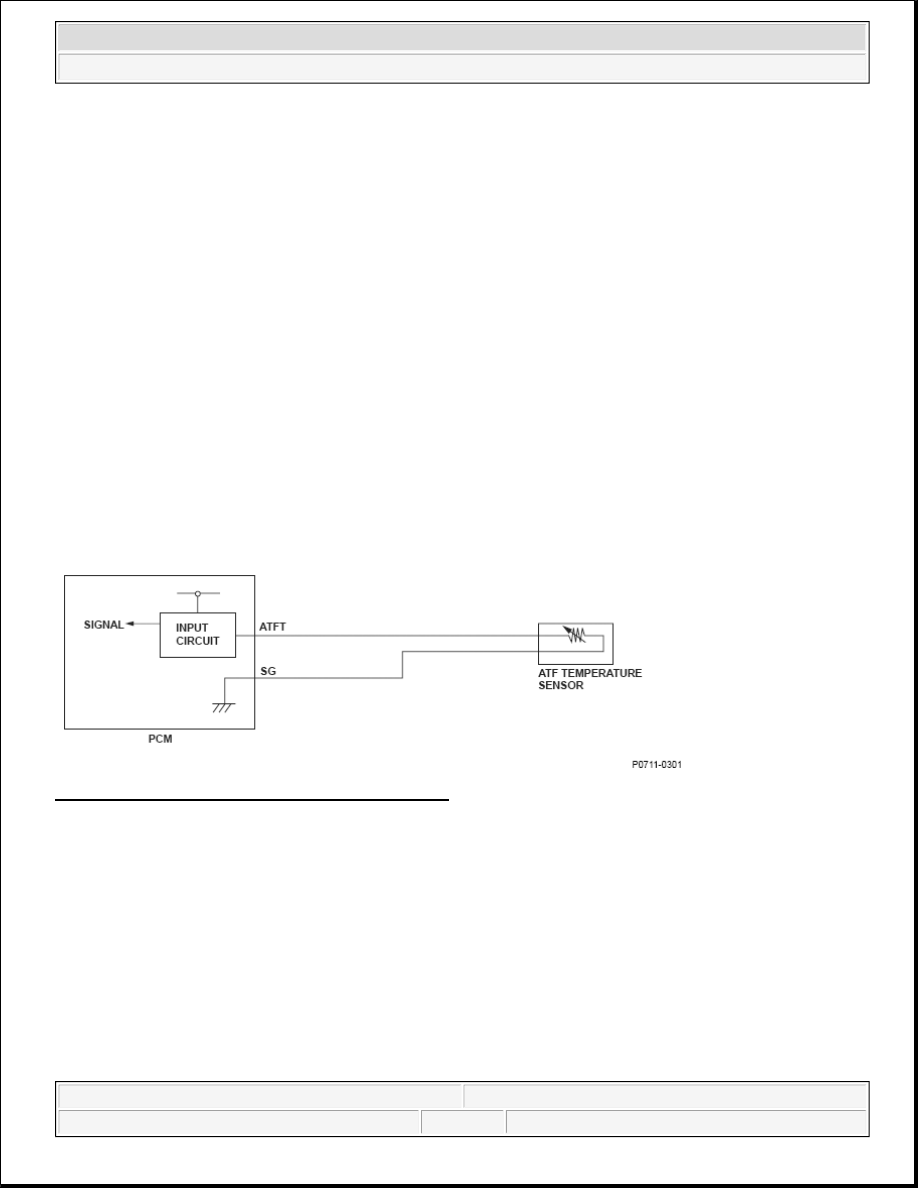

Fig. 96: ATF Temperature Sensor Circuit Diagram

General Description

The ATF temperature sensor is a thermistor type sensor whose resistance changes according to the change in
ATF temperature. The powertrain control module (PCM) sends a 5 V reference voltage to the grounded sensor
through a pull-up resistor. When the ATF temperature is low, the sensor resistance increases and the PCM
detects a high signal voltage. As the ATF temperature rises, the sensor resistance decreases and the PCM
detects a low signal voltage.

When the ATF temperature sensor signal voltage to the PCM is above the specification, indicating that the
temperature is under the specification (open), a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The ATF temperature sensor output voltage is 4.93 V or more for at least 10 seconds.

Driving Pattern

Start the engine, shift to the P position, and wait for at least 10 seconds.

Diagnosis Details

Conditions for illuminating the indicator

When a malfunction is detected, the D indicator blinks, and the DTC and the freeze frame data are stored in the
PCM memory. The MIL does not come on.

Conditions for clearing the DTC

The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting
the battery.

DTC P0716 (15): ADVANCED DIAGNOSTICS

DTC P0716: PROBLEM IN INPUT SHAFT (MAINSHAFT) SPEED SENSOR CIRCUIT

Execution

Continuous

Sequence

None

Duration

10 seconds or more

DTC Type

One drive cycle, MIL OFF, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery voltage

11.0 V

-

No active DTCs

P0711, P0712



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



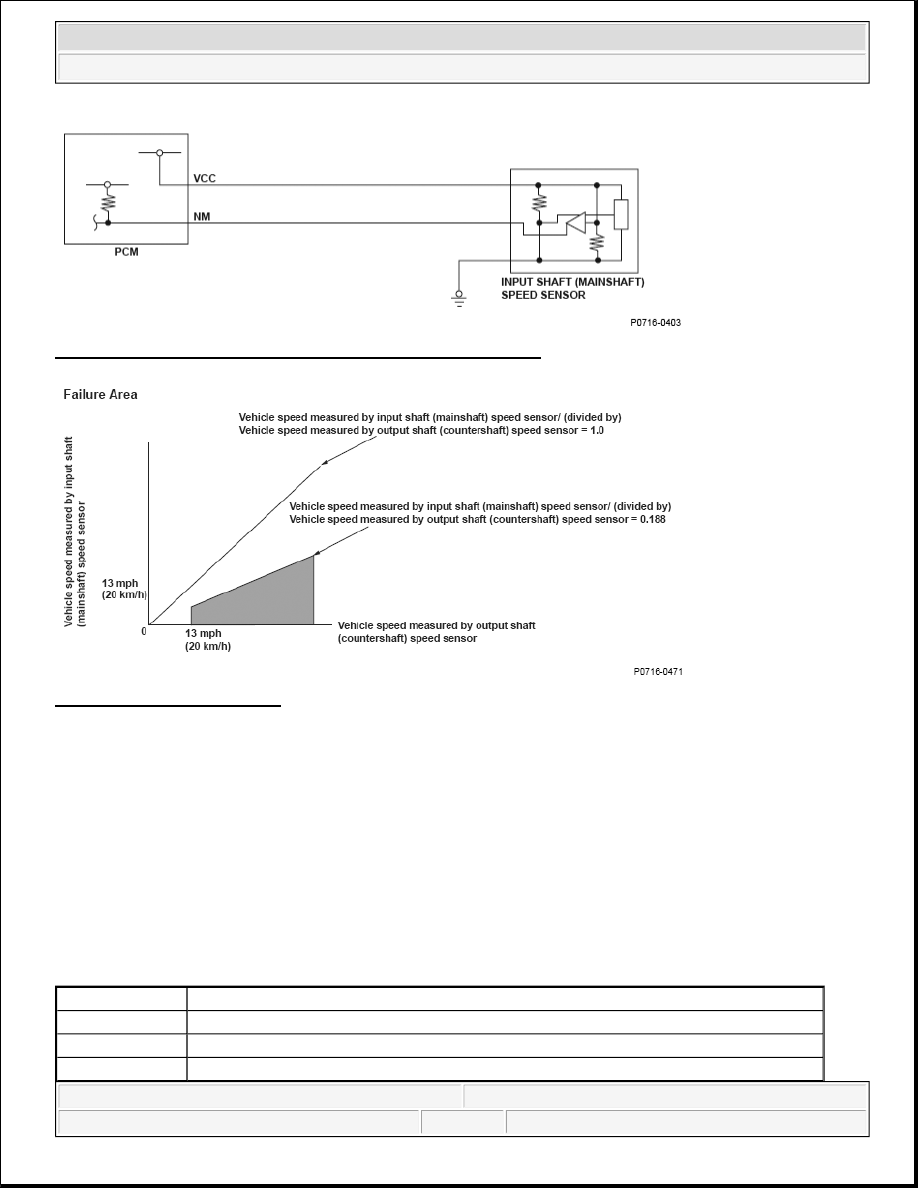

Fig. 97: Input Shaft (Mainshaft) Speed Sensor Circuit Diagram

Fig. 98: Vehicle Speed Graph

General Description

The input shaft (mainshaft) speed sensor is attached to the outside of the transmission housing. The input shaft
(mainshaft) speed sensor generates a pulsing signal according to the speed of the input shaft (mainshaft) idler
gear on the input shaft (mainshaft). Using that signal, the powertrain control module (PCM) determines the
speed of the input shaft (mainshaft). If no pulses occur with the input shaft (mainshaft) rotating, the PCM
detects a malfunction that may be caused by an open, a temporary open, or a short to ground. Based on the
velocity ratio measured by the output shaft (countershaft) speed sensor and the input shaft (mainshaft) speed
sensor, a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Execution

Continuous

Sequence

None

Duration

10 seconds or more

DTC Type

One drive cycle, MIL ON, D indicator blinks



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The vehicle speed measured by the input shaft (mainshaft) speed sensor/(divided by) the vehicle speed
measured by the output shaft (countershaft) speed sensor < 0.188 for at least 10 seconds.

Driving Pattern

Start the engine, and drive the vehicle at a speed of 13 mph (20 km/h) or more for at least 10 seconds.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0717 (15): ADVANCED DIAGNOSTICS

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine speed 500 rpm

-

Vehicle speed 13 mph (20 km/h)

-

Battery
voltage

11.0 V

-

Shift lever
position

D, 2, or 1

No active
DTCs

P0705, P0706, P0717, P0721, P0722, P0962, P0963, P0966, P0967, P0970, P0971,
P0973, P0974, P0976, P0977, P0979, P0980, P0982, P0983, P0985, P0986

Others

Not during shifting
Not when the shift lever is being shifted
No electrical noise in the output shaft (countershaft) speed sensor output circuit
