When the change in coolant temperature after 10 minutes or more of running time is 50 °F (10 °C) or less, a
malfunction is detected.

Malfunction determination 2:

With a partially cooled engine (one that has been off for less than 6 hours):

When the difference between the coolant temperature after 10 minutes or more of running time minus the
coolant temperature after the engine has been off for 150 minutes and then run for 10 seconds is 50 °F (10 °C)
or less, a malfunction is detected.

Driving Pattern



With a completely cooled engine (one that has been off for at least 6 hours).

1. Start the engine, and let it idle for at least 10 minutes.

2. Turn off the ignition for 10 seconds, then restart the engine and let it idle for at least 10 seconds.



With a partially cooled engine (one that has been off for less than 6 hours).

1. Start the engine, and let it idle for at least 10 minutes.

2. Turn off the ignition for 150 minutes, then restart the engine and let it idle for at least 10 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0117 (6): ADVANCED DIAGNOSTICS

DTC P0117: ENGINE COOLANT TEMPERATURE (ECT) SENSOR 1 CIRCUIT LOW VOLTAGE



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



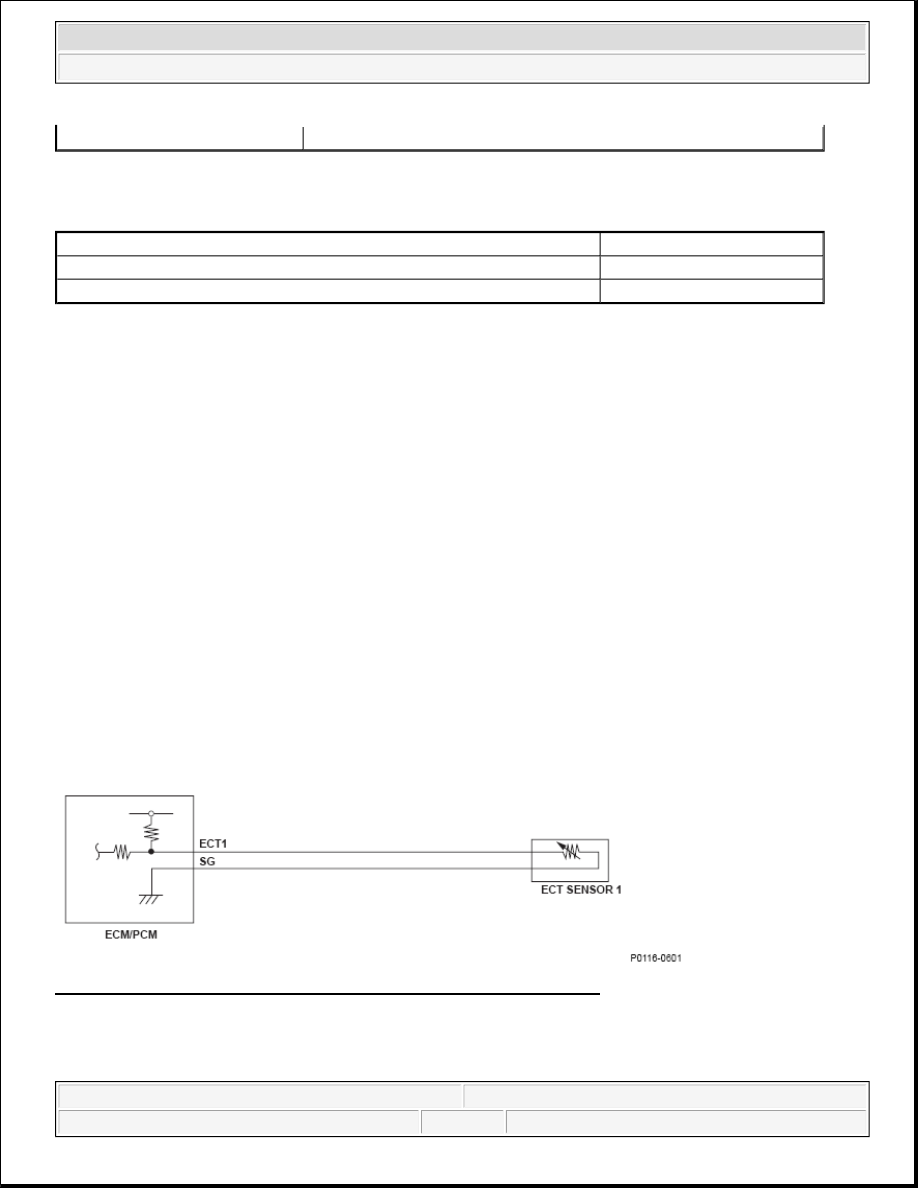

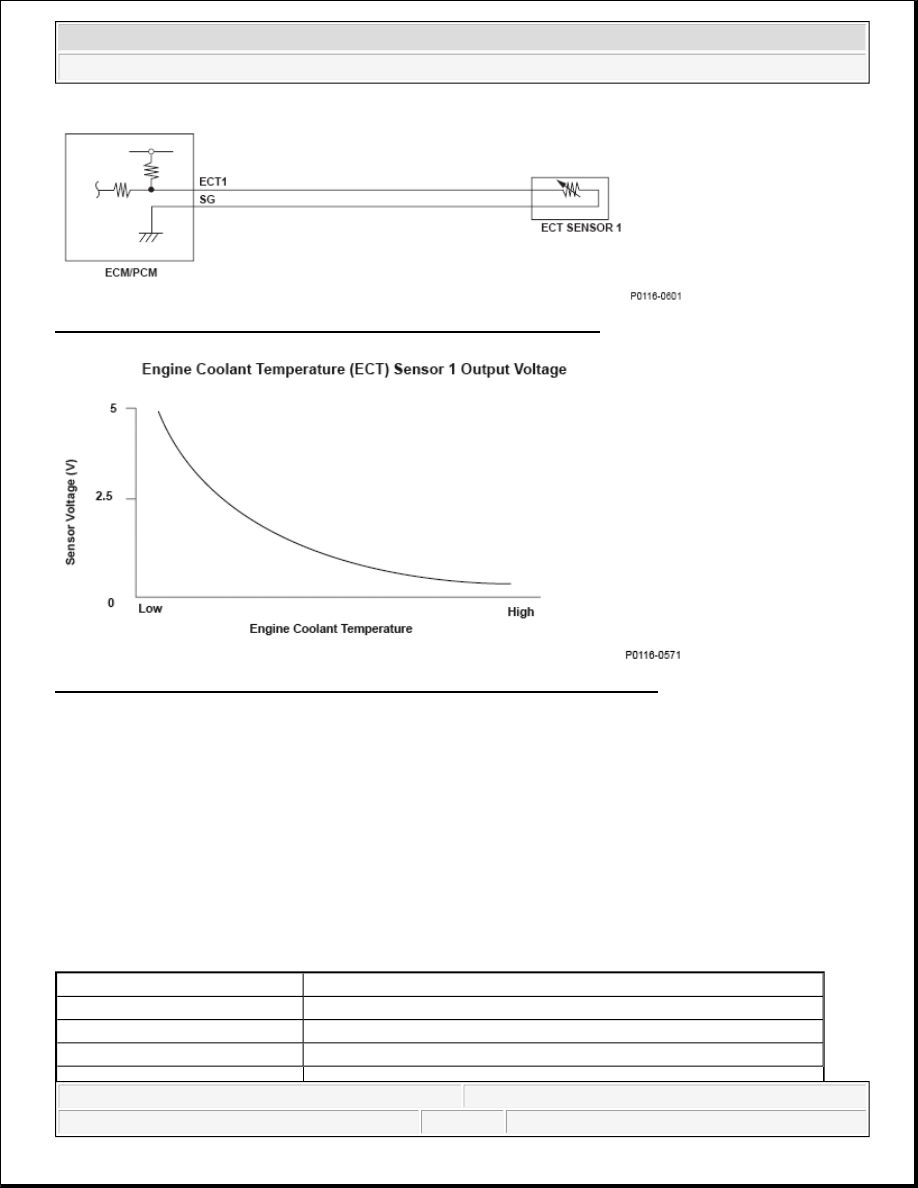

Fig. 18: Engine Coolant Temperature (ECT) Sensor 1 Circuit Diagram

Fig. 19: Engine Coolant Temperature (ECT) Sensor 1 Output Voltage - Graph

General Description

Engine coolant temperature (ECT) sensor 1 is used for air/fuel ratio feedback control, ignition timing control,
idle speed control, and other functions. The ECT sensor 1 resistance varies depending on the engine coolant
temperature. As the engine coolant cools, the ECT sensor 1 resistance increases, and the engine control module
(ECM)/powertrain control module (PCM) detects a high signal voltage. As the engine coolant warms, the ECT
sensor 1 resistance decreases, and the ECM/PCM detects a low signal voltage. If the ECT sensor 1 output
voltage is less than a set value when the engine coolant temperature is high, the ECM/PCM detects a
malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Execution

Continuous

Sequence

None

Duration

2 seconds or more

DTC Type

One drive cycle, MIL ON



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The ECT sensor 1 output voltage is 0.08 V or less for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0118 (6): ADVANCED DIAGNOSTICS

DTC P0118: ENGINE COOLANT TEMPERATURE (ECT) SENSOR 1 CIRCUIT HIGH VOLTAGE

Fig. 20: Engine Coolant Temperature (ECT) Sensor 1 Circuit Diagram

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P0118



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



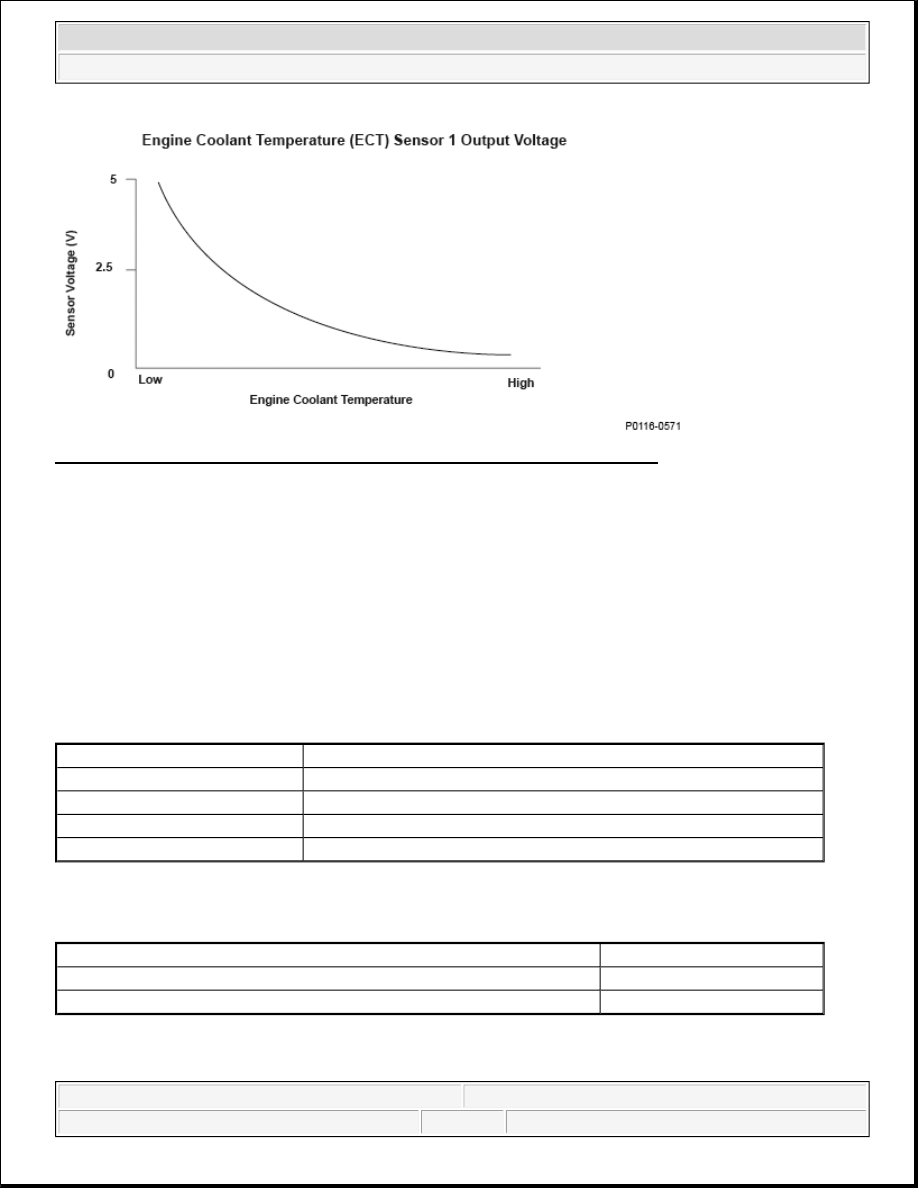

Fig. 21: Engine Coolant Temperature (ECT) Sensor 1 Output Voltage - Graph

General Description

Engine coolant temperature (ECT) sensor 1 is used for air/fuel ratio feedback control, ignition timing control,
idle speed control, and other functions. The ECT sensor 1 resistance varies depending on the engine coolant
temperature. As the engine coolant cools, the ECT sensor 1 resistance increases, and the engine control module
(ECM)/powertrain control module (PCM) detects a high signal voltage. As the engine coolant warms, the ECT
sensor 1 resistance decreases, and the ECM/PCM detects a low signal voltage. If the ECT sensor 1 output
voltage is more than a set value when the engine coolant temperature is low, the ECM/PCM detects a
malfunction and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

Execution

Continuous

Sequence

None

Duration

2 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P0117
