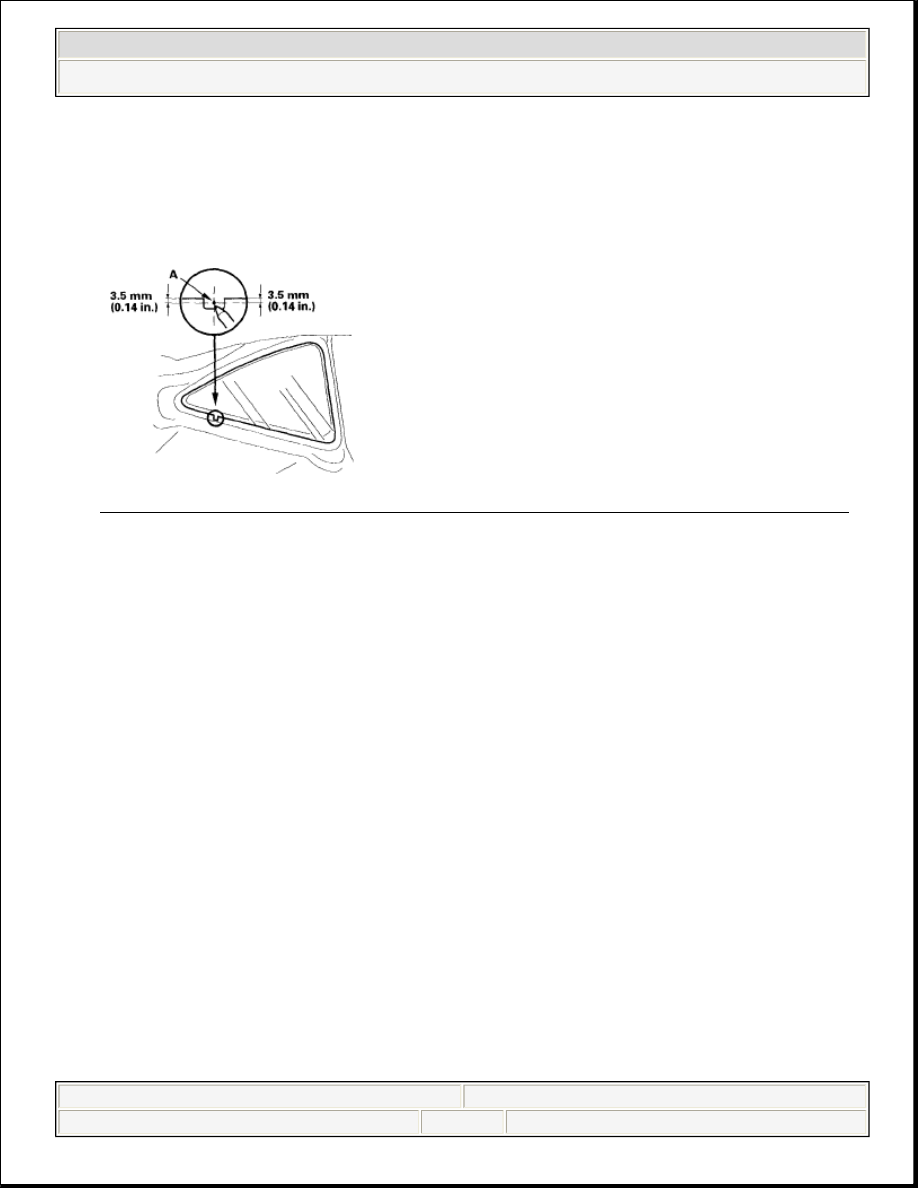

face and the edge of the glass with alcohol where new adhesive will be applied. 9. Set the quarter glass in the opening. Make an alignment mark (A) to the quarter glass with a grease pencil as shown where the clip will be installed. Fig. 57: Making Alignment Mark To Quarter Glass (With Specifications) 10. Remove the quarter glass. molding), apply a light coat of primer, then apply butyl tape (A) to the molding Be sure the clip line up with alignment mark (E) you made in step 9. Be careful not to touch the quarter glass where adhesive will be applied. Do not peel the separator off the butyl tape. Clip adhesive tape: Thickness 0.4 mm (0.016 in.)
2008 Honda Civic EX 2006-08 ACCESSORIES & EQUIPMENT Glass - Civic (All Except Hybrid)
|
