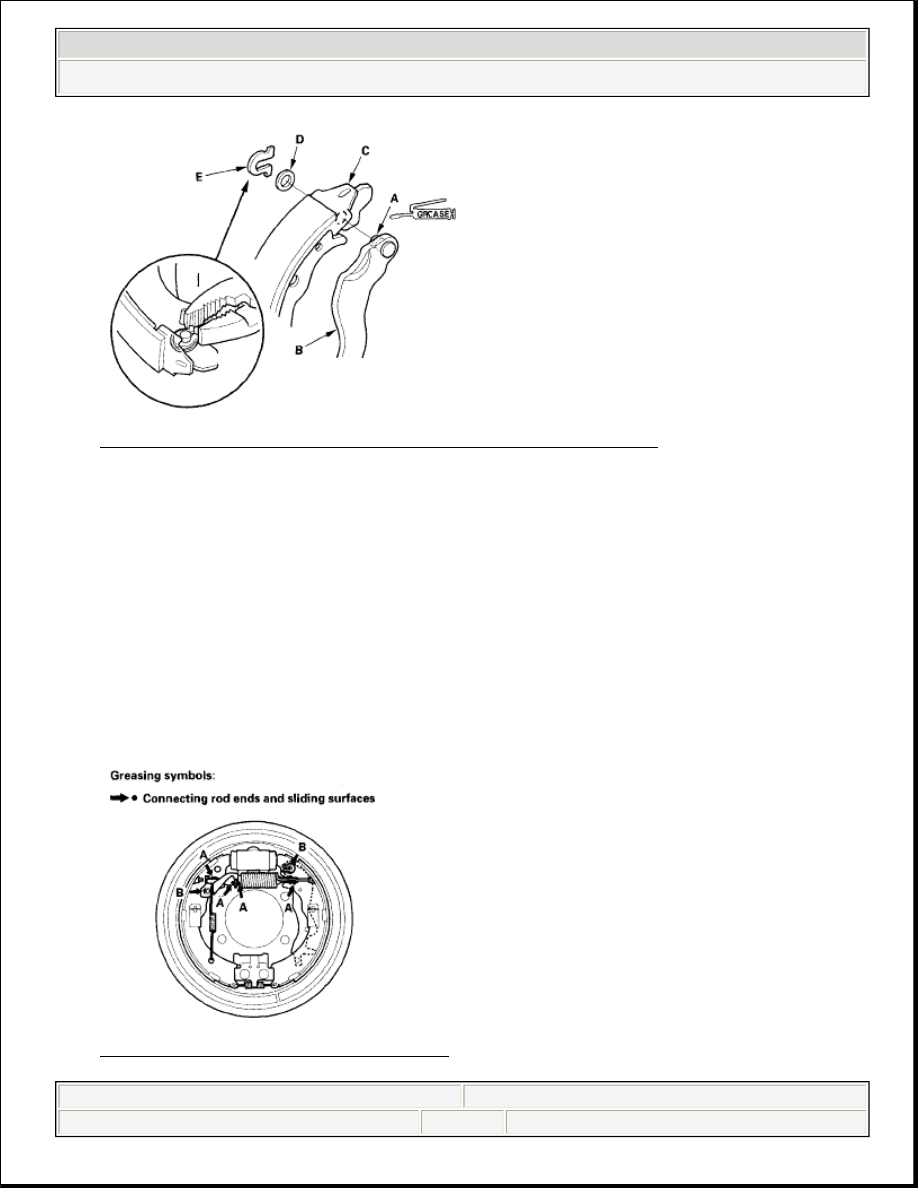

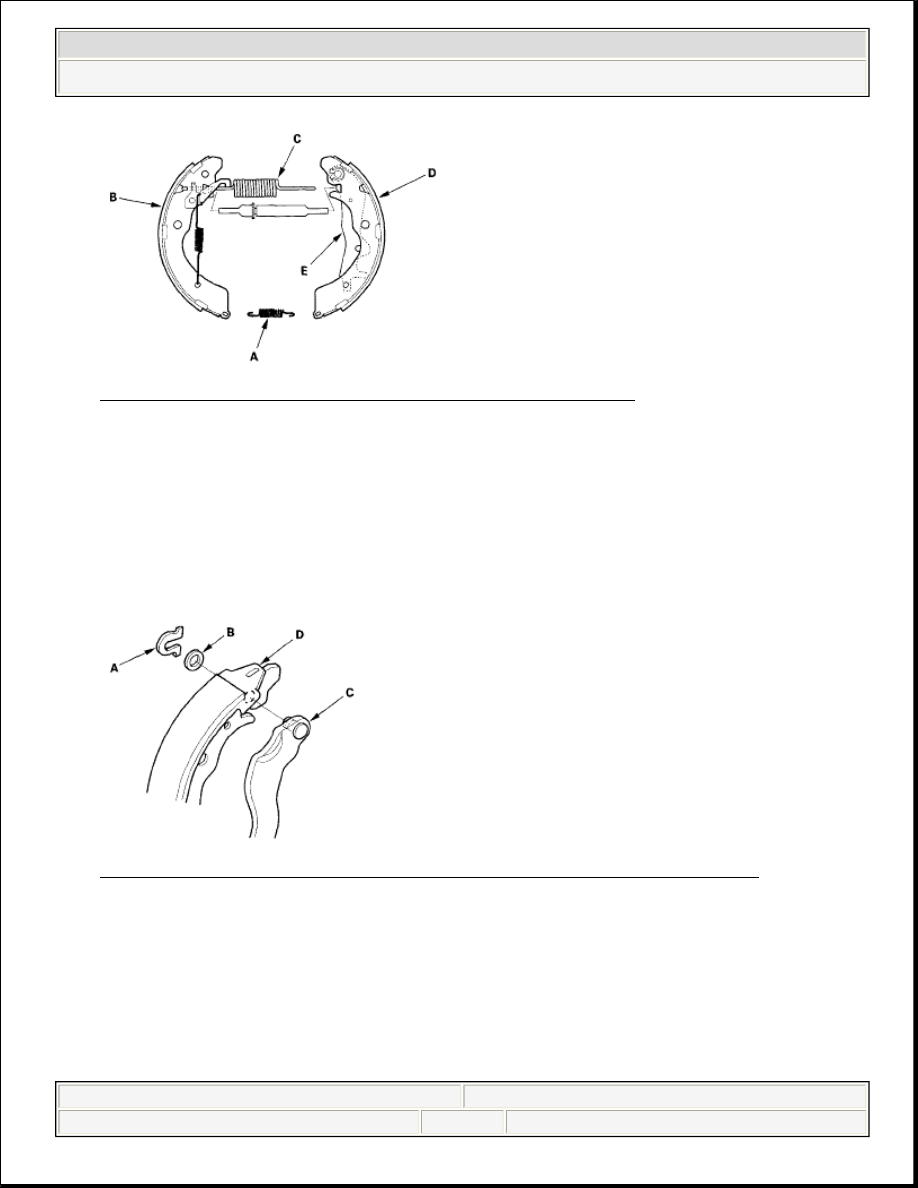

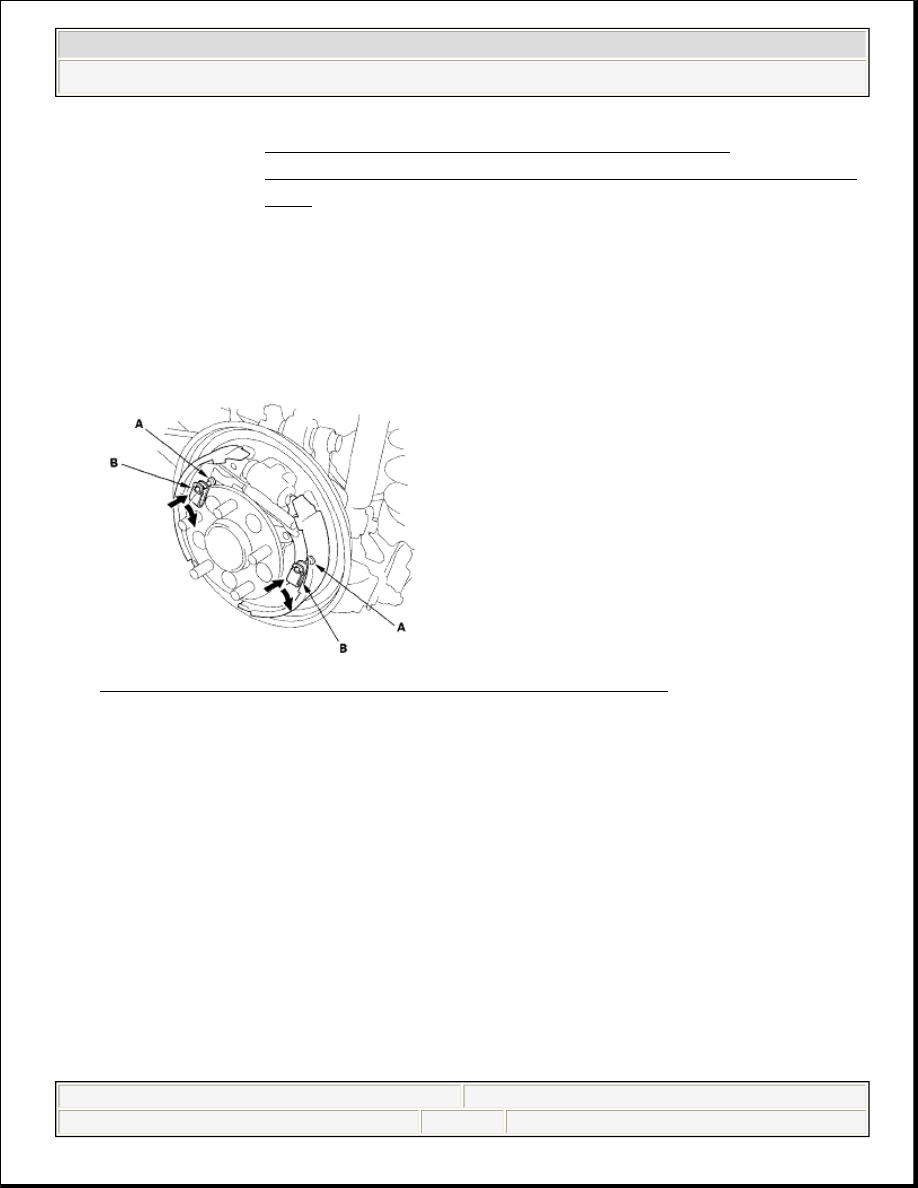

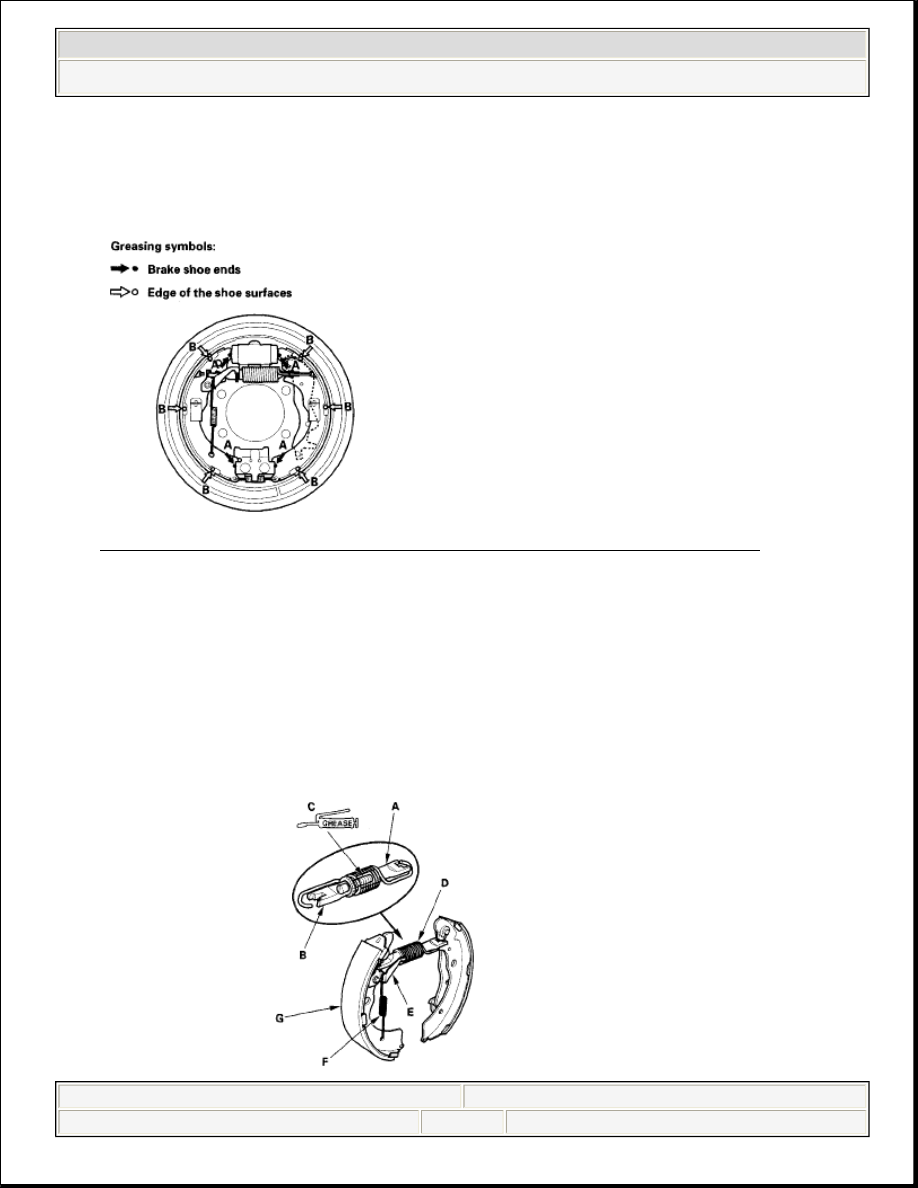

Fig. 18: Identifying Brake Shoe Assembly Over Hub 7. Remove the forward brake shoe (B) by removing the upper return spring (C), and disassemble the brake shoe assembly. 8. Remove the rearward brake shoe (D) by disconnecting the parking brake cable from the parking brake lever (E). 9. Remove the U-clip (A), and wave washer (B), and separate the parking brake lever (C) from the brake shoe (D). Fig. 19: Identifying U-Clip, And Wave Washer, And Brake Shoe REASSEMBLY 1. Apply rubber grease to the sliding surface of the pivot pin (A) on the parking brake lever (B).
